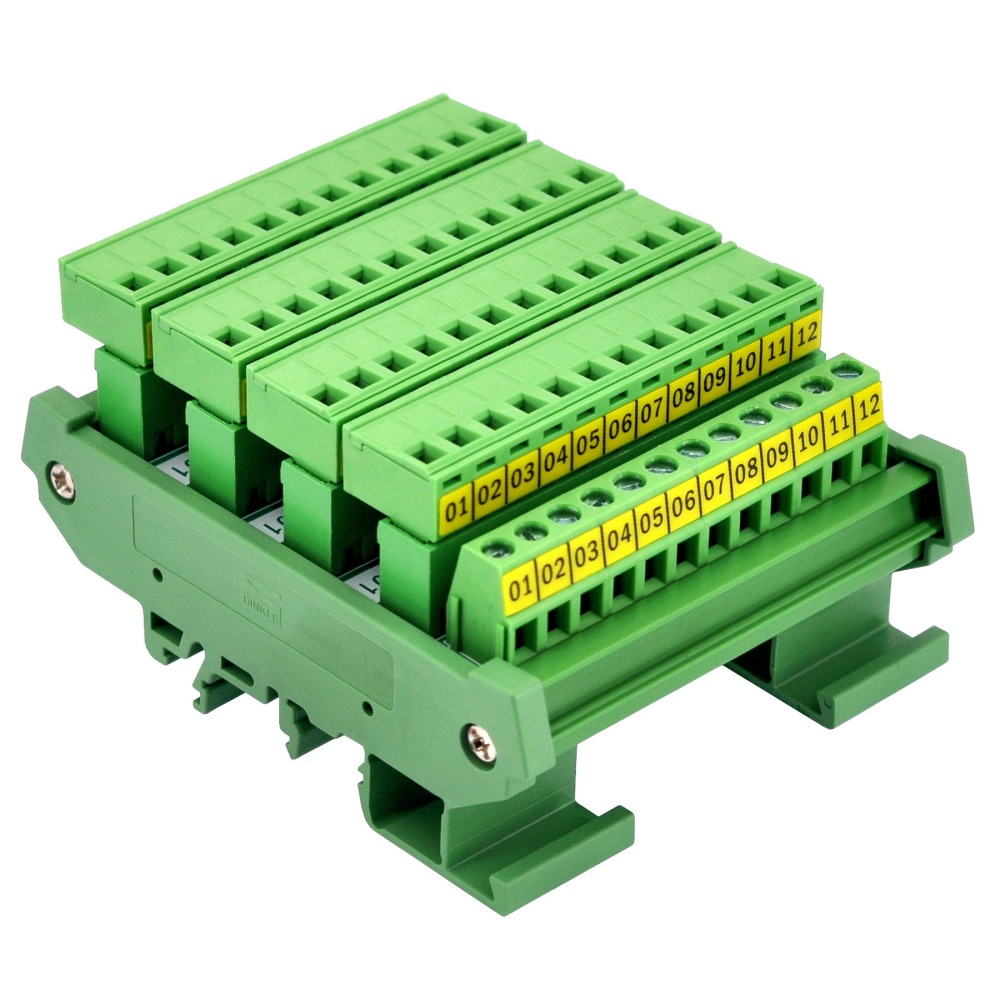

Slim DIN Rail Mount 10A/300V 5x12 Position Pluggable Screw Terminal Block Distribution Module

SKU: D-1520T
$25.00 $25.00
Slim DIN Rail Mount 10A/300V 5x12 Position Pluggable Screw Terminal Block Distribution Module
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-max
    Please select the information you wantX
Quantity:
1 * $25 = $25
save $0.00
Add to Favorites
  • Slim DIN Rail Mount 10A/300V 5x12 Position Pluggable Screw Terminal Block Distribution Module
  • Slim DIN Rail Mount 10A/300V 5x12 Position Pluggable Screw Terminal Block Distribution Module
  • Slim DIN Rail Mount 10A/300V 5x12 Position Pluggable Screw Terminal Block Distribution Module
  • Slim DIN Rail Mount 10A/300V 5x12 Position Pluggable Screw Terminal Block Distribution Module
  • Slim DIN Rail Mount 10A/300V 5x12 Position Pluggable Screw Terminal Block Distribution Module
  • Slim DIN Rail Mount 10A/300V 5x12 Position Pluggable Screw Terminal Block Distribution Module
  • Slim DIN Rail Mount 10A/300V 5x12 Position Pluggable Screw Terminal Block Distribution Module
  • Slim DIN Rail Mount 10A/300V 5x12 Position Pluggable Screw Terminal Block Distribution Module
  • Slim DIN Rail Mount 10A/300V 5x12 Position Pluggable Screw Terminal Block Distribution Module
  • Slim DIN Rail Mount 10A/300V 5x12 Position Pluggable Screw Terminal Block Distribution Module
  • Slim DIN Rail Mount 10A/300V 5x12 Position Pluggable Screw Terminal Block Distribution Module
  • Slim DIN Rail Mount 10A/300V 5x12 Position Pluggable Screw Terminal Block Distribution Module
  • Slim DIN Rail Mount 10A/300V 5x12 Position Pluggable Screw Terminal Block Distribution Module
  • Slim DIN Rail Mount 10A/300V 5x12 Position Pluggable Screw Terminal Block Distribution Module
1/1
  • Slim DIN Rail Mount 10A/300V 5x12 Position Pluggable Screw Terminal Block Distribution Module
  • Slim DIN Rail Mount 10A/300V 5x12 Position Pluggable Screw Terminal Block Distribution Module
  • Slim DIN Rail Mount 10A/300V 5x12 Position Pluggable Screw Terminal Block Distribution Module
  • Slim DIN Rail Mount 10A/300V 5x12 Position Pluggable Screw Terminal Block Distribution Module
  • Slim DIN Rail Mount 10A/300V 5x12 Position Pluggable Screw Terminal Block Distribution Module
  • Slim DIN Rail Mount 10A/300V 5x12 Position Pluggable Screw Terminal Block Distribution Module
  • Slim DIN Rail Mount 10A/300V 5x12 Position Pluggable Screw Terminal Block Distribution Module
  • Description

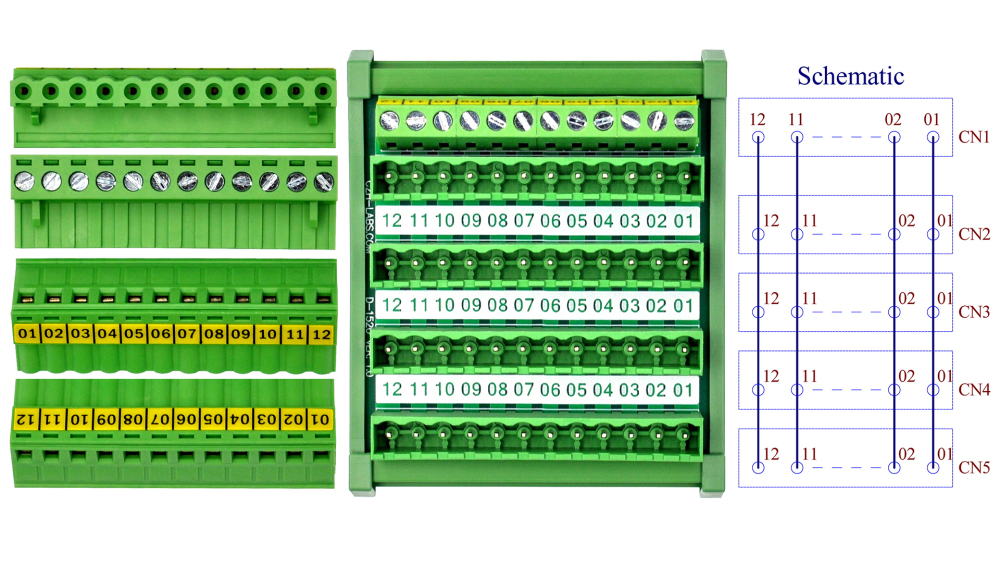

1,  Pluggable Terminal Block: 4x 12 Position pluggable screw terminal block, top wire connects, pitch 5.08mm / 0.2", strip length 7mm, screws - M2.5, Wire range 28AWG ~ 12AWG / 2.5mm square. Rated voltage 300V, rated current 10Amp(per position).
2,  PCB mount Terminal Block: 1x 12 Position PCB mount screw terminal block, pitch 5.0mm/0.197", strip length 7mm, screws - M2.5, Wire range 28AWG ~ 12AWG / 2.5mm square. Rated voltage 300V, rated current 16Amp(per position).

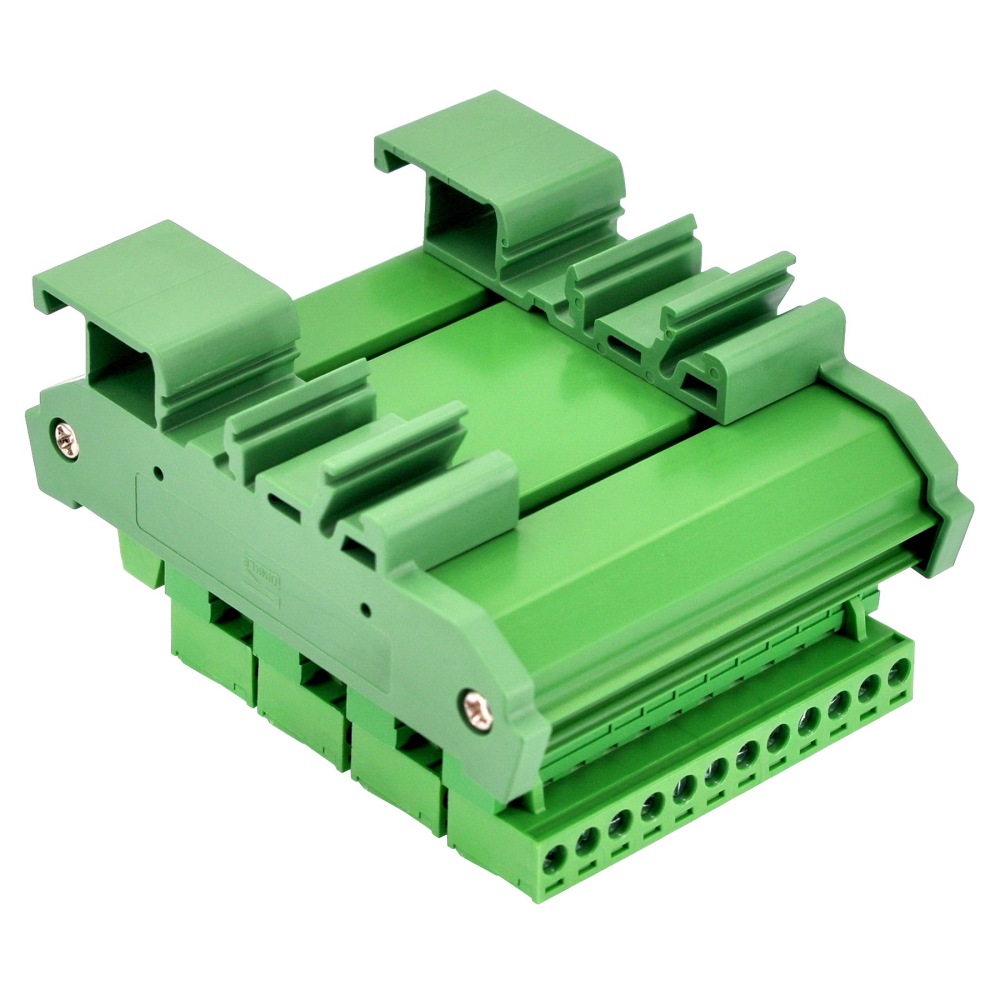

3,  High quality fireproof nylon material DIN rail mount carrier, can support width 35mm, 32mm or 15mm rail. FR-4 fiberglass dual copper layers PCB.
4,  UL CE CQC certified terminal blocks, UL 94-V0 certified PCB, and UL CE certified DIN rail mount carrier.
