16Amp 300V 2x6 Position Pluggable Screwless Terminal Block Distribution Module. OONO D-1652GPN

SKU: D-1652GPN
$10.40 $12.99
16Amp 300V 2x6 Position Pluggable Screwless Terminal Block Distribution Module. OONO D-1652GPN
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-max
    Please select the information you wantX
Quantity:
100 * $10.4 = $1040
save $0.00
Add to Favorites
  • 16Amp 300V 2x6 Position Pluggable Screwless Terminal Block Distribution Module. OONO D-1652GPN
  • 16Amp 300V 2x6 Position Pluggable Screwless Terminal Block Distribution Module. OONO D-1652GPN
  • 16Amp 300V 2x6 Position Pluggable Screwless Terminal Block Distribution Module. OONO D-1652GPN
  • 16Amp 300V 2x6 Position Pluggable Screwless Terminal Block Distribution Module. OONO D-1652GPN
  • 16Amp 300V 2x6 Position Pluggable Screwless Terminal Block Distribution Module. OONO D-1652GPN
  • 16Amp 300V 2x6 Position Pluggable Screwless Terminal Block Distribution Module. OONO D-1652GPN
  • 16Amp 300V 2x6 Position Pluggable Screwless Terminal Block Distribution Module. OONO D-1652GPN
  • 16Amp 300V 2x6 Position Pluggable Screwless Terminal Block Distribution Module. OONO D-1652GPN
  • 16Amp 300V 2x6 Position Pluggable Screwless Terminal Block Distribution Module. OONO D-1652GPN
  • 16Amp 300V 2x6 Position Pluggable Screwless Terminal Block Distribution Module. OONO D-1652GPN
  • 16Amp 300V 2x6 Position Pluggable Screwless Terminal Block Distribution Module. OONO D-1652GPN
  • 16Amp 300V 2x6 Position Pluggable Screwless Terminal Block Distribution Module. OONO D-1652GPN
  • 16Amp 300V 2x6 Position Pluggable Screwless Terminal Block Distribution Module. OONO D-1652GPN
  • 16Amp 300V 2x6 Position Pluggable Screwless Terminal Block Distribution Module. OONO D-1652GPN
1/1
  • 16Amp 300V 2x6 Position Pluggable Screwless Terminal Block Distribution Module. OONO D-1652GPN
  • 16Amp 300V 2x6 Position Pluggable Screwless Terminal Block Distribution Module. OONO D-1652GPN
  • 16Amp 300V 2x6 Position Pluggable Screwless Terminal Block Distribution Module. OONO D-1652GPN
  • 16Amp 300V 2x6 Position Pluggable Screwless Terminal Block Distribution Module. OONO D-1652GPN
  • 16Amp 300V 2x6 Position Pluggable Screwless Terminal Block Distribution Module. OONO D-1652GPN
  • 16Amp 300V 2x6 Position Pluggable Screwless Terminal Block Distribution Module. OONO D-1652GPN
  • 16Amp 300V 2x6 Position Pluggable Screwless Terminal Block Distribution Module. OONO D-1652GPN
  • Description

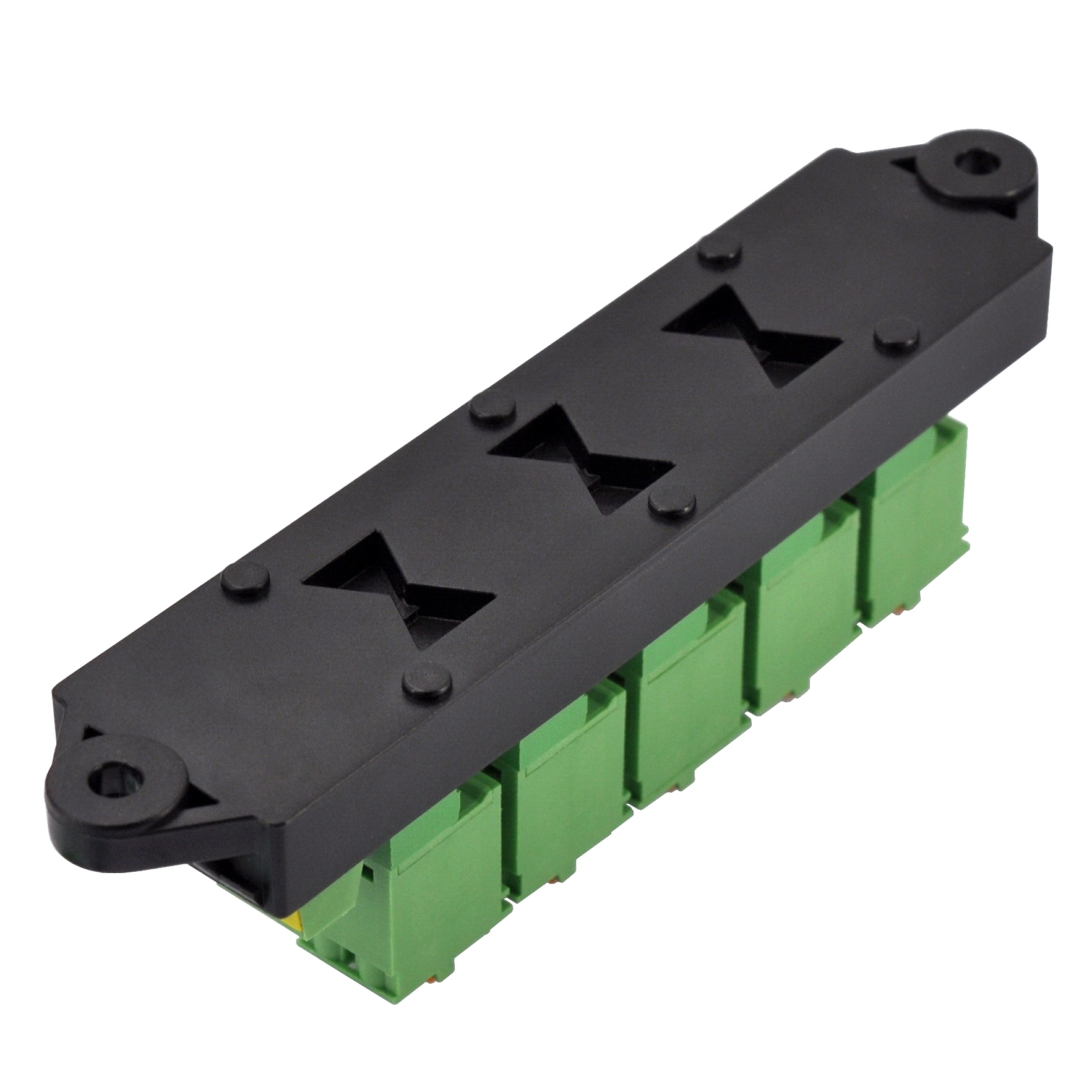

1, 16Amp 300V 2x6 position pluggable screwless terminal block distribution module.
2, Rated current 16 Amp(per pole total input or output), Maximum voltage 300V.
3, Input: 1x 2 pole screw terminal block, Pitch 5.0mm/0.197", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
4, Output: 5x 2 pole pluggable screwless terminal blocks, Pitch 5.08mm/0.2", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 12mp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
5, UL CE CQC certified terminal blocks, FR-4 glass fiber PCB. Mounting base: PC (Polycarbonate plastic). Screw: 304 stainless steel.

Other, if you can purchase more than 100 pieces, we can provide special customization services and print the content you want on the mounting base, such as your logo and product number, etc.
