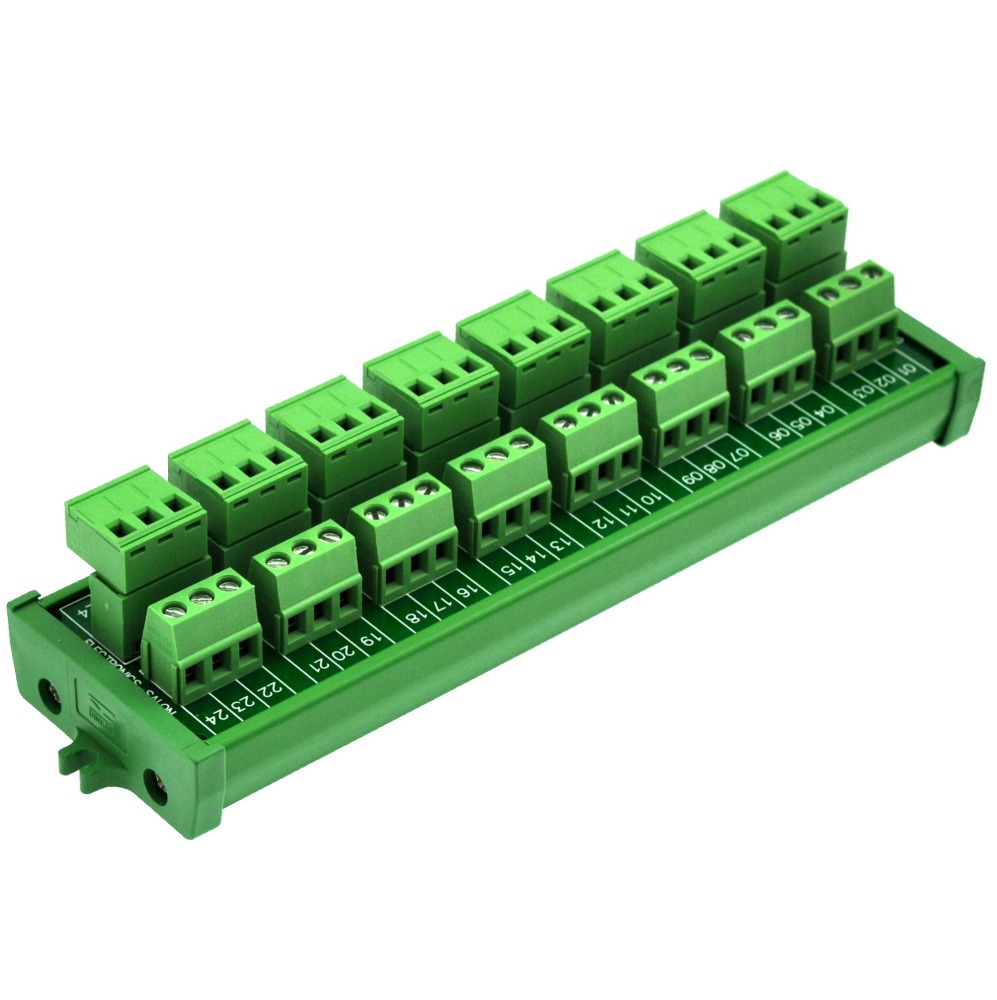

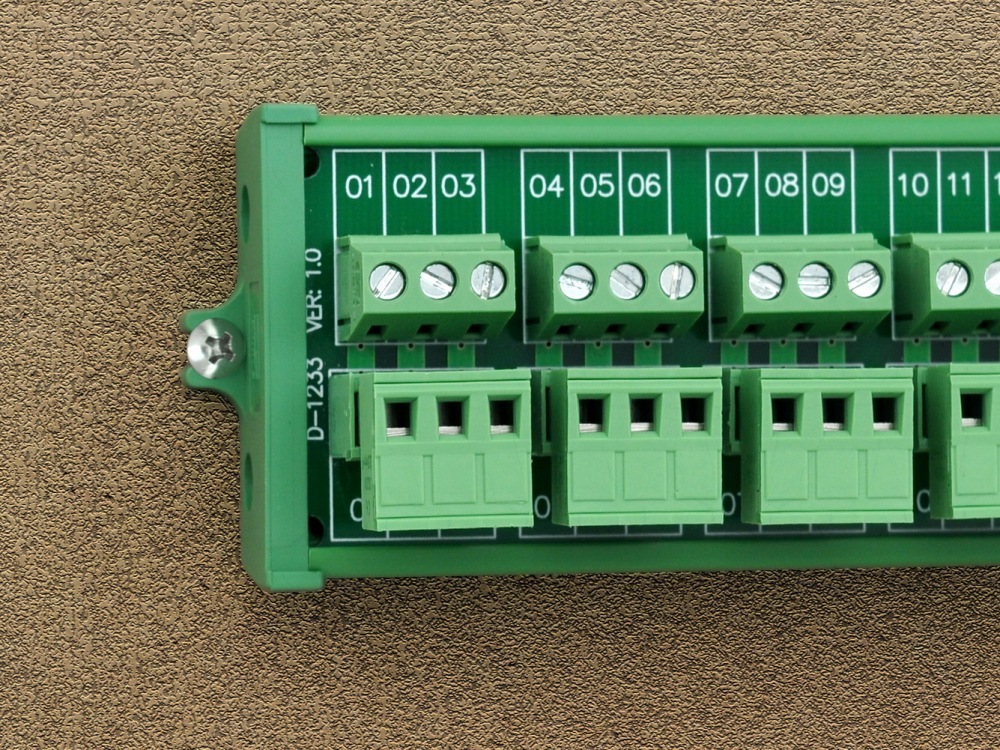

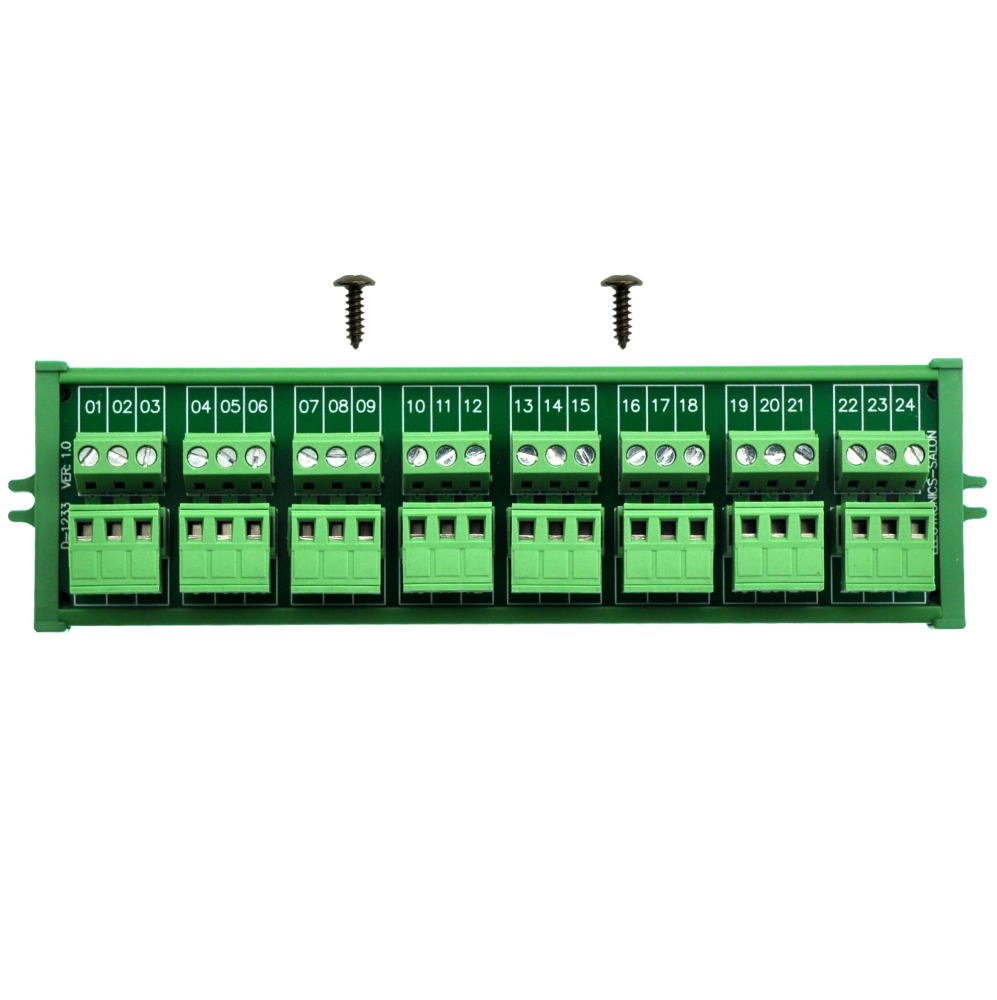

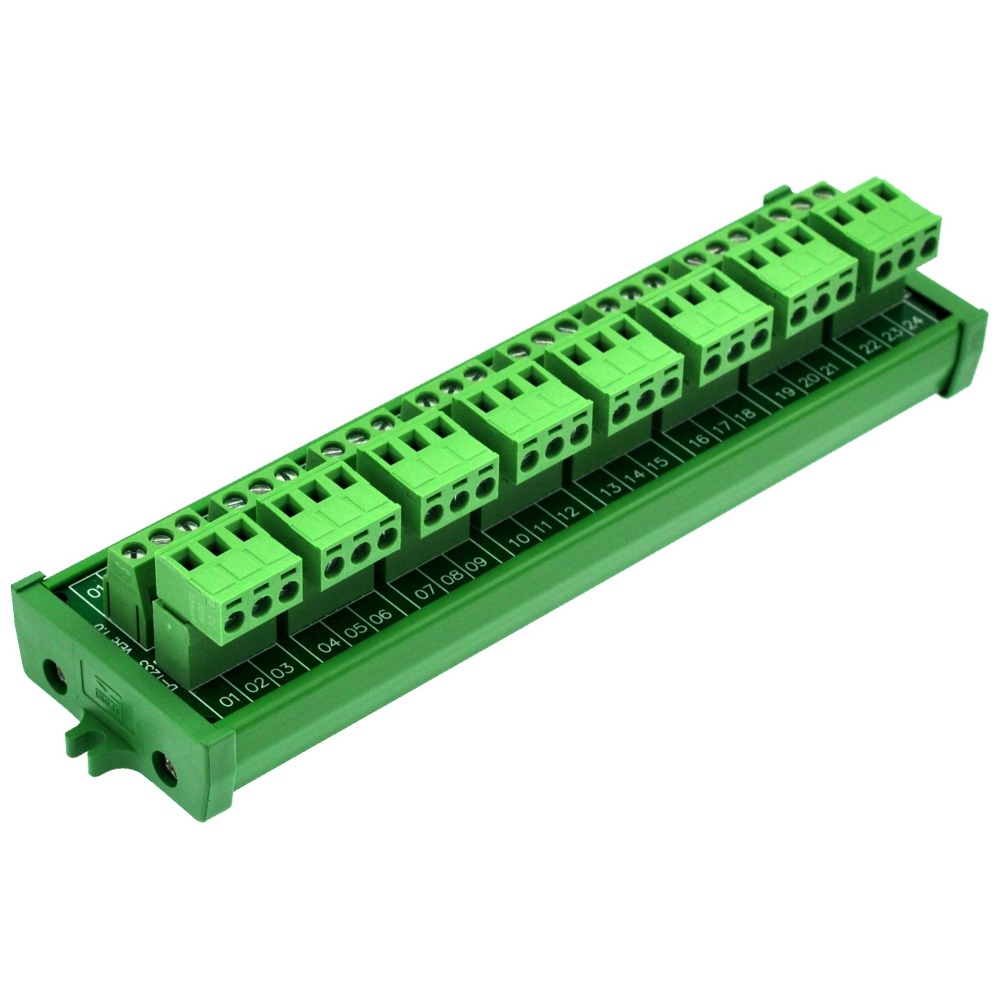

Screw mount 10A/300V 8x3 Pole Pluggable Top Wiring Terminal Block Module

SKU: D-1233VP
$20.00 $20.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $20 = $20
save $0.00
Add to Favorites
  • Screw mount 10A/300V 8x3 Pole Pluggable Top Wiring Terminal Block Module
  • Screw mount 10A/300V 8x3 Pole Pluggable Top Wiring Terminal Block Module
  • Screw mount 10A/300V 8x3 Pole Pluggable Top Wiring Terminal Block Module
  • Screw mount 10A/300V 8x3 Pole Pluggable Top Wiring Terminal Block Module
  • Screw mount 10A/300V 8x3 Pole Pluggable Top Wiring Terminal Block Module
  • Screw mount 10A/300V 8x3 Pole Pluggable Top Wiring Terminal Block Module
  • Screw mount 10A/300V 8x3 Pole Pluggable Top Wiring Terminal Block Module
  • Screw mount 10A/300V 8x3 Pole Pluggable Top Wiring Terminal Block Module
  • Screw mount 10A/300V 8x3 Pole Pluggable Top Wiring Terminal Block Module
  • Screw mount 10A/300V 8x3 Pole Pluggable Top Wiring Terminal Block Module
  • Screw mount 10A/300V 8x3 Pole Pluggable Top Wiring Terminal Block Module
  • Screw mount 10A/300V 8x3 Pole Pluggable Top Wiring Terminal Block Module
  • Screw mount 10A/300V 8x3 Pole Pluggable Top Wiring Terminal Block Module
  • Screw mount 10A/300V 8x3 Pole Pluggable Top Wiring Terminal Block Module
  • Screw mount 10A/300V 8x3 Pole Pluggable Top Wiring Terminal Block Module
  • Screw mount 10A/300V 8x3 Pole Pluggable Top Wiring Terminal Block Module
1/1
  • Screw mount 10A/300V 8x3 Pole Pluggable Top Wiring Terminal Block Module
  • Screw mount 10A/300V 8x3 Pole Pluggable Top Wiring Terminal Block Module
  • Screw mount 10A/300V 8x3 Pole Pluggable Top Wiring Terminal Block Module
  • Screw mount 10A/300V 8x3 Pole Pluggable Top Wiring Terminal Block Module
  • Screw mount 10A/300V 8x3 Pole Pluggable Top Wiring Terminal Block Module
  • Screw mount 10A/300V 8x3 Pole Pluggable Top Wiring Terminal Block Module
  • Screw mount 10A/300V 8x3 Pole Pluggable Top Wiring Terminal Block Module
  • Screw mount 10A/300V 8x3 Pole Pluggable Top Wiring Terminal Block Module
  • Description

1, Input terminal: 8x 3 Pole PCB mount screw terminal block, pitch 5.0mm/0.197", strip length 7mm, screws - M2.5, Wire range 28AWG ~ 12AWG / 2.5mm square.

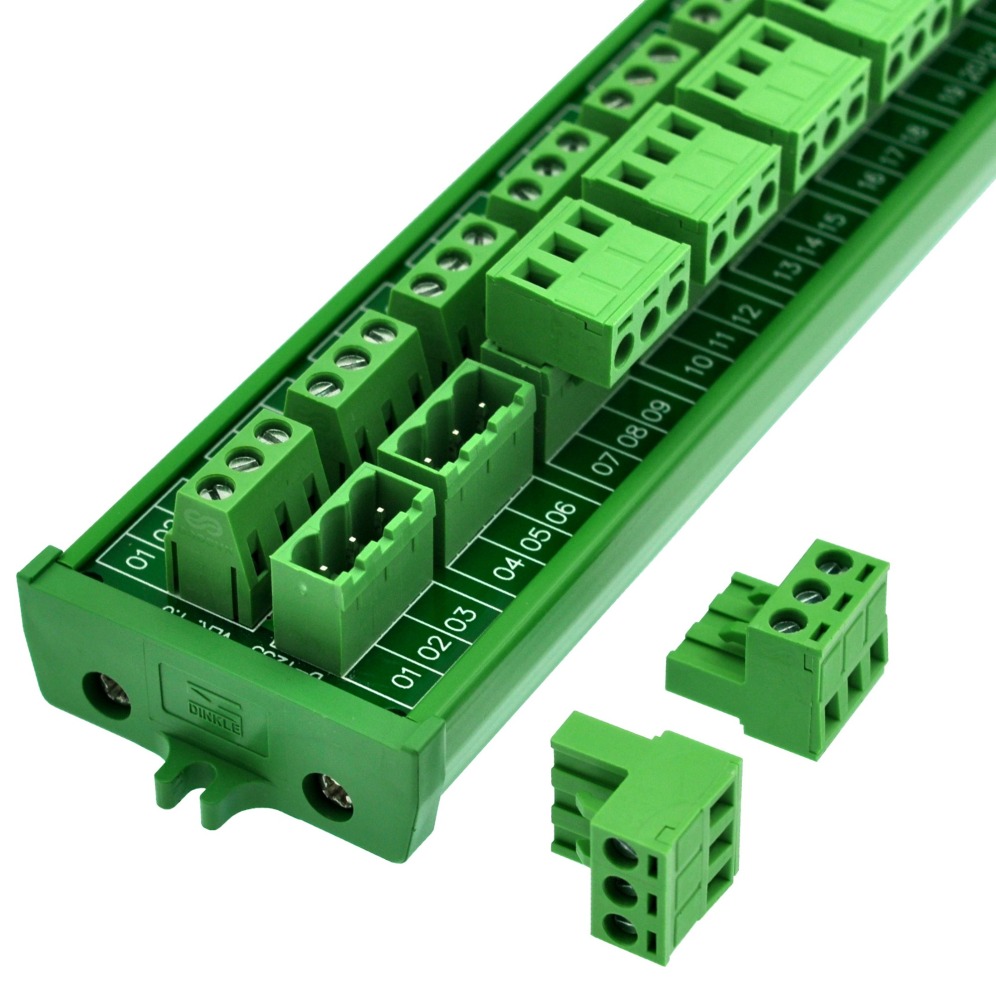

2, Output terminal: 8x 3 Pole pluggable screw terminal block, top wire connects, pitch 5.08mm / 0.2", strip length 7mm, screws - M2.5, Wire range 28AWG ~ 12AWG / 2.5mm square.
3, Rated voltage: 300V, rated current: 10 Amp (per pole).

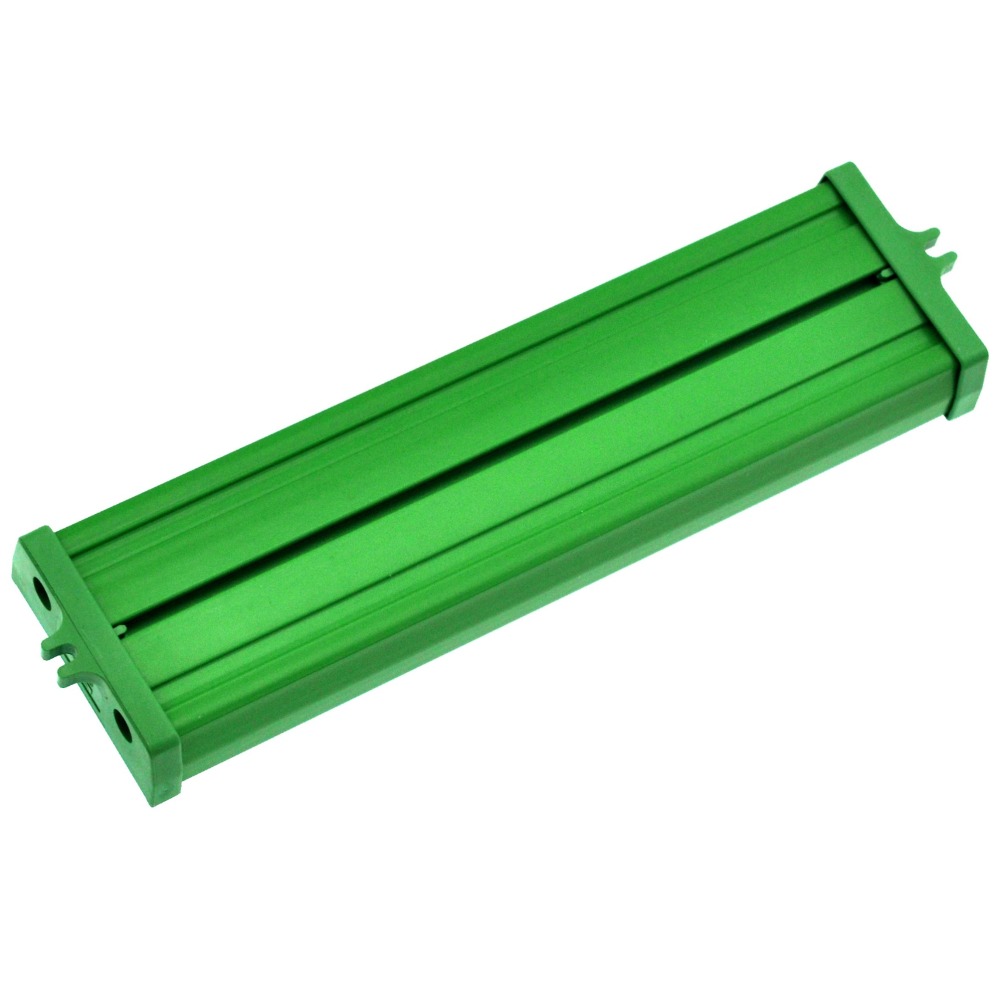

4, High quality fireproof nylon material mount carrier, and included two M3 x 10mm wood screws, you can easily mount it on a wooden board. FR-4 fiberglass dual copper layers PCB.
5, UL CE CQC certified terminal blocks, UL 94-V0 certified PCB, and UL CE certified DIN rail mount carrier.
