ELECTRONICS-SALON DIN Rail Mount DC5V 1 Channel DC-AC 2Amp G3MB-202P Solid State Relay SSR Module Board.

SKU: D-251T
$14.99 $14.99
ELECTRONICS-SALON DIN Rail Mount DC5V 1 Channel DC-AC 2Amp G3MB-202P Solid State Relay SSR Module Board.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $14.99 = $14.99
save $0.00
Add to Favorites
  • ELECTRONICS-SALON DIN Rail Mount DC5V 1 Channel DC-AC 2Amp G3MB-202P Solid State Relay SSR Module Board.
  • ELECTRONICS-SALON DIN Rail Mount DC5V 1 Channel DC-AC 2Amp G3MB-202P Solid State Relay SSR Module Board.
  • ELECTRONICS-SALON DIN Rail Mount DC5V 1 Channel DC-AC 2Amp G3MB-202P Solid State Relay SSR Module Board.
  • ELECTRONICS-SALON DIN Rail Mount DC5V 1 Channel DC-AC 2Amp G3MB-202P Solid State Relay SSR Module Board.
  • ELECTRONICS-SALON DIN Rail Mount DC5V 1 Channel DC-AC 2Amp G3MB-202P Solid State Relay SSR Module Board.
  • ELECTRONICS-SALON DIN Rail Mount DC5V 1 Channel DC-AC 2Amp G3MB-202P Solid State Relay SSR Module Board.
  • ELECTRONICS-SALON DIN Rail Mount DC5V 1 Channel DC-AC 2Amp G3MB-202P Solid State Relay SSR Module Board.
  • ELECTRONICS-SALON DIN Rail Mount DC5V 1 Channel DC-AC 2Amp G3MB-202P Solid State Relay SSR Module Board.
  • ELECTRONICS-SALON DIN Rail Mount DC5V 1 Channel DC-AC 2Amp G3MB-202P Solid State Relay SSR Module Board.
  • ELECTRONICS-SALON DIN Rail Mount DC5V 1 Channel DC-AC 2Amp G3MB-202P Solid State Relay SSR Module Board.
  • ELECTRONICS-SALON DIN Rail Mount DC5V 1 Channel DC-AC 2Amp G3MB-202P Solid State Relay SSR Module Board.
  • ELECTRONICS-SALON DIN Rail Mount DC5V 1 Channel DC-AC 2Amp G3MB-202P Solid State Relay SSR Module Board.
1/1
  • ELECTRONICS-SALON DIN Rail Mount DC5V 1 Channel DC-AC 2Amp G3MB-202P Solid State Relay SSR Module Board.
  • ELECTRONICS-SALON DIN Rail Mount DC5V 1 Channel DC-AC 2Amp G3MB-202P Solid State Relay SSR Module Board.
  • ELECTRONICS-SALON DIN Rail Mount DC5V 1 Channel DC-AC 2Amp G3MB-202P Solid State Relay SSR Module Board.
  • ELECTRONICS-SALON DIN Rail Mount DC5V 1 Channel DC-AC 2Amp G3MB-202P Solid State Relay SSR Module Board.
  • ELECTRONICS-SALON DIN Rail Mount DC5V 1 Channel DC-AC 2Amp G3MB-202P Solid State Relay SSR Module Board.
  • ELECTRONICS-SALON DIN Rail Mount DC5V 1 Channel DC-AC 2Amp G3MB-202P Solid State Relay SSR Module Board.
  • Description

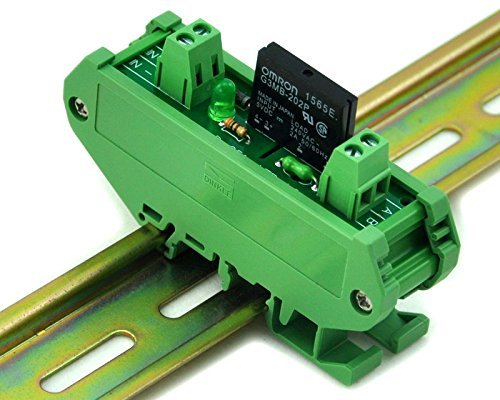

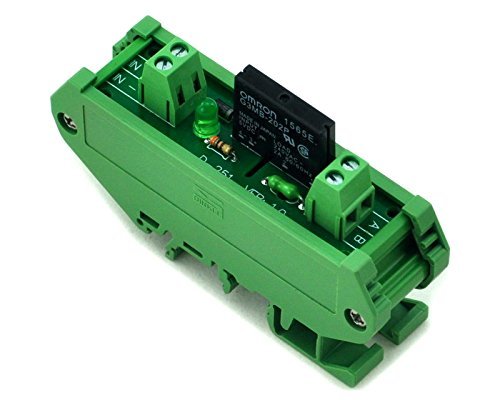

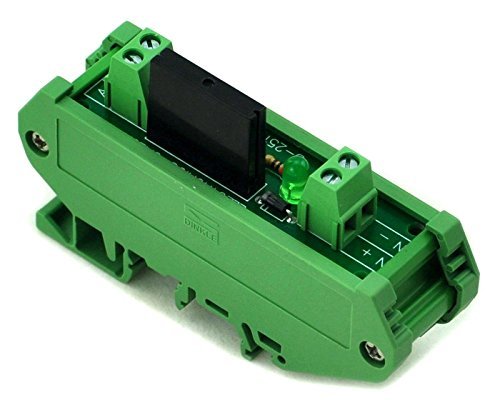

Electronics-Salon DC5V 1 Channel DC-AC 2Amp G3MB-202P Solid State Relay SSR Module Board.

Input control voltage DC5V, Current 20mA. LED indicator for SSR action.

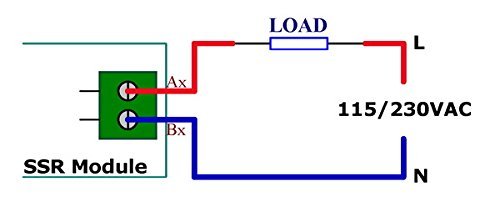

Rated output voltage: AC 100 ~ 240V(50/60Hz). Applicable load current: 0.1 ~ 2Amp(each channel).

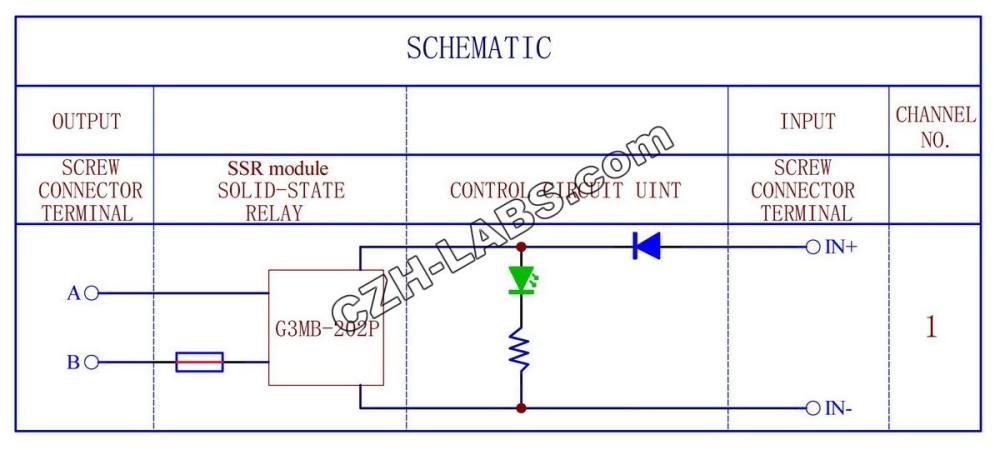

Pin Jumper option for control mode configurations in common positive or common negative.
SSR output series 3Amp fuse to protect your equipment.
G3MB-202P 5VDC SSR, Isolation: Phototriac. Zero cross: Yes. Rated output load: 2A at 100 to 240VAC (50/60Hz). Load type: General purpose.

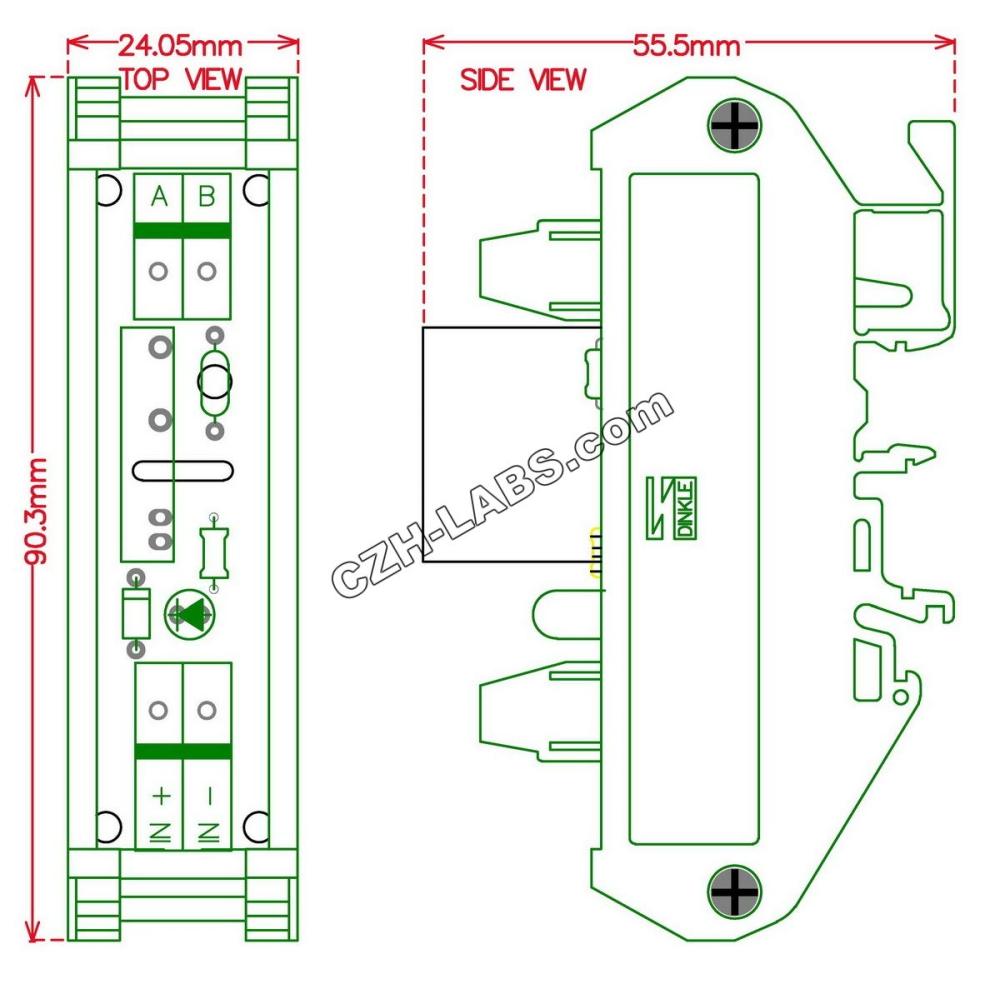

DINKLE Fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.
High quality terminal blocks. Wire range: 24 ~ 12 AWG. Strip length: 7mm. Screws - M2.5 steel, Cr3+ Zn plated. Pin header and Cage - Brass.
High quality FR-4 fiber glass PCB.
