Features:

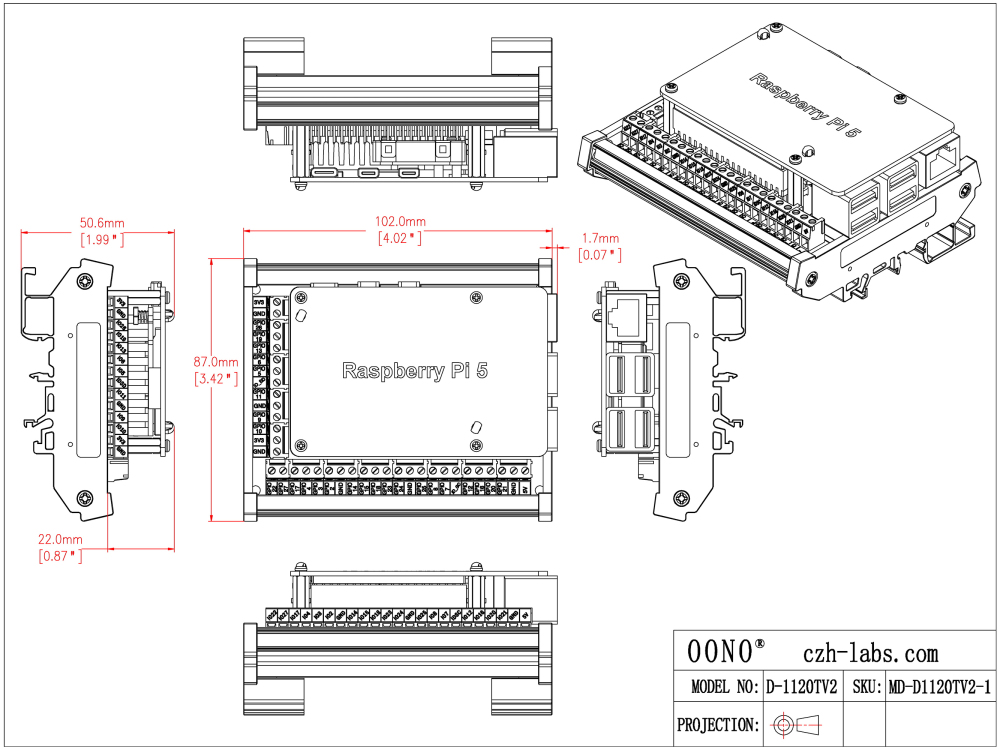

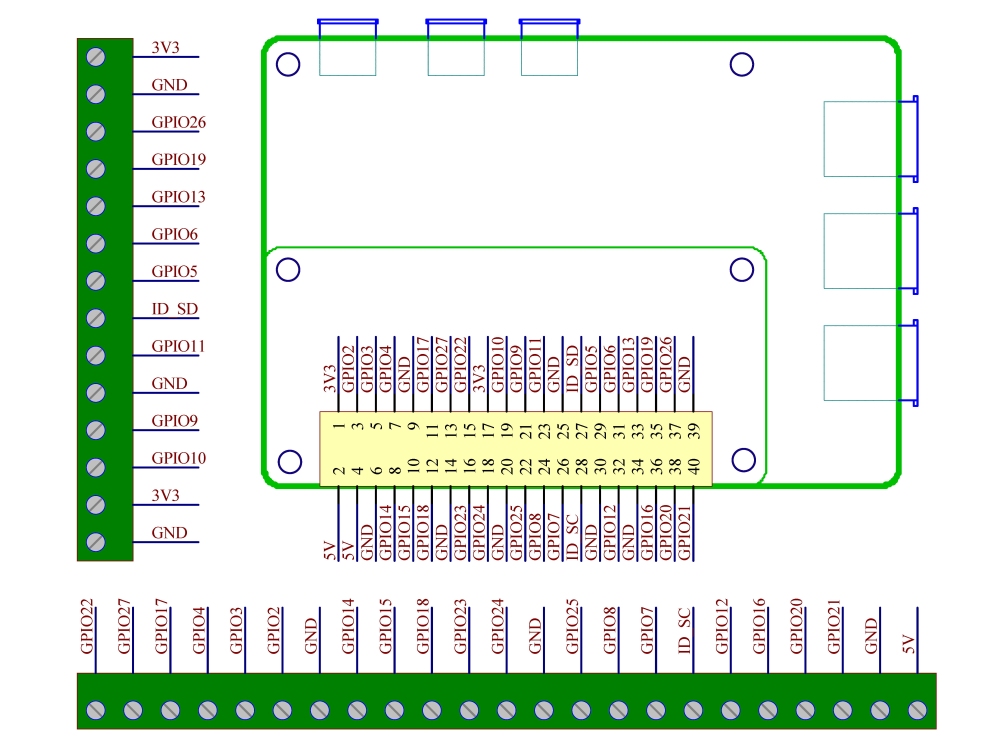

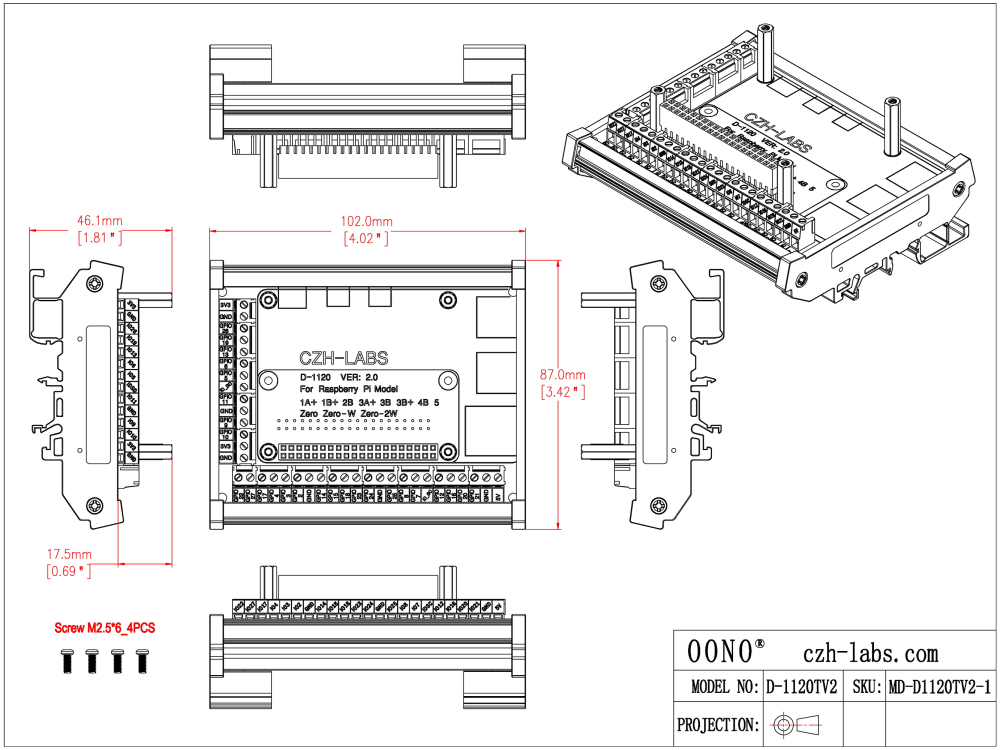

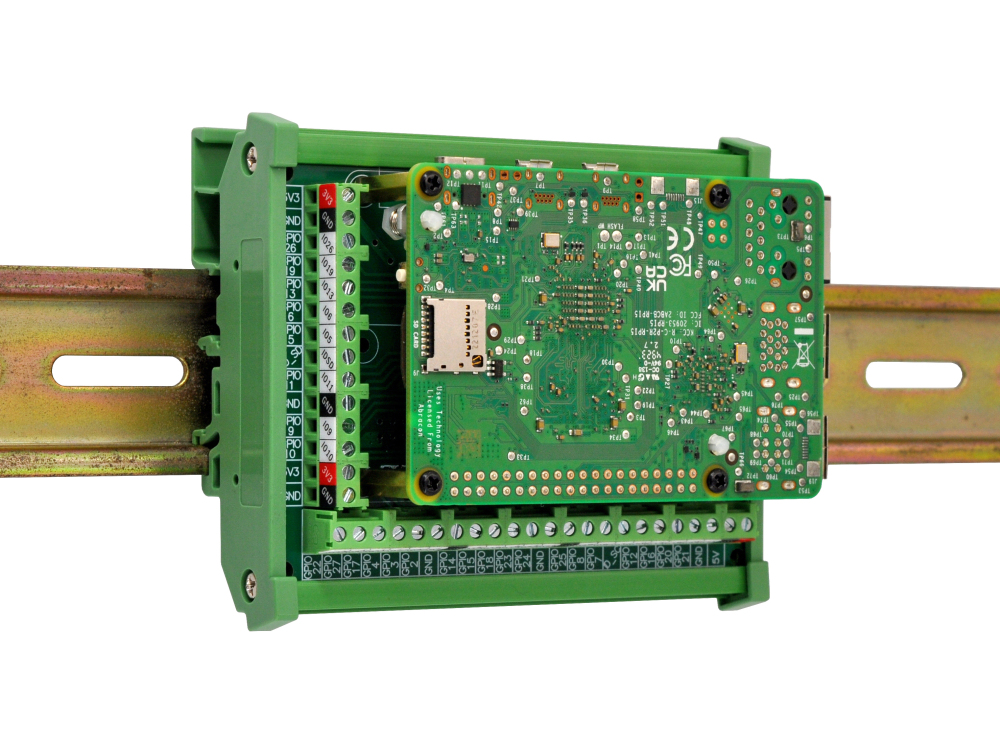

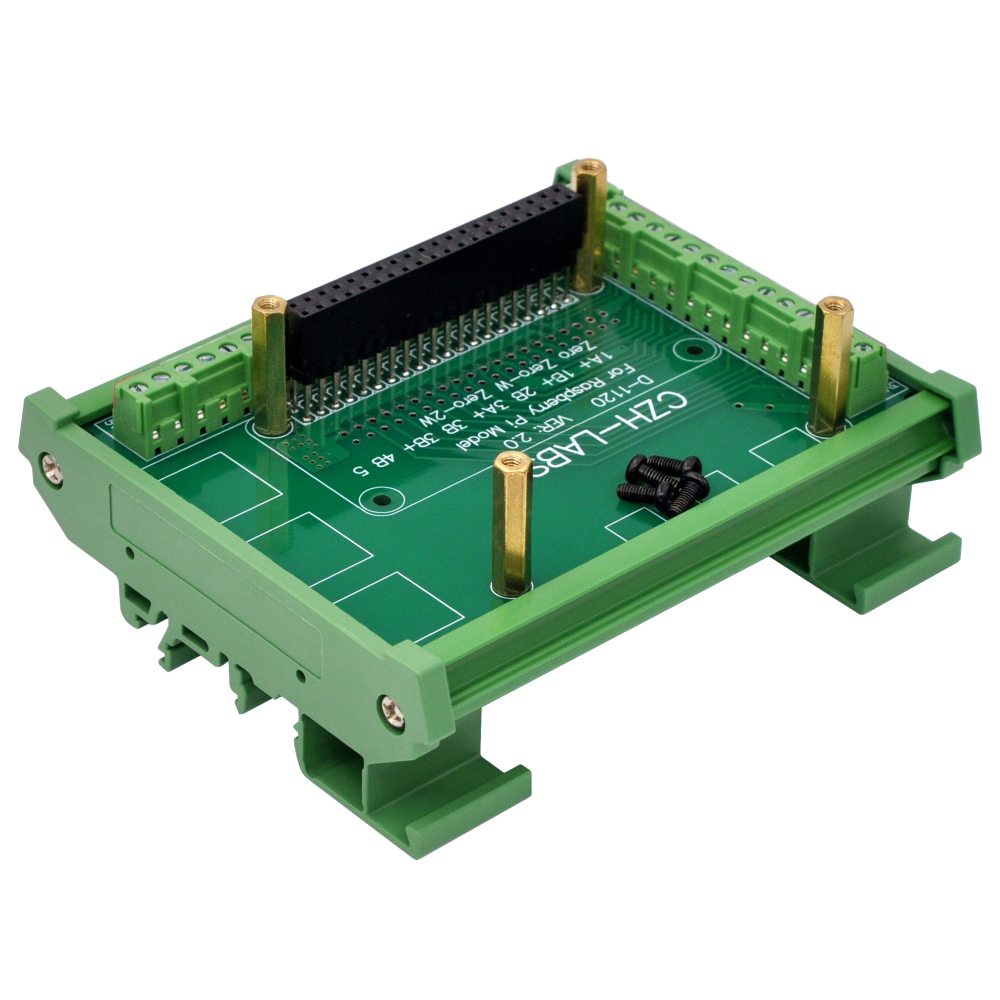

1, DIN Rail Mount Screw Terminal Block Adapter Module. With the adapter module you can easily extend Raspberry-Pi projects to industrial control applications.
2, Applications for Raspberry Pi 5 4B 3B+ 3B 3A+ 2B 1B+ 1A+ ZERO ZERO-W ZERO-2W (For ZERO series, you must soldered a 2x20pins male header in your Raspberry Pi ZERO).

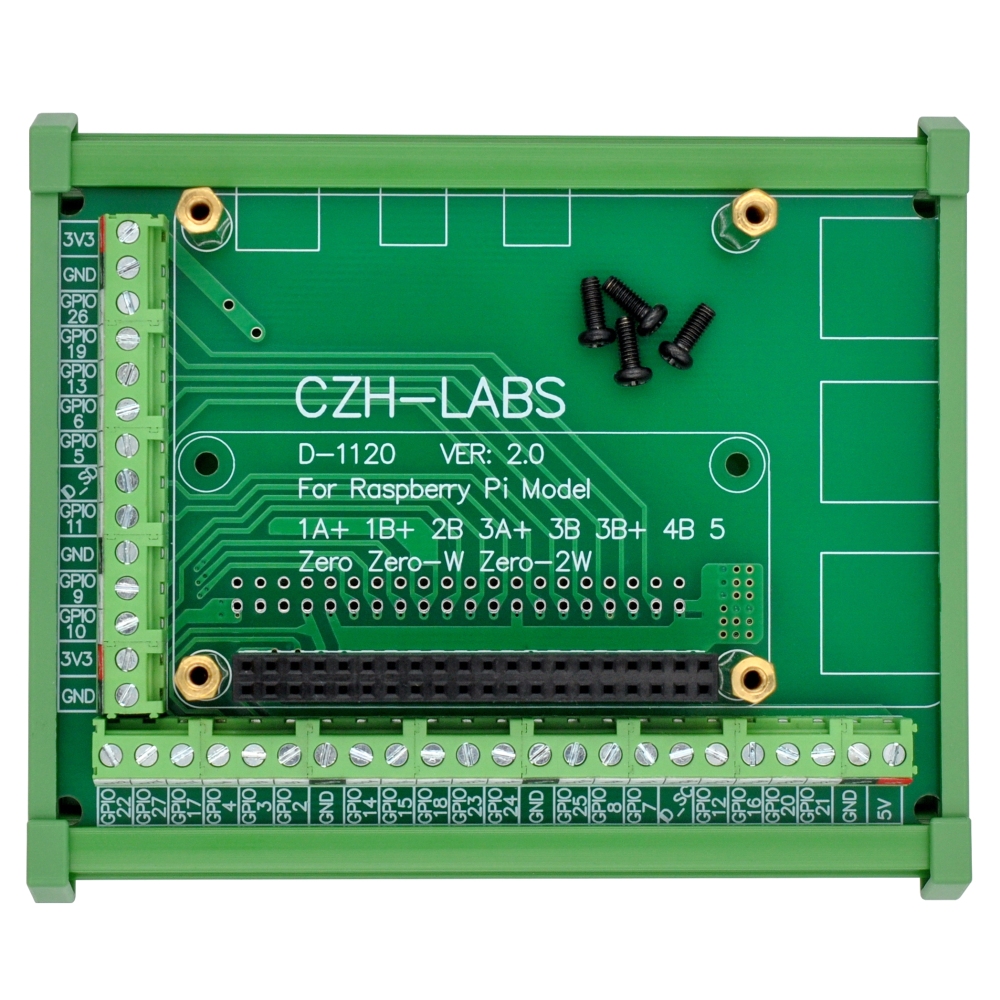

3, Pitch 3.81mm/0.15" high quality screw terminal block, wire range 26-16AWG, strip length 5mm, Metric M2 slotted screw. FR-4 fiber glass PCB, dual copper layers.

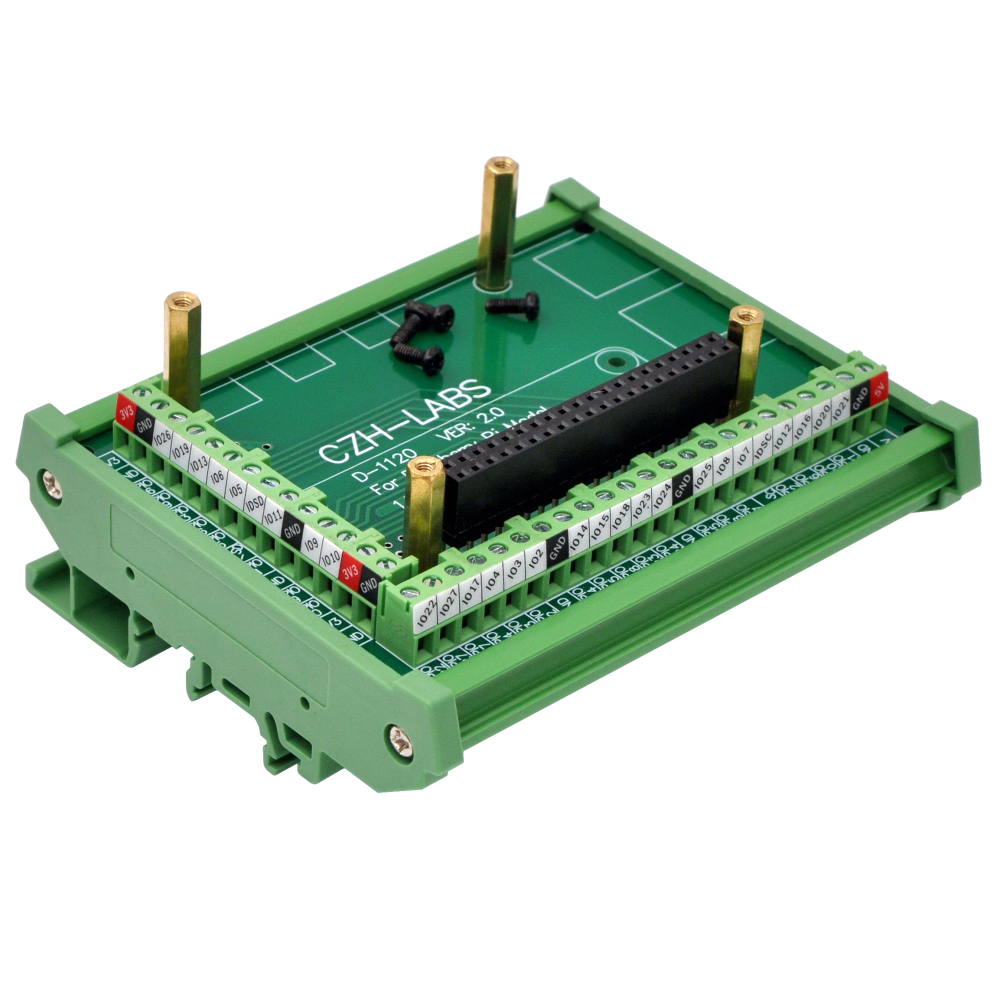

4, Fireproof nylon material DIN rail mount carrier, can support width 35mm / 32mm / 15mm rail. You can also purchase our CASE-049 Adapter Bracket separately to support wall mount.
5, UL CE certified DIN rail mount carrier. UL 94-V0 certified FR-4 fiberglass PCB. UL CE CQC certified terminal blocks.

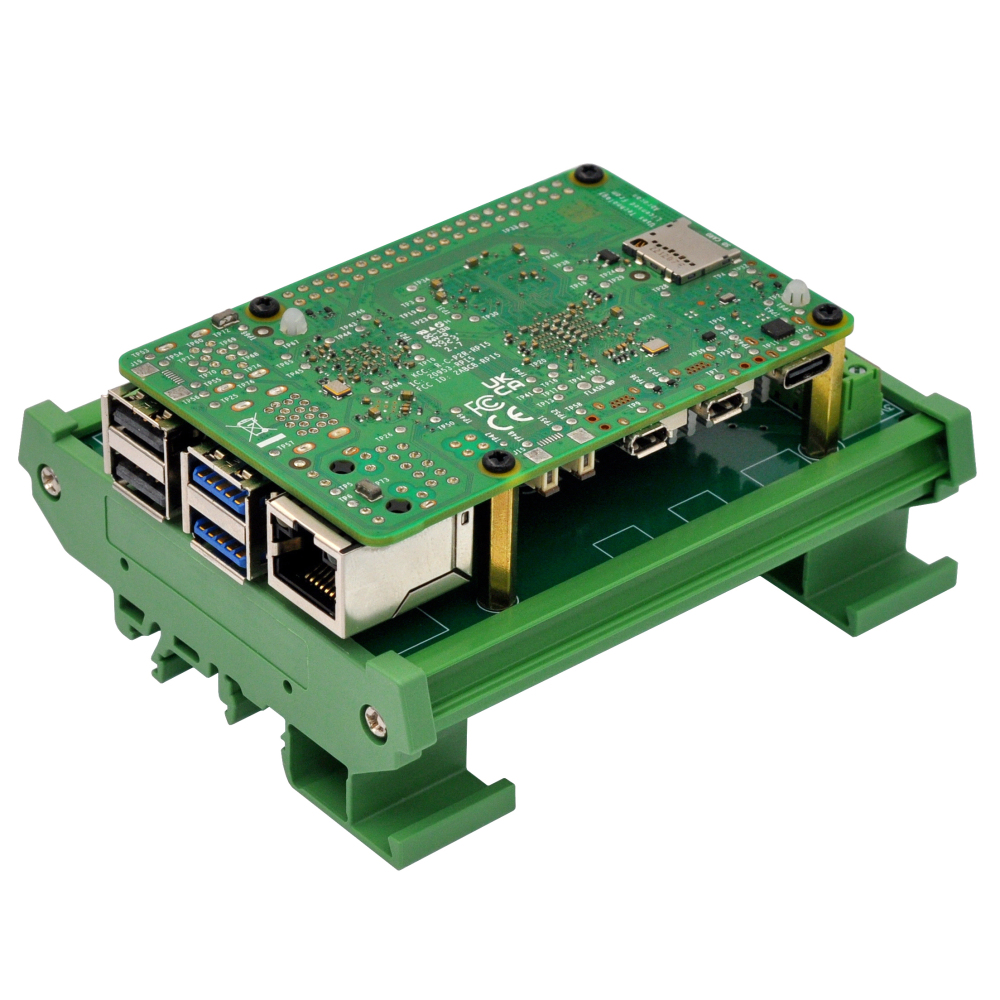

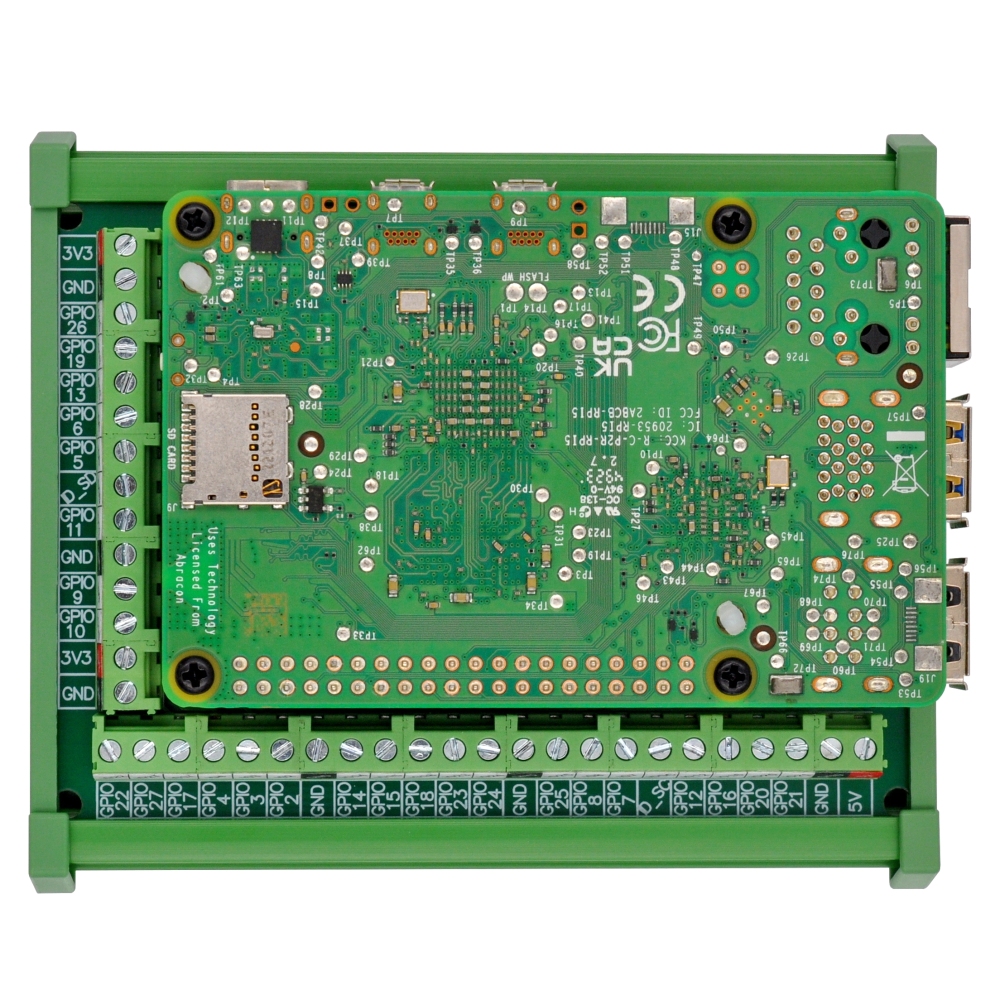

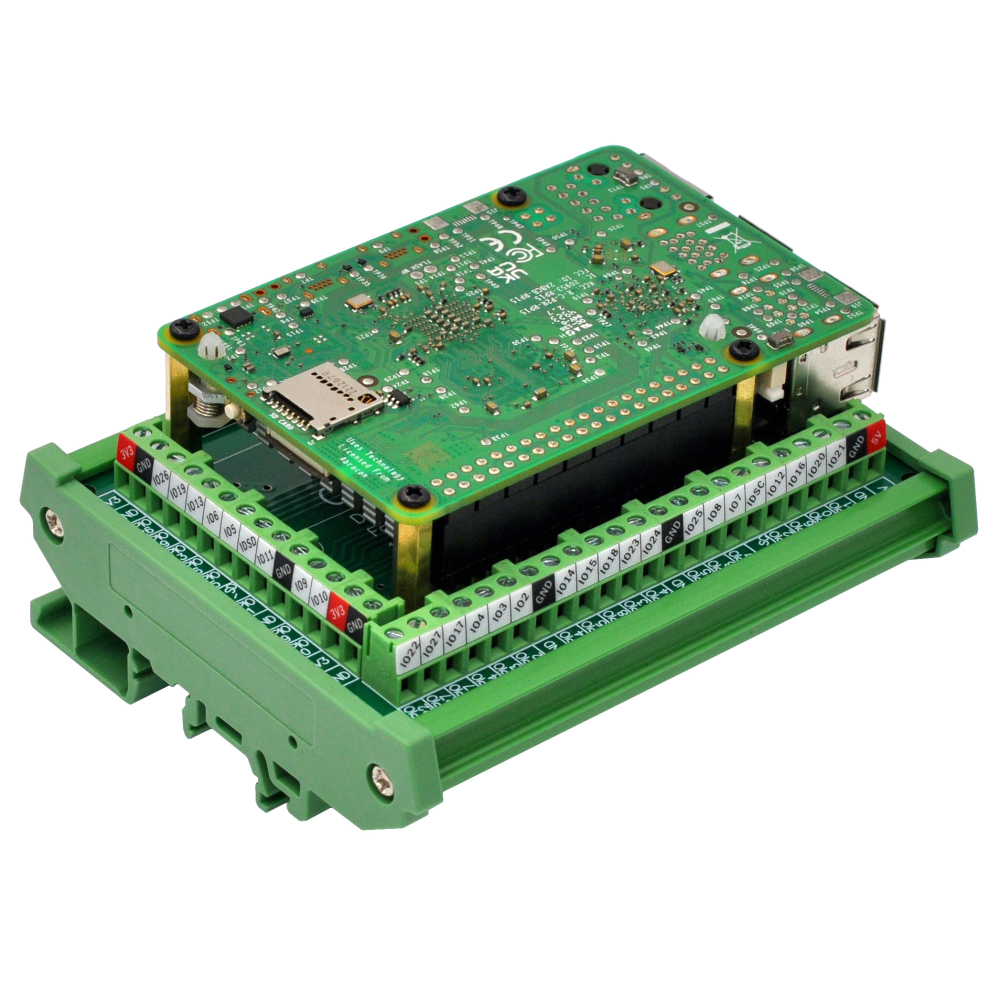

Note: the item not include Raspberry-Pi module. This module supports the installation of official heatsinks on Raspberry Pi, but may not support larger third-party heatsinks.
