Electronics-Salon 5~48VDC 8 Channel Fuse Board, with Fuse Fail Indication.

SKU: D-233D
$19.99 $19.99
Electronics-Salon 5~48VDC 8 Channel Fuse Board, with Fuse Fail Indication.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $19.99 = $19.99
save $0.00
Add to Favorites
  • Electronics-Salon 5~48VDC 8 Channel Fuse Board, with Fuse Fail Indication.
  • Electronics-Salon 5~48VDC 8 Channel Fuse Board, with Fuse Fail Indication.
  • Electronics-Salon 5~48VDC 8 Channel Fuse Board, with Fuse Fail Indication.
  • Electronics-Salon 5~48VDC 8 Channel Fuse Board, with Fuse Fail Indication.
  • Electronics-Salon 5~48VDC 8 Channel Fuse Board, with Fuse Fail Indication.
  • Electronics-Salon 5~48VDC 8 Channel Fuse Board, with Fuse Fail Indication.
  • Electronics-Salon 5~48VDC 8 Channel Fuse Board, with Fuse Fail Indication.
  • Electronics-Salon 5~48VDC 8 Channel Fuse Board, with Fuse Fail Indication.
1/1
  • Electronics-Salon 5~48VDC 8 Channel Fuse Board, with Fuse Fail Indication.
  • Electronics-Salon 5~48VDC 8 Channel Fuse Board, with Fuse Fail Indication.
  • Electronics-Salon 5~48VDC 8 Channel Fuse Board, with Fuse Fail Indication.
  • Electronics-Salon 5~48VDC 8 Channel Fuse Board, with Fuse Fail Indication.
  • Description

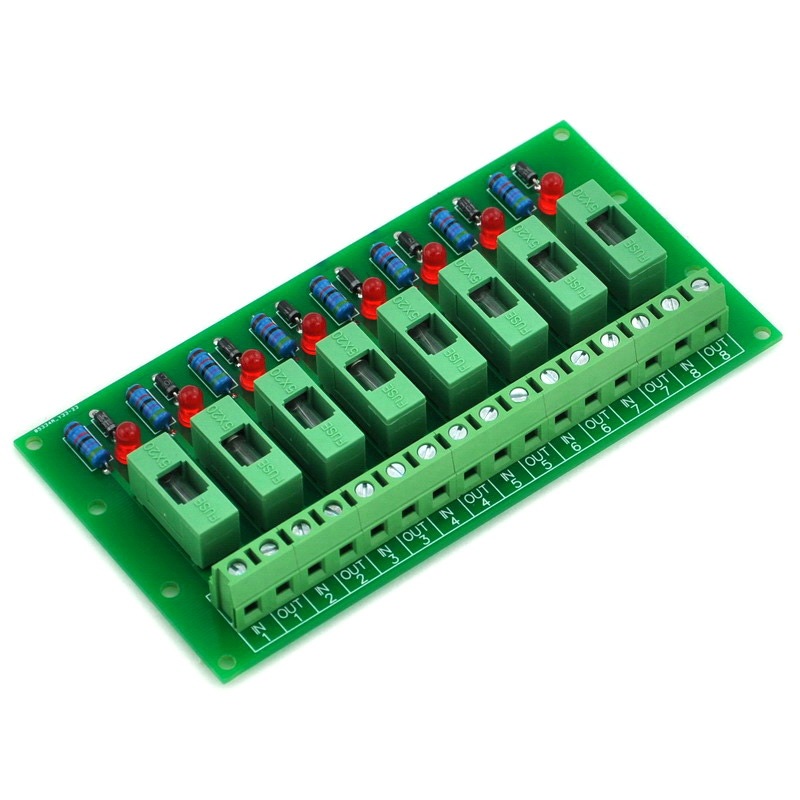

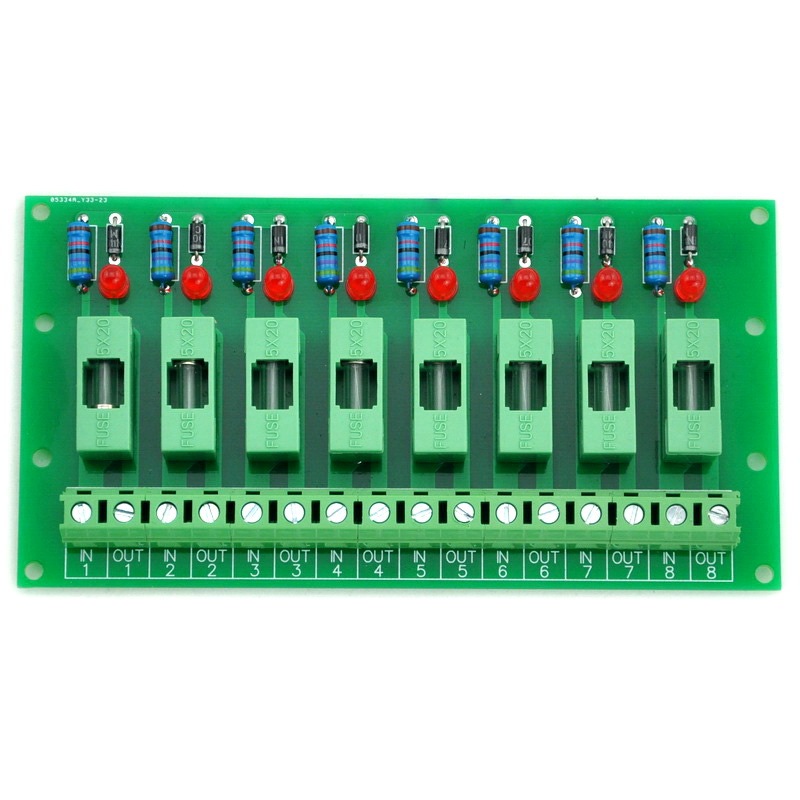

8 Channel Fuse Board, with Fuse Fail Indication.

Fuse holders for 5x20mm(DxL) tube fuse , factory-installed fuses Slow Blow 6.3Amp.
Pitch 7.5mm/0.3" screw terminal block.
FR-4 fiber glass PCB, dual copper layers.

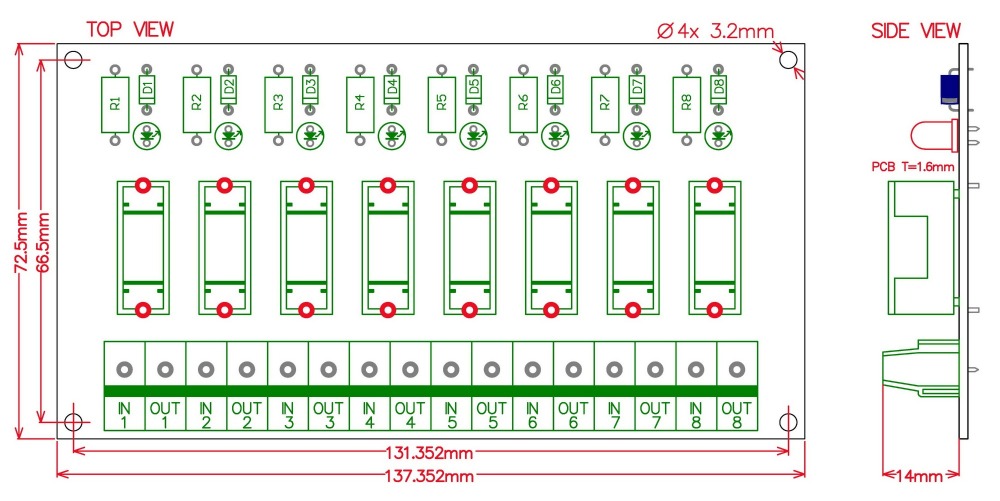

PCB dimensions: 72 x 137.35 x 18mm(W x L x H).

Work voltage: 5 ~ 48V DC
Max. work current: 6.3 Amp
Operating Temperature: -20ºC to 50ºC

Terminal block specifications:
Wire range: 24 ~ 12 AWG.
Strip length: 7mm.
Screws - M2.5, steel,Cr3+ Zn plated.
Pin header and Cage - Brass.
