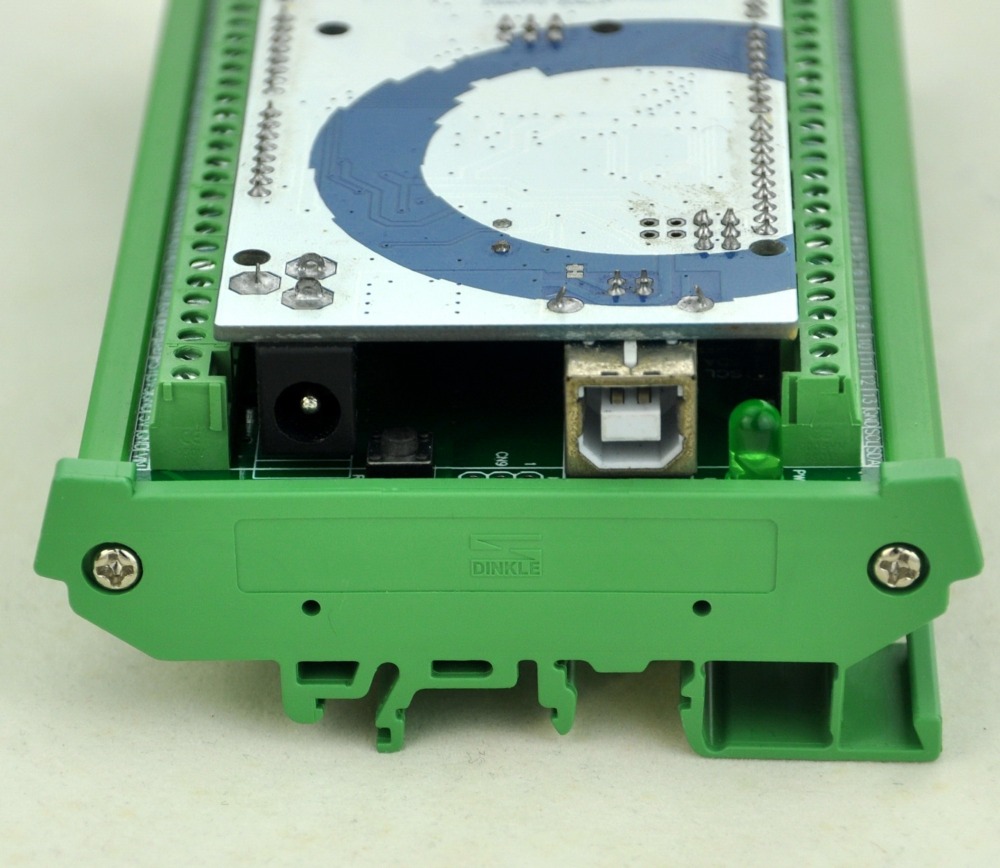

CZH-LABS DIN Rail Mount Screw Terminal Block Adapter Module, For Arduino MEGA-2560 R3.

SKU: D-1100T
$35.00 $35.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $35 = $35
save $0.00
Add to Favorites
  • CZH-LABS DIN Rail Mount Screw Terminal Block Adapter Module, For Arduino MEGA-2560 R3.
  • CZH-LABS DIN Rail Mount Screw Terminal Block Adapter Module, For Arduino MEGA-2560 R3.
  • CZH-LABS DIN Rail Mount Screw Terminal Block Adapter Module, For Arduino MEGA-2560 R3.
  • CZH-LABS DIN Rail Mount Screw Terminal Block Adapter Module, For Arduino MEGA-2560 R3.
  • CZH-LABS DIN Rail Mount Screw Terminal Block Adapter Module, For Arduino MEGA-2560 R3.
  • CZH-LABS DIN Rail Mount Screw Terminal Block Adapter Module, For Arduino MEGA-2560 R3.
  • CZH-LABS DIN Rail Mount Screw Terminal Block Adapter Module, For Arduino MEGA-2560 R3.
  • CZH-LABS DIN Rail Mount Screw Terminal Block Adapter Module, For Arduino MEGA-2560 R3.
  • CZH-LABS DIN Rail Mount Screw Terminal Block Adapter Module, For Arduino MEGA-2560 R3.
  • CZH-LABS DIN Rail Mount Screw Terminal Block Adapter Module, For Arduino MEGA-2560 R3.
  • CZH-LABS DIN Rail Mount Screw Terminal Block Adapter Module, For Arduino MEGA-2560 R3.
  • CZH-LABS DIN Rail Mount Screw Terminal Block Adapter Module, For Arduino MEGA-2560 R3.
  • CZH-LABS DIN Rail Mount Screw Terminal Block Adapter Module, For Arduino MEGA-2560 R3.
  • CZH-LABS DIN Rail Mount Screw Terminal Block Adapter Module, For Arduino MEGA-2560 R3.
  • CZH-LABS DIN Rail Mount Screw Terminal Block Adapter Module, For Arduino MEGA-2560 R3.
  • CZH-LABS DIN Rail Mount Screw Terminal Block Adapter Module, For Arduino MEGA-2560 R3.
  • CZH-LABS DIN Rail Mount Screw Terminal Block Adapter Module, For Arduino MEGA-2560 R3.
  • CZH-LABS DIN Rail Mount Screw Terminal Block Adapter Module, For Arduino MEGA-2560 R3.
1/1
  • CZH-LABS DIN Rail Mount Screw Terminal Block Adapter Module, For Arduino MEGA-2560 R3.
  • CZH-LABS DIN Rail Mount Screw Terminal Block Adapter Module, For Arduino MEGA-2560 R3.
  • CZH-LABS DIN Rail Mount Screw Terminal Block Adapter Module, For Arduino MEGA-2560 R3.
  • CZH-LABS DIN Rail Mount Screw Terminal Block Adapter Module, For Arduino MEGA-2560 R3.
  • CZH-LABS DIN Rail Mount Screw Terminal Block Adapter Module, For Arduino MEGA-2560 R3.
  • CZH-LABS DIN Rail Mount Screw Terminal Block Adapter Module, For Arduino MEGA-2560 R3.
  • CZH-LABS DIN Rail Mount Screw Terminal Block Adapter Module, For Arduino MEGA-2560 R3.
  • CZH-LABS DIN Rail Mount Screw Terminal Block Adapter Module, For Arduino MEGA-2560 R3.
  • CZH-LABS DIN Rail Mount Screw Terminal Block Adapter Module, For Arduino MEGA-2560 R3.
  • Description

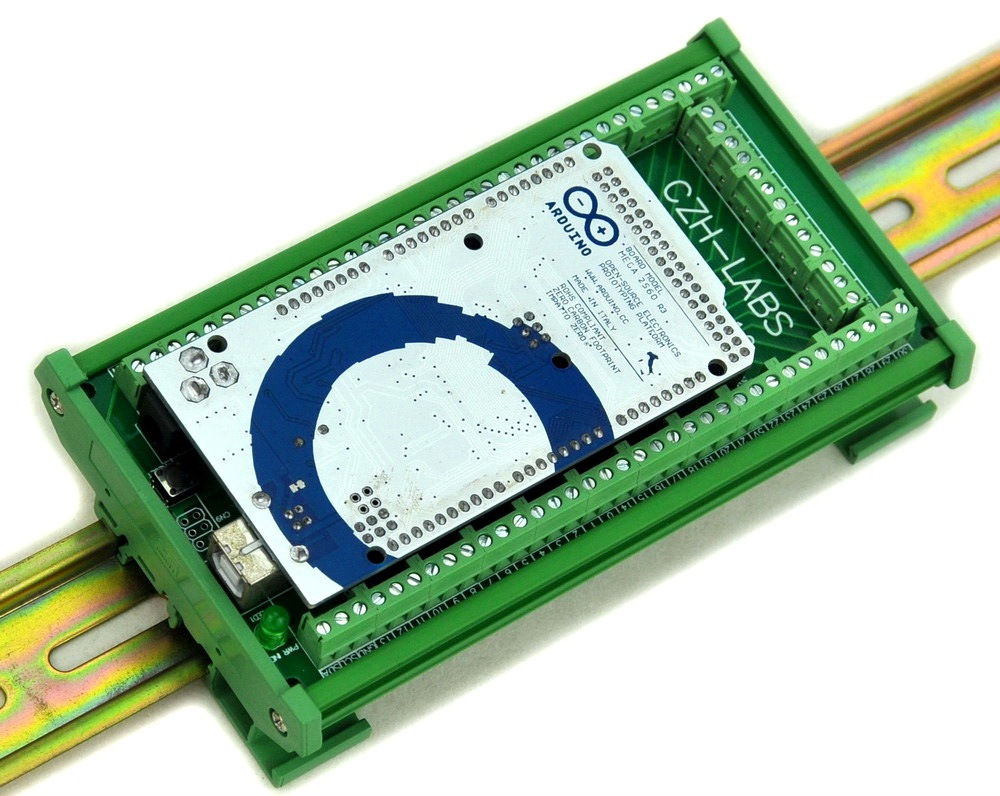

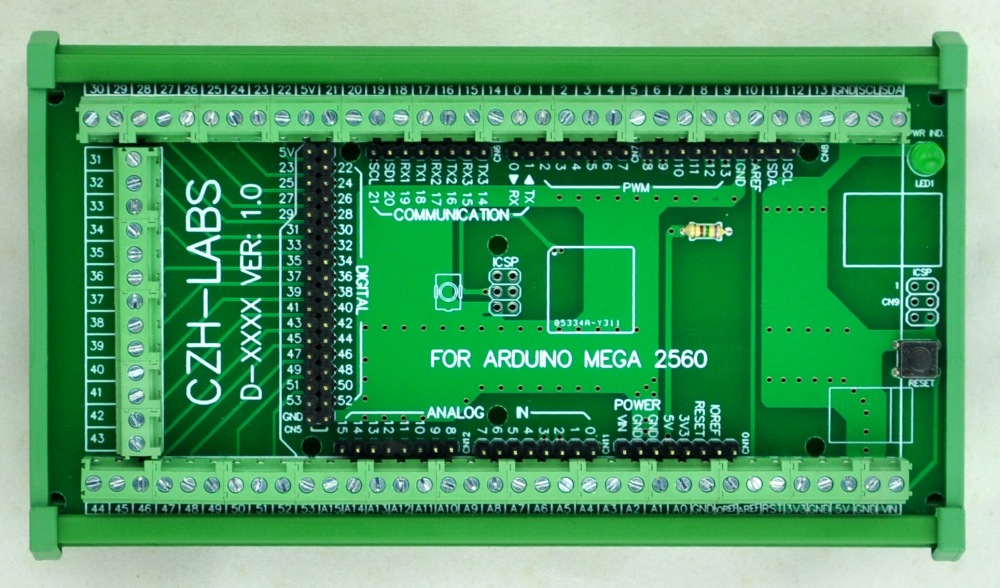

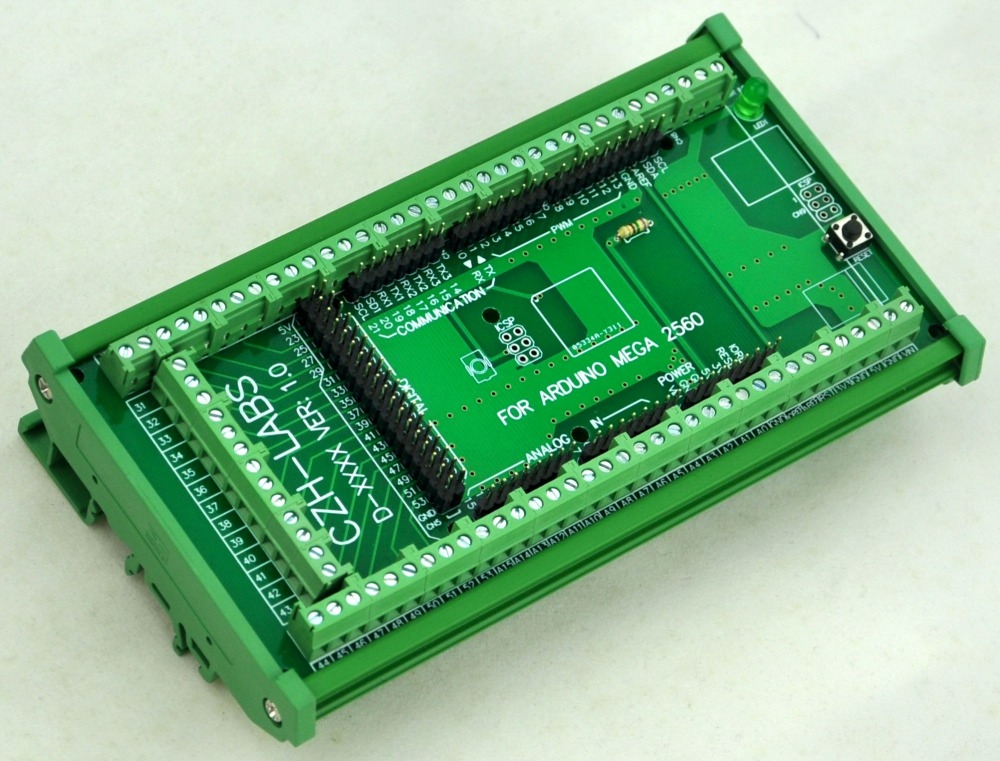

DIN Rail Mount Screw Terminal Block Adapter Module, For Arduino MEGA-2560 R3.

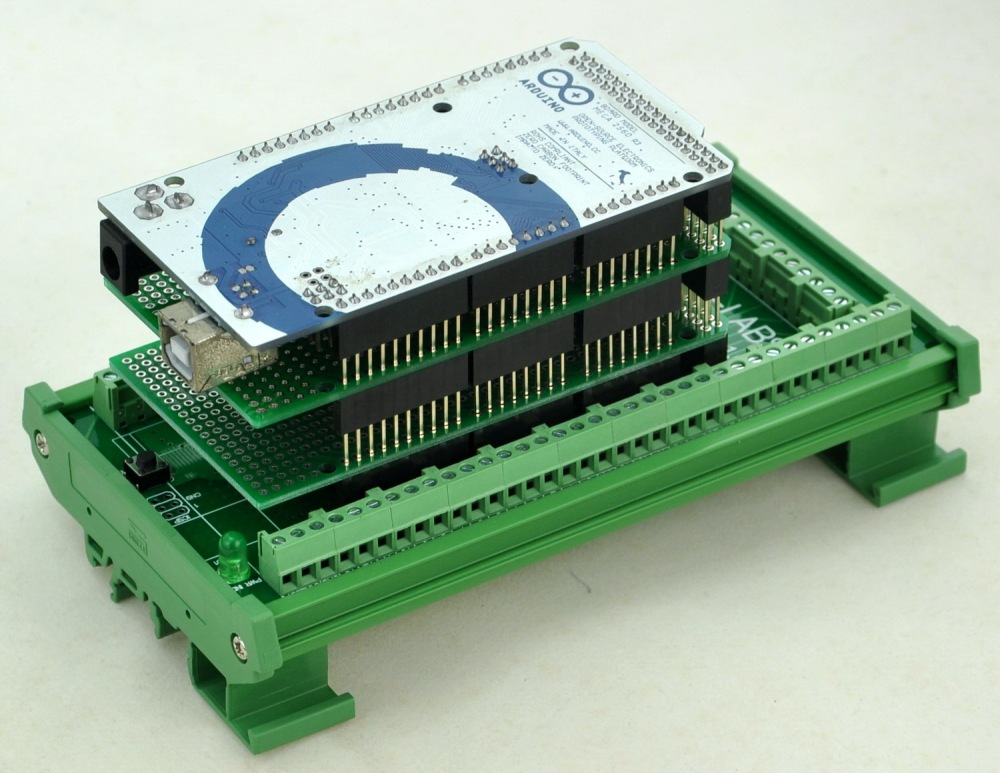

With the adapter module, you can easily extend Arduino projects to industrial control applications.
Pitch 3.81mm/0.15" screw terminal block.
Terminal block: wire range 26-16AWG, strip length 5mm, Metric M2 slotted screw.

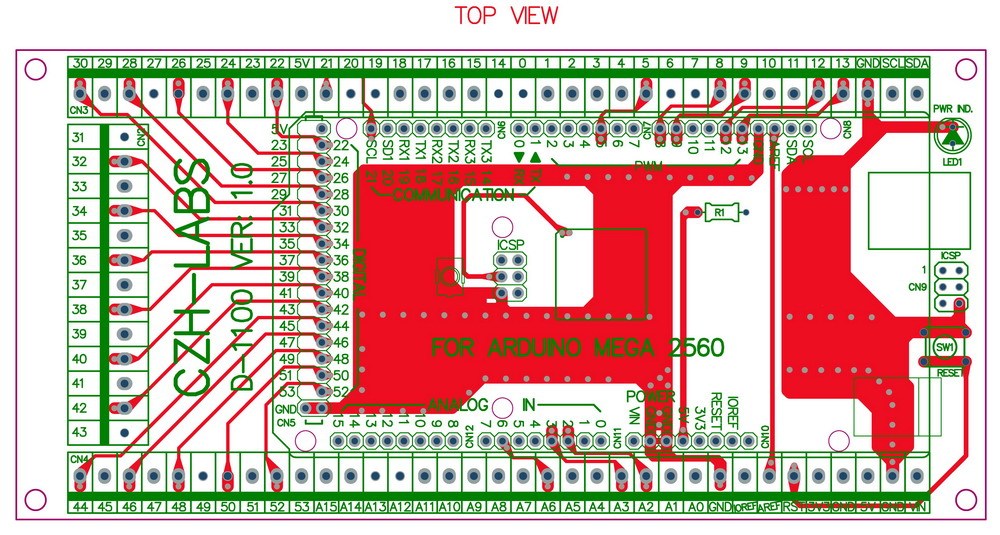

FR-4 fiber glass PCB, dual copper layers.

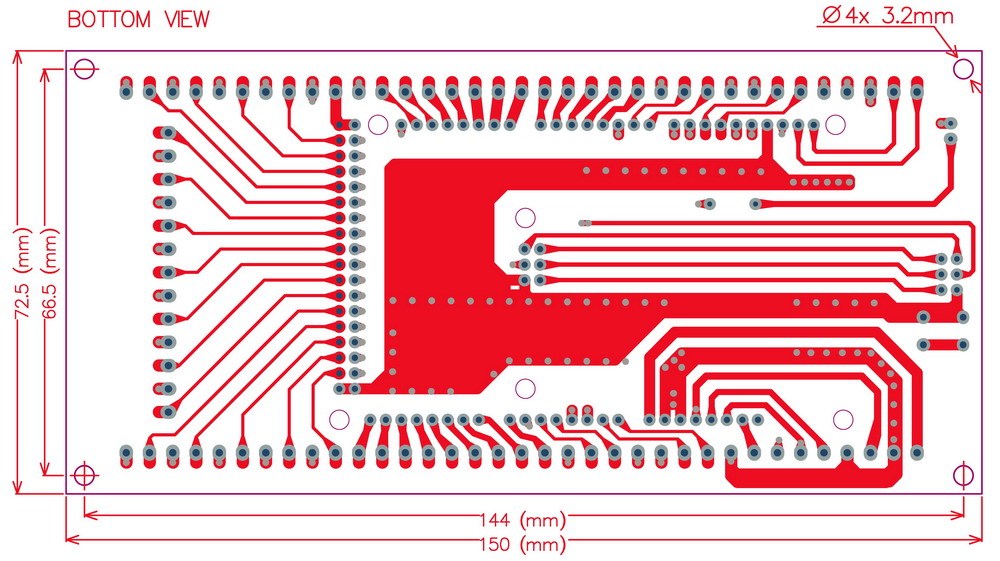

PCB Dimensions: 150mm x 72.5mm(W x L).
Module Dimensions: 153mm x 87mm x 45mm (W x L x H).

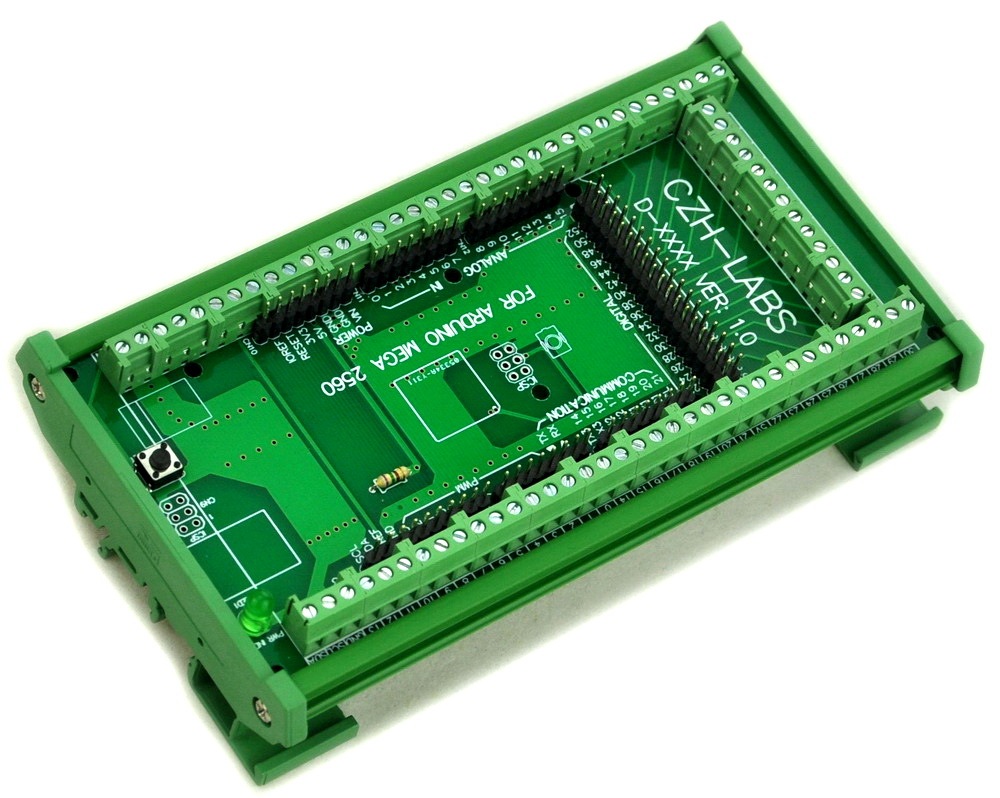

Fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.

Note: the item not include Arduino-Mage module and iron rail.
