Your position: Home > Arduino > Screw Terminal Block Breakout Shield Module for Arduino MEGA-2560 R3

1/1

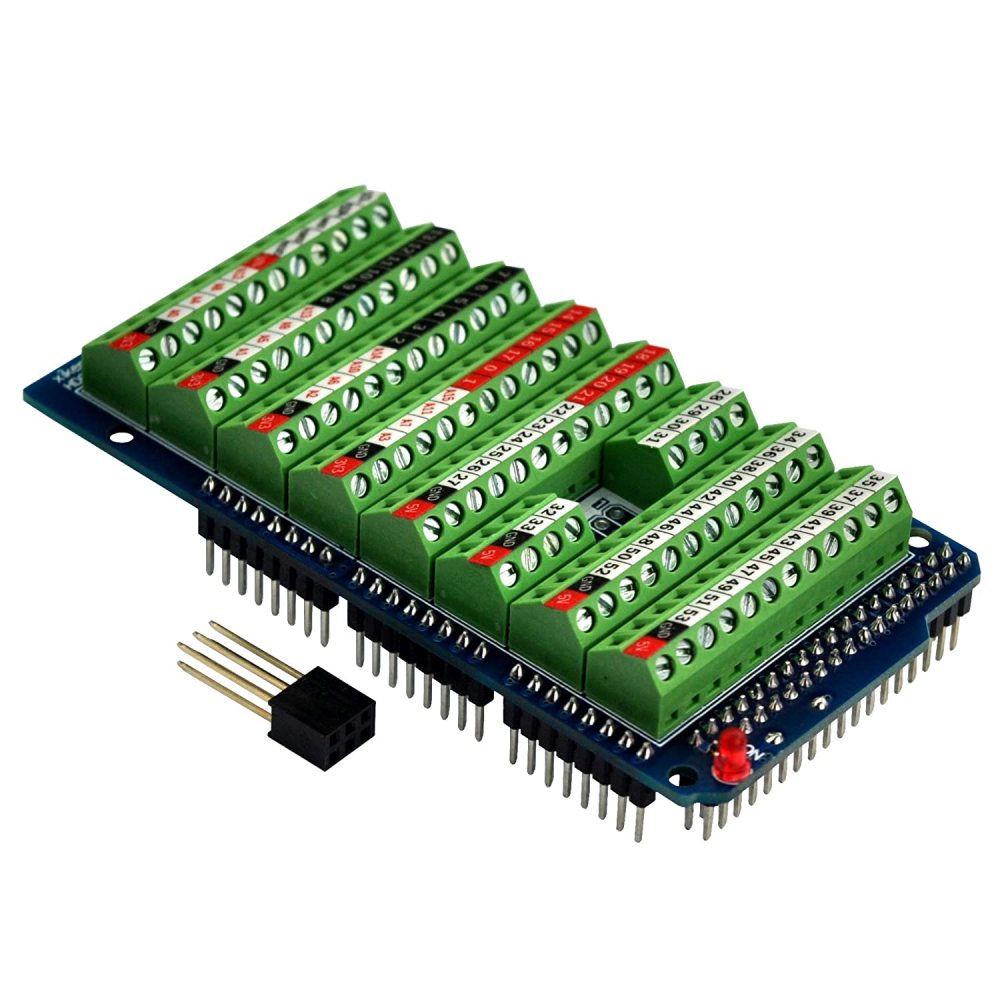

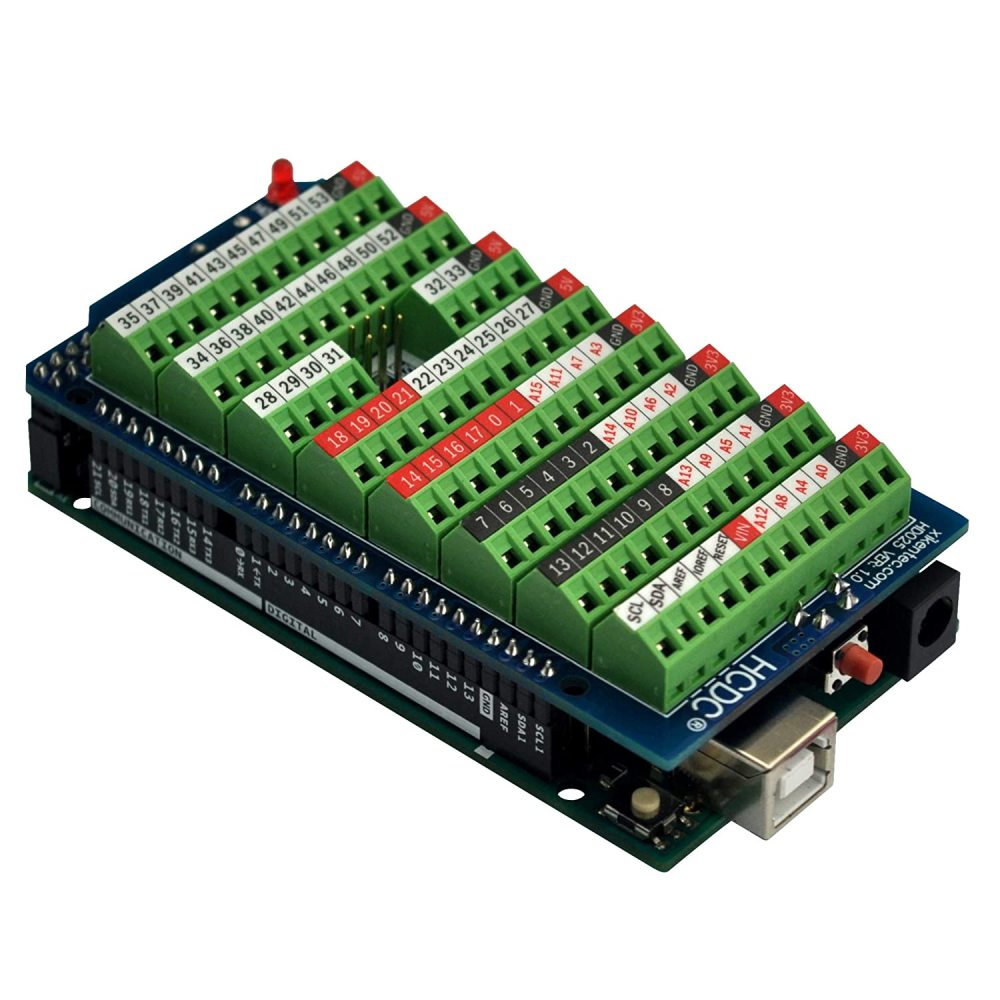

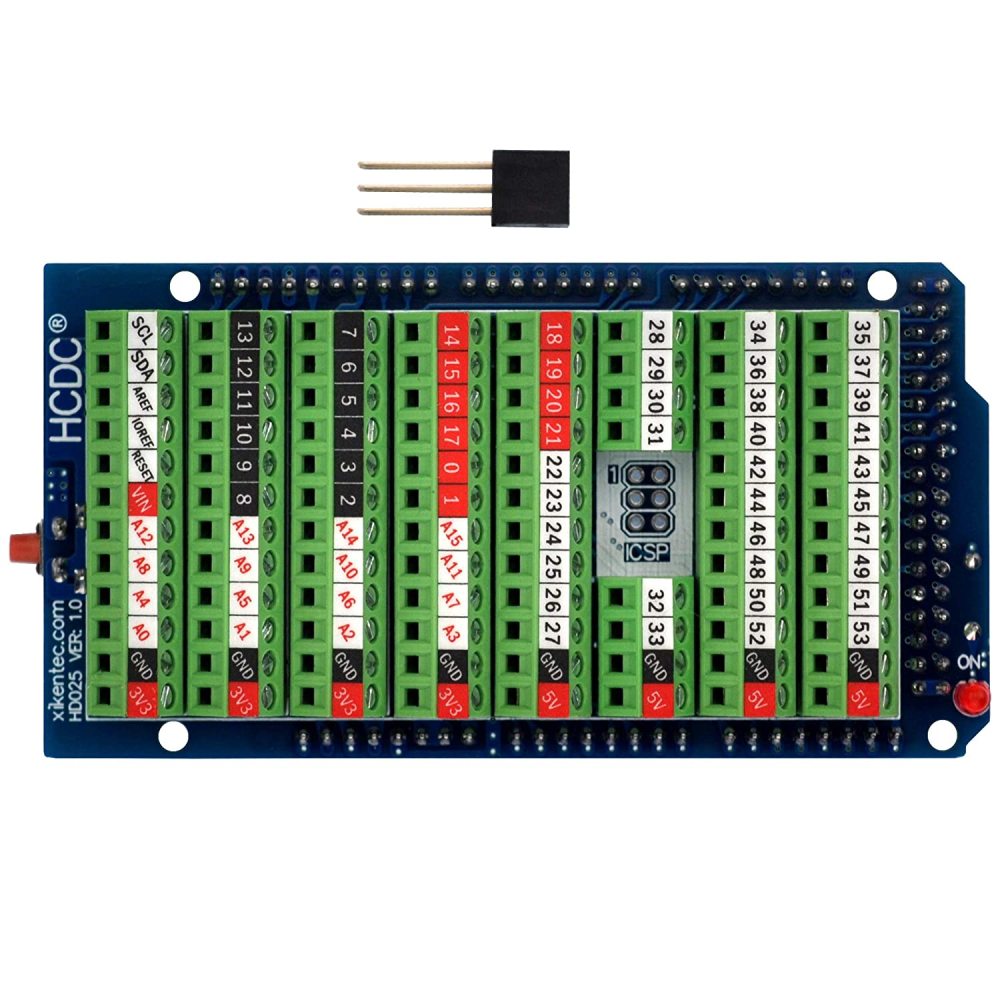

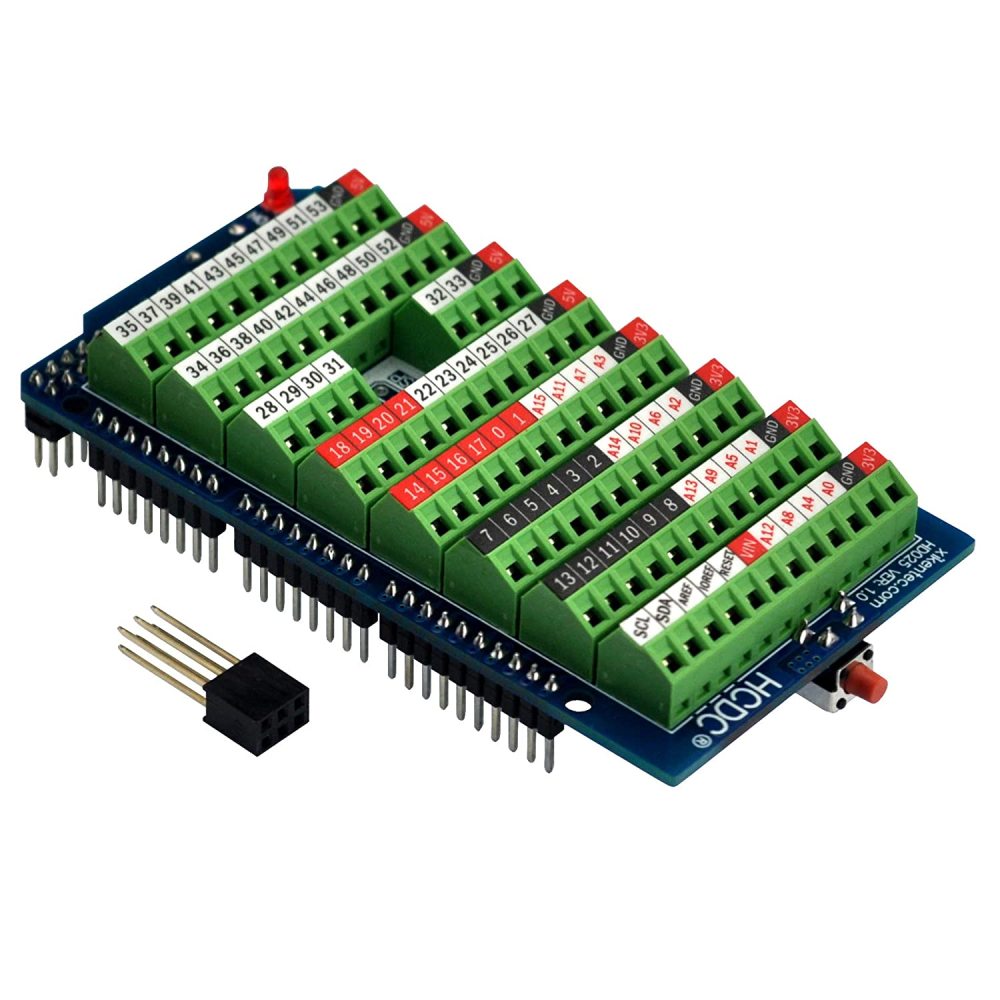

Screw Terminal Block Breakout Shield Module for Arduino MEGA-2560 R3

Name: Screw Terminal Block Breakout Shield Module for Arduino MEGA-2560 R3
Brand: Xikentech
SKU: HD025
Price: 32 USD
Availability: InStock

SKU: HD025

$32.00 ~~$32.00~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

Terminal Block Breakout Shield Module - for Arduino MEGA-2560 R3. the item has been soldered and assembled.
Terminal block pitch 3.5mm/0.138", wire size range 26AWG to 16AWG, strip length 5mm, screw M2 steel, pin header and cage copper.
With power on LED indicating. red reset button on the side. with a ICSP adapter connect header.
FR-4 fiber glass PCB, dual copper layers.
NOTE: the item not include Arduino Mega module.
