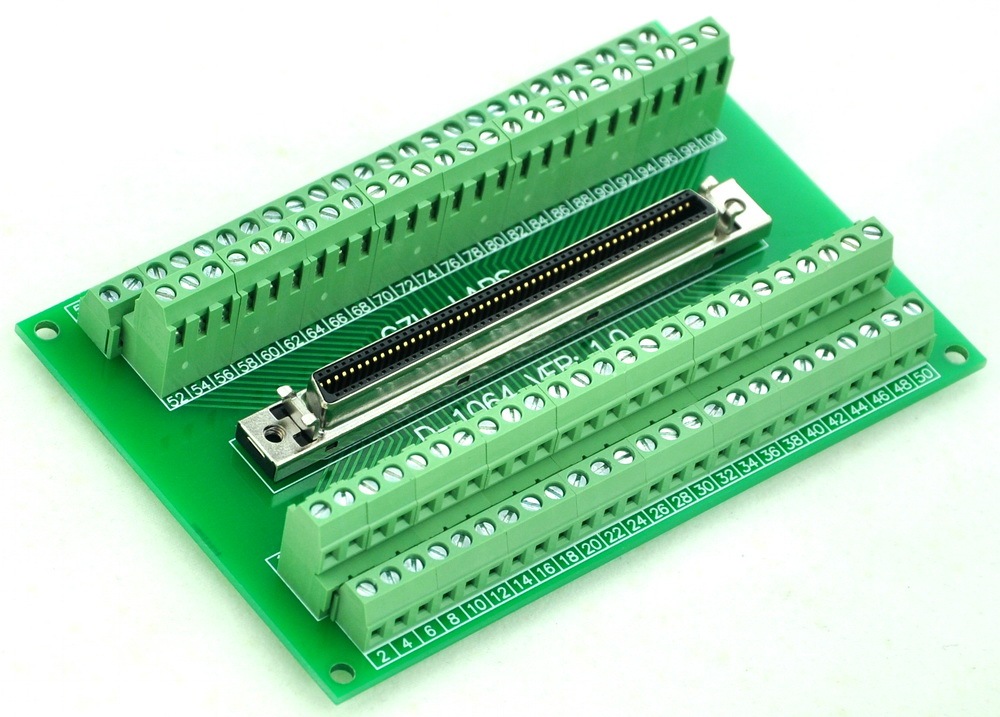

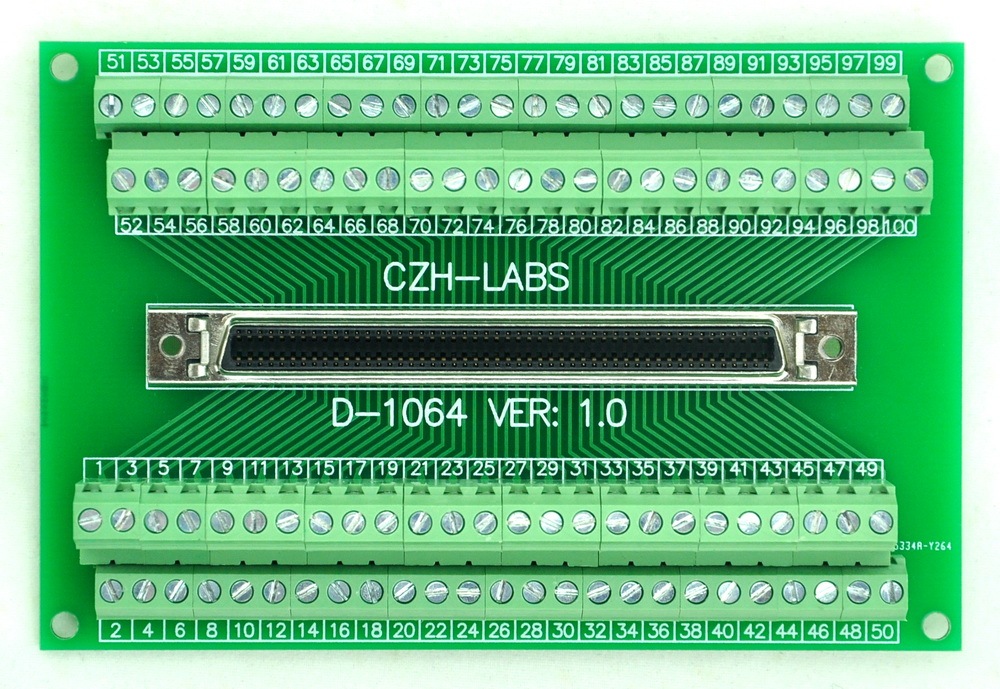

CZH-LABS 100-pin 0.05" Mini D Ribbon/MDR Female Breakout Board, SCSI, Terminal Module.

SKU: D-1064CN
$52.00 $52.00
CZH-LABS 100-pin 0.05" Mini D Ribbon/MDR Female Breakout Board, SCSI, Terminal Module.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $52 = $52
save $0.00
Add to Favorites
  • CZH-LABS 100-pin 0.05" Mini D Ribbon/MDR Female Breakout Board, SCSI, Terminal Module.
  • CZH-LABS 100-pin 0.05" Mini D Ribbon/MDR Female Breakout Board, SCSI, Terminal Module.
  • CZH-LABS 100-pin 0.05" Mini D Ribbon/MDR Female Breakout Board, SCSI, Terminal Module.
  • CZH-LABS 100-pin 0.05" Mini D Ribbon/MDR Female Breakout Board, SCSI, Terminal Module.
  • CZH-LABS 100-pin 0.05" Mini D Ribbon/MDR Female Breakout Board, SCSI, Terminal Module.
  • CZH-LABS 100-pin 0.05" Mini D Ribbon/MDR Female Breakout Board, SCSI, Terminal Module.
  • CZH-LABS 100-pin 0.05" Mini D Ribbon/MDR Female Breakout Board, SCSI, Terminal Module.
  • CZH-LABS 100-pin 0.05" Mini D Ribbon/MDR Female Breakout Board, SCSI, Terminal Module.
  • CZH-LABS 100-pin 0.05" Mini D Ribbon/MDR Female Breakout Board, SCSI, Terminal Module.
  • CZH-LABS 100-pin 0.05" Mini D Ribbon/MDR Female Breakout Board, SCSI, Terminal Module.
  • CZH-LABS 100-pin 0.05" Mini D Ribbon/MDR Female Breakout Board, SCSI, Terminal Module.
  • CZH-LABS 100-pin 0.05" Mini D Ribbon/MDR Female Breakout Board, SCSI, Terminal Module.
  • CZH-LABS 100-pin 0.05" Mini D Ribbon/MDR Female Breakout Board, SCSI, Terminal Module.
  • CZH-LABS 100-pin 0.05" Mini D Ribbon/MDR Female Breakout Board, SCSI, Terminal Module.
1/1
  • CZH-LABS 100-pin 0.05" Mini D Ribbon/MDR Female Breakout Board, SCSI, Terminal Module.
  • CZH-LABS 100-pin 0.05" Mini D Ribbon/MDR Female Breakout Board, SCSI, Terminal Module.
  • CZH-LABS 100-pin 0.05" Mini D Ribbon/MDR Female Breakout Board, SCSI, Terminal Module.
  • CZH-LABS 100-pin 0.05" Mini D Ribbon/MDR Female Breakout Board, SCSI, Terminal Module.
  • CZH-LABS 100-pin 0.05" Mini D Ribbon/MDR Female Breakout Board, SCSI, Terminal Module.
  • CZH-LABS 100-pin 0.05" Mini D Ribbon/MDR Female Breakout Board, SCSI, Terminal Module.
  • CZH-LABS 100-pin 0.05" Mini D Ribbon/MDR Female Breakout Board, SCSI, Terminal Module.
  • Description
100-pin pitch 1.27mm/0.05" Mini D Ribbon / MDR female connector.
100-position pitch 3.81mm/0.15" screw terminal blocks.
FR-4 fiber glass PCB, dual copper layers.
Rated voltage: 50V.
Rated current: 1A / per pin.
Operating Temperature: -20ºC to 50ºC

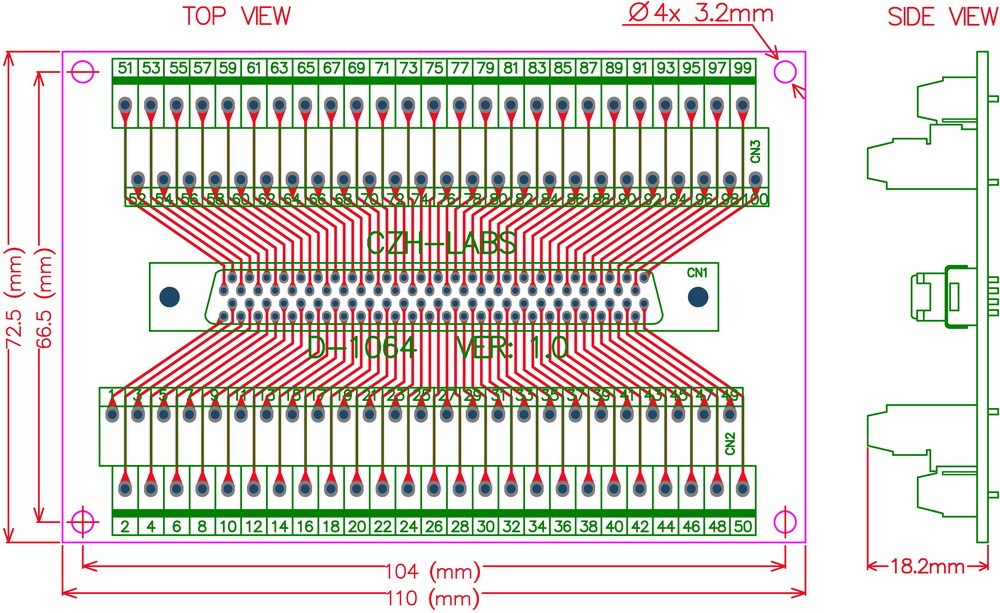

Dimensions: 72.5 x 110 x 18.2mm (W x L x H).
100% new, never used.

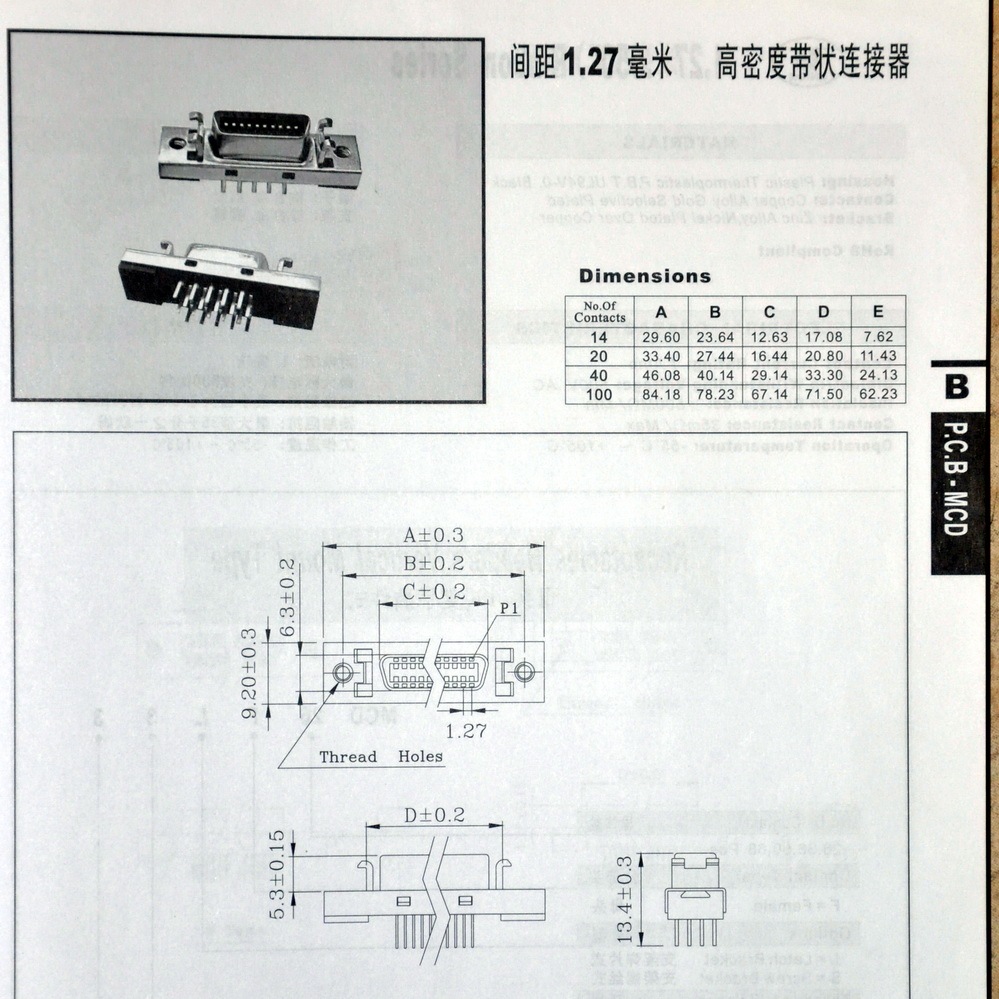

Receptacles connector specifications:

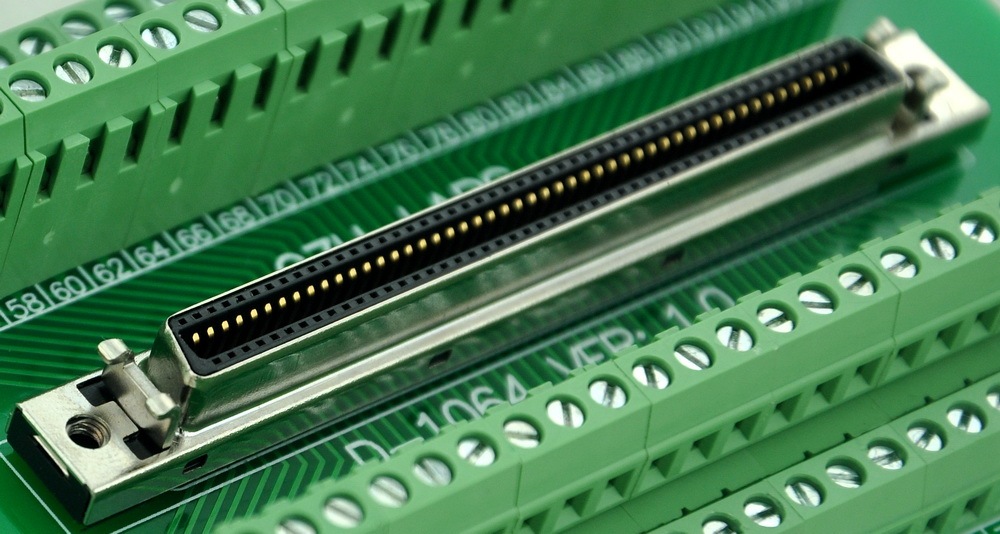

Mini D Ribbon / MDR female connector.
Pitch: 1.27mm/0.05"

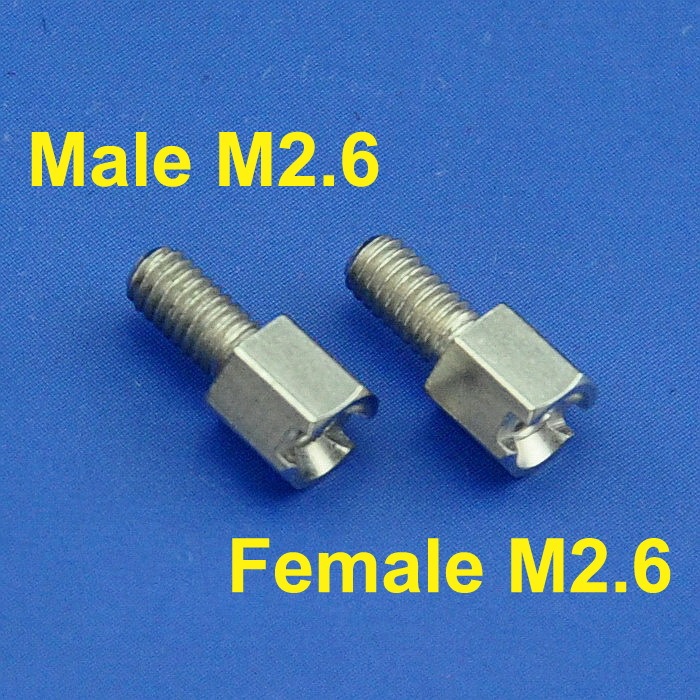

Support cable type: Latch bracket & M2.6 screw bracket type.
(other, we can supply #2-56 screw bracket version, if you need #2-56 screw bracket version please contact me).

Terminal block specifications:
Wire range: 26-16AWG.
Pitch: 3.81mm/0.15"
Strip length: 5mm.
Screws: M2,steel,Cr3+ Zn plated.
Pin header and Cage - Brass.
