Home > CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
1/1
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
Share:

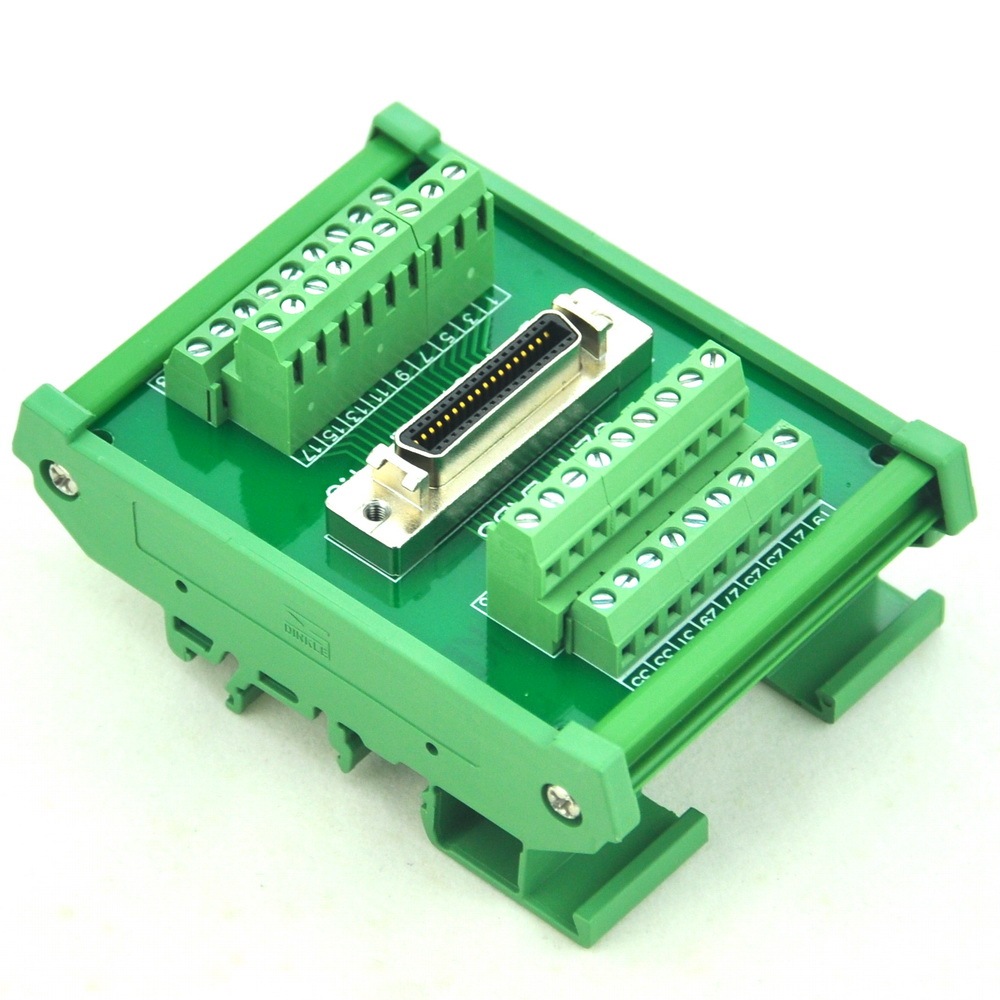

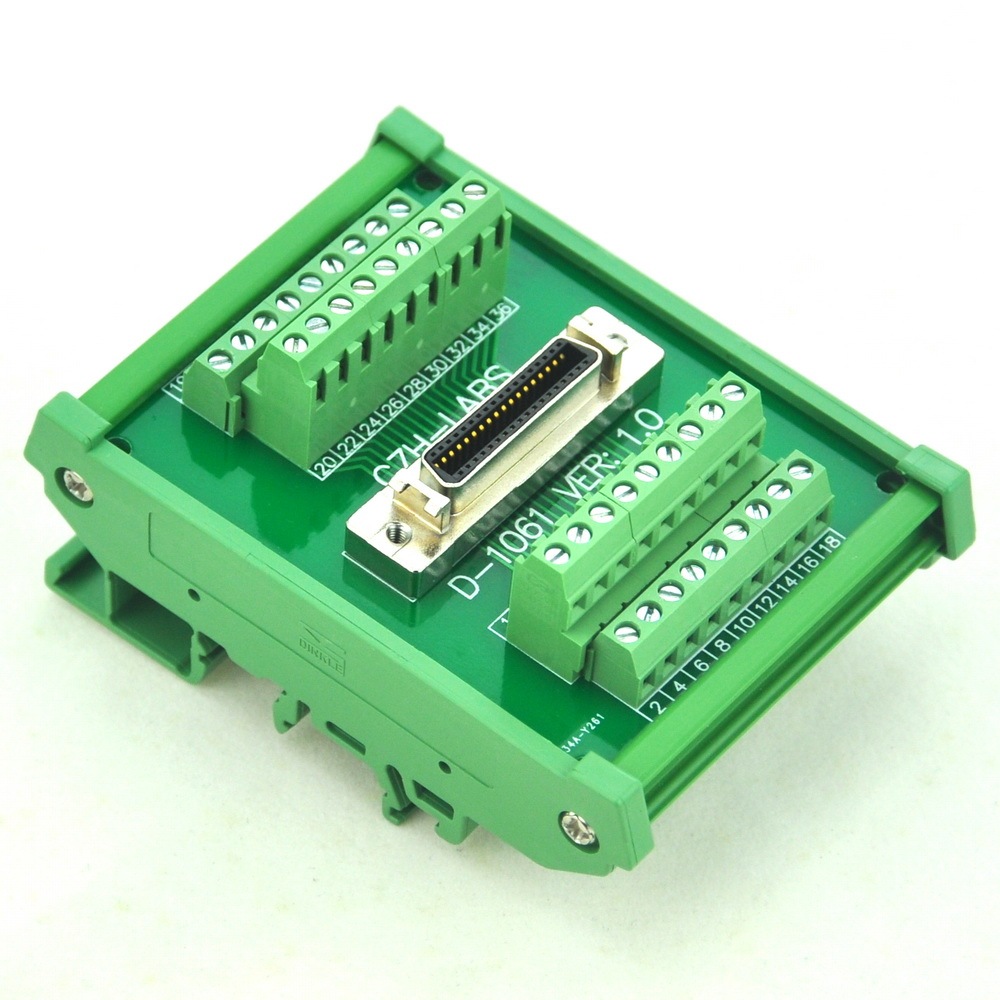

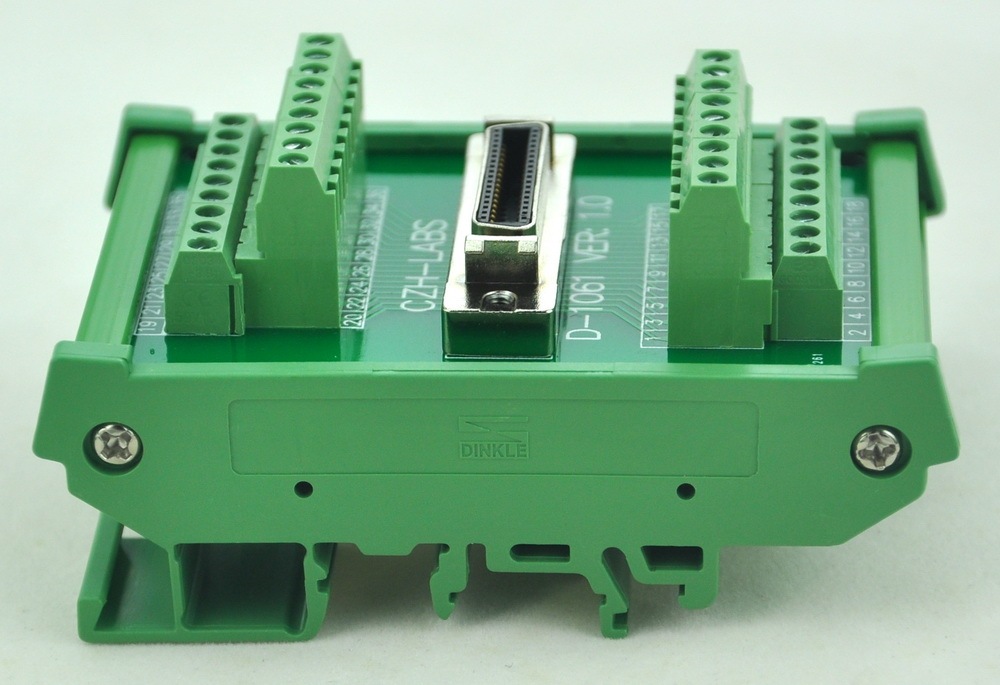

CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.

SKU: D-1061CNT
$34.00 $34.00
CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $34 = $34
save $0.00
Add to Favorites
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
1/1
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
  • CZH-LABS DIN Rail Mount 36-pin 0.05" Mini D Ribbon/MDR Female Interface Module, SCSI.
  • Description
36-pin pitch 1.27mm/0.05" Mini D Ribbon / MDR female connector.
36-position pitch 3.81mm/0.15" screw terminal blocks.
High quality DIN rail mount carrier, can support width 35mm /32mm / 15mm rail.
FR-4 fiber glass PCB, dual copper layers.
Rated voltage: 50V.
Rated current: 1A / per pin.
Operating Temperature: -20ºC to 50ºC

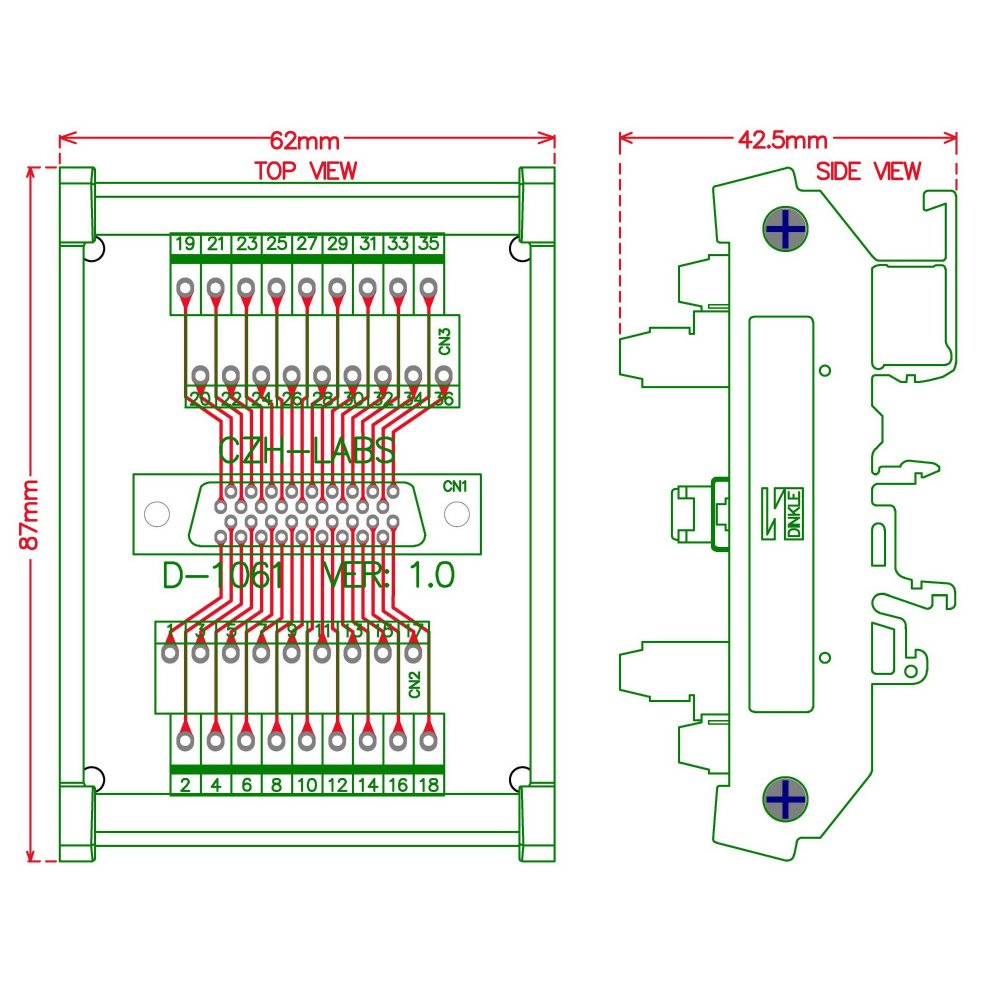

Dimensions: 83 x 63 x 43mm (W x L x H).
100% new, never used.

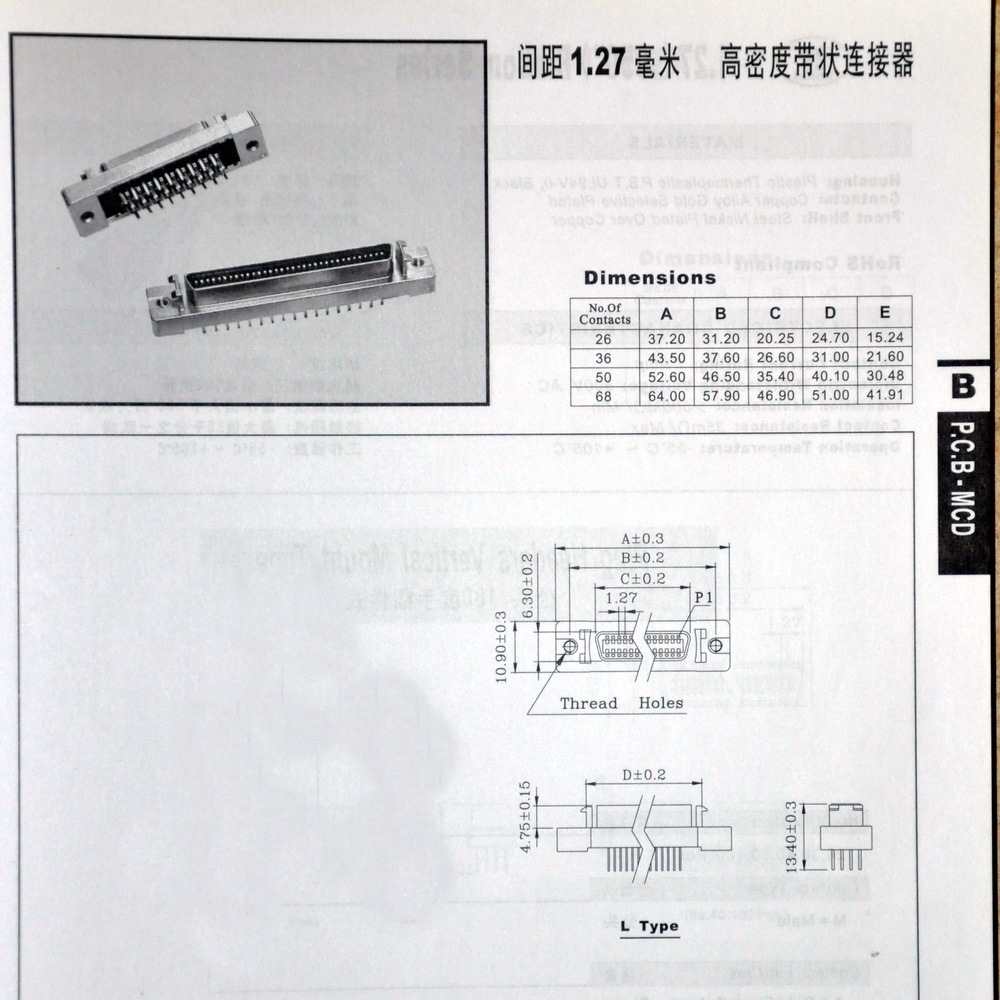

Receptacles connector specifications:

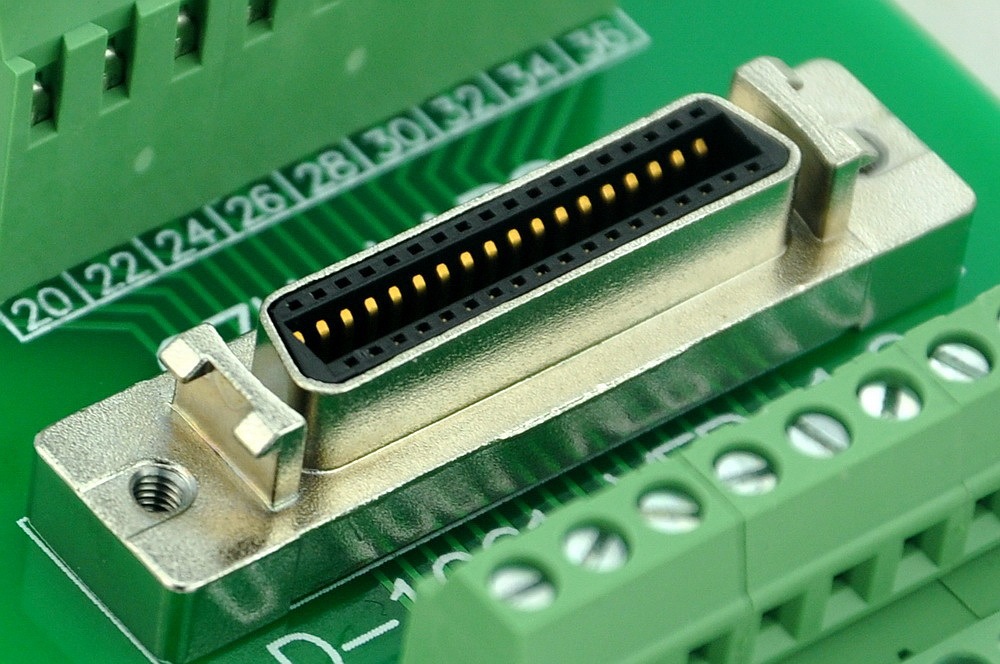

Mini D Ribbon / MDR female connector.
Pitch: 1.27mm/0.05"

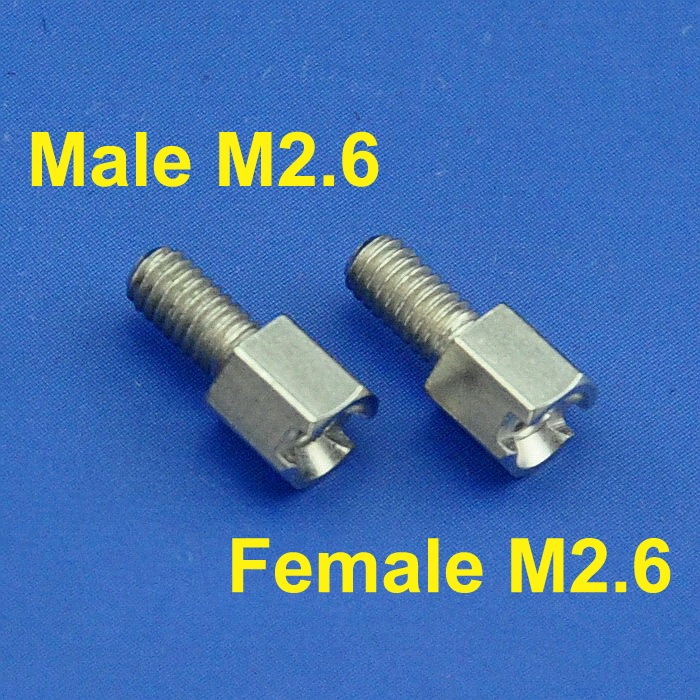

Support cable type: Latch bracket & M2.6 screw bracket type.
(other, we can supply #2-56 screw bracket version, if you need #2-56 screw bracket version please contact me).

Terminal block specifications:
Wire range: 26-16AWG.
Pitch: 3.81mm/0.15"
Strip length: 5mm.
Screws: M2,steel,Cr3+ Zn plated.
Pin header and Cage - Brass.
