AudioWind 100,000uF Capacitors Module Board, for Upgrade Audio PreAMP or Power AMP.

Name: AudioWind 100,000uF Capacitors Module Board, for Upgrade Audio PreAMP or Power AMP.
Brand: Xiken Tech
SKU: A-440
Price: 45 USD
Availability: OutOfStock

SKU: A-440

$45.00 ~~$45.00~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

This item has been assembled, and electrical test passed.

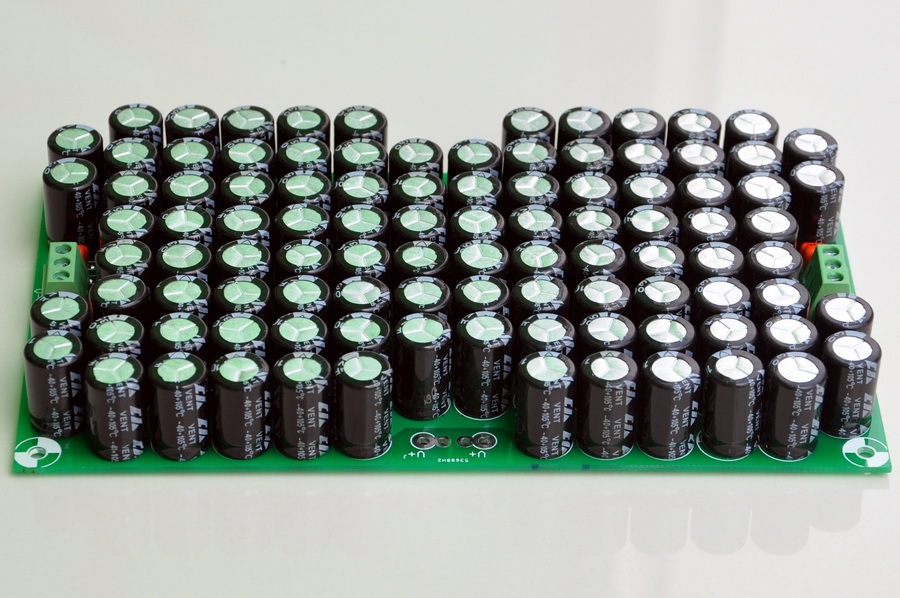

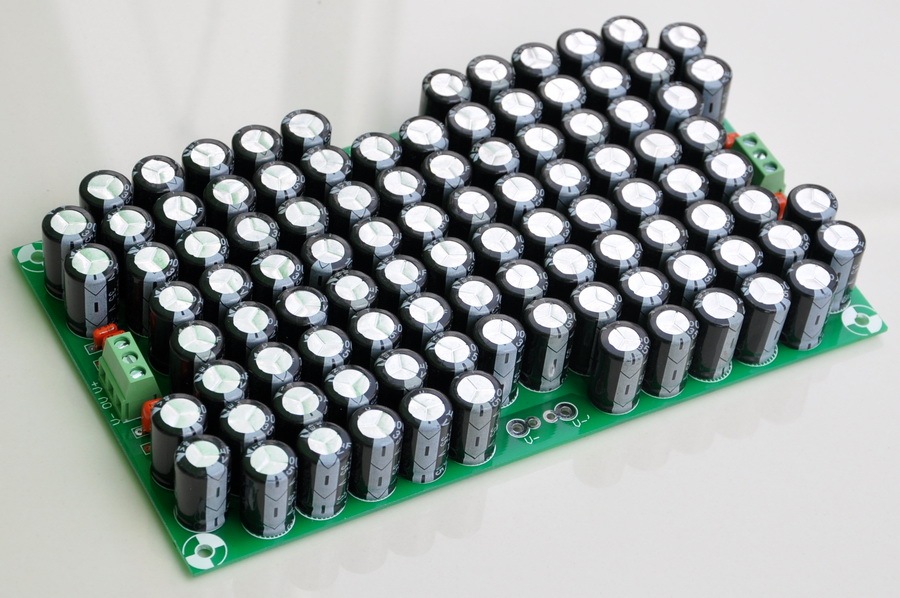

DC power supply capacitors filter module board, total capacitance 100,000uF, for upgrade your preamplifier or amplifier.

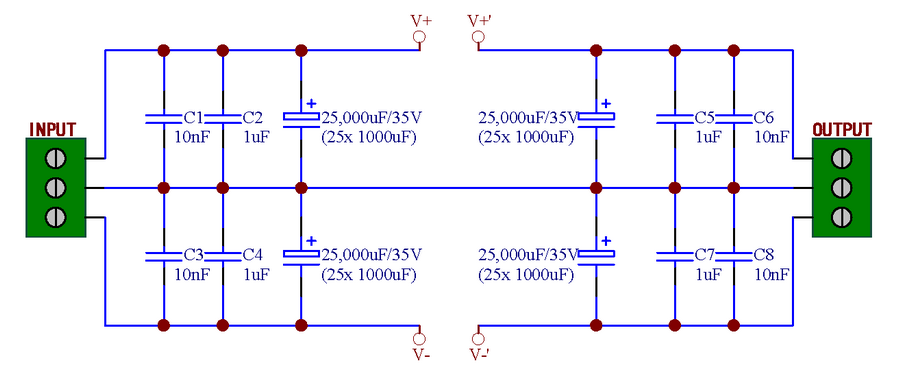

The design can be configured as normal capacitive filtering, or CRC, or CLC filtering, depending on the components at V+ V+' / V- V-' positions.

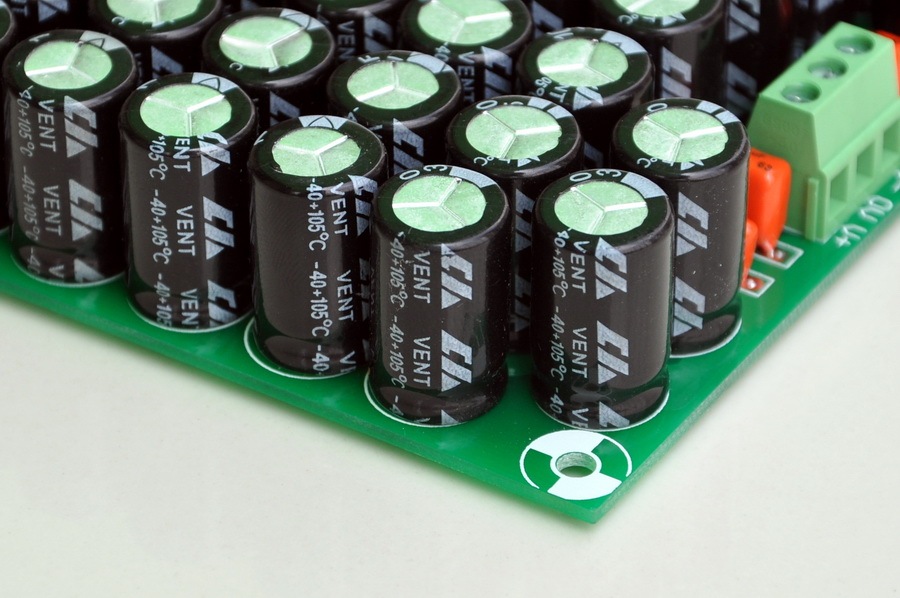

100x 1000uF/35V electrolytic capacitors, total capacitance 100,000uF.
4x 1uF & 4x 10nF metal film capacitors, conducive to filtering high-frequency noise.

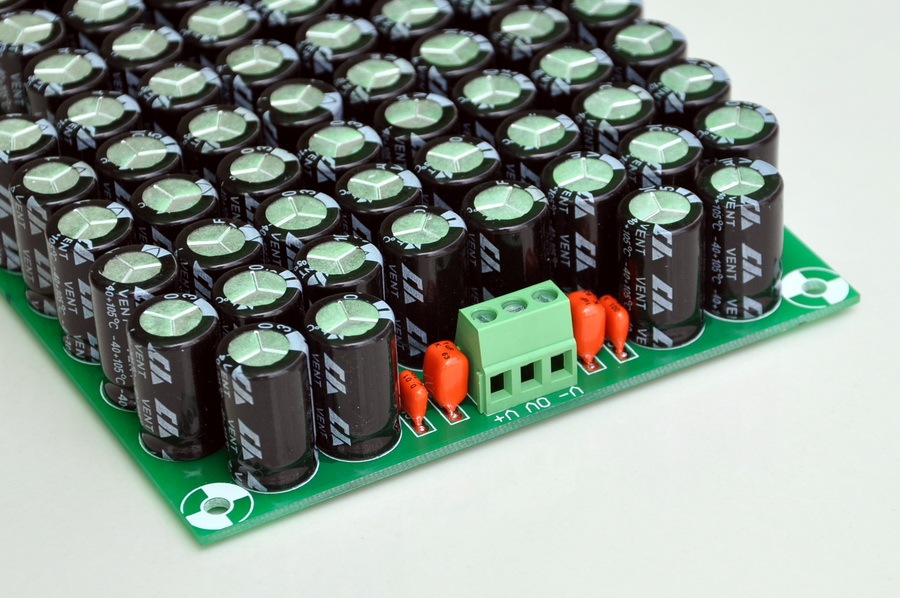

HQ terminal blocks easy connection wire.
FR-4 Fiber glass PCB (Double Layer), thickness: 1.6mm.

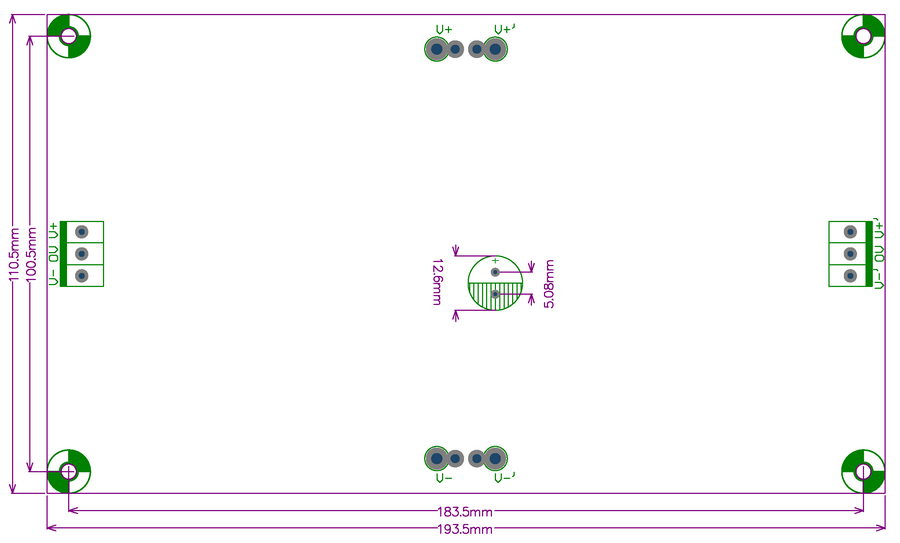

Dimension: 110.5 x 193.5 x 25mm / 4.45" x 7.62" x 1".

AudioWind 100,000uF Capacitors Module Board, for Upgrade Audio PreAMP or Power AMP.
