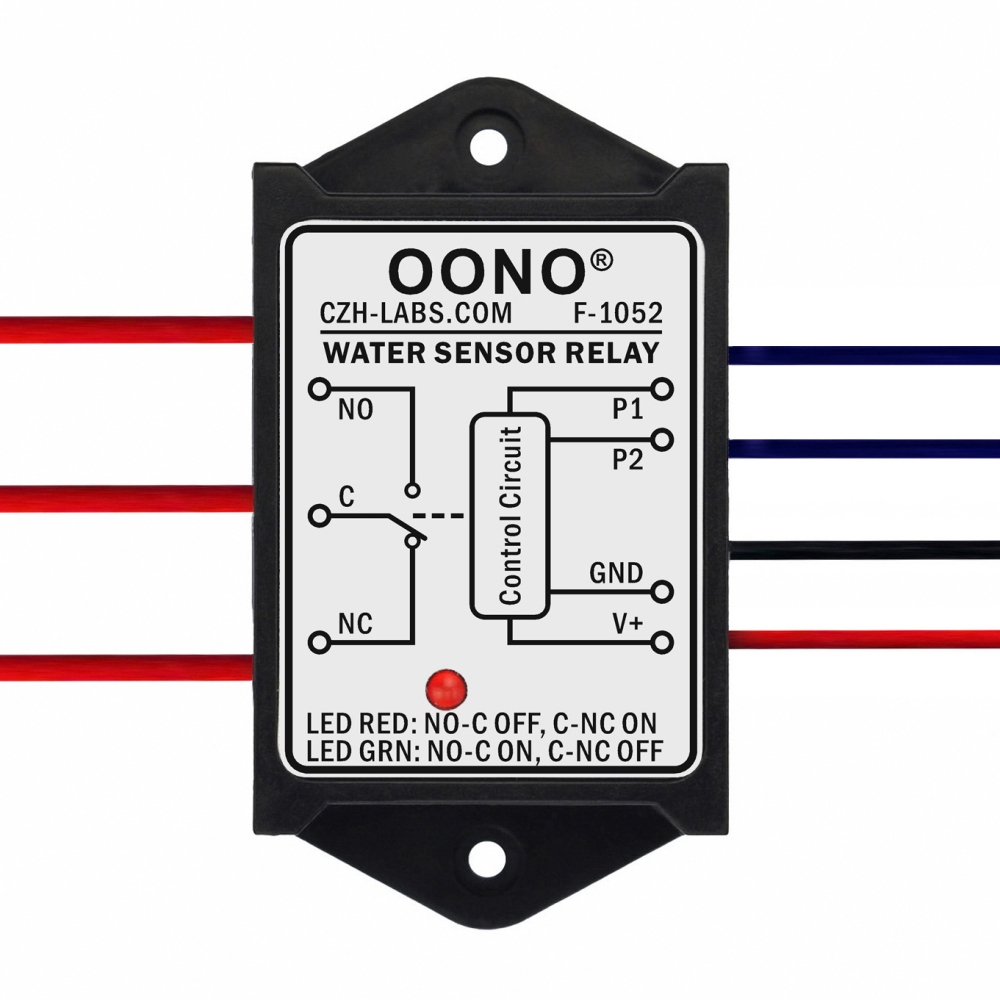

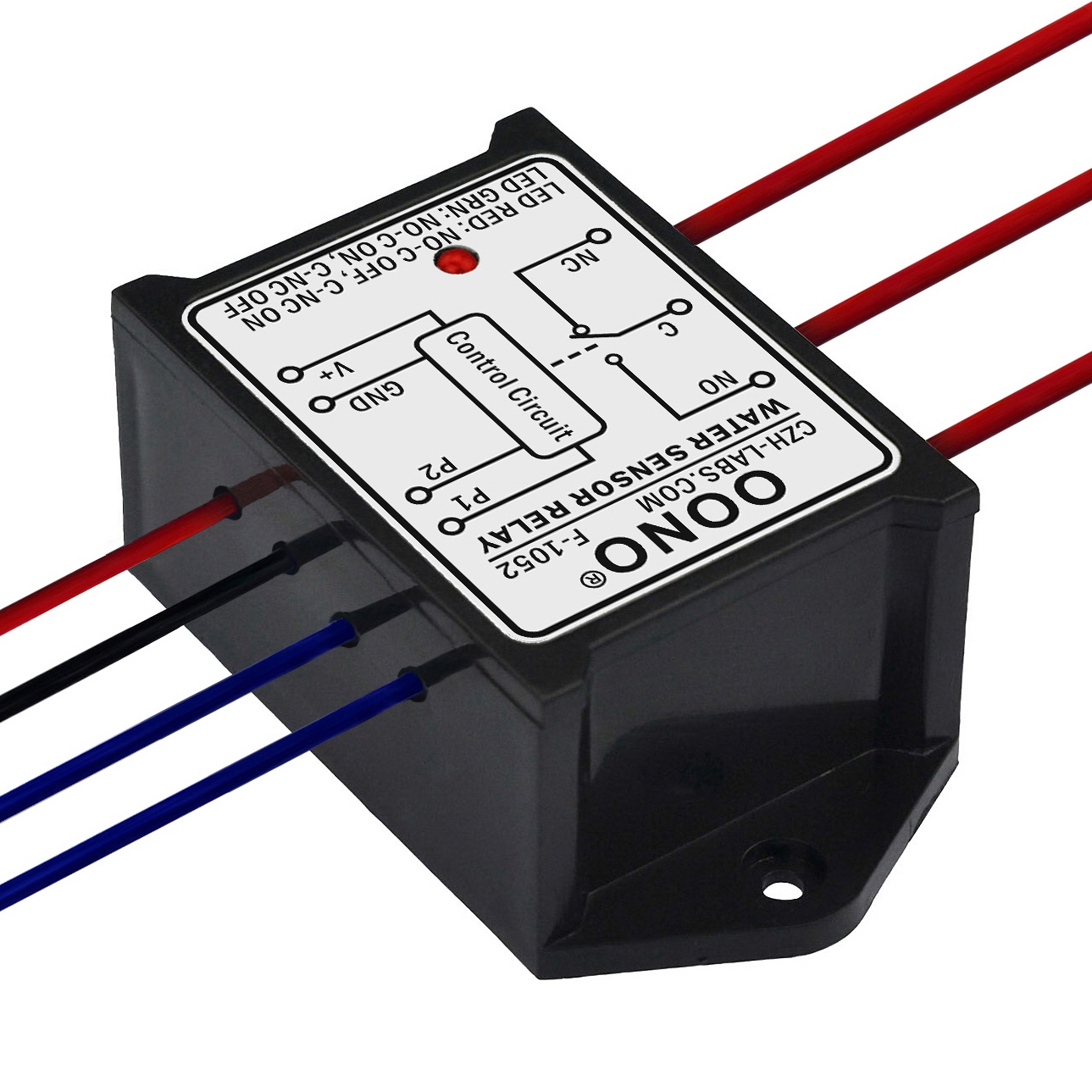

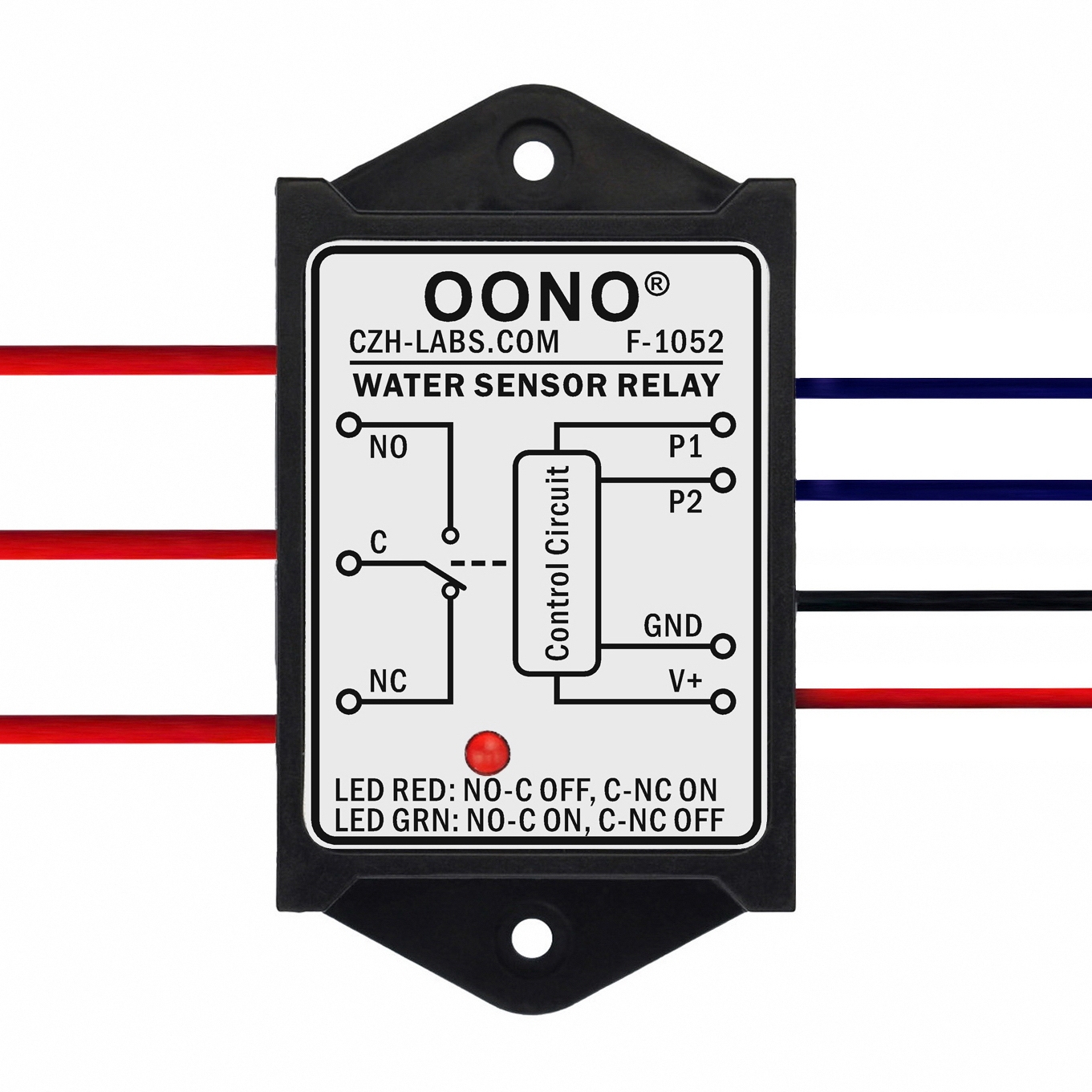

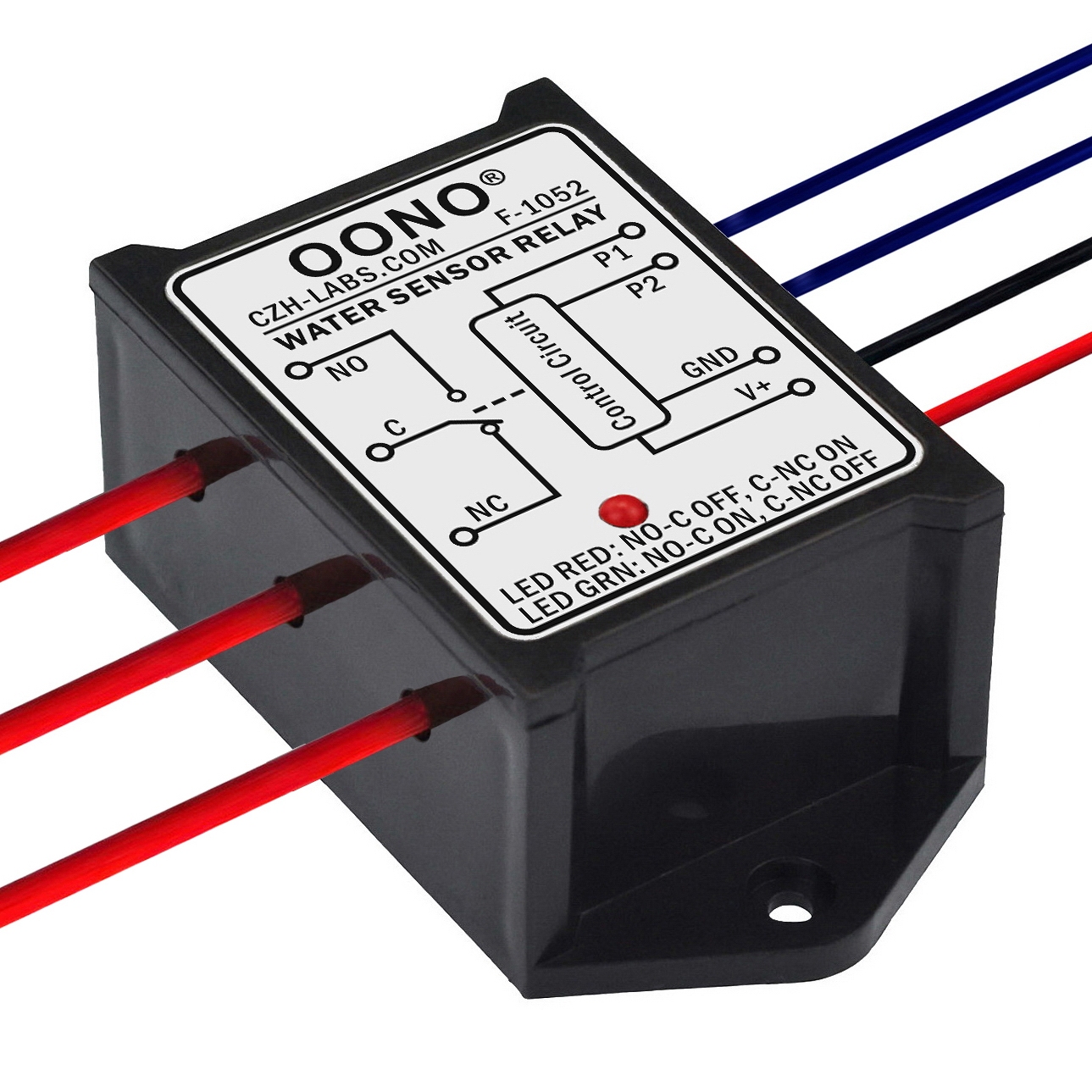

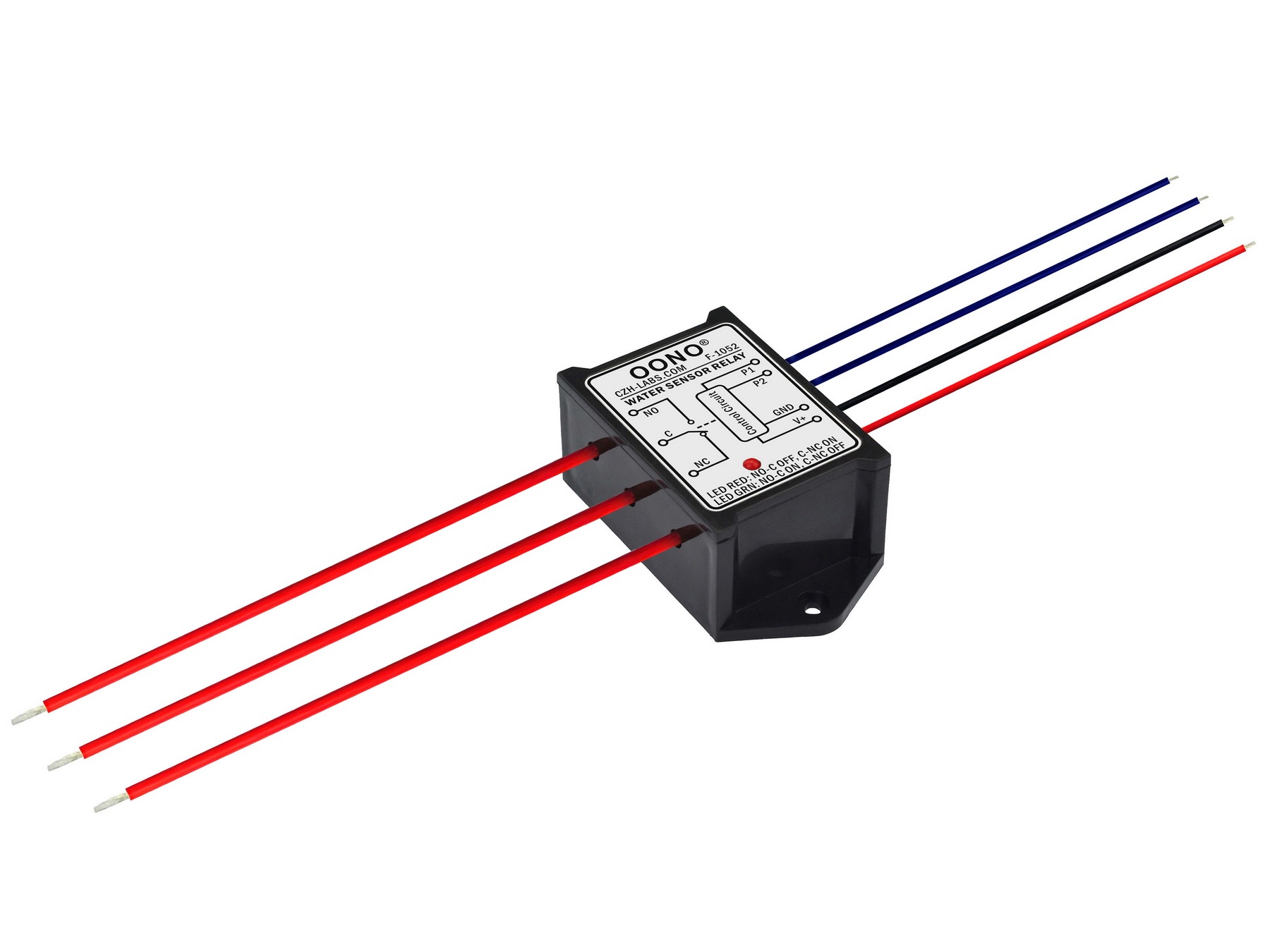

Water Sensor Relay SPDT Switch Module, OONO F-1052

SKU: F-1052
$20.00 $20.00
Water Sensor Relay SPDT Switch Module, OONO F-1052
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-max
    Please select the information you wantX
Quantity:
1 * $20 = $20
save $0.00
Add to Favorites
  • Water Sensor Relay SPDT Switch Module, OONO F-1052
  • Water Sensor Relay SPDT Switch Module, OONO F-1052
  • Water Sensor Relay SPDT Switch Module, OONO F-1052
  • Water Sensor Relay SPDT Switch Module, OONO F-1052
  • Water Sensor Relay SPDT Switch Module, OONO F-1052
  • Water Sensor Relay SPDT Switch Module, OONO F-1052
  • Water Sensor Relay SPDT Switch Module, OONO F-1052
  • Water Sensor Relay SPDT Switch Module, OONO F-1052
  • Water Sensor Relay SPDT Switch Module, OONO F-1052
  • Water Sensor Relay SPDT Switch Module, OONO F-1052
  • Water Sensor Relay SPDT Switch Module, OONO F-1052
  • Water Sensor Relay SPDT Switch Module, OONO F-1052
1/1
  • Water Sensor Relay SPDT Switch Module, OONO F-1052
  • Water Sensor Relay SPDT Switch Module, OONO F-1052
  • Water Sensor Relay SPDT Switch Module, OONO F-1052
  • Water Sensor Relay SPDT Switch Module, OONO F-1052
  • Water Sensor Relay SPDT Switch Module, OONO F-1052
  • Water Sensor Relay SPDT Switch Module, OONO F-1052
  • Description
Features:

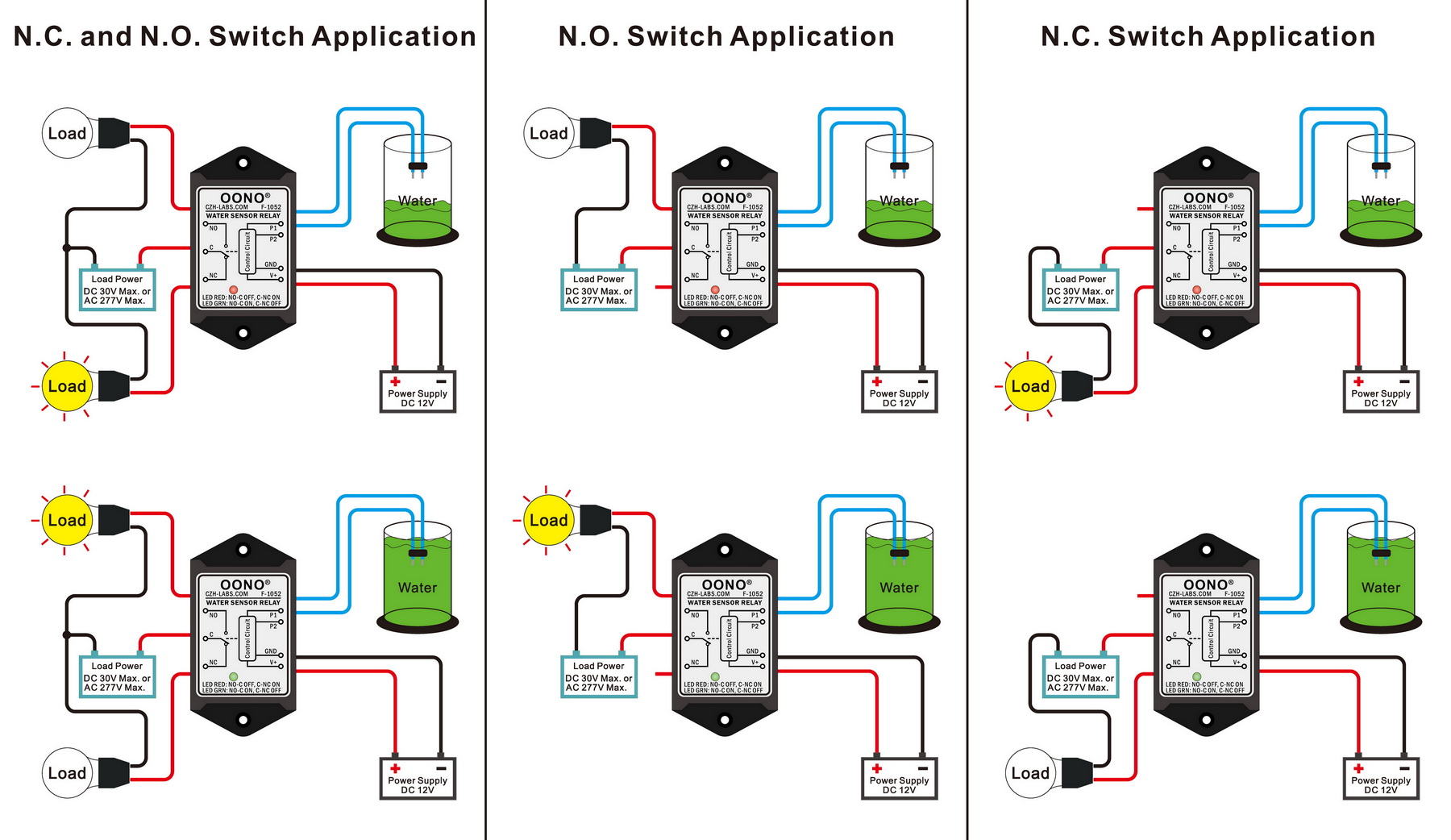

1, This is a simple and practical water sensor relay module, relay output switch SPDT (Single Pole Double Throw). If the 2 sensor wires P1 and P2 of the module come into contact with water, the built-in relay switch action, C to NO connected and C to NC disconnect, otherwise the relay switch will release, C to NO disconnect and C to NC connected.
2, The module must a power supply DC 10 ~ 15V to V+ / GND. Operating current < 50mA. The LED on the module serve as both power indication and relay status indication. When the built-in relay action LED lights up green, when the relay release LED lights up red.
3, Relay output switch SPDT (Single Pole Double Throw). Maximum switch voltage AC 277V / DC 30V. Maximum load current 10 Amp.
4, Approved cable length towards the water sensors P1 and P2: max. 10m / 32.8ft with normal cable, max. 100m / 328ft with shielded cable, if the shielding braid is connected with the negative pole of the distribution voltage. The two sensor heads should be placed as close as possible, but not short-circuited.

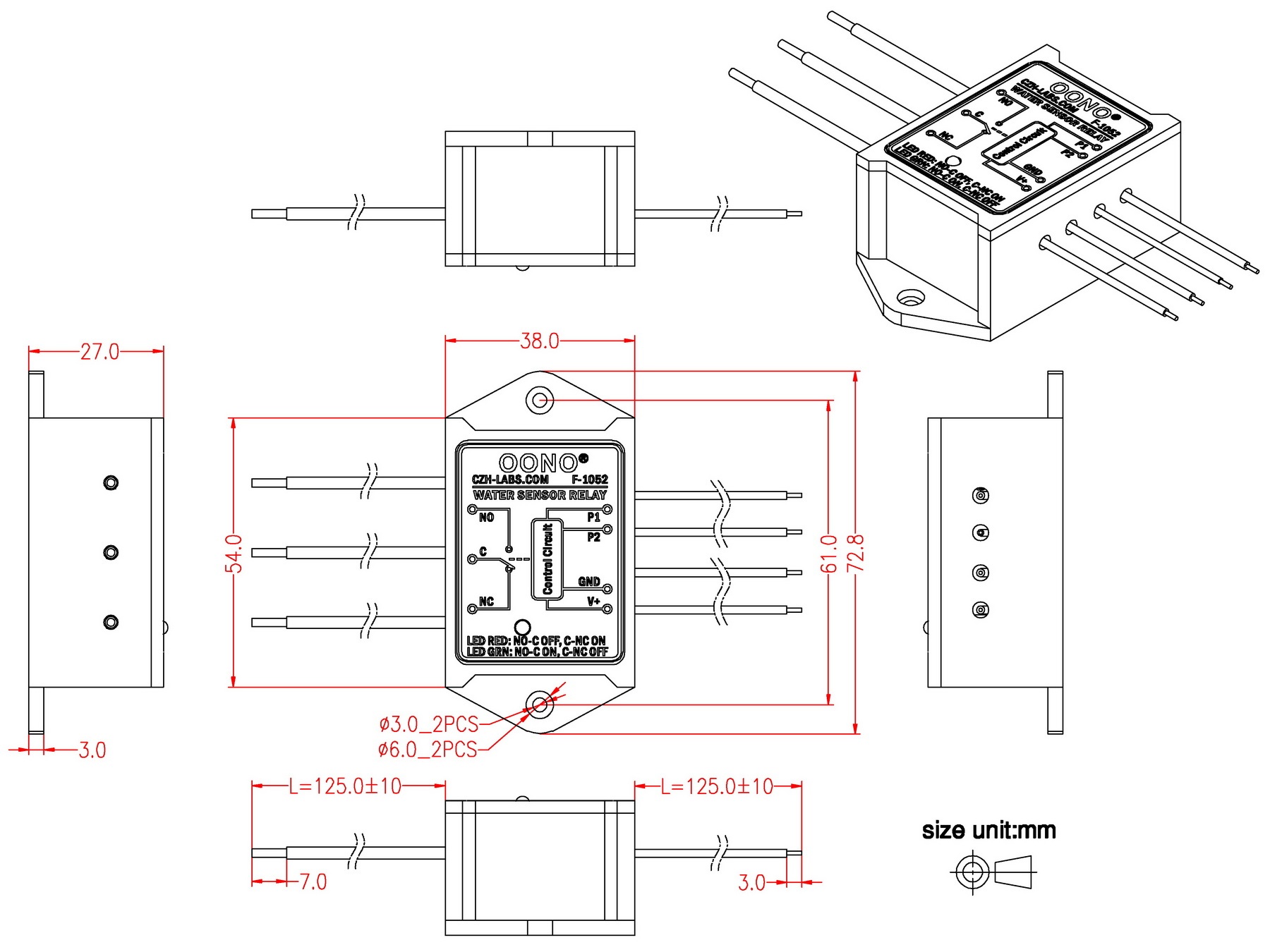

5, Compact plastic case and wires connects for easy mount. Two screw mounting holes are convenient for you to fix it on the wall or wooden board. Of course, you can also choose not to lock the screw.
