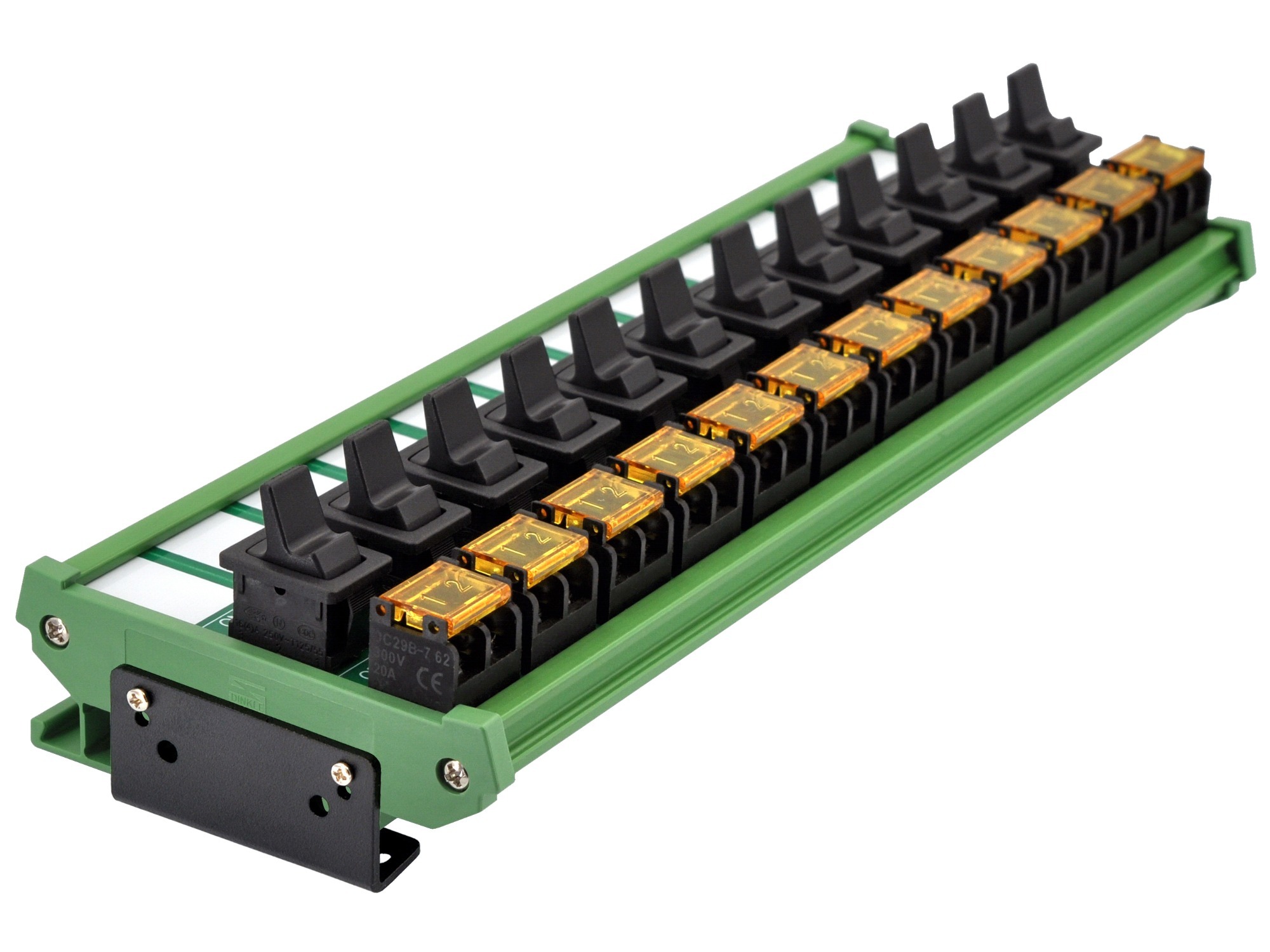

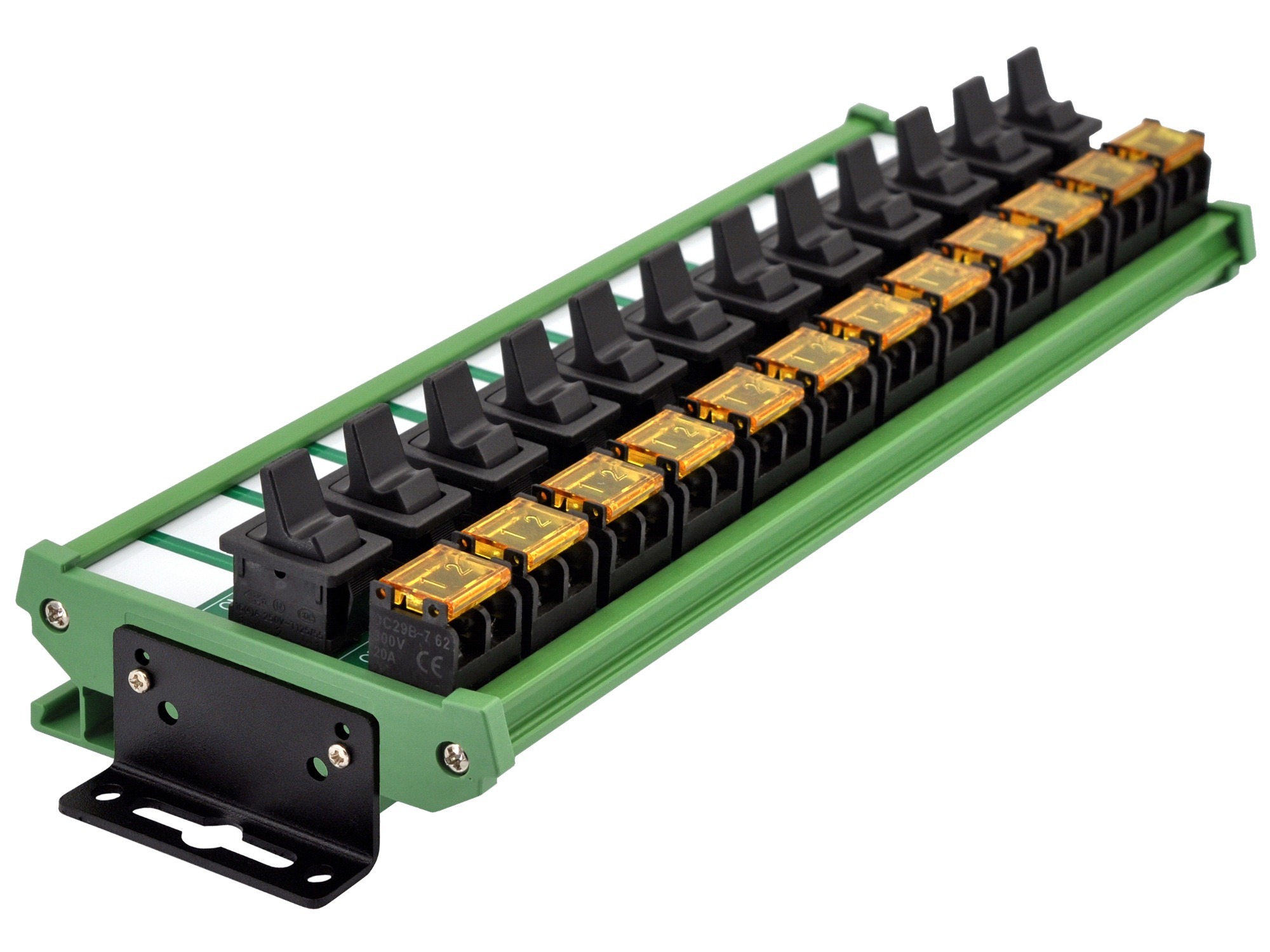

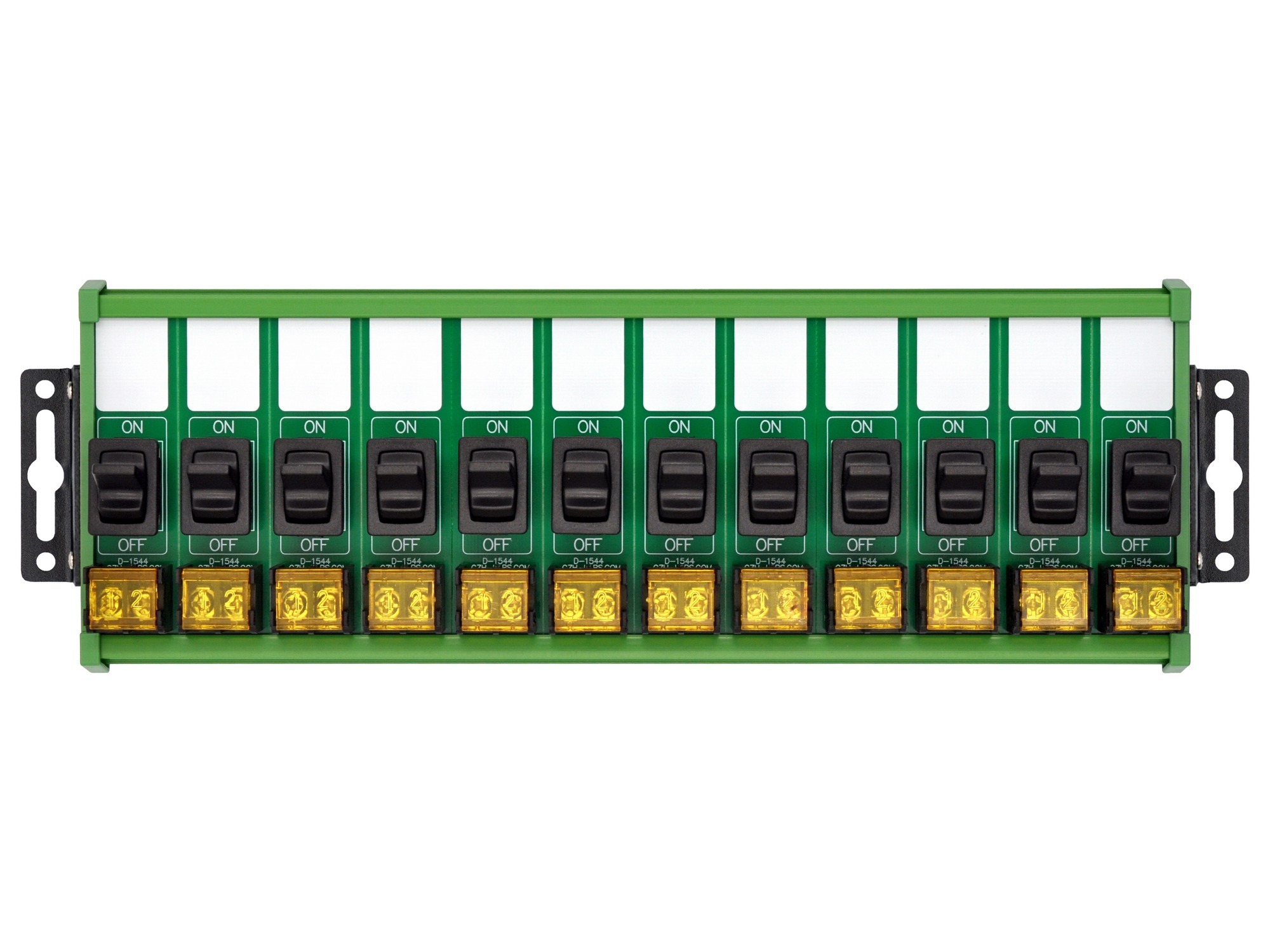

Wall Mount 12 Channel Paddle Rocker Switch Module, 10Amp 250VAC / 50VDC

SKU: D-1544TLK/12
$54.00 $54.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-max
    Please select the information you wantX
Quantity:
1 * $54 = $54
save $0.00
Add to Favorites
  • Wall Mount 12 Channel Paddle Rocker Switch Module, 10Amp 250VAC / 50VDC
  • Wall Mount 12 Channel Paddle Rocker Switch Module, 10Amp 250VAC / 50VDC
  • Wall Mount 12 Channel Paddle Rocker Switch Module, 10Amp 250VAC / 50VDC
  • Wall Mount 12 Channel Paddle Rocker Switch Module, 10Amp 250VAC / 50VDC
  • Wall Mount 12 Channel Paddle Rocker Switch Module, 10Amp 250VAC / 50VDC
  • Wall Mount 12 Channel Paddle Rocker Switch Module, 10Amp 250VAC / 50VDC
  • Wall Mount 12 Channel Paddle Rocker Switch Module, 10Amp 250VAC / 50VDC
  • Wall Mount 12 Channel Paddle Rocker Switch Module, 10Amp 250VAC / 50VDC
  • Wall Mount 12 Channel Paddle Rocker Switch Module, 10Amp 250VAC / 50VDC
  • Wall Mount 12 Channel Paddle Rocker Switch Module, 10Amp 250VAC / 50VDC
  • Wall Mount 12 Channel Paddle Rocker Switch Module, 10Amp 250VAC / 50VDC
  • Wall Mount 12 Channel Paddle Rocker Switch Module, 10Amp 250VAC / 50VDC
  • Wall Mount 12 Channel Paddle Rocker Switch Module, 10Amp 250VAC / 50VDC
  • Wall Mount 12 Channel Paddle Rocker Switch Module, 10Amp 250VAC / 50VDC
  • Wall Mount 12 Channel Paddle Rocker Switch Module, 10Amp 250VAC / 50VDC
  • Wall Mount 12 Channel Paddle Rocker Switch Module, 10Amp 250VAC / 50VDC
1/1
  • Wall Mount 12 Channel Paddle Rocker Switch Module, 10Amp 250VAC / 50VDC
  • Wall Mount 12 Channel Paddle Rocker Switch Module, 10Amp 250VAC / 50VDC
  • Wall Mount 12 Channel Paddle Rocker Switch Module, 10Amp 250VAC / 50VDC
  • Wall Mount 12 Channel Paddle Rocker Switch Module, 10Amp 250VAC / 50VDC
  • Wall Mount 12 Channel Paddle Rocker Switch Module, 10Amp 250VAC / 50VDC
  • Wall Mount 12 Channel Paddle Rocker Switch Module, 10Amp 250VAC / 50VDC
  • Wall Mount 12 Channel Paddle Rocker Switch Module, 10Amp 250VAC / 50VDC
  • Wall Mount 12 Channel Paddle Rocker Switch Module, 10Amp 250VAC / 50VDC
  • Description
1, Rated voltage: 250VAC or 50VDC. Rated current 10 Amp (for per channel).
2, ON-OFF Paddle rocker switch.

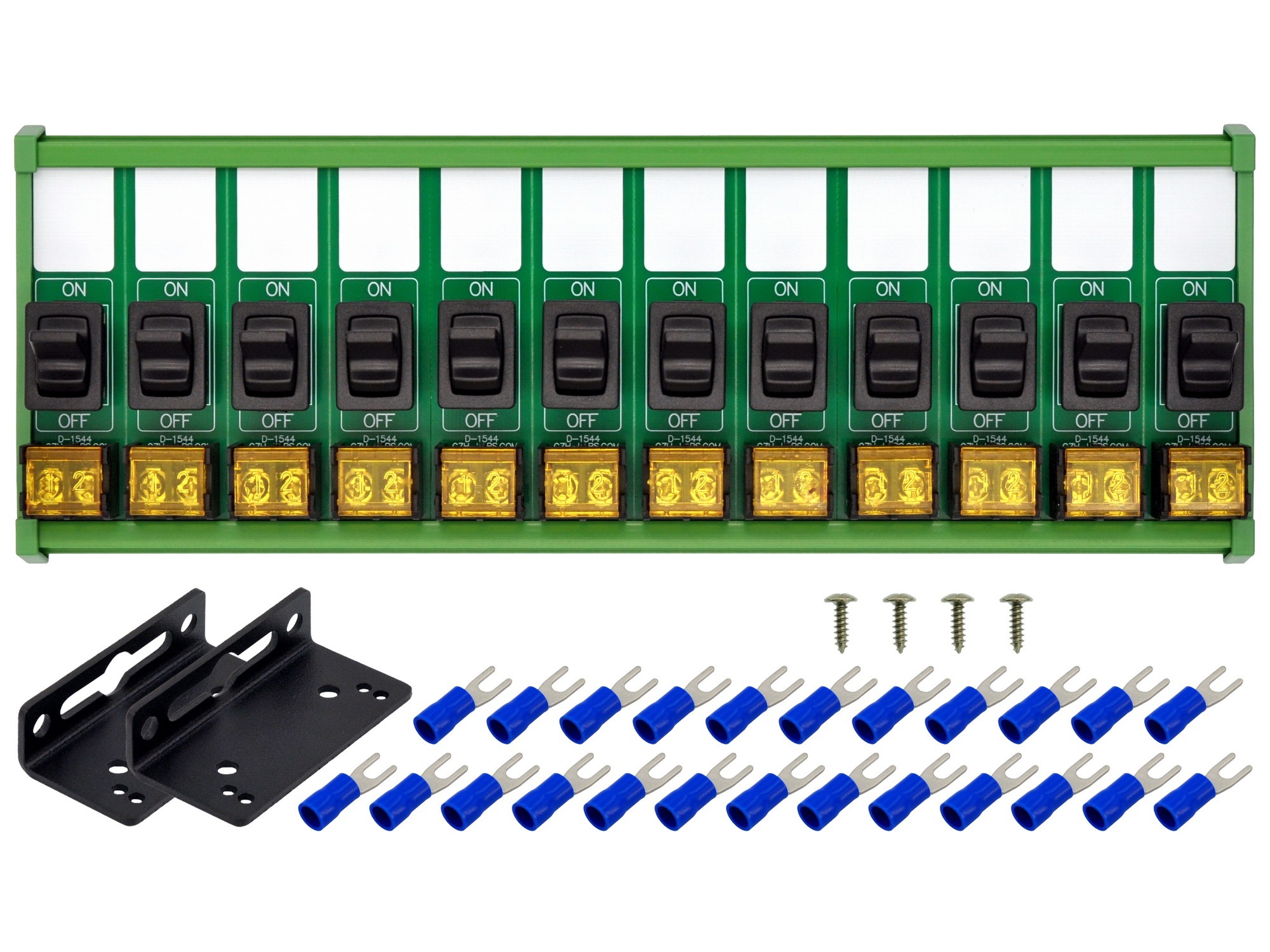

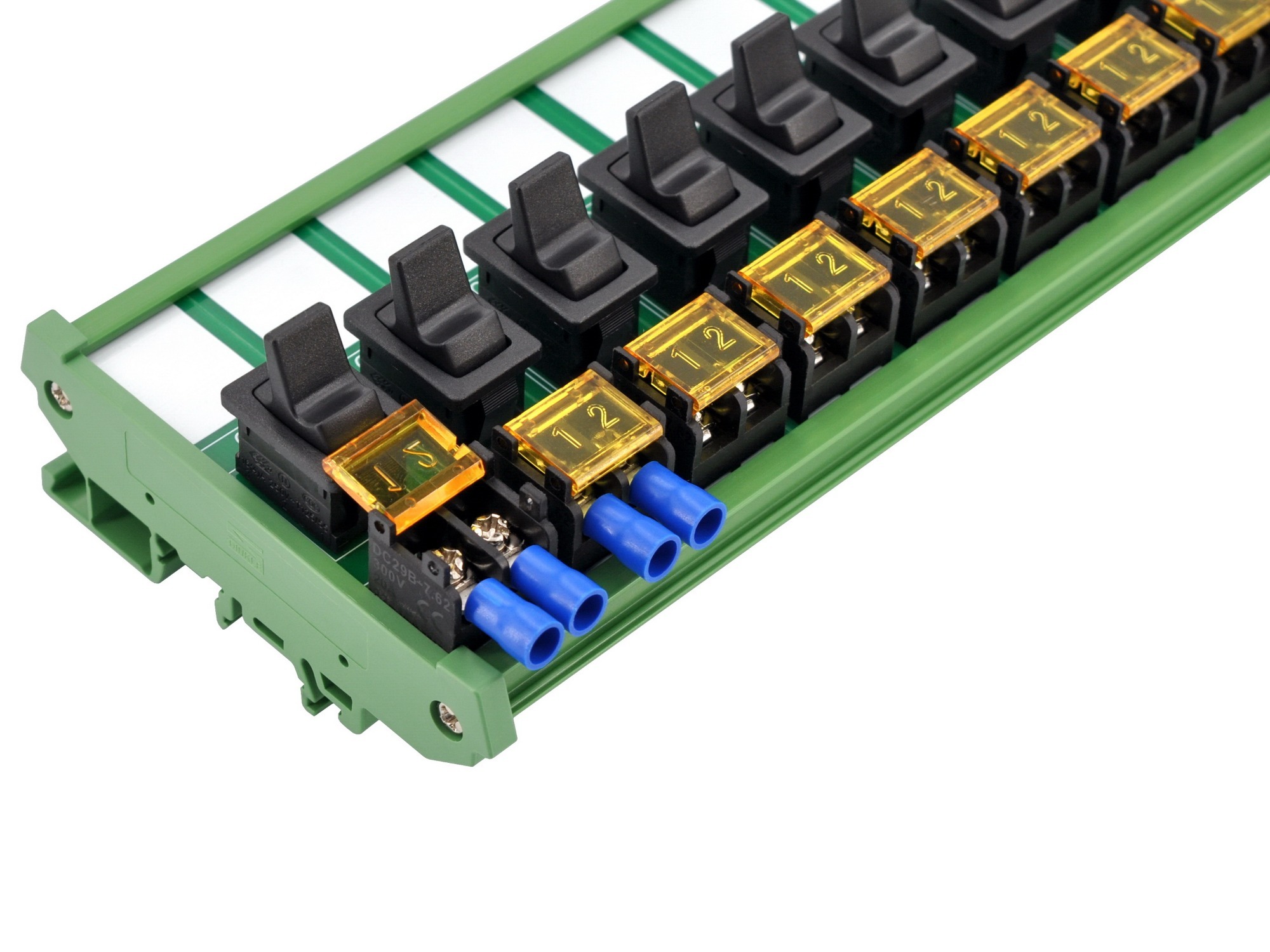

3, Terminals pitch 7.62mm/0.3", removable cover, Metric M3 screw. With vinyl-insulated spade connectors, can support cable 16 - 14AWG / conductor cross section 1.5 - 2.5 square millimeters.

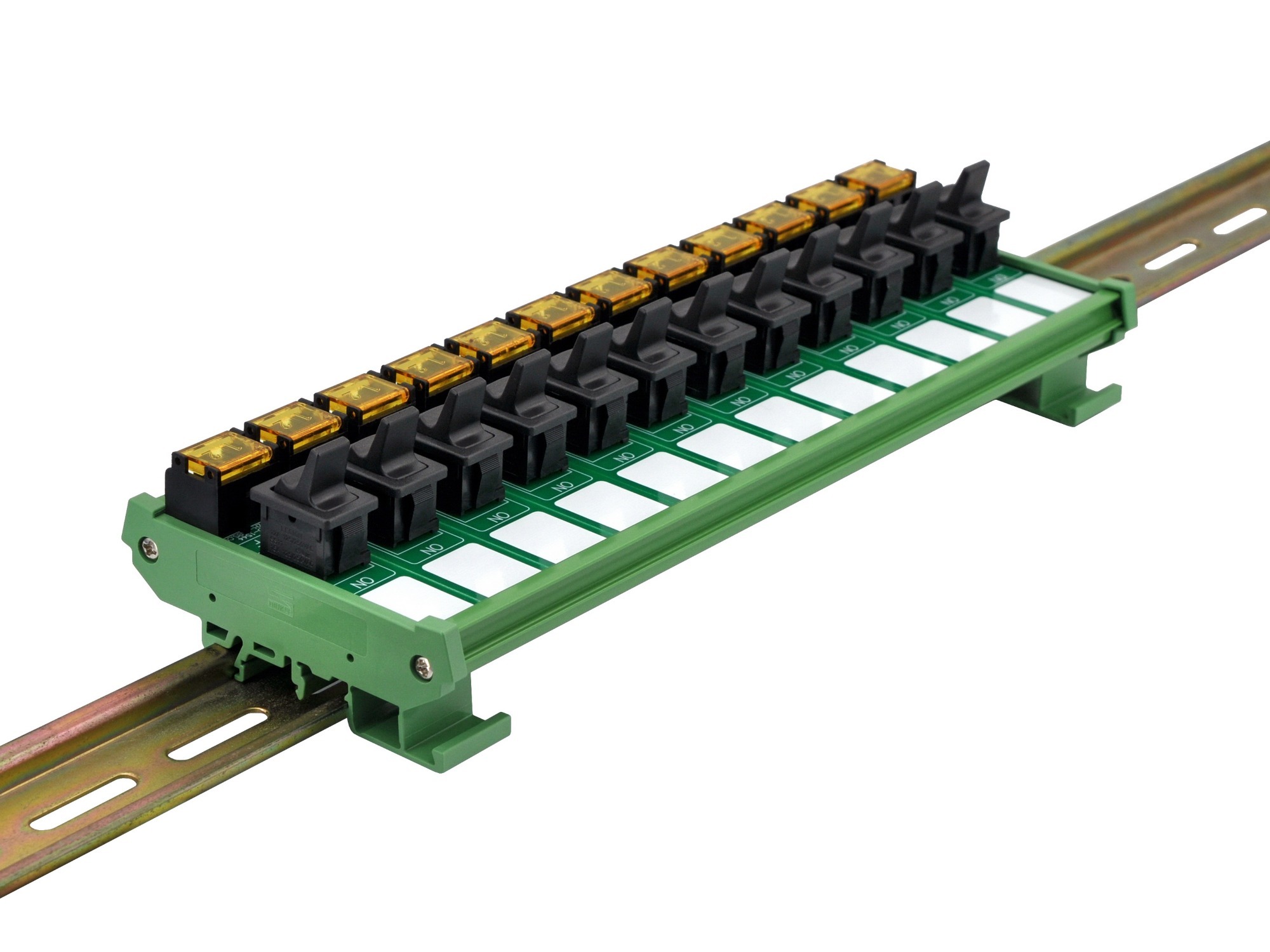

4, Support wall mounting(ear-mounted or concdaled mounted), screw mouning, and can support DIN rail mounting for width 35mm 32mm 15mm rail.
5, UL CE certified fireproof nylon material housing carrier. UL 94-V0 certified FR-4 fiberglass PCB. CE CQC certified terminal blocks.
