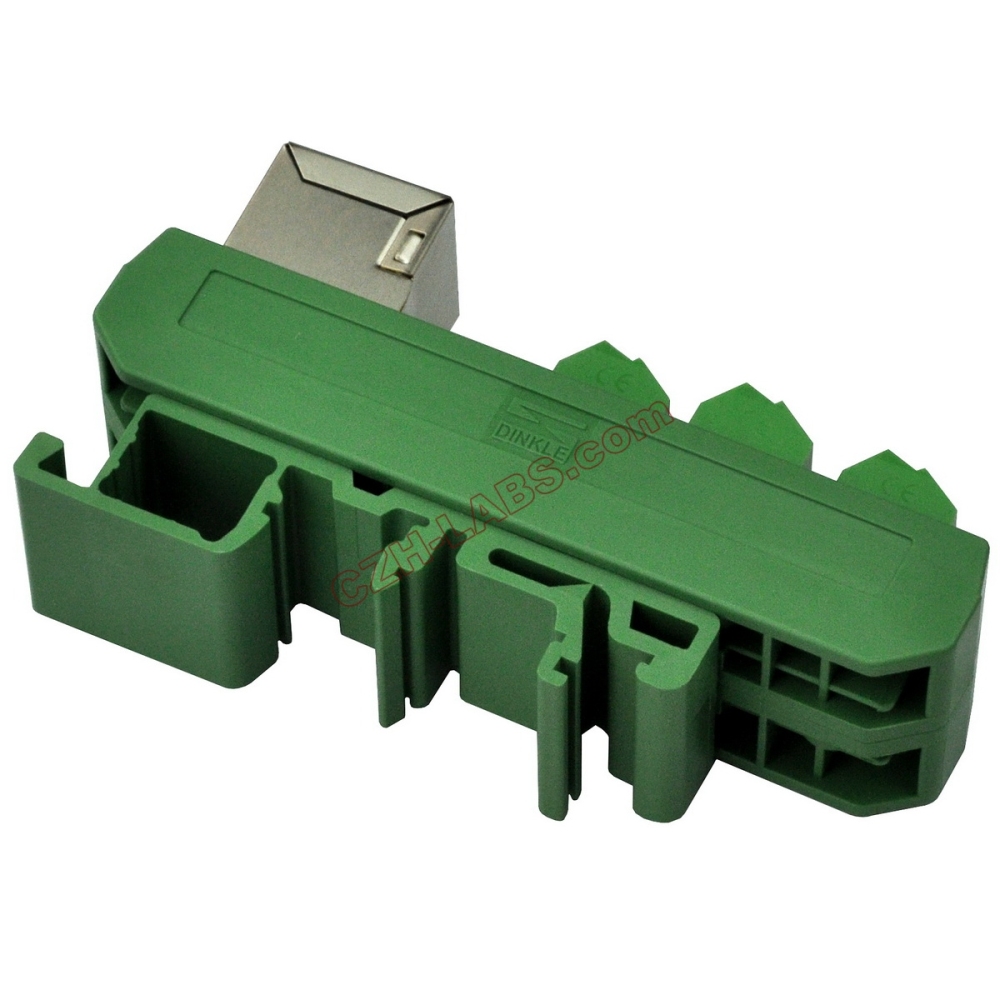

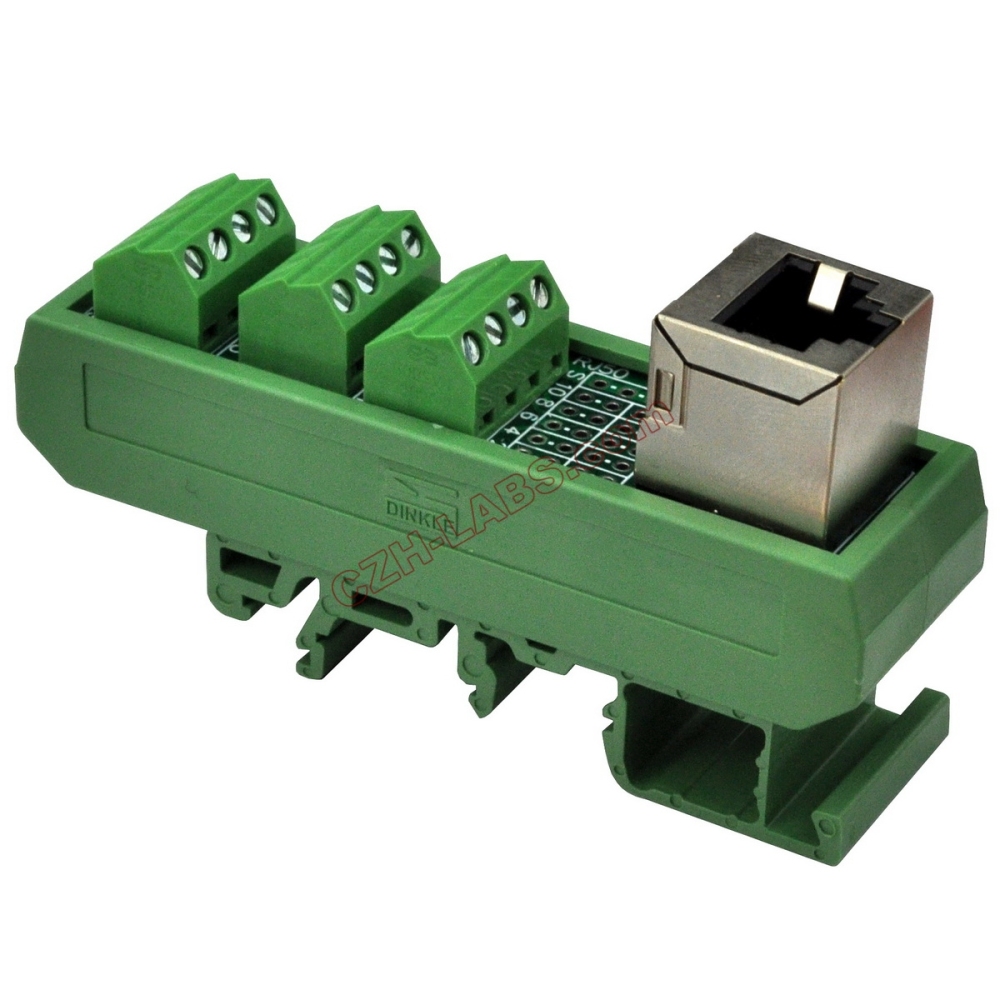

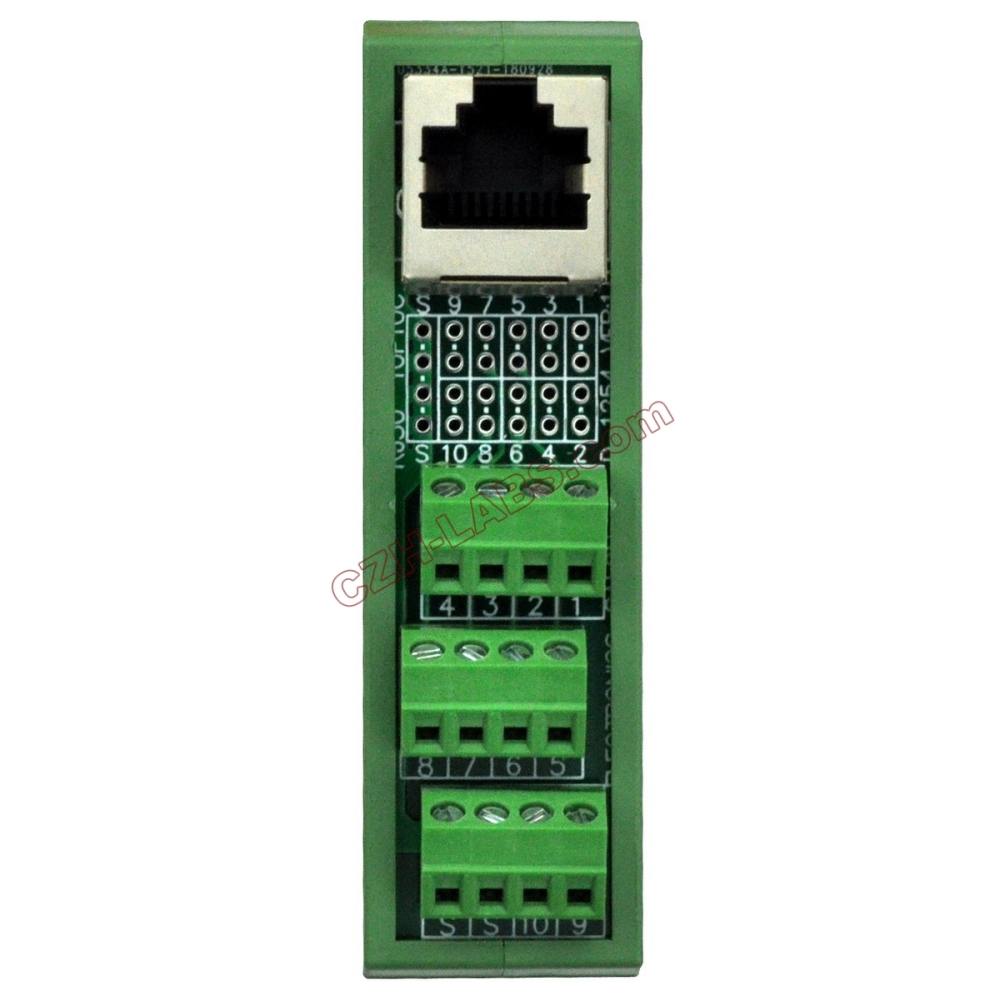

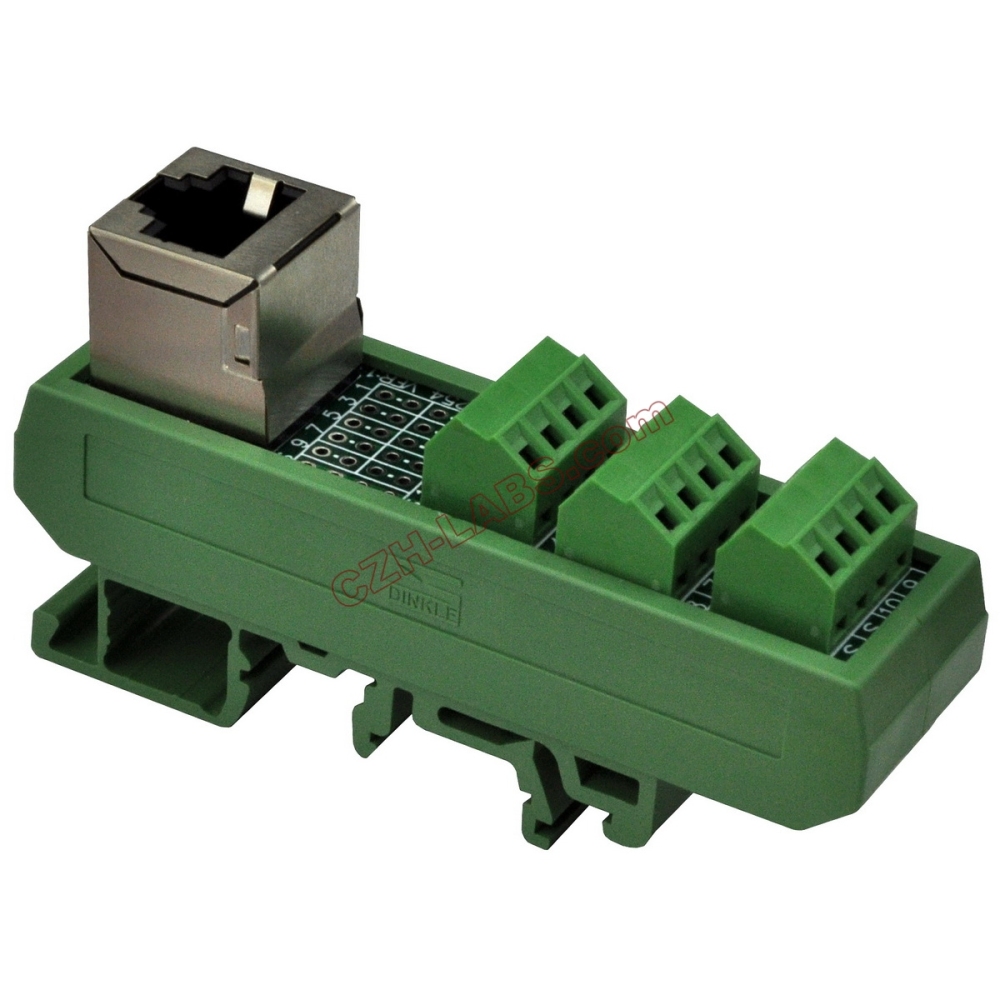

Slim DIN Rail Mount RJ50 10P10C Breakout Board Interface Module.

SKU: D-1254T
$14.99 $14.99
Slim DIN Rail Mount RJ50 10P10C Breakout Board Interface Module.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $14.99 = $14.99
save $0.00
Add to Favorites
  • Slim DIN Rail Mount RJ50 10P10C Breakout Board Interface Module.
  • Slim DIN Rail Mount RJ50 10P10C Breakout Board Interface Module.
  • Slim DIN Rail Mount RJ50 10P10C Breakout Board Interface Module.
  • Slim DIN Rail Mount RJ50 10P10C Breakout Board Interface Module.
  • Slim DIN Rail Mount RJ50 10P10C Breakout Board Interface Module.
  • Slim DIN Rail Mount RJ50 10P10C Breakout Board Interface Module.
  • Slim DIN Rail Mount RJ50 10P10C Breakout Board Interface Module.
  • Slim DIN Rail Mount RJ50 10P10C Breakout Board Interface Module.
  • Slim DIN Rail Mount RJ50 10P10C Breakout Board Interface Module.
  • Slim DIN Rail Mount RJ50 10P10C Breakout Board Interface Module.
  • Slim DIN Rail Mount RJ50 10P10C Breakout Board Interface Module.
  • Slim DIN Rail Mount RJ50 10P10C Breakout Board Interface Module.
1/1
  • Slim DIN Rail Mount RJ50 10P10C Breakout Board Interface Module.
  • Slim DIN Rail Mount RJ50 10P10C Breakout Board Interface Module.
  • Slim DIN Rail Mount RJ50 10P10C Breakout Board Interface Module.
  • Slim DIN Rail Mount RJ50 10P10C Breakout Board Interface Module.
  • Slim DIN Rail Mount RJ50 10P10C Breakout Board Interface Module.
  • Slim DIN Rail Mount RJ50 10P10C Breakout Board Interface Module.
  • Description
Slim DIN Rail Mount RJ50 10P10C Breakout Board Interface Module.

RJ50 10P10C vertical jack.
Solder connection holes 2 per line, supports addition of 0.1" pin headers. FR-4 fiber glass PCB, dual copper layers.
Rated voltage: 80V. Rated current: 1A / per pin. Operating Temperature: -20ºC to 70ºC
Terminal block: Pin pitch 3.5mm/0.138", Wire range 28 ~ 16 AWG / 1mm square. Strip length 5mm. Screws - M2, steel, Cr3+ Zn plated. Pin header and Cage - Brass.
High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm, 25mm or 15mm rail.
