Home > Signal Converter > Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
1/1
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
Share:

Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module

SKU: D-1295T
$16.99 $16.99
Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $16.99 = $16.99
save $0.00
Add to Favorites
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
1/1
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
  • Slim DIN Rail Mount NPN to PNP / PNP to NPN Sensor Logic Signal Converter Module
  • Description

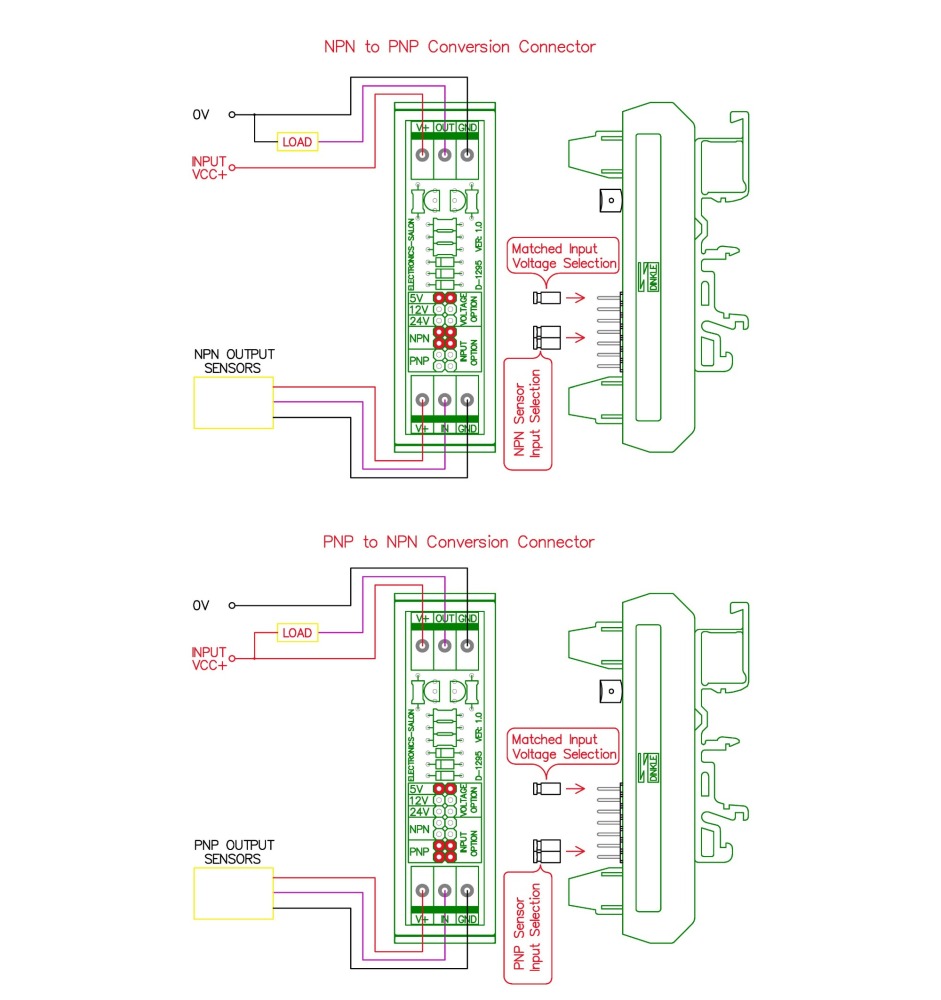

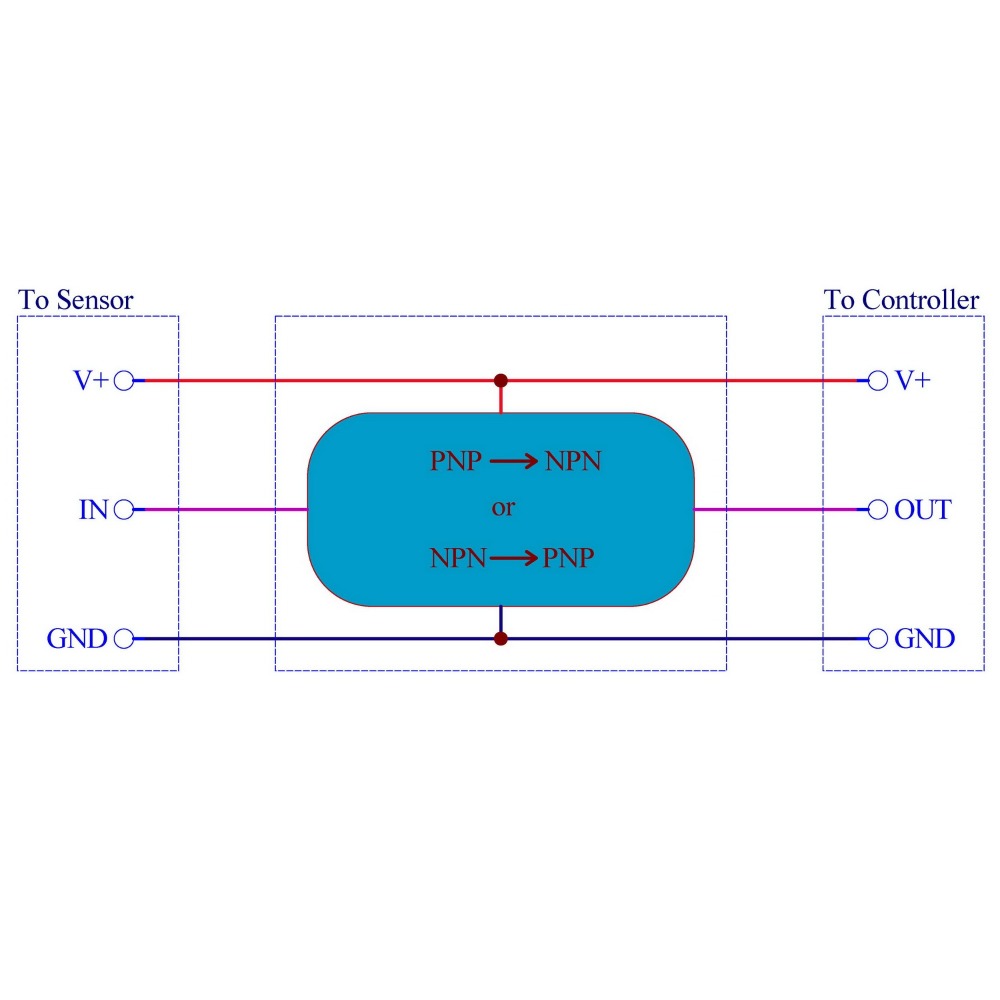

1, Support NPN type sensor match to PNP input controller/PLC, and support PNP type sensor match to NPN input controller/PLC.
2, Working voltage range 4 to 30V, support 5V /12V / 24V sensor and controller system.
3, Output maximum sink/source current 200mA. Maximum frequency 150KHz. Operating temperature range 0 ~ 60 Celsius.
4, Terminal block: pitch 5.0mm/0.197", strip length 7mm, screws - M2.5, steel, Cr3+ Zn plated, pin header and cage – brass, Wire range 28AWG ~ 12AWG / 2.5mm square.

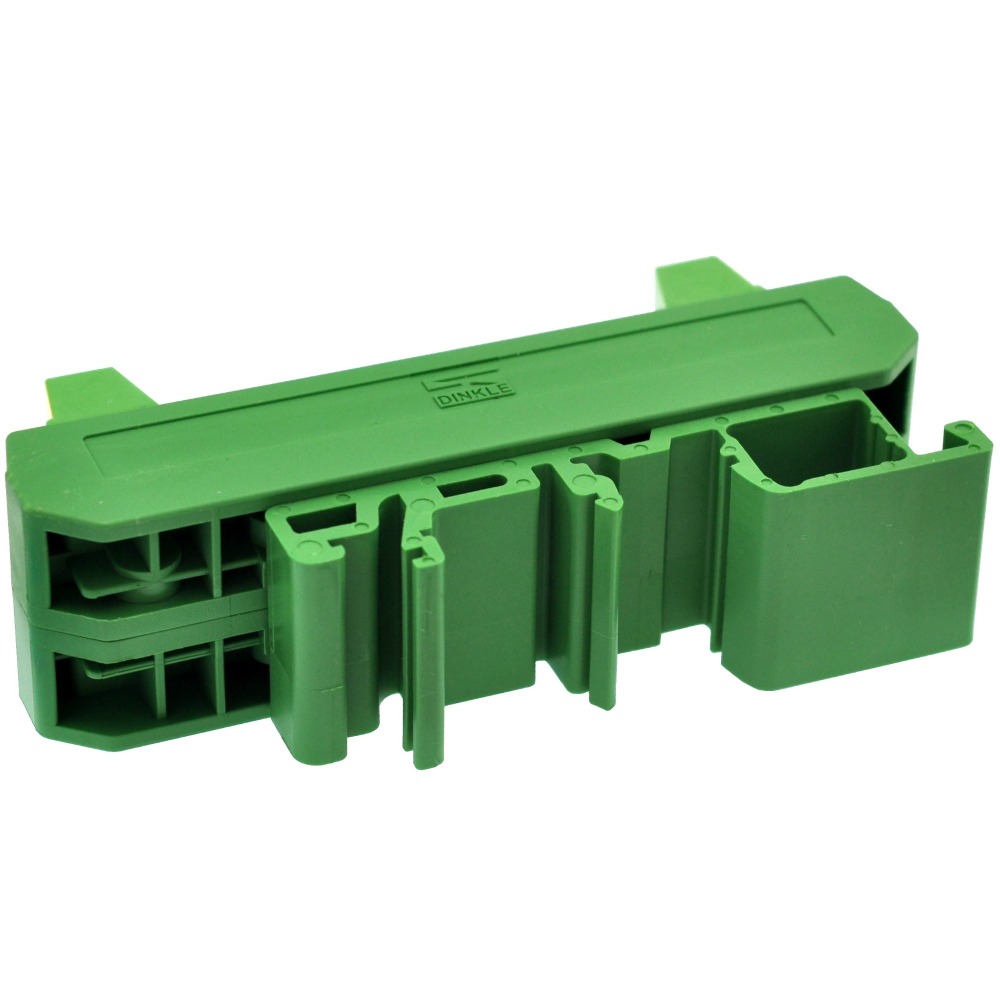

5, High quality Taiwan DINKLE Fireproof nylon material Slim DIN rail mount carrier, can support width 35 / 32 / 15mm rails.

Download
