Signal Relay Module for Raspberry Pi Pico, SPDT 2Amp 120V / 24V

Name: Signal Relay Module for Raspberry Pi Pico, SPDT 2Amp 120V / 24V
Brand: Xiken Tech
SKU: D-1429
Price: 9.99 USD
Availability: InStock

SKU: D-1429

$9.99 ~~$9.99~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

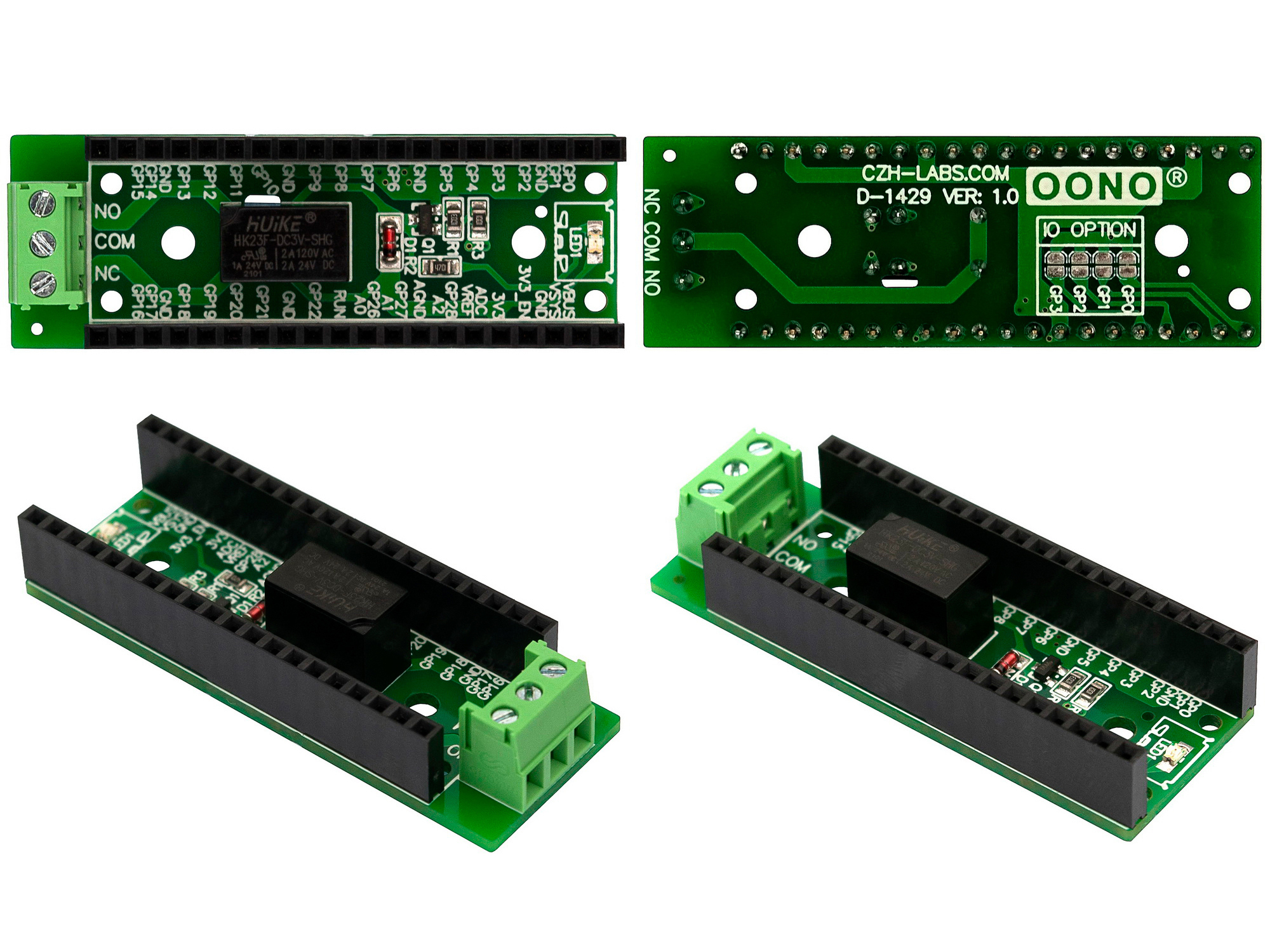

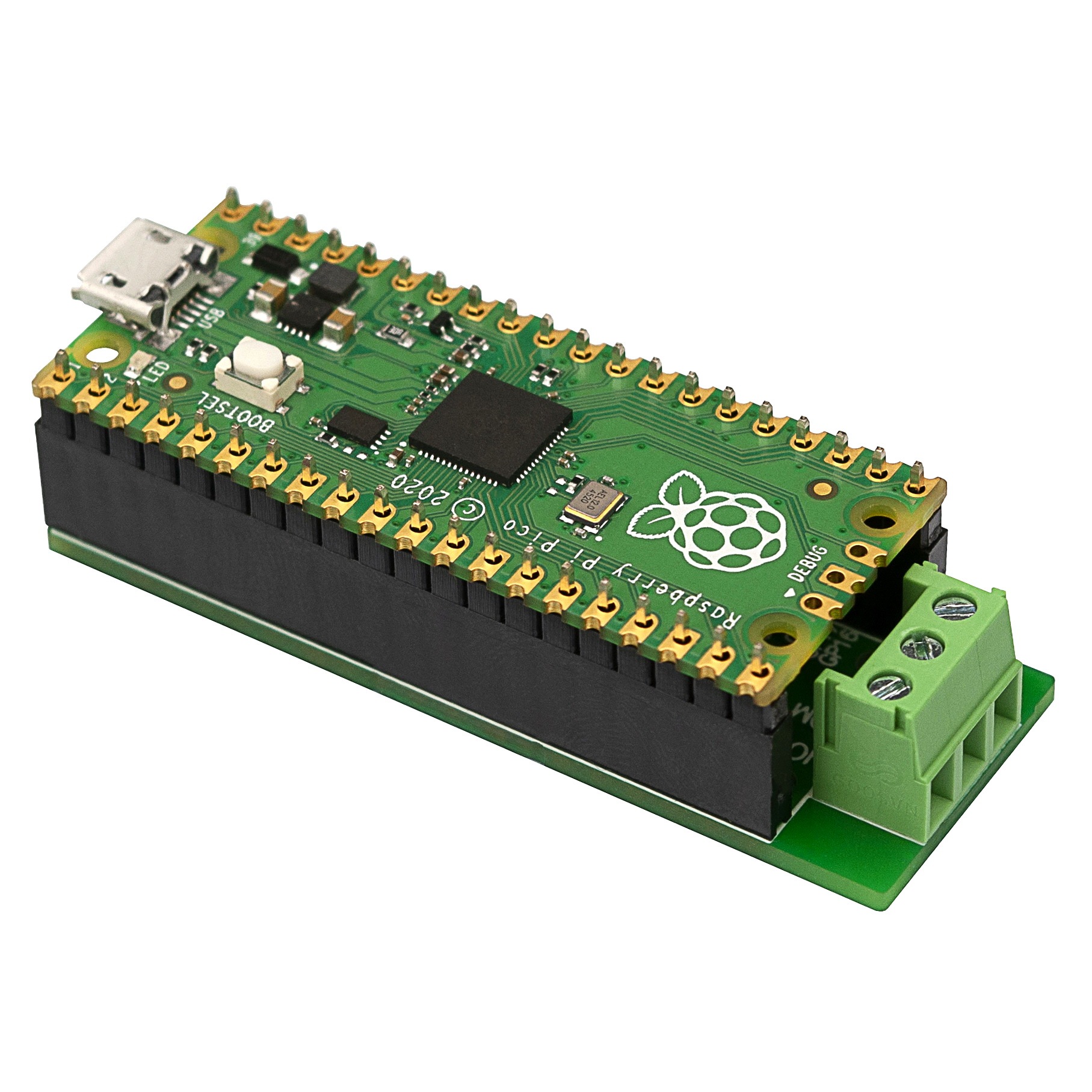

1, Small and sturdy design, with the module you can easily extend Raspberry-Pi Pico projects to IoT/industrial control applications.
2, SPDT Signal relays (Single Pole Double Throw). Contact rating (each channel): 2Amp/120AC or 2Amp/24VDC.
3, Relay action LED indication.

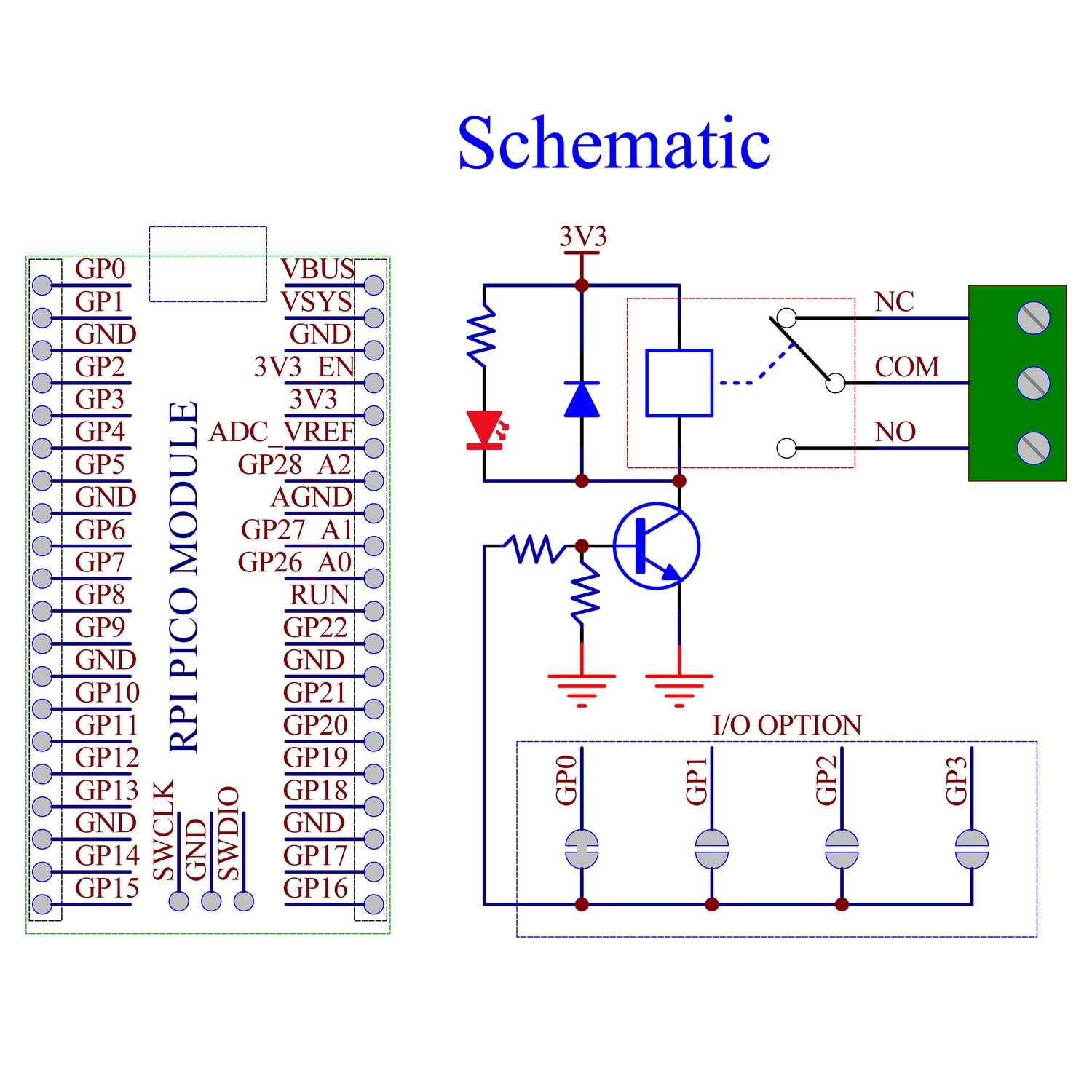

4, Support control I/O port choose, the default control port is GP0, you can also change to GP1 GP2 or GP3(You must cut off the copper of GP0 and short-circuit GP1 GP2 or GP3).

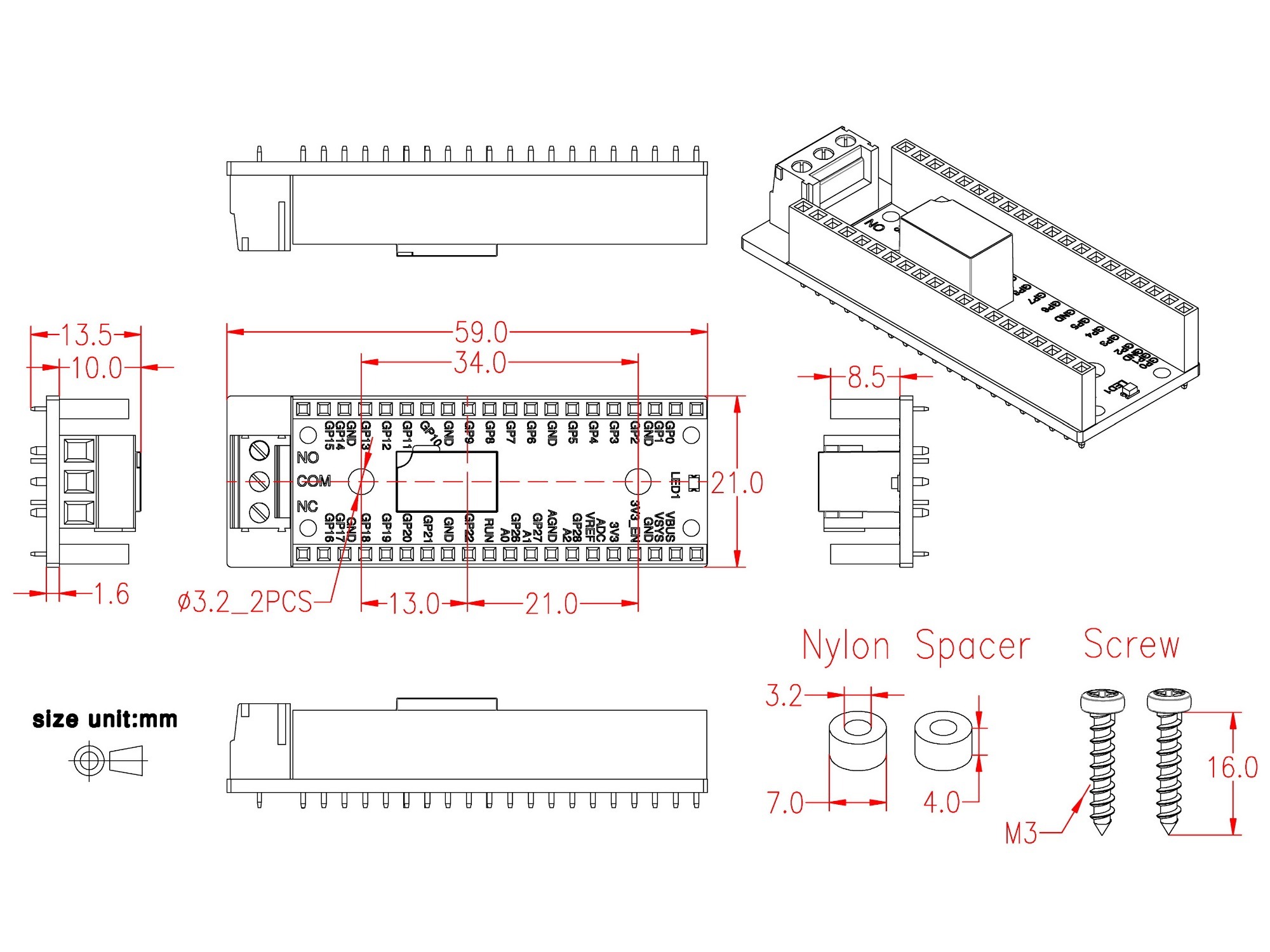

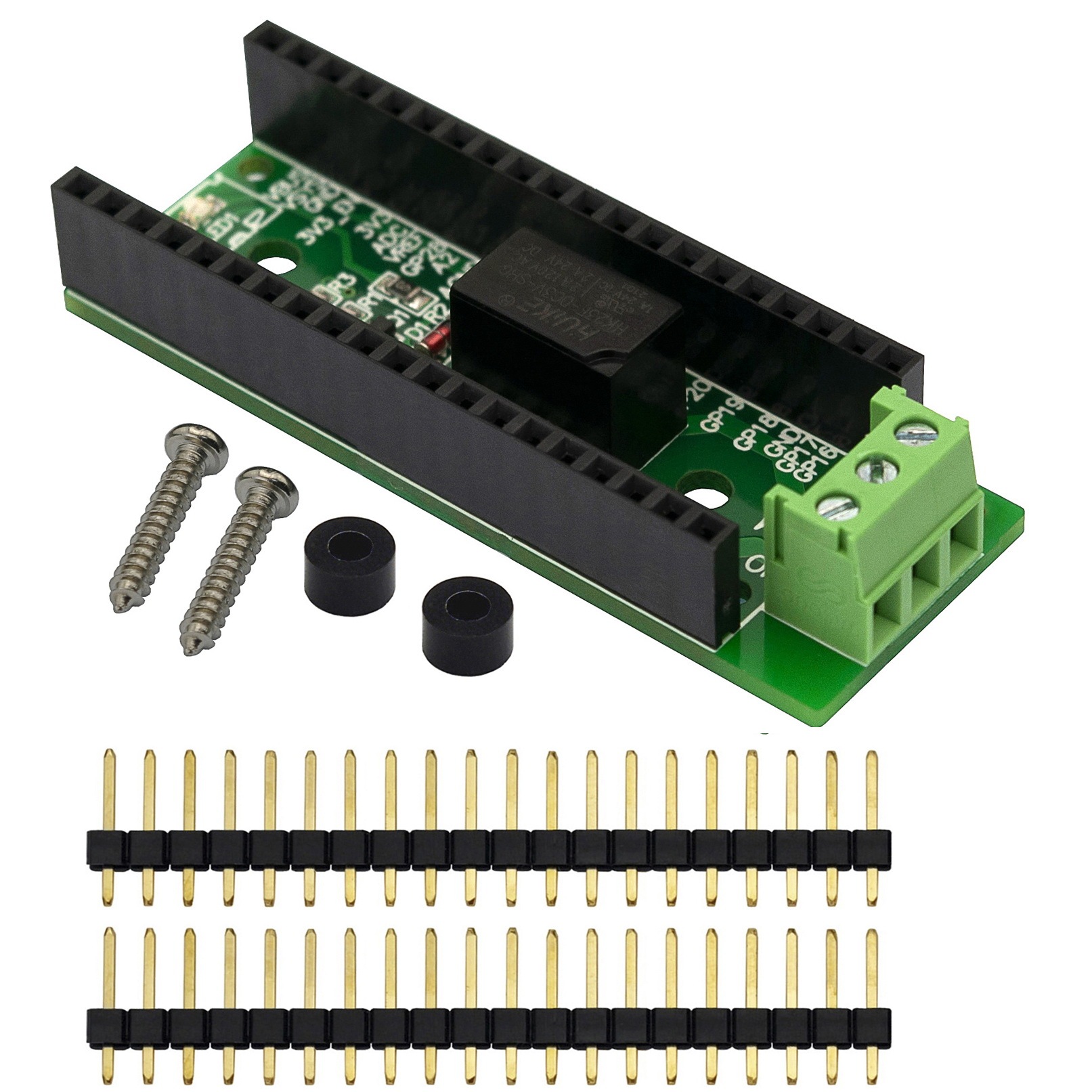

5, Packing list: 1x relay module, 2x screws and 2x nylon spacers(for Pico module mount), 2x 20pin 2.54mm pin header connectors(the connector must be soldered to Raspberry Pi Pico).
