Your position: Home > ESP32 Breakout Board, ESP32 GPIO Breakout > Screw Terminal Block Breakout Module Board for ESP32-DevKitC

1/1

Screw Terminal Block Breakout Module Board for ESP32-DevKitC

Name: Screw Terminal Block Breakout Module Board for ESP32-DevKitC
Brand: Xikentech
SKU: HD023
Price: 22 USD
Availability: InStock

SKU: HD023

$22.00 ~~$22.00~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

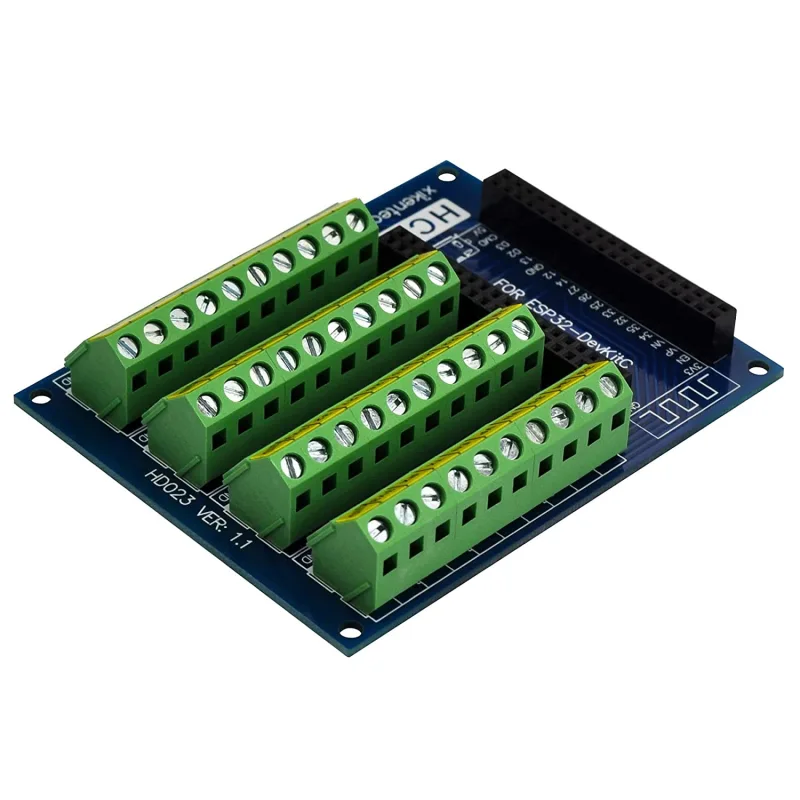

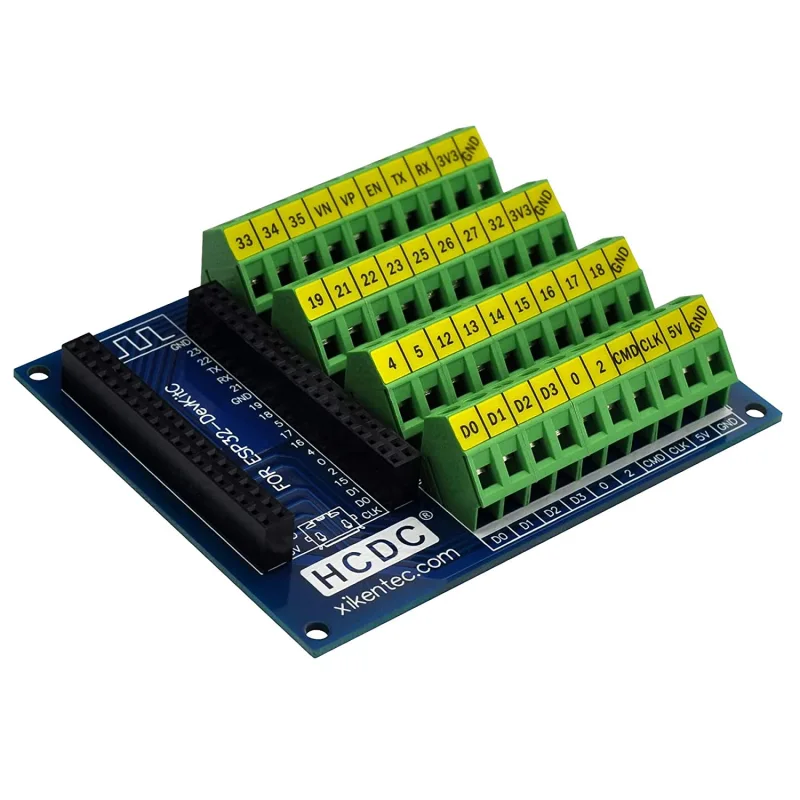

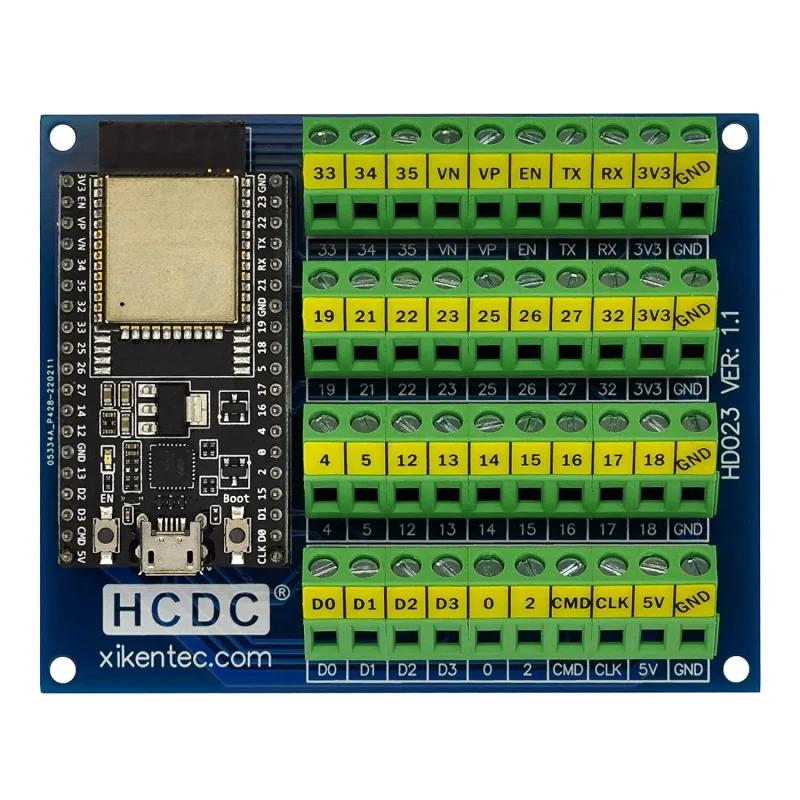

Screw Terminal Block Breakout Board for ESP32-DevKitC.
With the breakout board, you can easily extend ESP32-DevKitC projects to industrial control applications.
PCB mount Terminal Block: pitch 5.0mm/0.197", strip length 7mm, screws - M2.5, steel, Cr3+ Zn plated. pin header and cage - brass. Wire range 28AWG ~ 12AWG / 2.5mm square.
FR-4 fiber glass PCB, dual copper layers.
Note: the item not include ESP32-DevKitC module. The breakour board supports ESPRESSIF official ESP32-DevKitC, but we do not guarantee whether to support third-party modules, you can check the ESPRESSIF official website for more information before buying.
