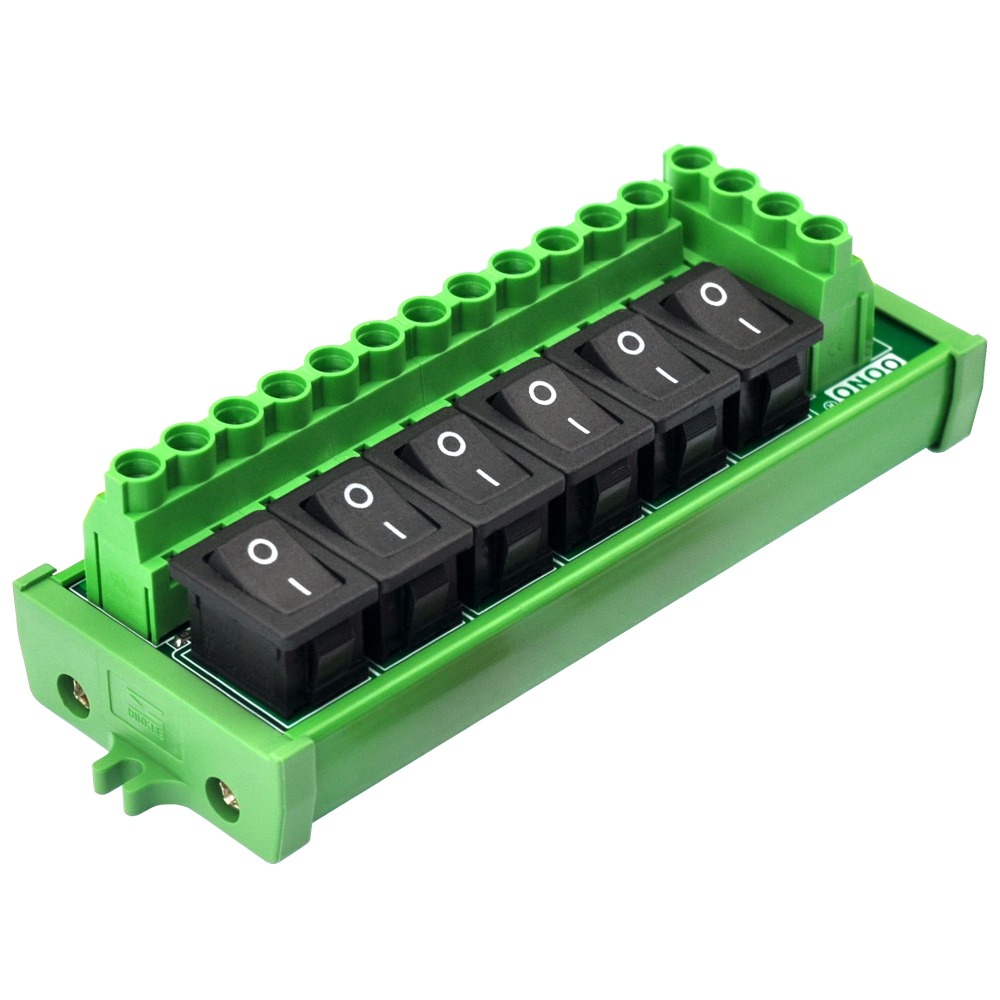

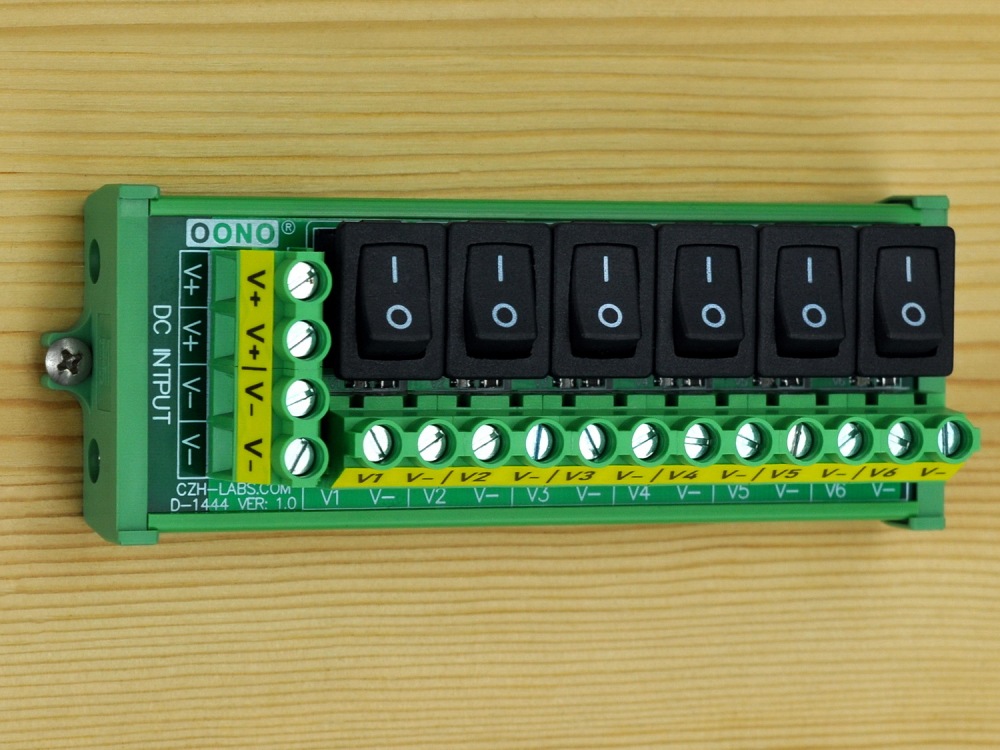

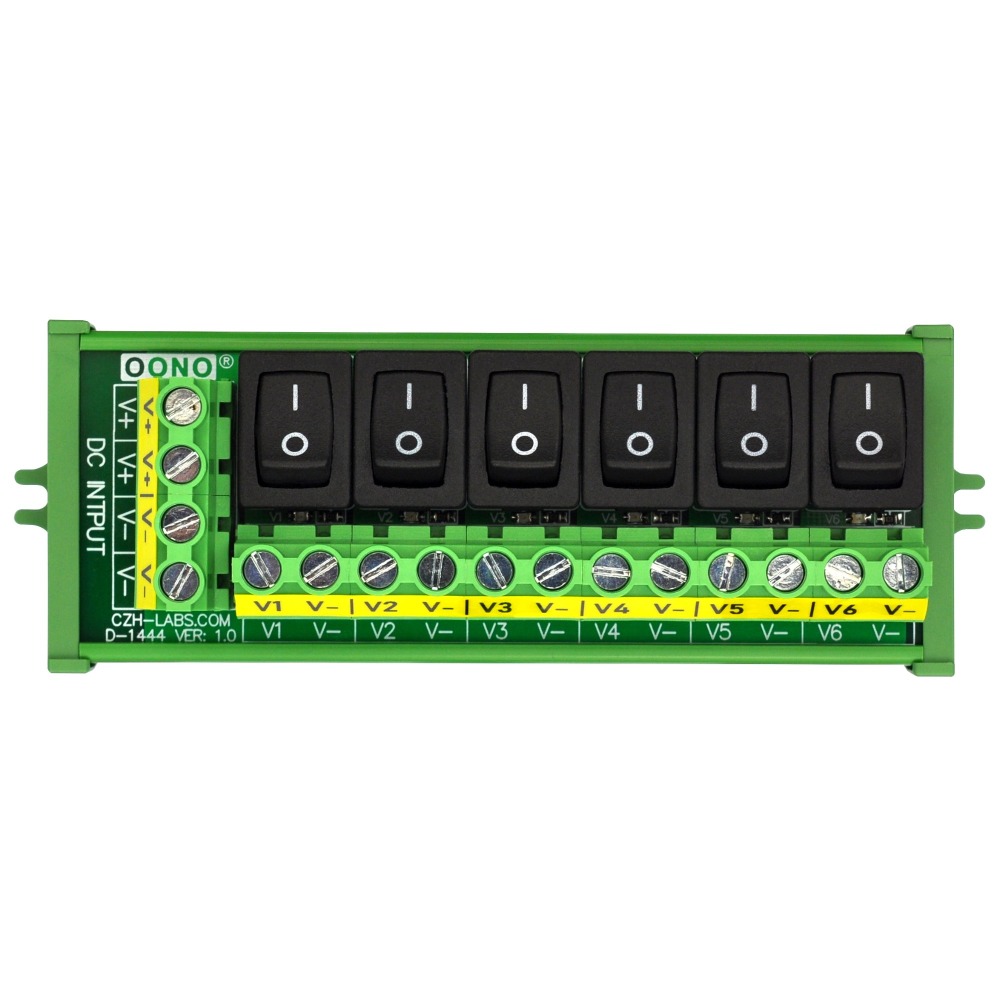

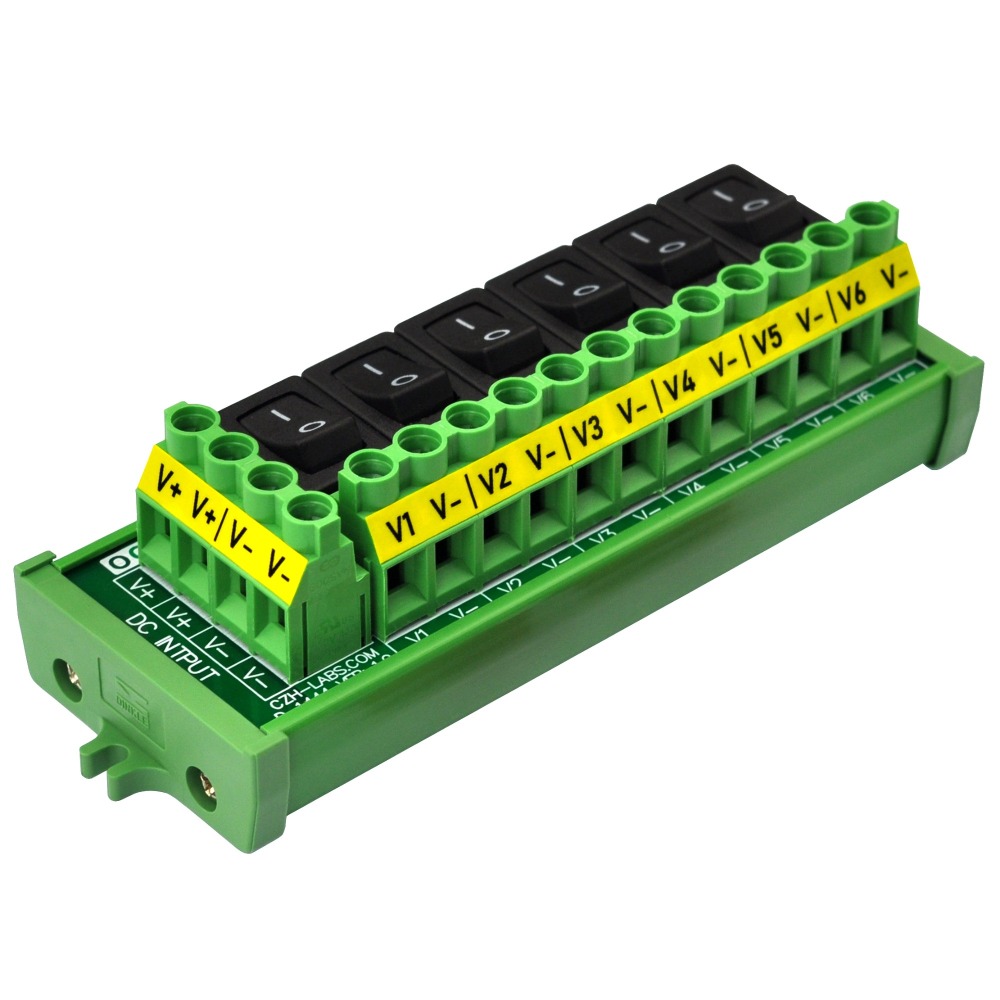

Screw Mount 6 Channel Rocker Switch DC Power Distribution Strip Module

Name: Screw Mount 6 Channel Rocker Switch DC Power Distribution Strip Module
Brand: Xiken Tech
SKU: D-1444P
Price: 25 USD
Availability: InStock

SKU: D-1444P

$25.00 ~~$25.00~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

1, Working voltage DC 0 to 50V. Maximum total input current 30 Amps. 6 Channels output, each channel maximum output current 10 Amps.

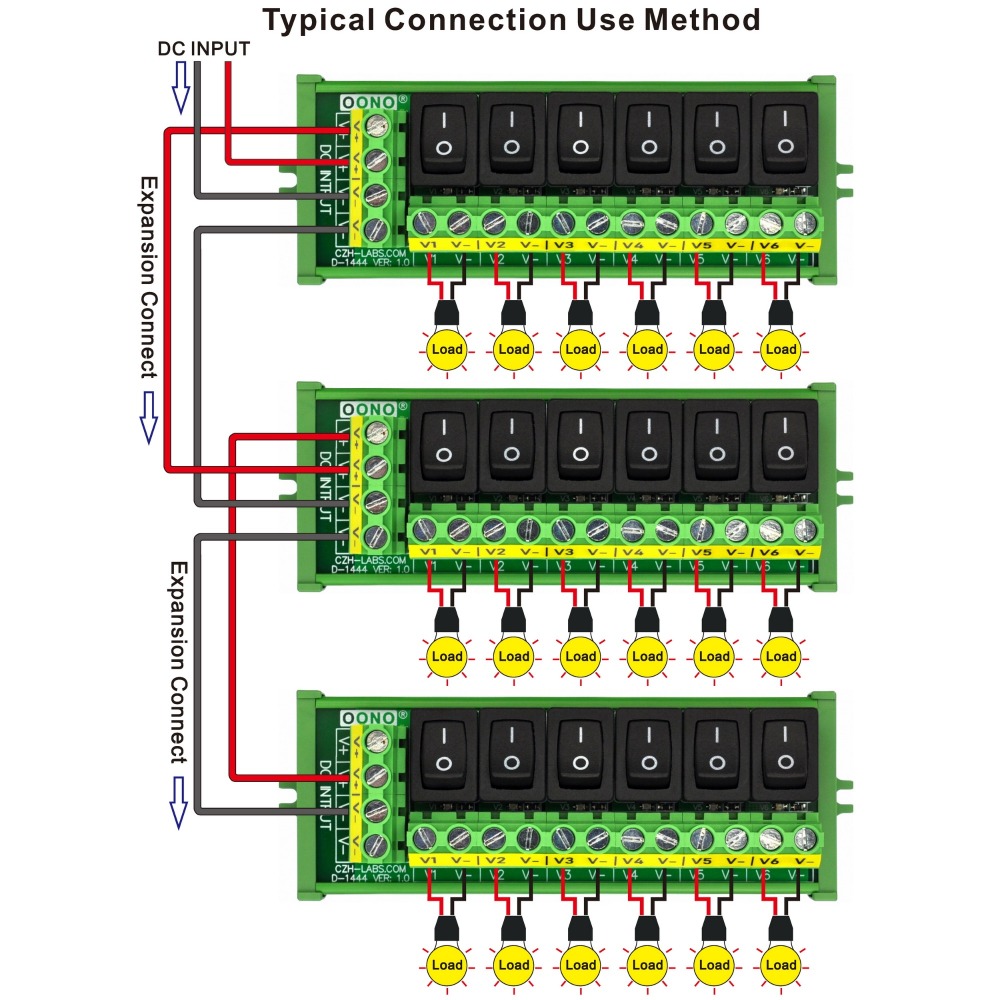

2, Input terminals pitch 7.62mm/0.3", maximum current 30 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.
3, Output terminals pitch 7.62mm/0.3", wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw.

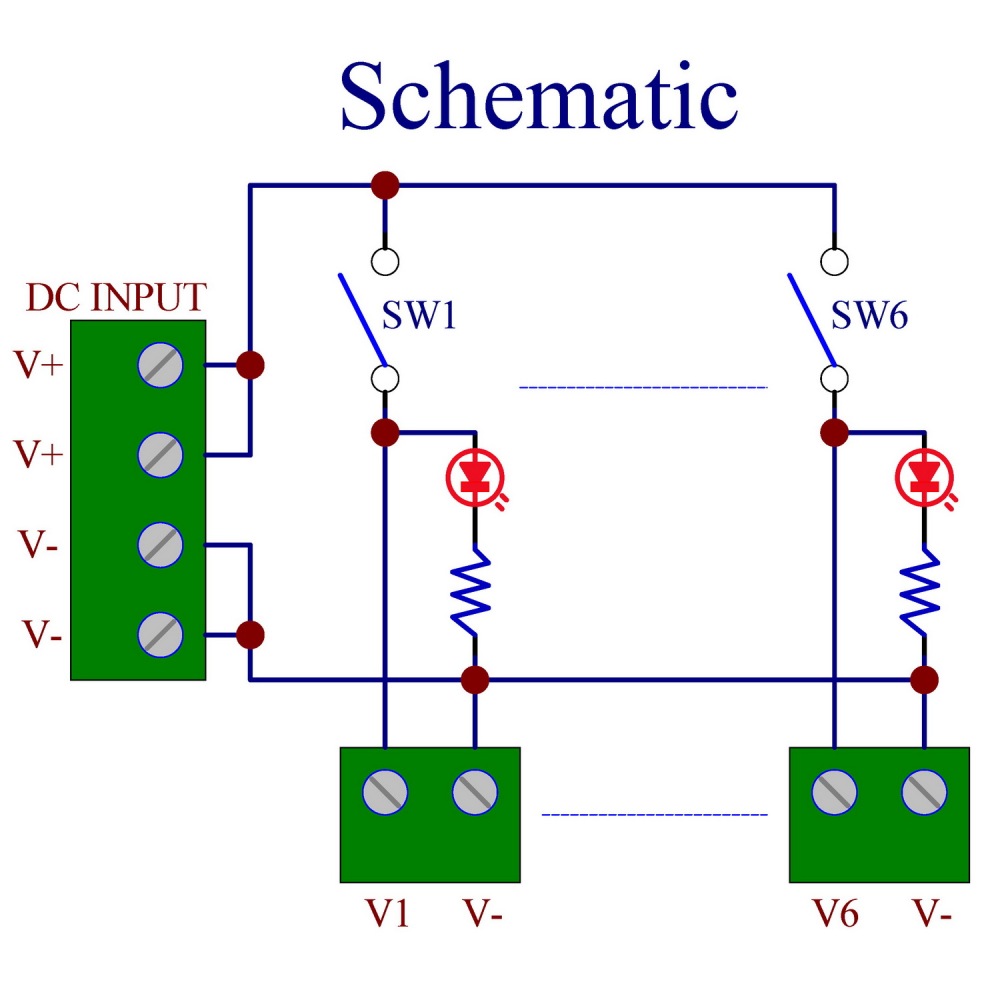

4, Rocker switch ON/OFF power output for each channel. With switch power ON LED indication function.

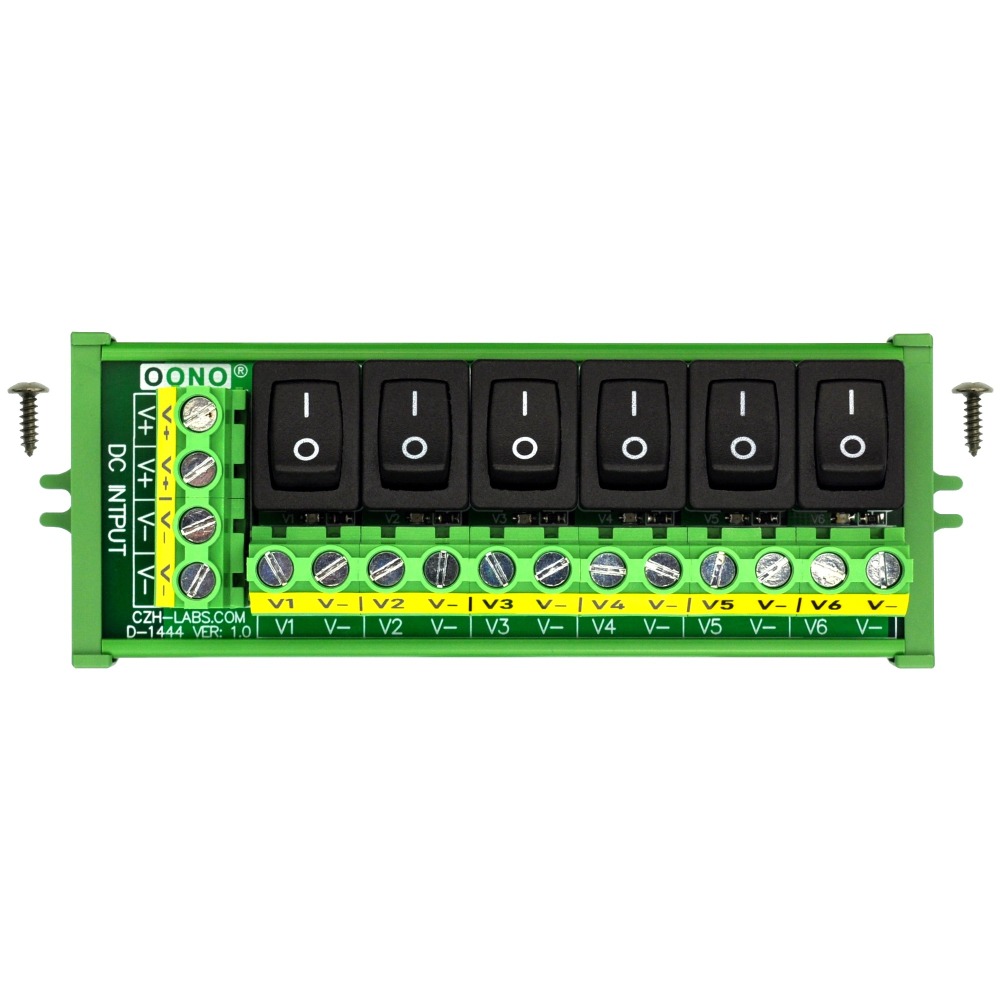

5, FR-4 fiberglass dual copper layers PCB. Taiwan high quality fireproof nylon material mount carrier(not China low quality carrier). Also included two M3 x 10mm wood screws, you can easily mount it on a wooden board.
