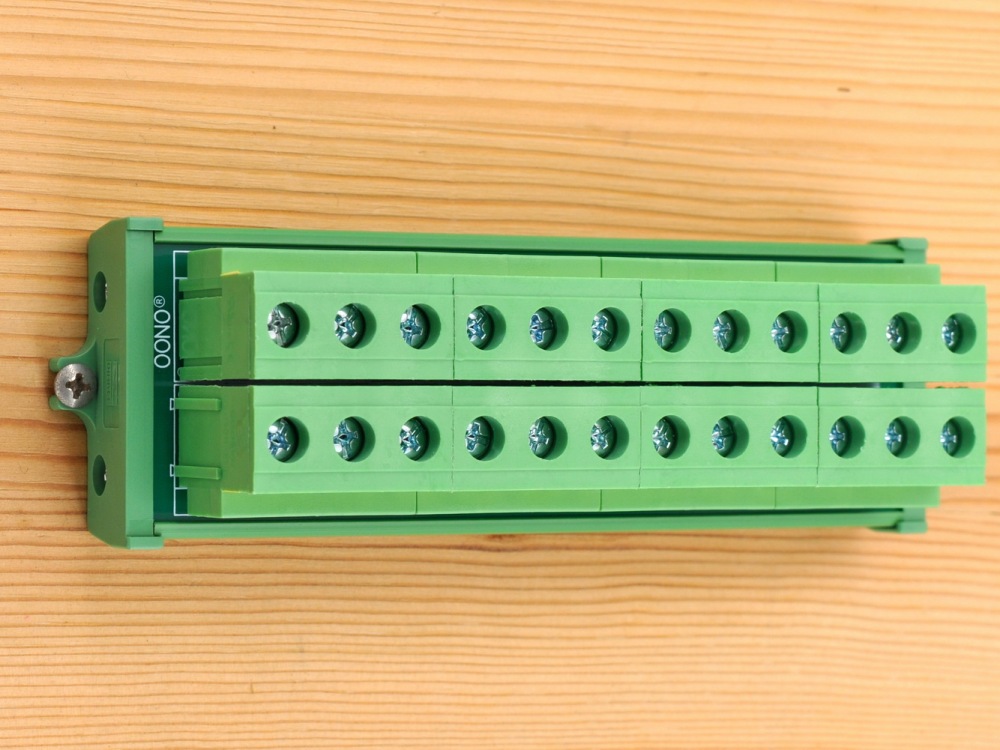

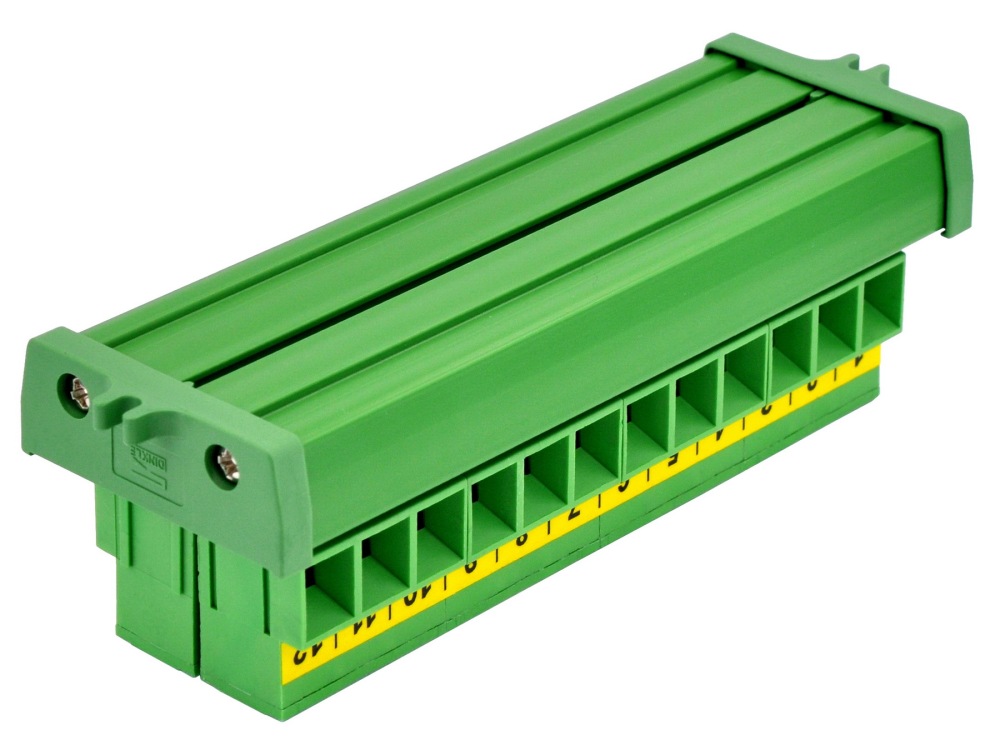

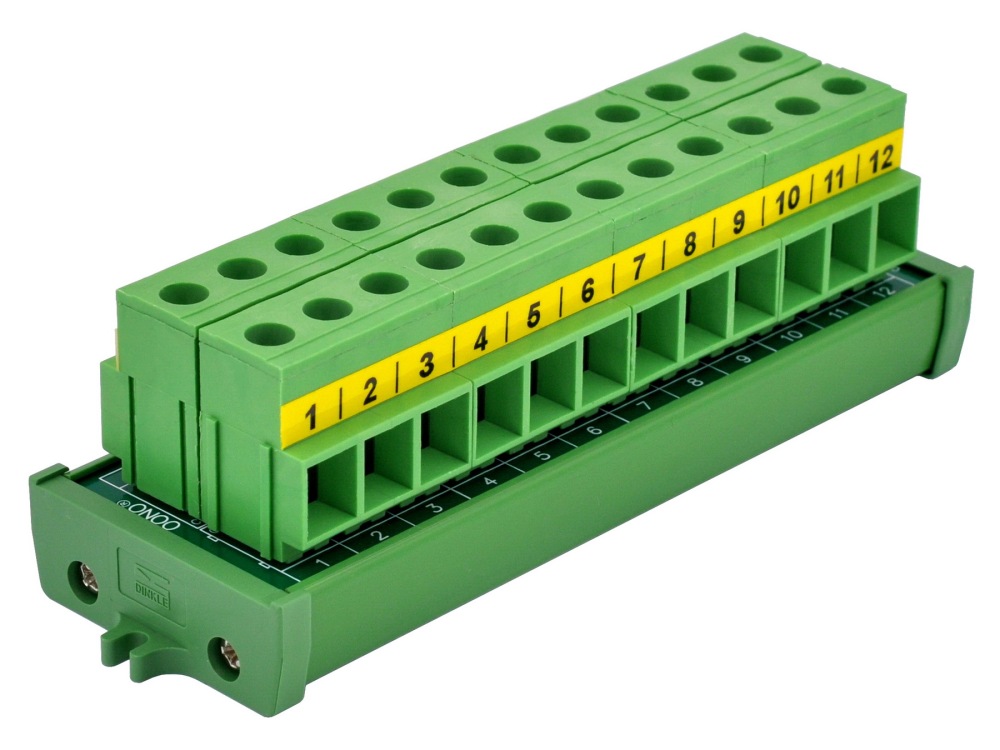

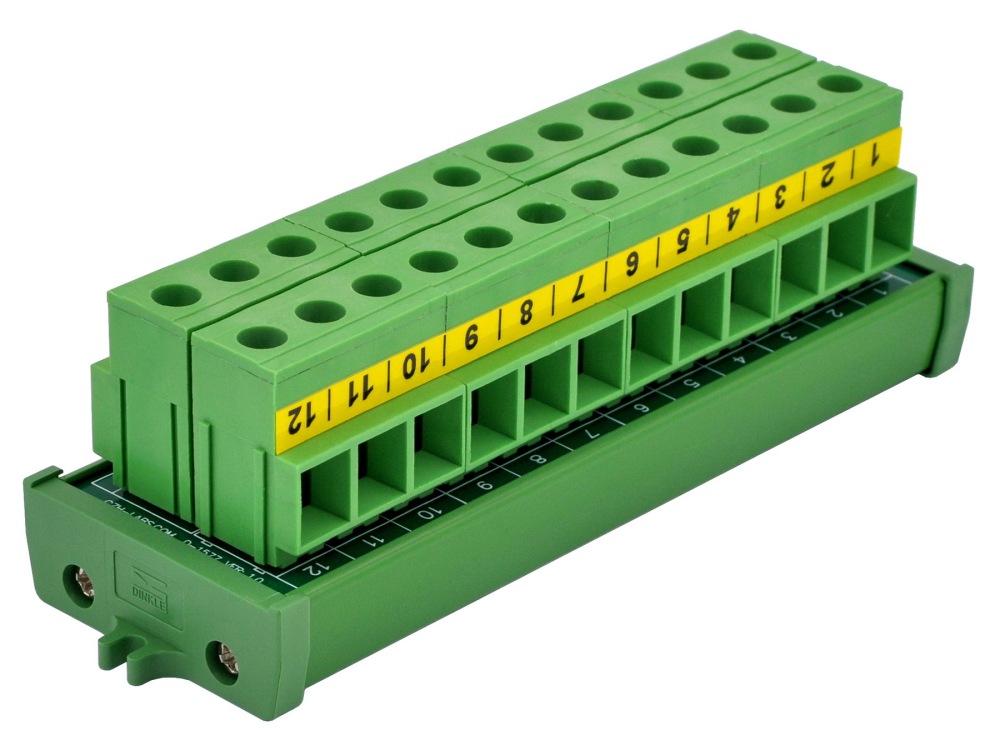

Screw Mount 52Amp 300V 12 Position Screw Terminal Block Distribution Module

Name: Screw Mount 52Amp 300V 12 Position Screw Terminal Block Distribution Module
Brand: Xiken Tech
SKU: D-1577P
Price: 42 USD
Availability: InStock

SKU: D-1577P

$42.00 ~~$42.00~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

1, Screw Mount 52Amp 300V 12 Position Screw Terminal Block Distribution Module.

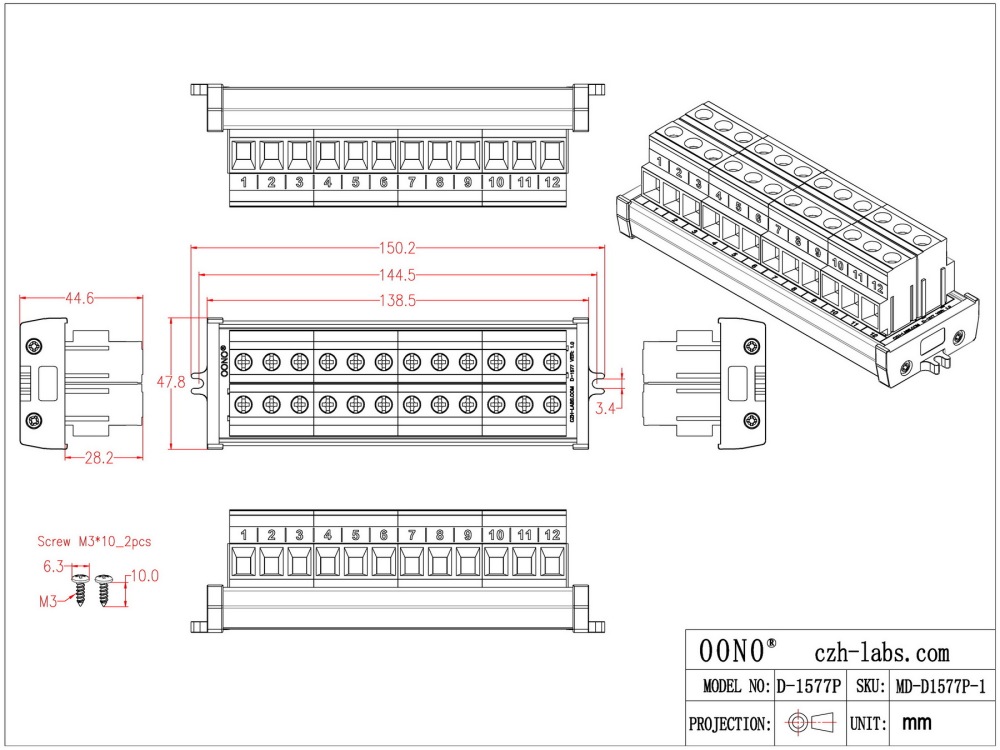

2, Terminal Block: Maximum current 52 Amp (each position). Maximum voltage 300V. Pitch 10.16mm/0.4", Wire range 20AWG ~ 6AWG / 10mm square. Strip length 10mm. Screws - M4,steel, Cr3+ Zn plated. Pin header and Cage - Brass.

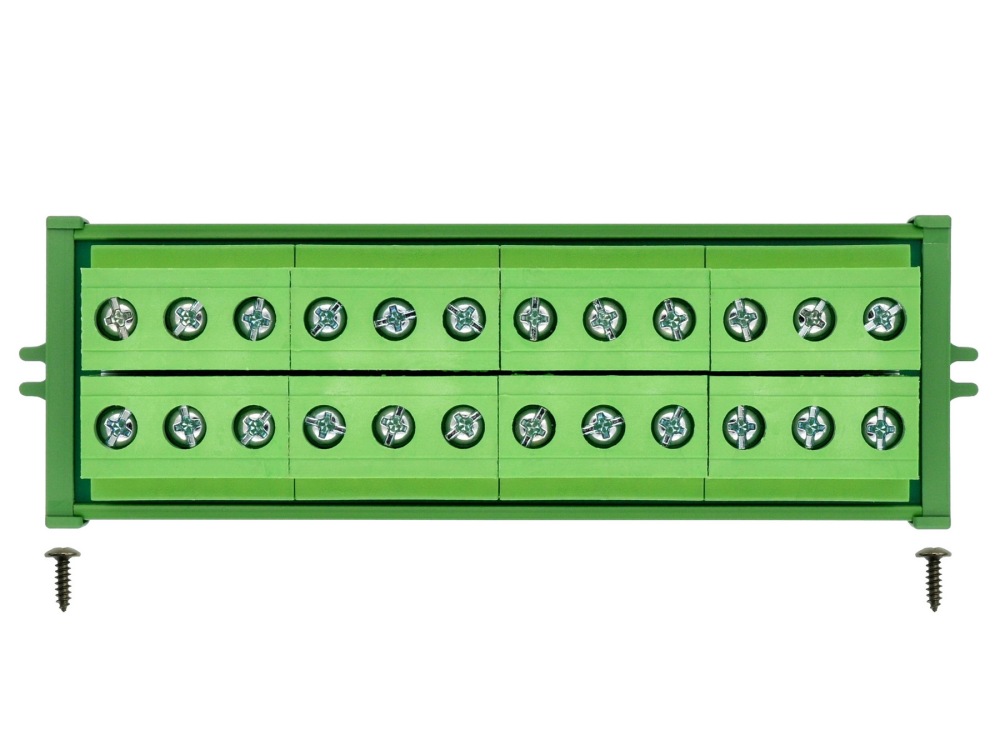

3, High quality fireproof nylon material mount carrier. Also included are two M3 x 10mm wood screws, you can easily mount it on a wooden board.
4. FR-4 fiberglass dual copper layers PCB
5, UL CE CQC certified terminal blocks. UL CE certified nylon material mount carrier. UL 94-V0 certified PCB.
6, Operating Temperature Range: -40 to +105C.
