Screw Mount 30A/300V 12 Position Screw Terminal Block Distribution Module

Name: Screw Mount 30A/300V 12 Position Screw Terminal Block Distribution Module
Brand: Xiken Tech
SKU: D-1373P
Price: 13.9 USD
Availability: InStock

SKU: D-1373P

$13.90 ~~$13.90~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

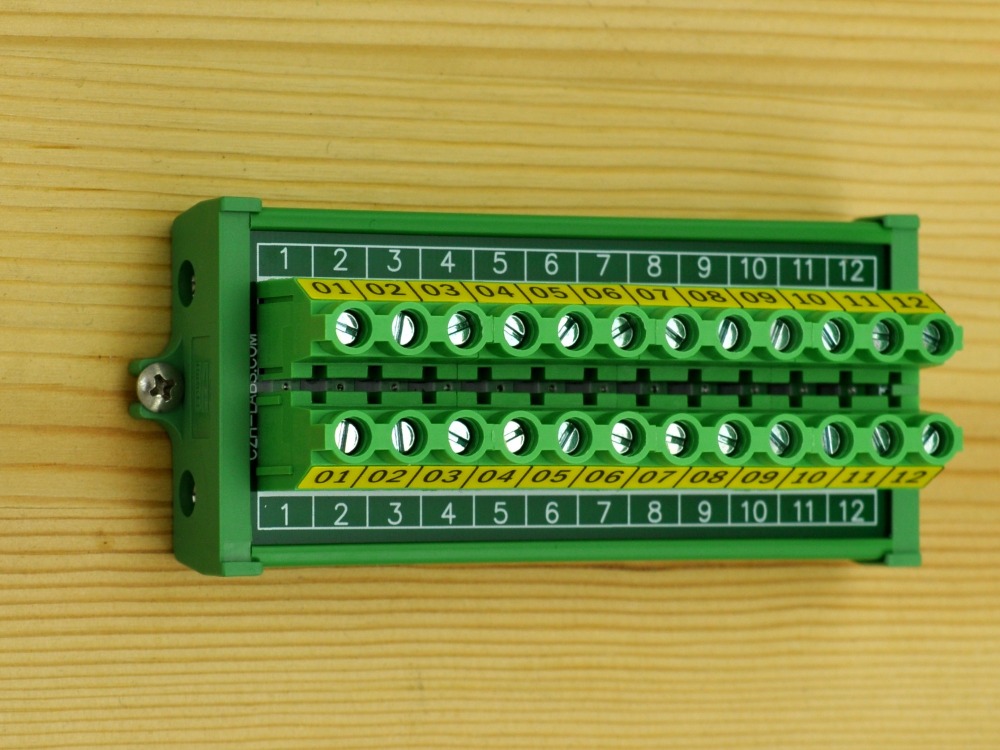

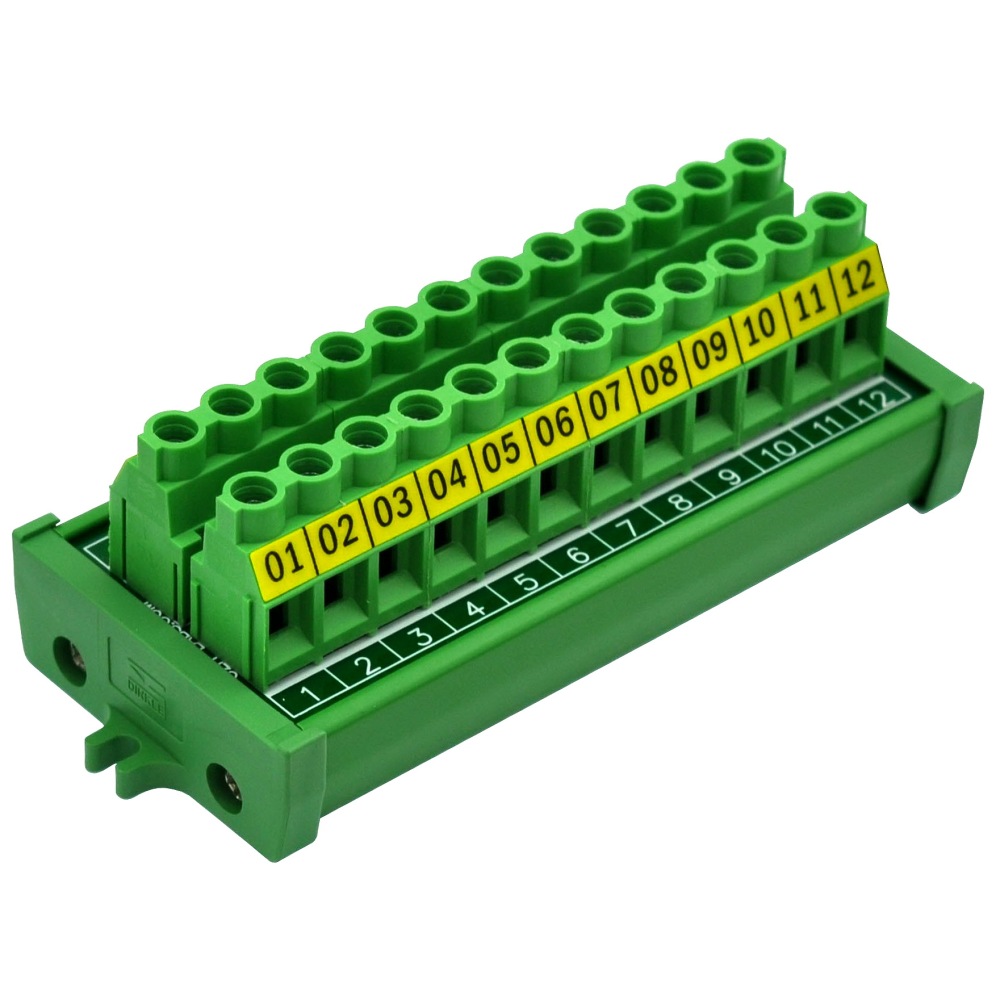

1, Screw Mount 30A/300V 12 Position Screw Terminal Block Distribution Module.
2, Terminal Block: Pitch 7.62mm/0.3", Strip length 8mm. Screws - M3,steel,Cr3+ Zn plated. Pin header and Cage - Brass.
3, Wire range 26AWG ~ 10AWG / 4.0mm square. Rated voltage 300V, rated current 30Amp(per position).

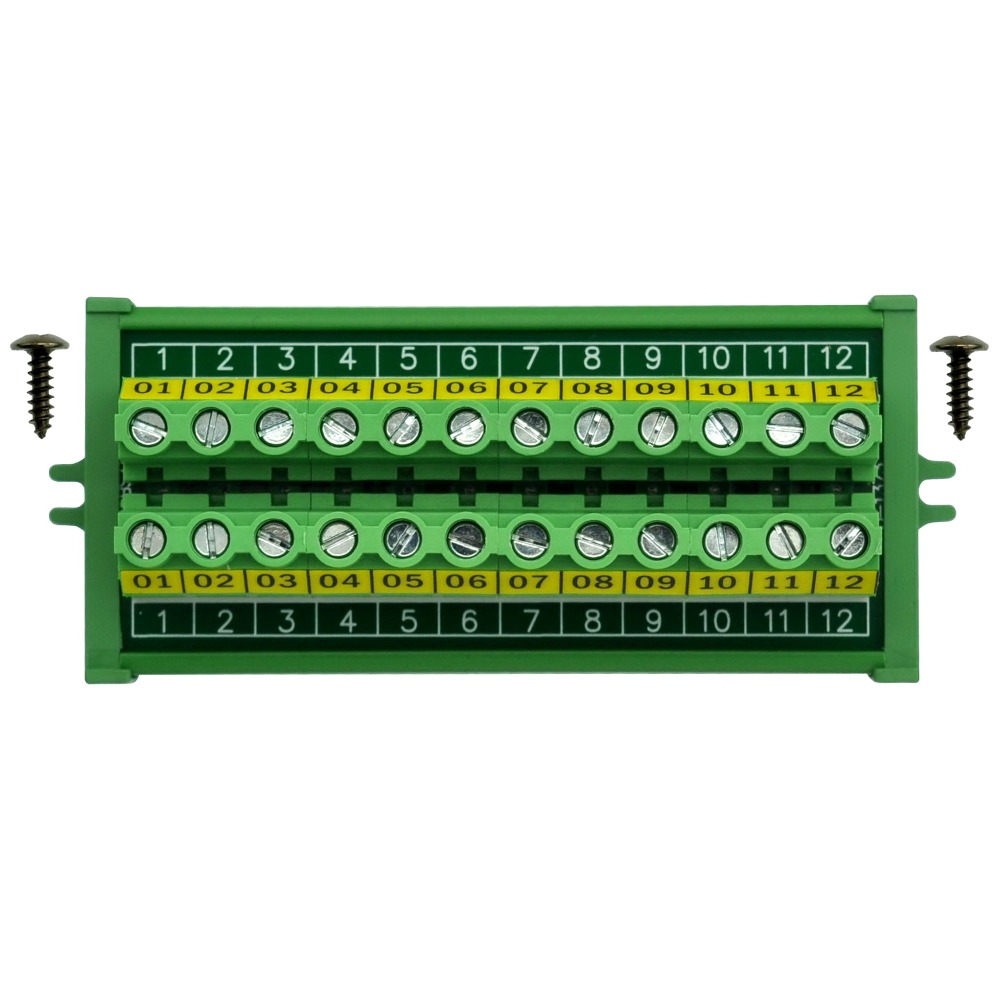

4, Taiwan High quality fireproof nylon material mount carrier(not China low quality carrier). Also included are two M3 x 10mm wood screws, you can easily mount it on a wooden board.

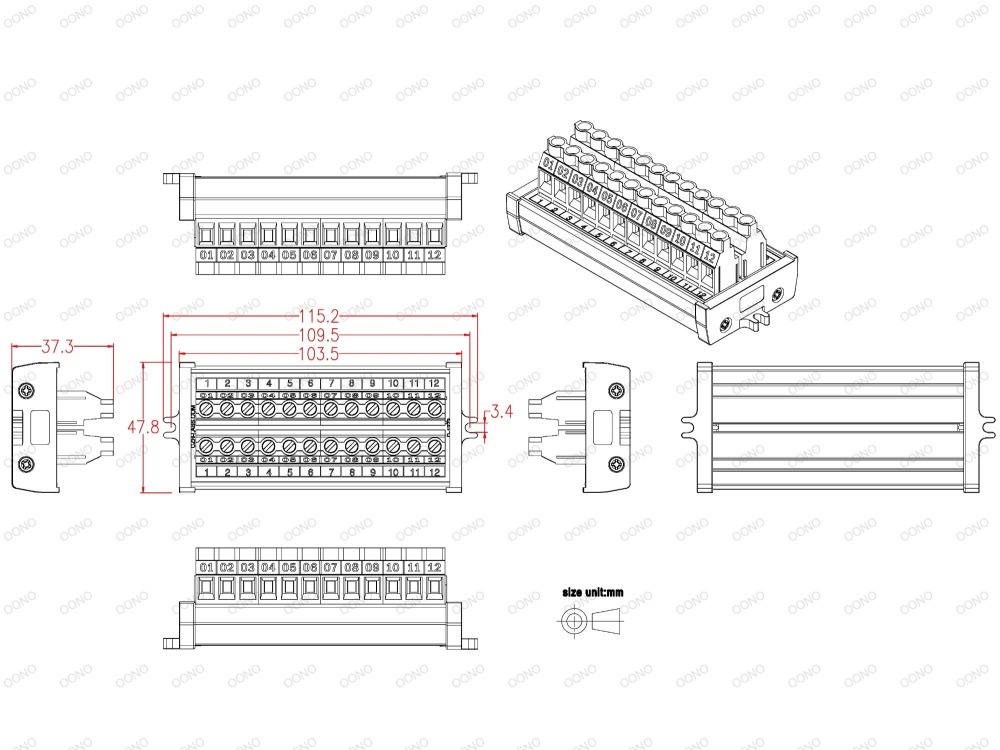

5, External dimensions: L115.2mm x W47.8mm x H37.3mm / 4.53" x 1.89" x 1.47"
