Screw Mount 16Amp 12 Position Terminal Block Distribution Module, with External Switch and Expand Port

SKU: D-1474P
$18.00 $18.00
Screw Mount 16Amp 12 Position Terminal Block Distribution Module, with External Switch and Expand Port
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-max
    Please select the information you wantX
Quantity:
1 * $18 = $18
save $0.00
Add to Favorites
  • Screw Mount 16Amp 12 Position Terminal Block Distribution Module, with External Switch and Expand Port
  • Screw Mount 16Amp 12 Position Terminal Block Distribution Module, with External Switch and Expand Port
  • Screw Mount 16Amp 12 Position Terminal Block Distribution Module, with External Switch and Expand Port
  • Screw Mount 16Amp 12 Position Terminal Block Distribution Module, with External Switch and Expand Port
  • Screw Mount 16Amp 12 Position Terminal Block Distribution Module, with External Switch and Expand Port
  • Screw Mount 16Amp 12 Position Terminal Block Distribution Module, with External Switch and Expand Port
  • Screw Mount 16Amp 12 Position Terminal Block Distribution Module, with External Switch and Expand Port
  • Screw Mount 16Amp 12 Position Terminal Block Distribution Module, with External Switch and Expand Port
  • Screw Mount 16Amp 12 Position Terminal Block Distribution Module, with External Switch and Expand Port
  • Screw Mount 16Amp 12 Position Terminal Block Distribution Module, with External Switch and Expand Port
  • Screw Mount 16Amp 12 Position Terminal Block Distribution Module, with External Switch and Expand Port
  • Screw Mount 16Amp 12 Position Terminal Block Distribution Module, with External Switch and Expand Port
  • Screw Mount 16Amp 12 Position Terminal Block Distribution Module, with External Switch and Expand Port
  • Screw Mount 16Amp 12 Position Terminal Block Distribution Module, with External Switch and Expand Port
  • Screw Mount 16Amp 12 Position Terminal Block Distribution Module, with External Switch and Expand Port
  • Screw Mount 16Amp 12 Position Terminal Block Distribution Module, with External Switch and Expand Port
  • Screw Mount 16Amp 12 Position Terminal Block Distribution Module, with External Switch and Expand Port
  • Screw Mount 16Amp 12 Position Terminal Block Distribution Module, with External Switch and Expand Port
1/1
  • Screw Mount 16Amp 12 Position Terminal Block Distribution Module, with External Switch and Expand Port
  • Screw Mount 16Amp 12 Position Terminal Block Distribution Module, with External Switch and Expand Port
  • Screw Mount 16Amp 12 Position Terminal Block Distribution Module, with External Switch and Expand Port
  • Screw Mount 16Amp 12 Position Terminal Block Distribution Module, with External Switch and Expand Port
  • Screw Mount 16Amp 12 Position Terminal Block Distribution Module, with External Switch and Expand Port
  • Screw Mount 16Amp 12 Position Terminal Block Distribution Module, with External Switch and Expand Port
  • Screw Mount 16Amp 12 Position Terminal Block Distribution Module, with External Switch and Expand Port
  • Screw Mount 16Amp 12 Position Terminal Block Distribution Module, with External Switch and Expand Port
  • Screw Mount 16Amp 12 Position Terminal Block Distribution Module, with External Switch and Expand Port
  • Description

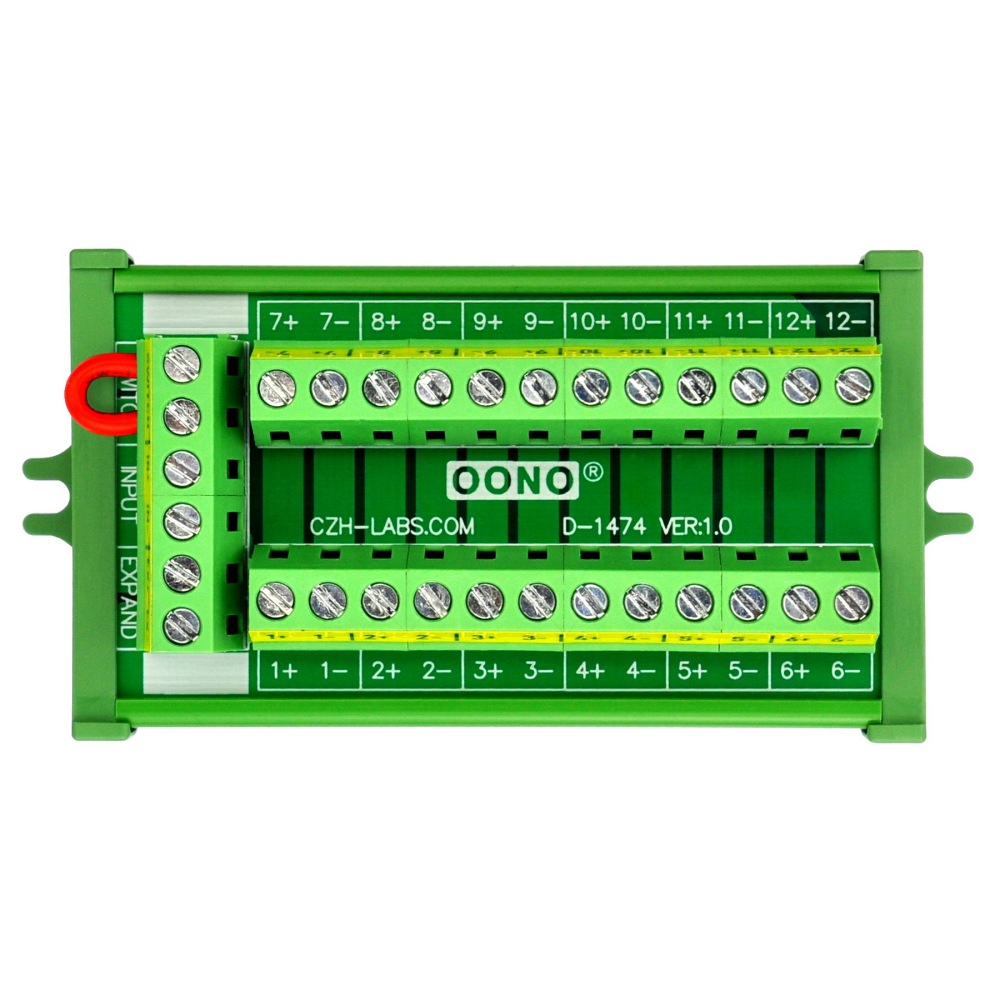

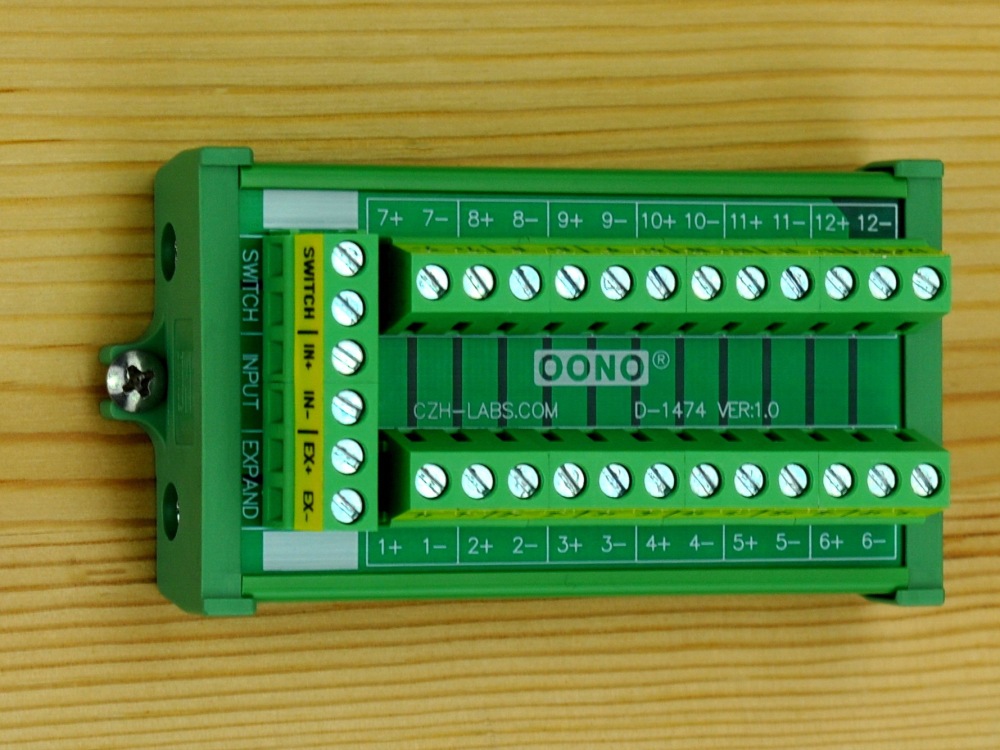

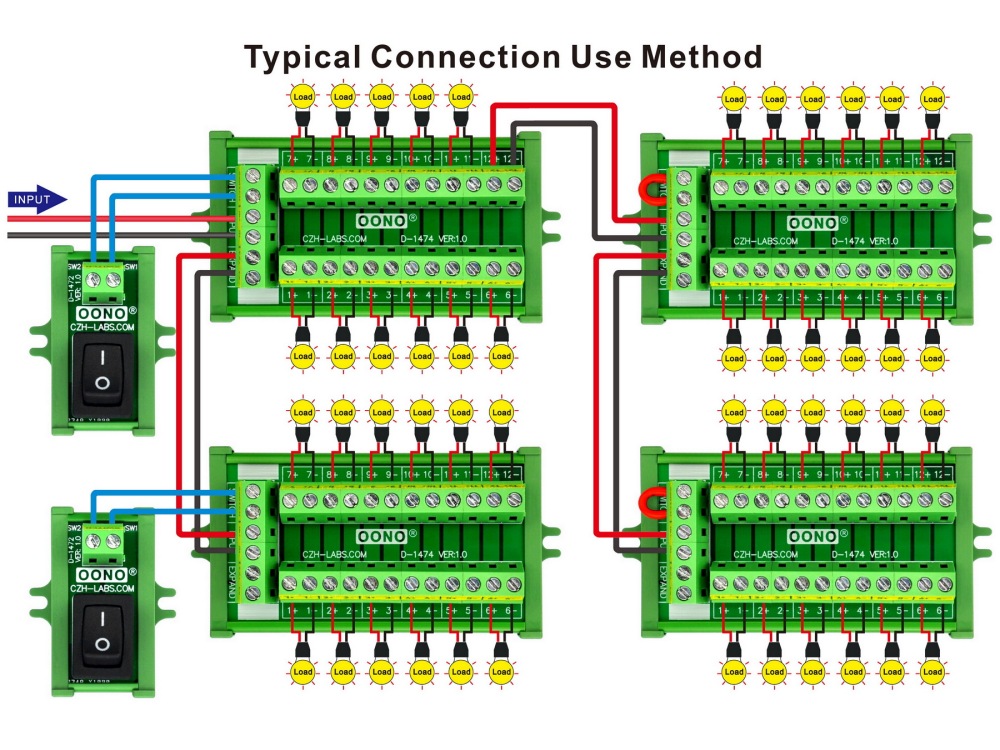

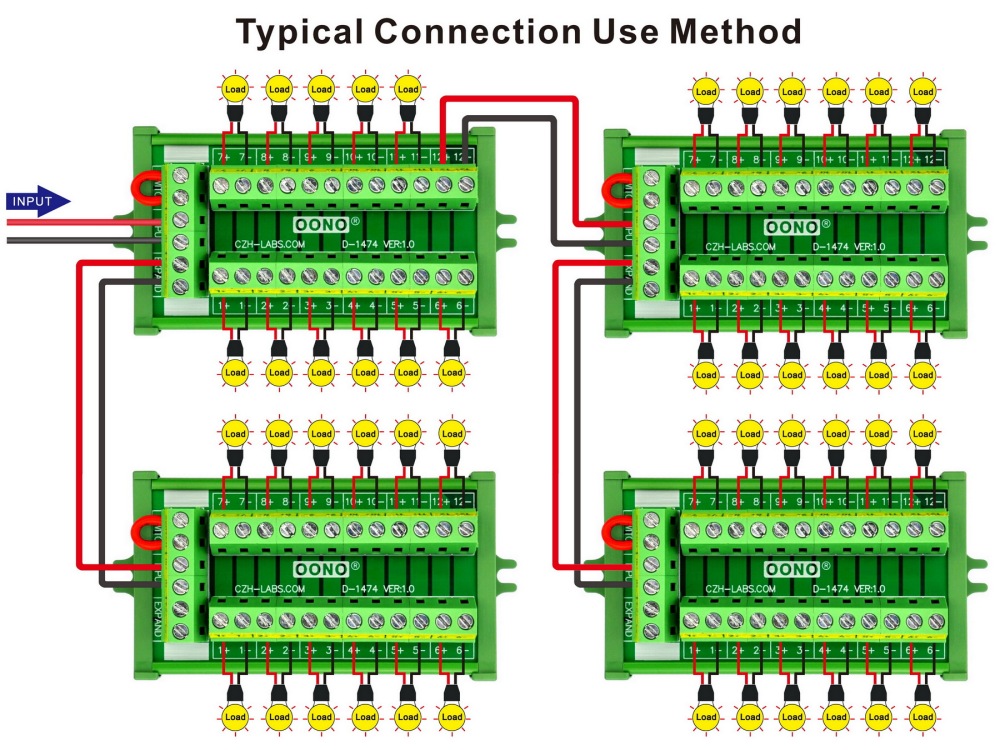

1, Screw Mount 16Amp 12 Position Terminal Block Distribution Module. Support external switch to control the positive on/off, and support for multiple module extension connections. Included two M3 x 10mm wood screws, you can easily mount it on a wooden board.
2, Rated current 16 Amp(total input or output), Maximum voltage 48V.
3, High quality terminal blocks, Pitch 5.0mm/0.197", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
4, FR-4 fiberglass dual copper layers PCB. High quality fireproof nylon material mount carrier(not other China low quality carrier). UL CE CQC certified terminal blocks, UL certified PCB, and UL certified Mount Carrier.
5, Packing list: 1x Distribution module, 2x M3x10mm wood screws.
