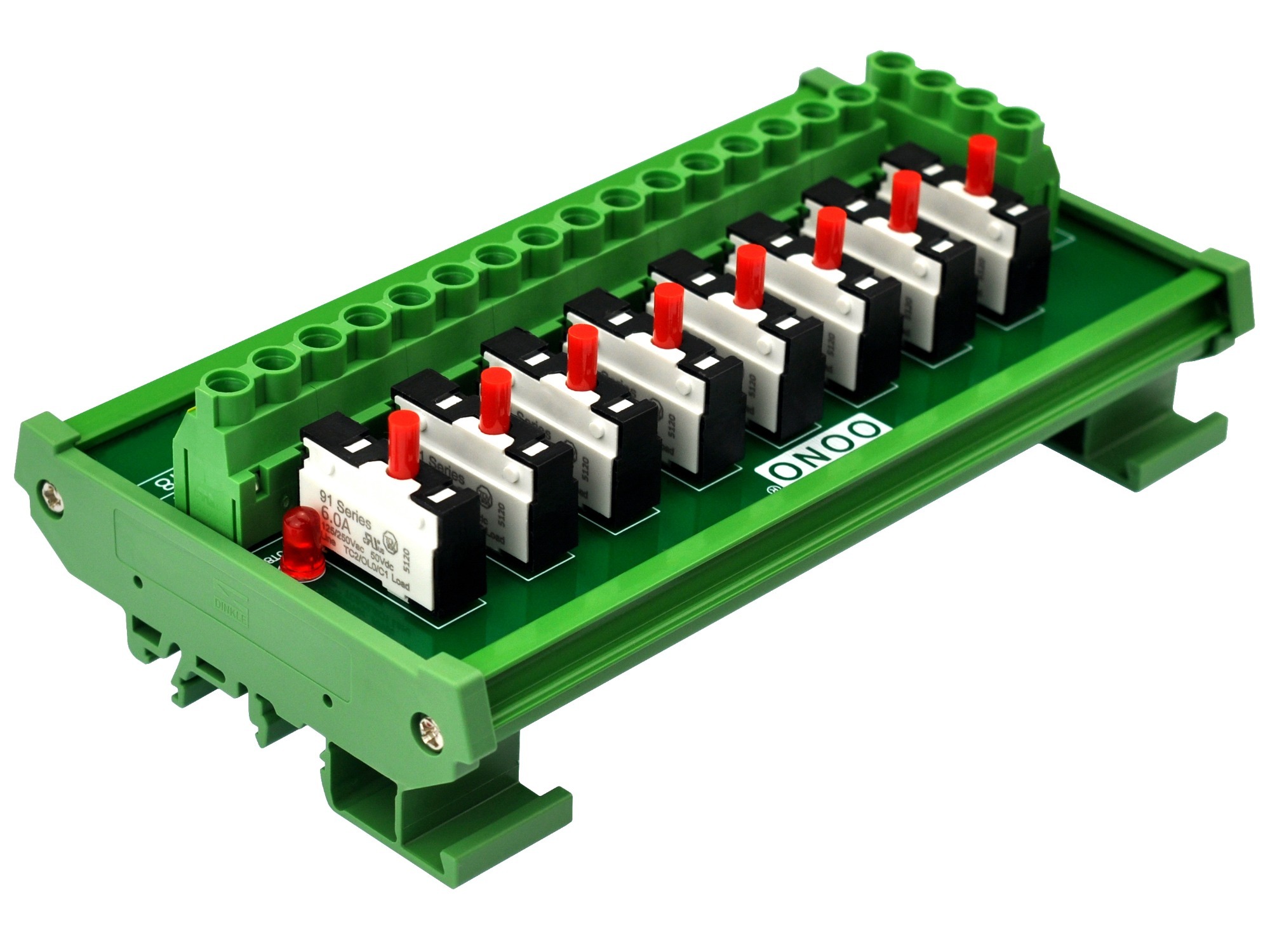

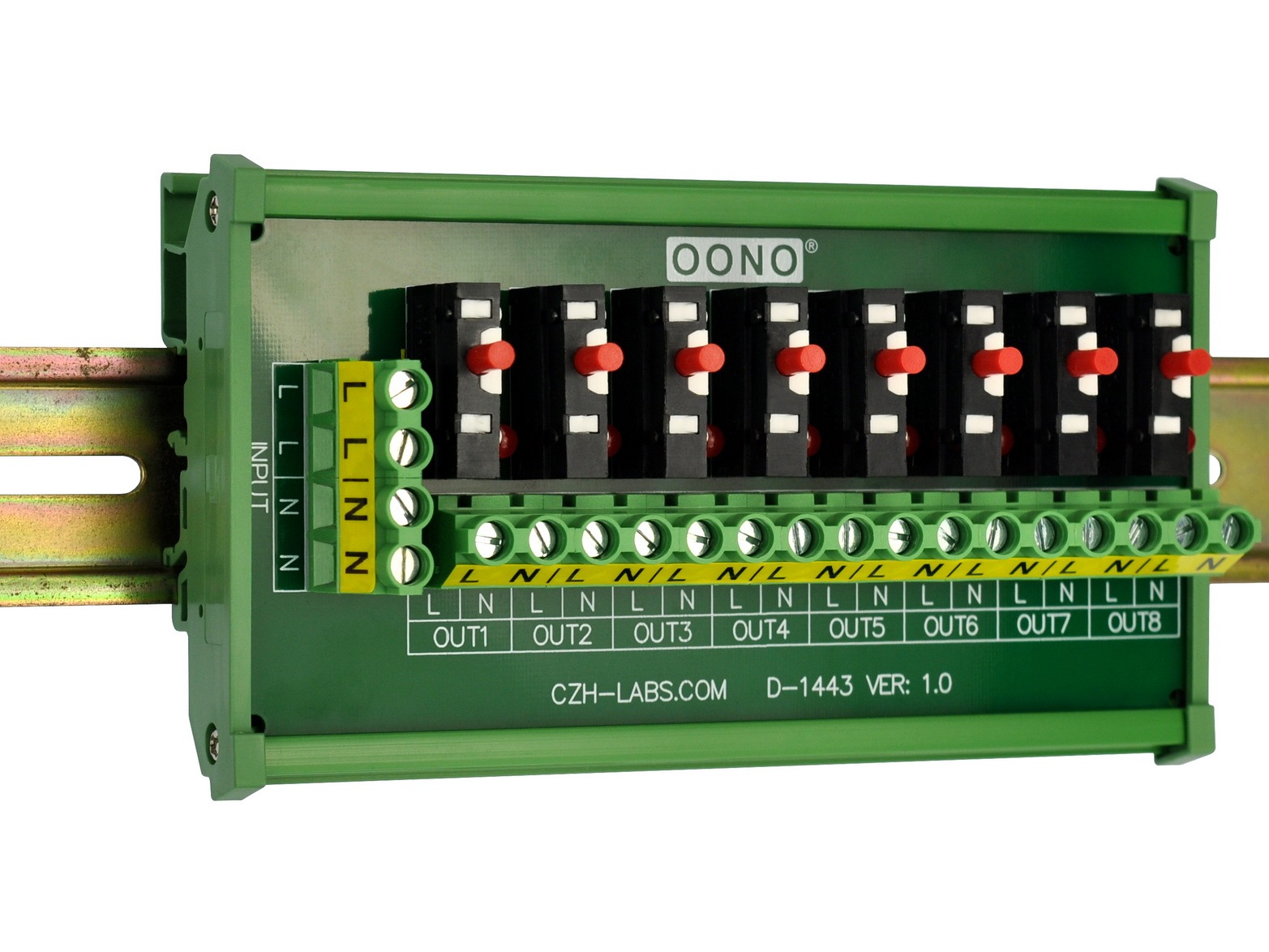

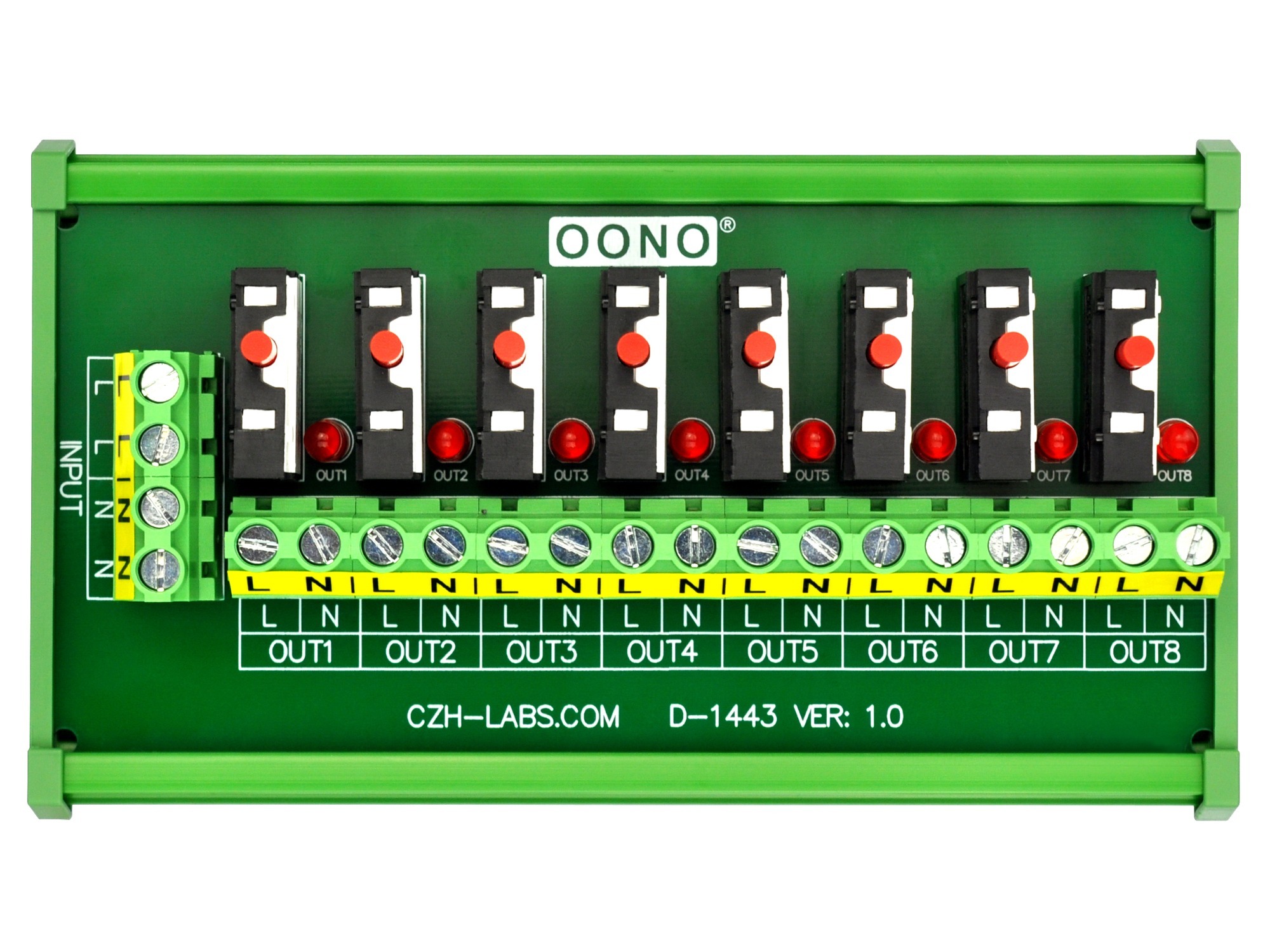

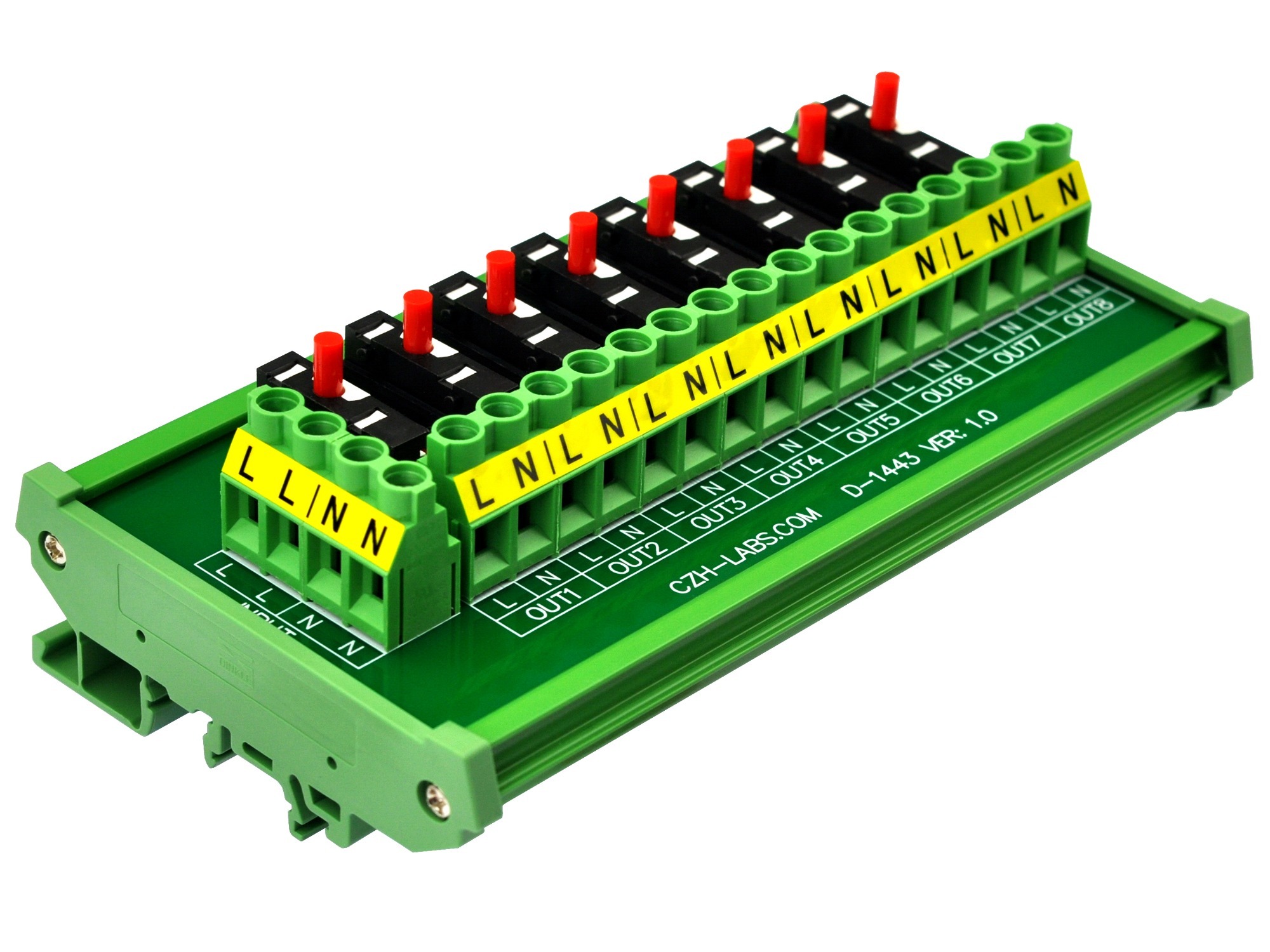

Resettable Thermal Circuit Breaker Overload Protector 8 Channel Power Distribution Module DIN Rail Mount

SKU: D-1443T
$80.00 $80.00
Resettable Thermal Circuit Breaker Overload Protector 8 Channel Power Distribution Module DIN Rail Mount
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-max
    Please select the information you wantX
Quantity:
1 * $80 = $80
save $0.00
Add to Favorites
  • Resettable Thermal Circuit Breaker Overload Protector 8 Channel Power Distribution Module DIN Rail Mount
  • Resettable Thermal Circuit Breaker Overload Protector 8 Channel Power Distribution Module DIN Rail Mount
  • Resettable Thermal Circuit Breaker Overload Protector 8 Channel Power Distribution Module DIN Rail Mount
  • Resettable Thermal Circuit Breaker Overload Protector 8 Channel Power Distribution Module DIN Rail Mount
  • Resettable Thermal Circuit Breaker Overload Protector 8 Channel Power Distribution Module DIN Rail Mount
  • Resettable Thermal Circuit Breaker Overload Protector 8 Channel Power Distribution Module DIN Rail Mount
  • Resettable Thermal Circuit Breaker Overload Protector 8 Channel Power Distribution Module DIN Rail Mount
  • Resettable Thermal Circuit Breaker Overload Protector 8 Channel Power Distribution Module DIN Rail Mount
  • Resettable Thermal Circuit Breaker Overload Protector 8 Channel Power Distribution Module DIN Rail Mount
  • Resettable Thermal Circuit Breaker Overload Protector 8 Channel Power Distribution Module DIN Rail Mount
  • Resettable Thermal Circuit Breaker Overload Protector 8 Channel Power Distribution Module DIN Rail Mount
  • Resettable Thermal Circuit Breaker Overload Protector 8 Channel Power Distribution Module DIN Rail Mount
1/1
  • Resettable Thermal Circuit Breaker Overload Protector 8 Channel Power Distribution Module DIN Rail Mount
  • Resettable Thermal Circuit Breaker Overload Protector 8 Channel Power Distribution Module DIN Rail Mount
  • Resettable Thermal Circuit Breaker Overload Protector 8 Channel Power Distribution Module DIN Rail Mount
  • Resettable Thermal Circuit Breaker Overload Protector 8 Channel Power Distribution Module DIN Rail Mount
  • Resettable Thermal Circuit Breaker Overload Protector 8 Channel Power Distribution Module DIN Rail Mount
  • Resettable Thermal Circuit Breaker Overload Protector 8 Channel Power Distribution Module DIN Rail Mount
  • Description

1, Input voltage AC 125/250V 50/60Hz. Maximum total input current 40A(one position terminal block maximum current 20A).
2, Maximum output current 6A(one channel). Maximum total output current 40A.
3, Current breaker value: 6 Amp. Circuit breaker reset mode ---- manual reset (push to reset).  Fault indicator: when the load connected and circuit breaker off, red LED indicator will lighting..
4, Terminal Blocks: Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4.0mm square, Strip length 8mm. Screws - M3,steel,Cr3+ Zn plated. Pin header and Cage - Brass.
5, High quality fireproof nylon material DIN rail mount carrier, can support width 35mm 32mm 15mm rail. FR-4 fiberglass dual copper layers PCB.
