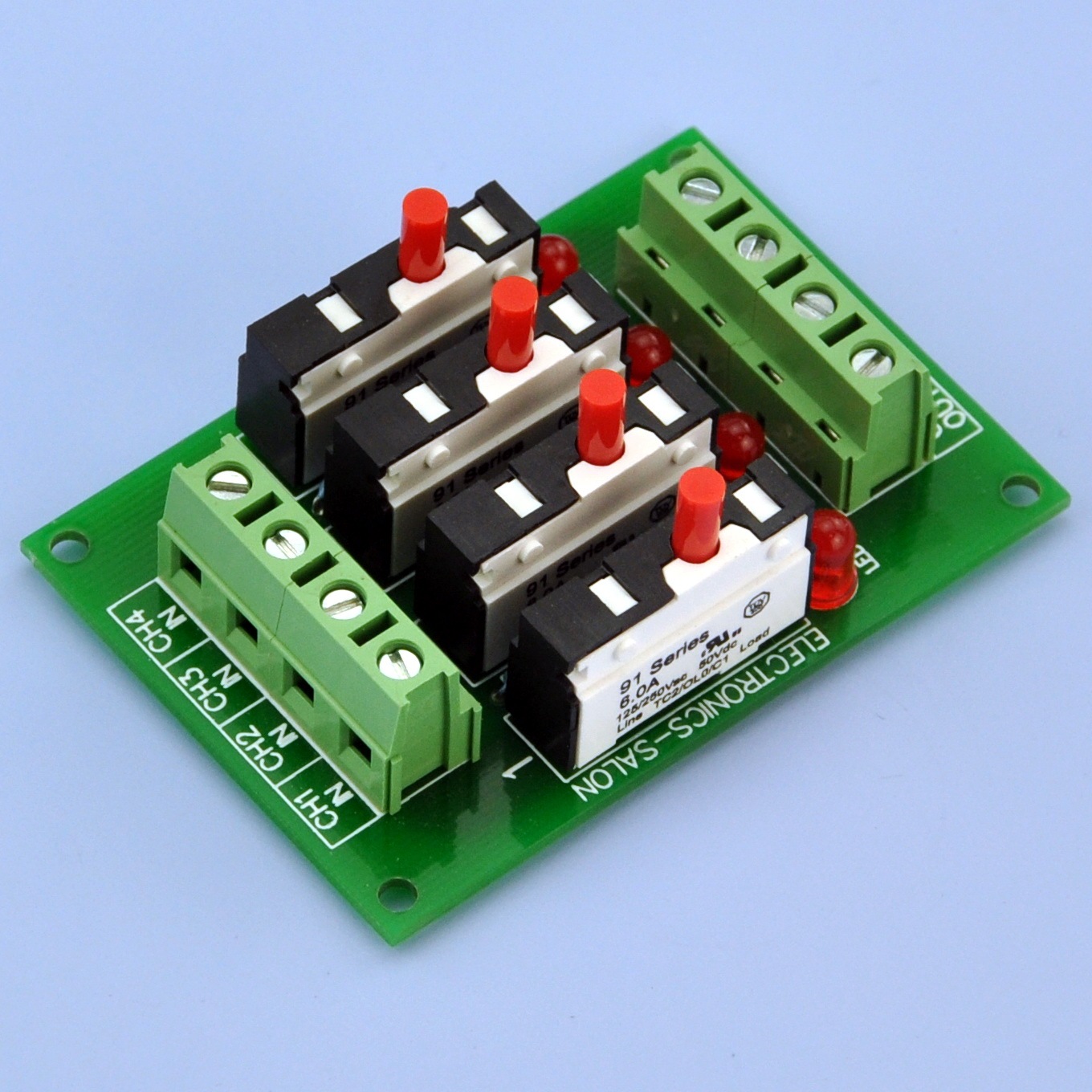

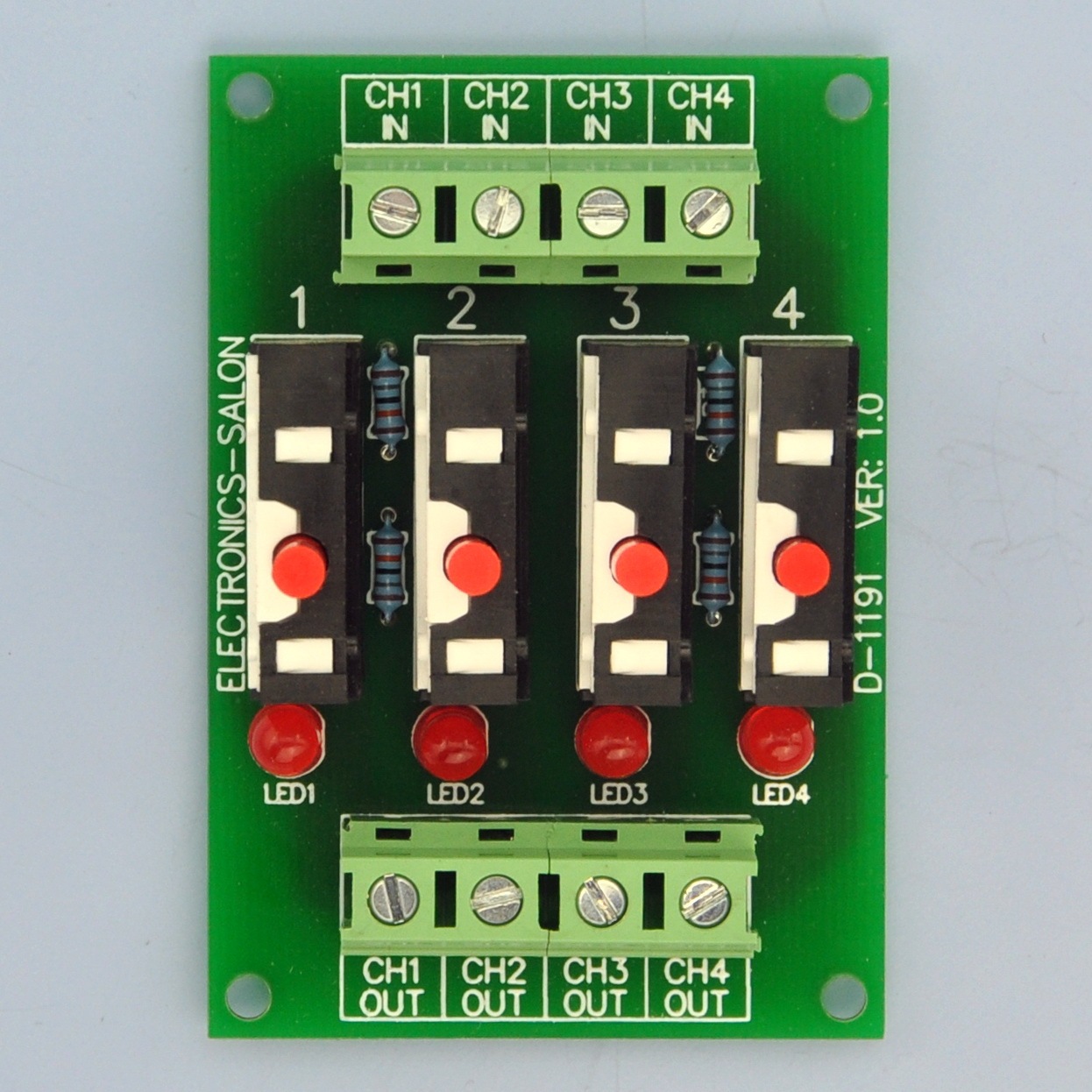

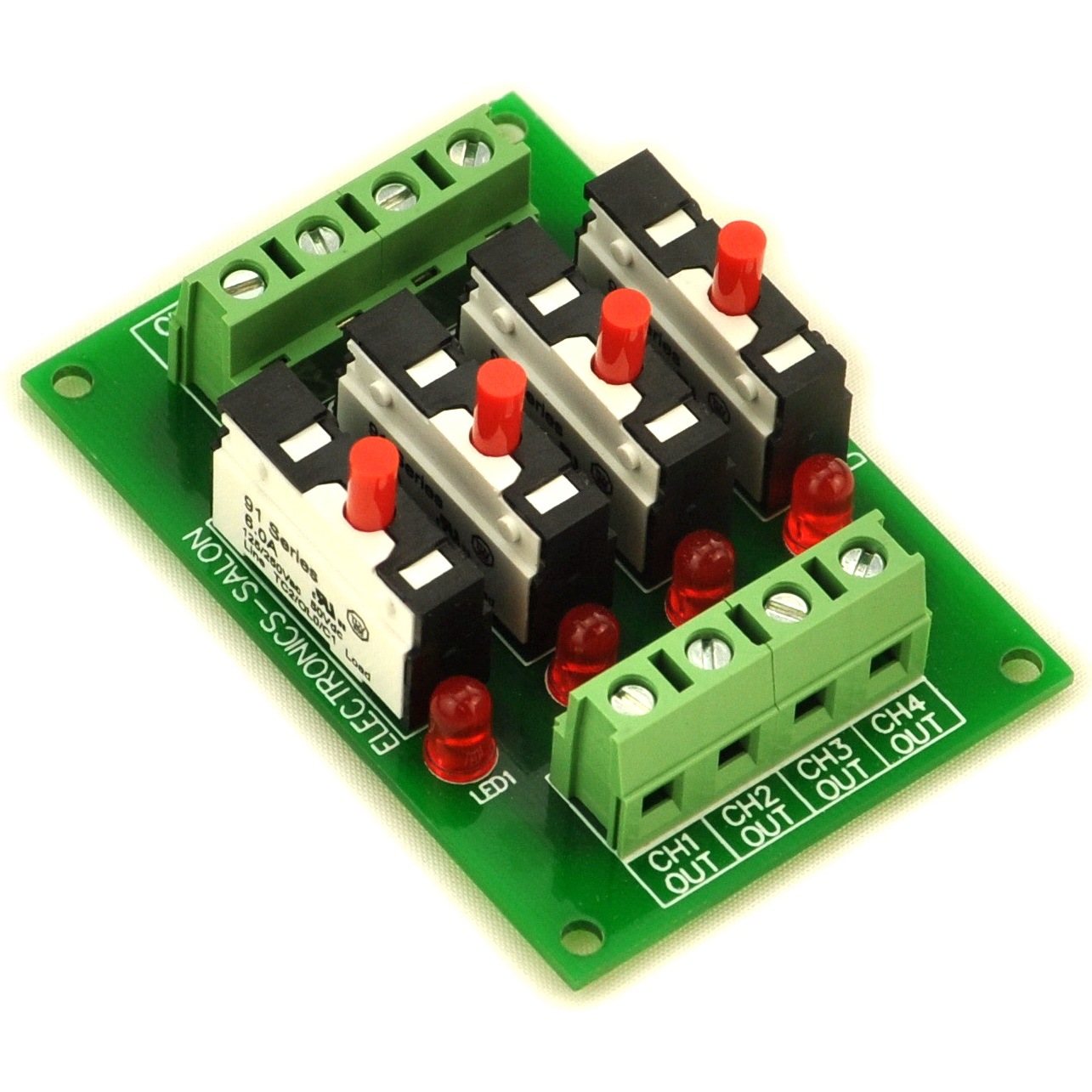

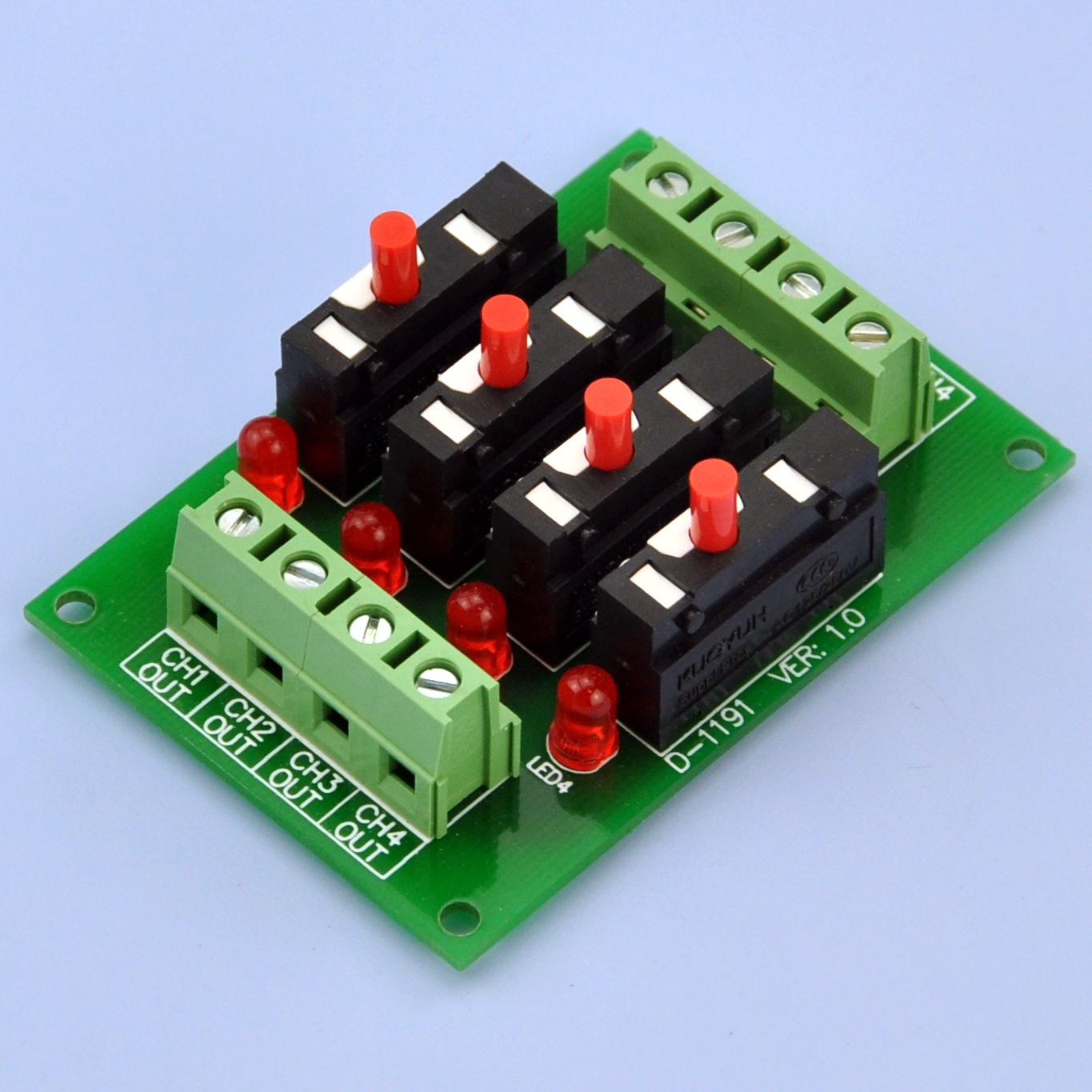

Panel Mount Independent 4 Channels Thermal Circuit Breaker Module.

SKU: D-1191
$25.00 $25.00
ELECTRONICS-SALON Panel Mount Independent 4 Channels Thermal Circuit Breaker Module.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $25 = $25
save $0.00
Add to Favorites
  • Panel Mount Independent 4 Channels Thermal Circuit Breaker Module.
  • Panel Mount Independent 4 Channels Thermal Circuit Breaker Module.
  • Panel Mount Independent 4 Channels Thermal Circuit Breaker Module.
  • Panel Mount Independent 4 Channels Thermal Circuit Breaker Module.
  • Panel Mount Independent 4 Channels Thermal Circuit Breaker Module.
  • Panel Mount Independent 4 Channels Thermal Circuit Breaker Module.
  • Panel Mount Independent 4 Channels Thermal Circuit Breaker Module.
  • Panel Mount Independent 4 Channels Thermal Circuit Breaker Module.
  • Panel Mount Independent 4 Channels Thermal Circuit Breaker Module.
  • Panel Mount Independent 4 Channels Thermal Circuit Breaker Module.
  • Panel Mount Independent 4 Channels Thermal Circuit Breaker Module.
  • Panel Mount Independent 4 Channels Thermal Circuit Breaker Module.
  • Panel Mount Independent 4 Channels Thermal Circuit Breaker Module.
  • Panel Mount Independent 4 Channels Thermal Circuit Breaker Module.
  • Panel Mount Independent 4 Channels Thermal Circuit Breaker Module.
  • Panel Mount Independent 4 Channels Thermal Circuit Breaker Module.
  • Panel Mount Independent 4 Channels Thermal Circuit Breaker Module.
  • Panel Mount Independent 4 Channels Thermal Circuit Breaker Module.
1/1
  • Panel Mount Independent 4 Channels Thermal Circuit Breaker Module.
  • Panel Mount Independent 4 Channels Thermal Circuit Breaker Module.
  • Panel Mount Independent 4 Channels Thermal Circuit Breaker Module.
  • Panel Mount Independent 4 Channels Thermal Circuit Breaker Module.
  • Panel Mount Independent 4 Channels Thermal Circuit Breaker Module.
  • Panel Mount Independent 4 Channels Thermal Circuit Breaker Module.
  • Panel Mount Independent 4 Channels Thermal Circuit Breaker Module.
  • Panel Mount Independent 4 Channels Thermal Circuit Breaker Module.
  • Panel Mount Independent 4 Channels Thermal Circuit Breaker Module.
  • Description

Panel Mount Independent 4 Channels Thermal Circuit Breaker Module.

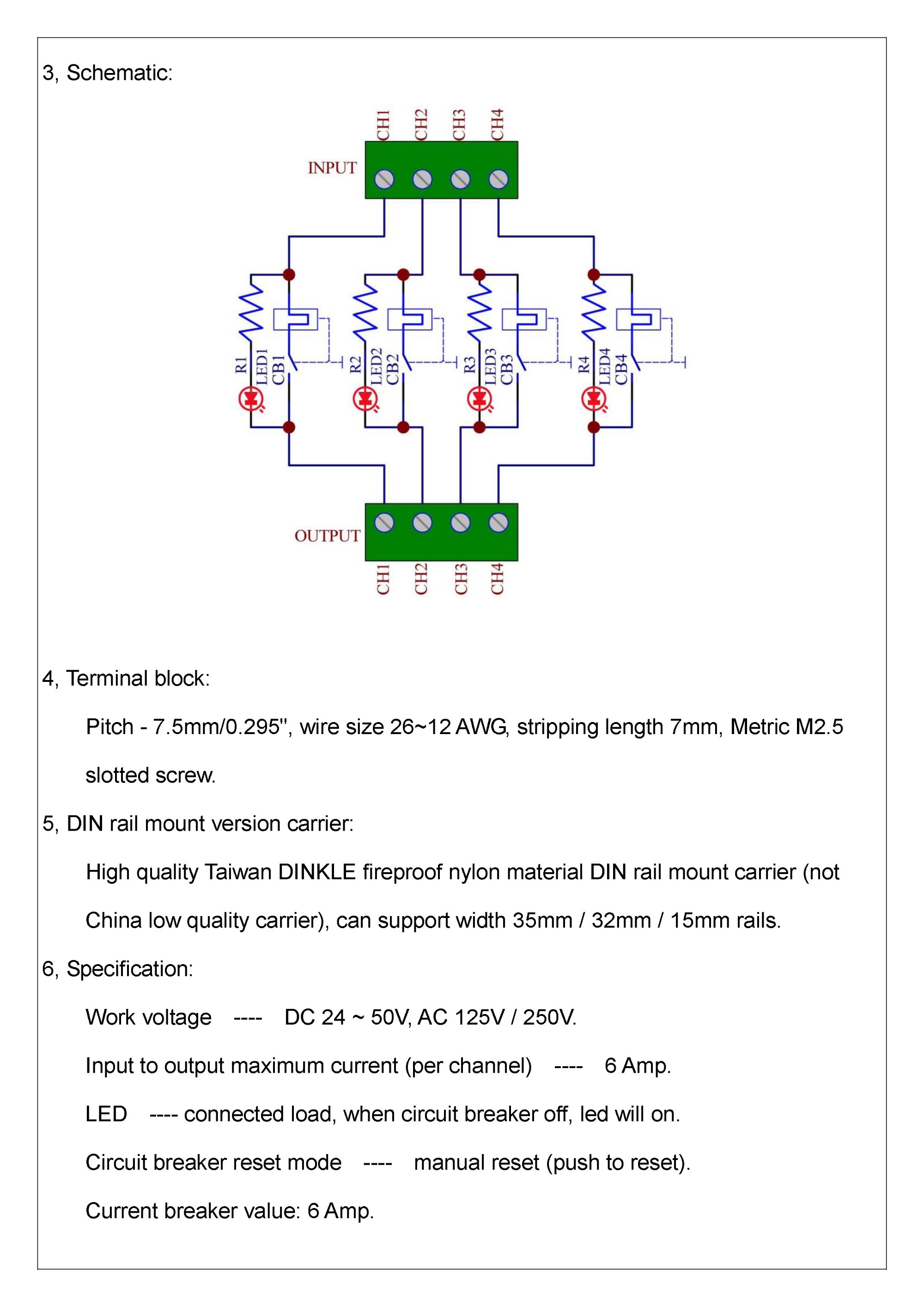

Specification:
Work voltage ---- DC 24 ~ 50V, AC 125V / 250V.
Input to output maximum current (per channel) ---- 6 Amp.
LED ---- connected load, when circuit breaker off, led will on.
Circuit breaker reset mode ---- manual reset (push to reset).
Current breaker value: 6 Amp.

Terminal block:
Pitch - 7.5mm/0.295", wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.
