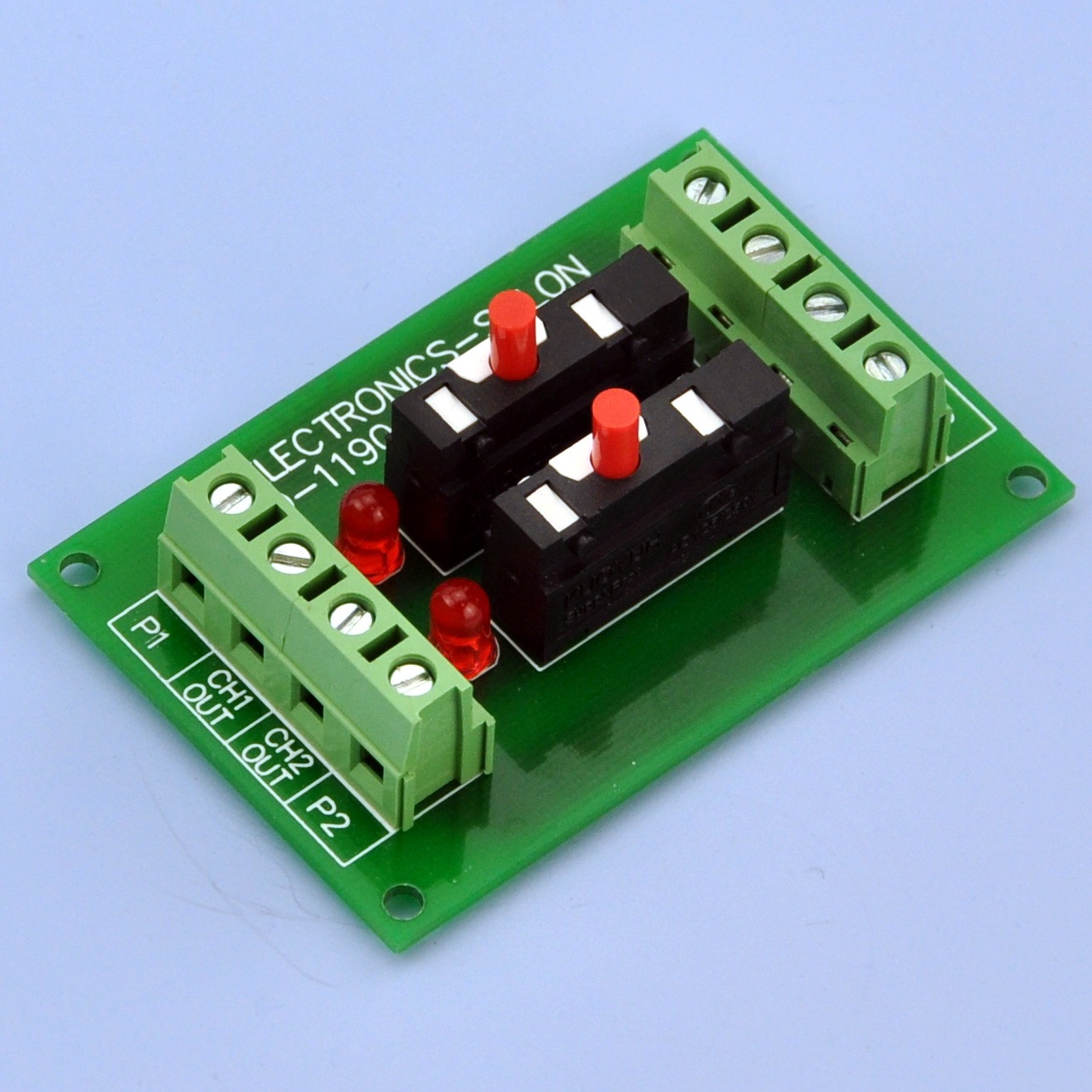

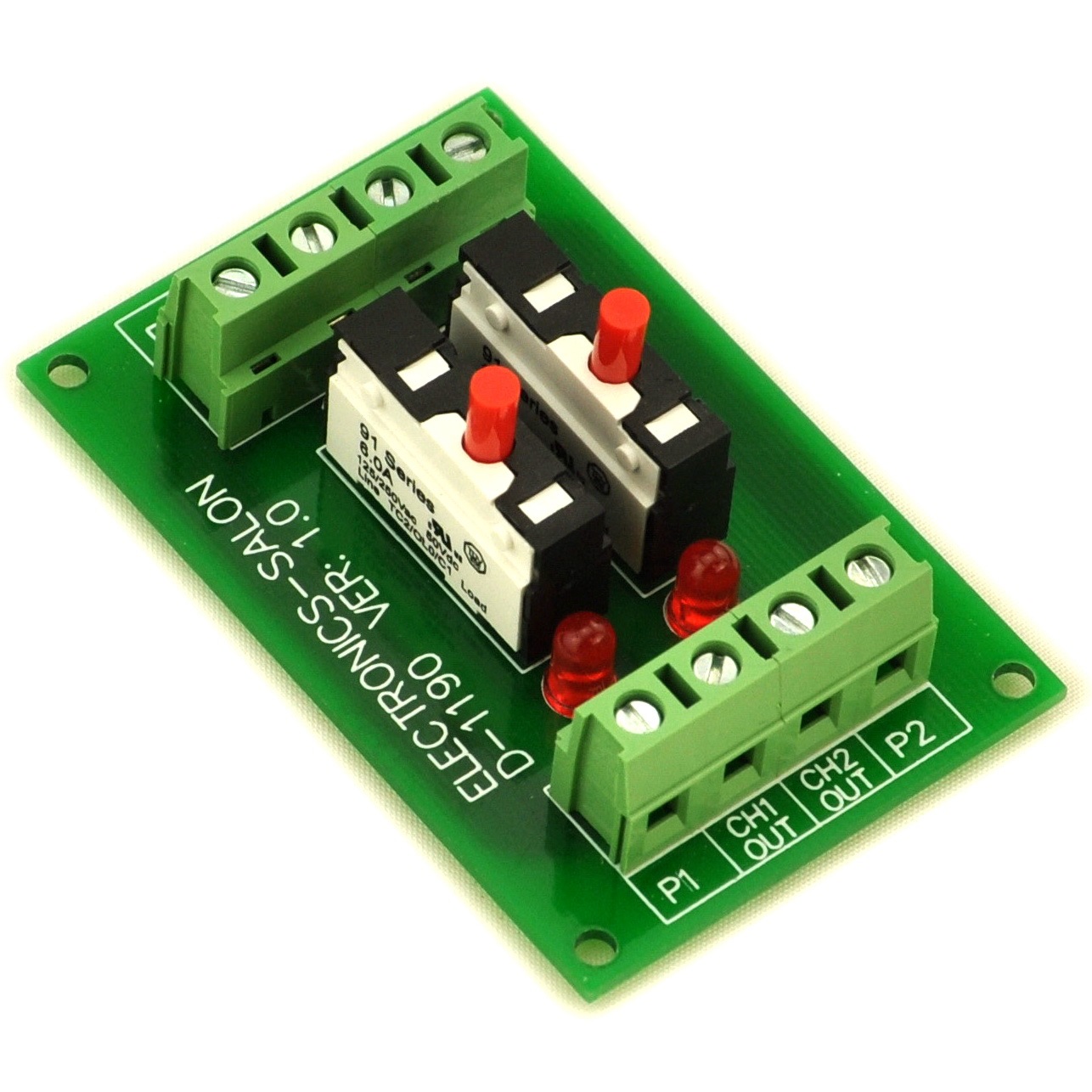

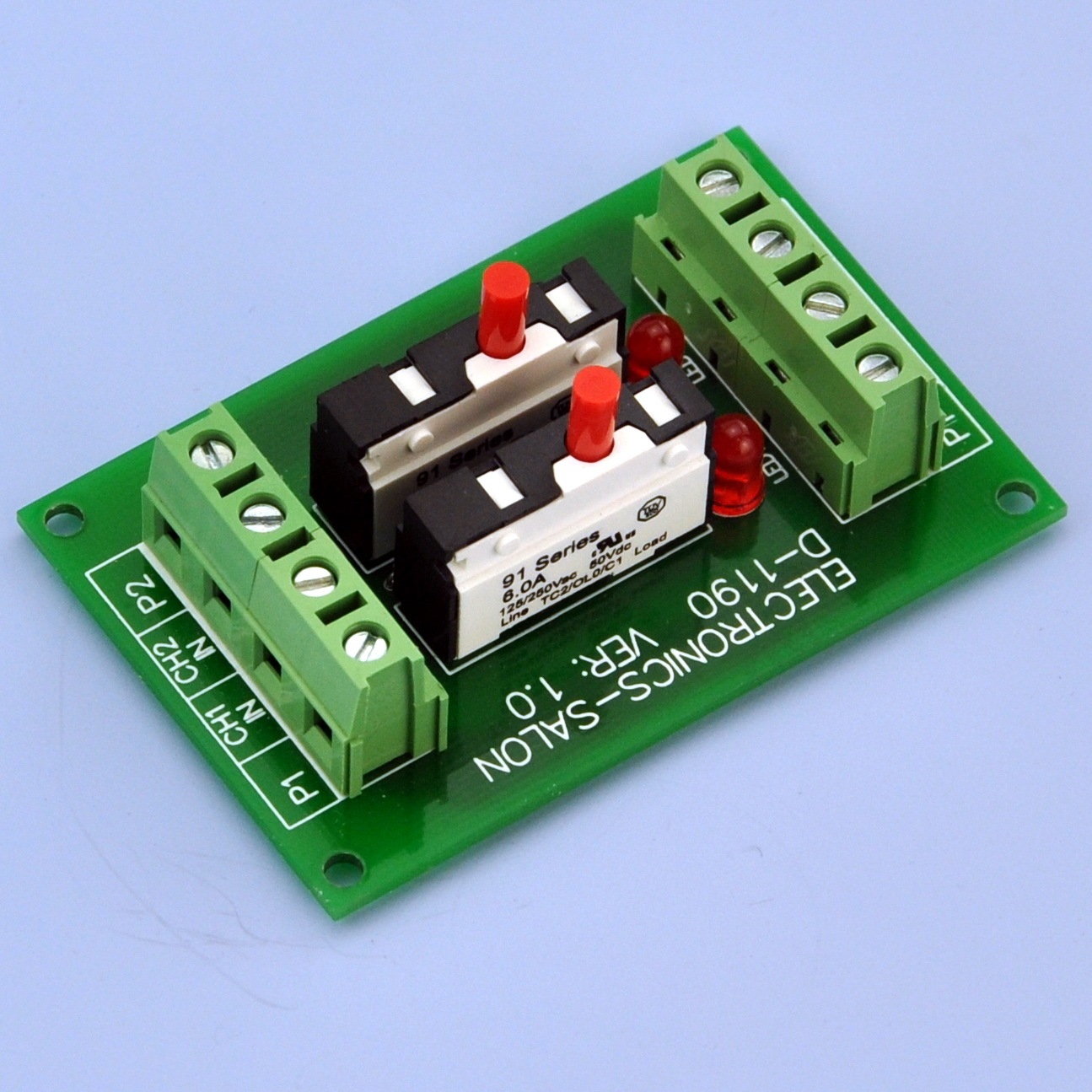

Panel Mount 2 Channel Thermal Circuit Breaker Module, with 2 Direct Connection Terminal.

SKU: D-1190
$15.00 $15.00
ELECTRONICS-SALON Panel Mount 2 Channel Thermal Circuit Breaker Module, with 2 Direct Connection Terminal.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $15 = $15
save $0.00
Add to Favorites
  • Panel Mount 2 Channel Thermal Circuit Breaker Module, with 2 Direct Connection Terminal.
  • Panel Mount 2 Channel Thermal Circuit Breaker Module, with 2 Direct Connection Terminal.
  • Panel Mount 2 Channel Thermal Circuit Breaker Module, with 2 Direct Connection Terminal.
  • Panel Mount 2 Channel Thermal Circuit Breaker Module, with 2 Direct Connection Terminal.
  • Panel Mount 2 Channel Thermal Circuit Breaker Module, with 2 Direct Connection Terminal.
  • Panel Mount 2 Channel Thermal Circuit Breaker Module, with 2 Direct Connection Terminal.
  • Panel Mount 2 Channel Thermal Circuit Breaker Module, with 2 Direct Connection Terminal.
  • Panel Mount 2 Channel Thermal Circuit Breaker Module, with 2 Direct Connection Terminal.
  • Panel Mount 2 Channel Thermal Circuit Breaker Module, with 2 Direct Connection Terminal.
  • Panel Mount 2 Channel Thermal Circuit Breaker Module, with 2 Direct Connection Terminal.
  • Panel Mount 2 Channel Thermal Circuit Breaker Module, with 2 Direct Connection Terminal.
  • Panel Mount 2 Channel Thermal Circuit Breaker Module, with 2 Direct Connection Terminal.
  • Panel Mount 2 Channel Thermal Circuit Breaker Module, with 2 Direct Connection Terminal.
  • Panel Mount 2 Channel Thermal Circuit Breaker Module, with 2 Direct Connection Terminal.
  • Panel Mount 2 Channel Thermal Circuit Breaker Module, with 2 Direct Connection Terminal.
  • Panel Mount 2 Channel Thermal Circuit Breaker Module, with 2 Direct Connection Terminal.
  • Panel Mount 2 Channel Thermal Circuit Breaker Module, with 2 Direct Connection Terminal.
  • Panel Mount 2 Channel Thermal Circuit Breaker Module, with 2 Direct Connection Terminal.
1/1
  • Panel Mount 2 Channel Thermal Circuit Breaker Module, with 2 Direct Connection Terminal.
  • Panel Mount 2 Channel Thermal Circuit Breaker Module, with 2 Direct Connection Terminal.
  • Panel Mount 2 Channel Thermal Circuit Breaker Module, with 2 Direct Connection Terminal.
  • Panel Mount 2 Channel Thermal Circuit Breaker Module, with 2 Direct Connection Terminal.
  • Panel Mount 2 Channel Thermal Circuit Breaker Module, with 2 Direct Connection Terminal.
  • Panel Mount 2 Channel Thermal Circuit Breaker Module, with 2 Direct Connection Terminal.
  • Panel Mount 2 Channel Thermal Circuit Breaker Module, with 2 Direct Connection Terminal.
  • Panel Mount 2 Channel Thermal Circuit Breaker Module, with 2 Direct Connection Terminal.
  • Panel Mount 2 Channel Thermal Circuit Breaker Module, with 2 Direct Connection Terminal.
  • Description

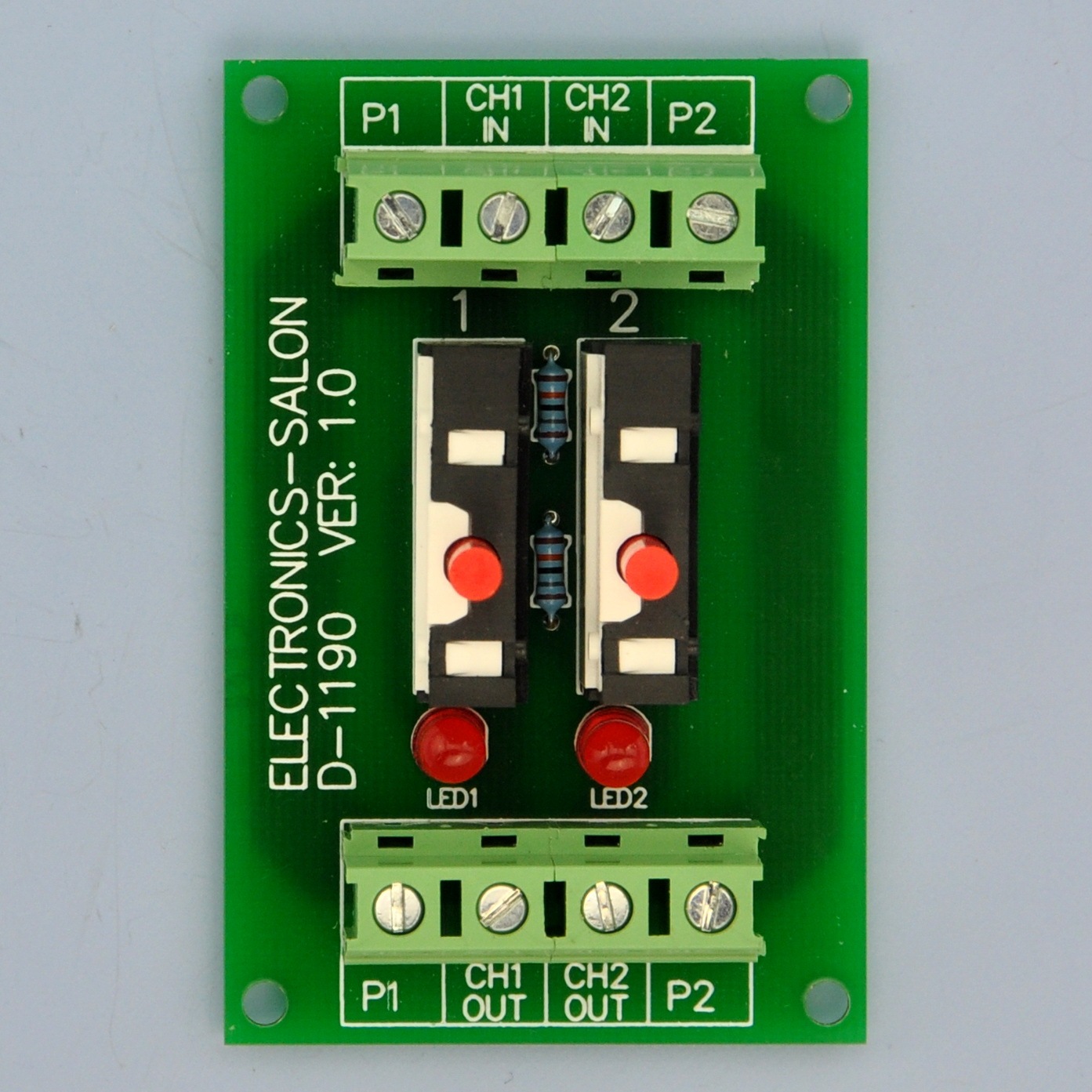

Panel Mount 2 Channel Thermal Circuit Breaker Module, with 2 Direct Connection Terminal.

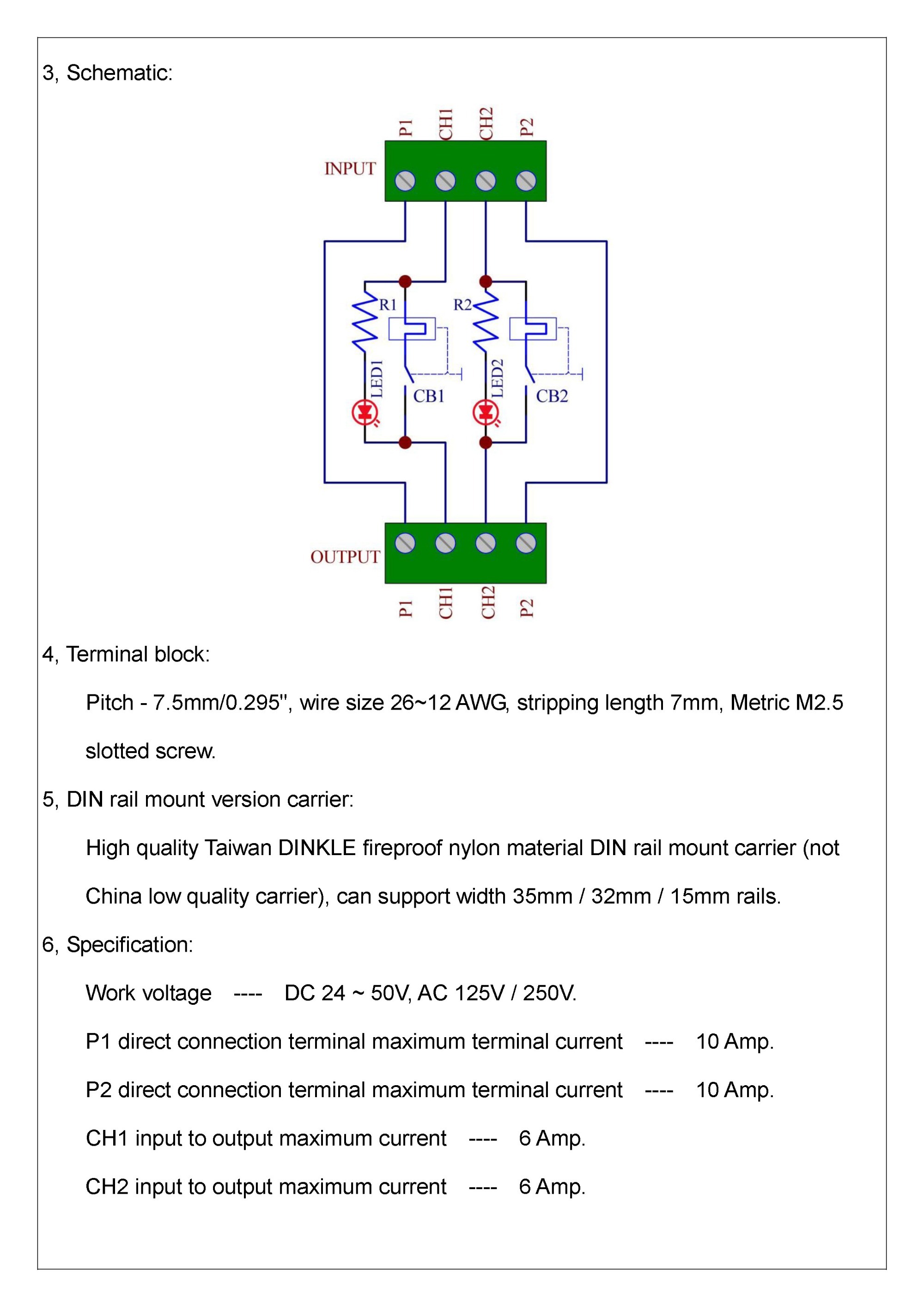

Specification:
Work voltage ---- DC 24 ~ 50V, AC 125V / 250V.
P1 direct connection terminal maximum terminal current ---- 10 Amp.
P2 direct connection terminal maximum terminal current ---- 10 Amp.
CH1 input to output maximum current ---- 6 Amp.
CH2 input to output maximum current ---- 6 Amp.

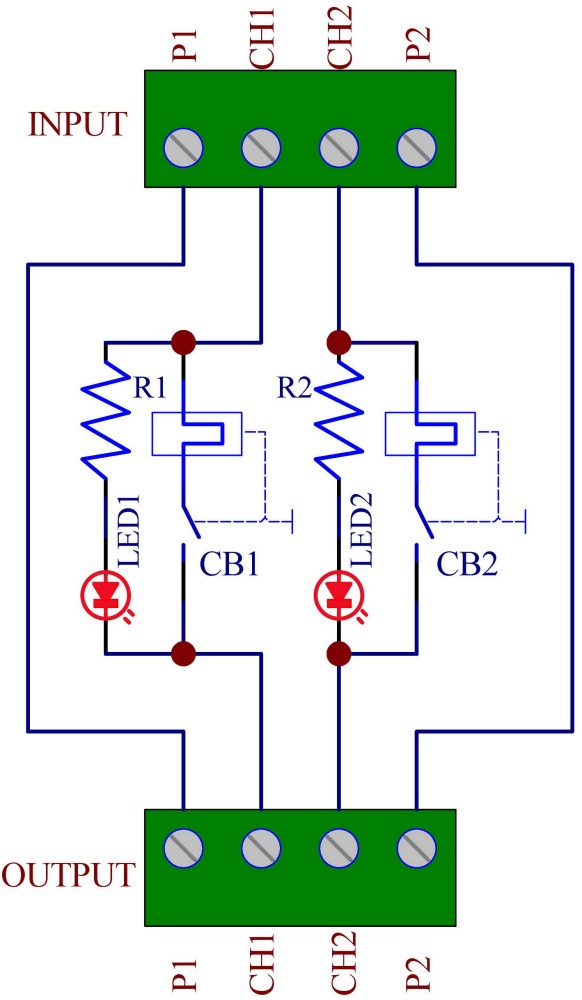

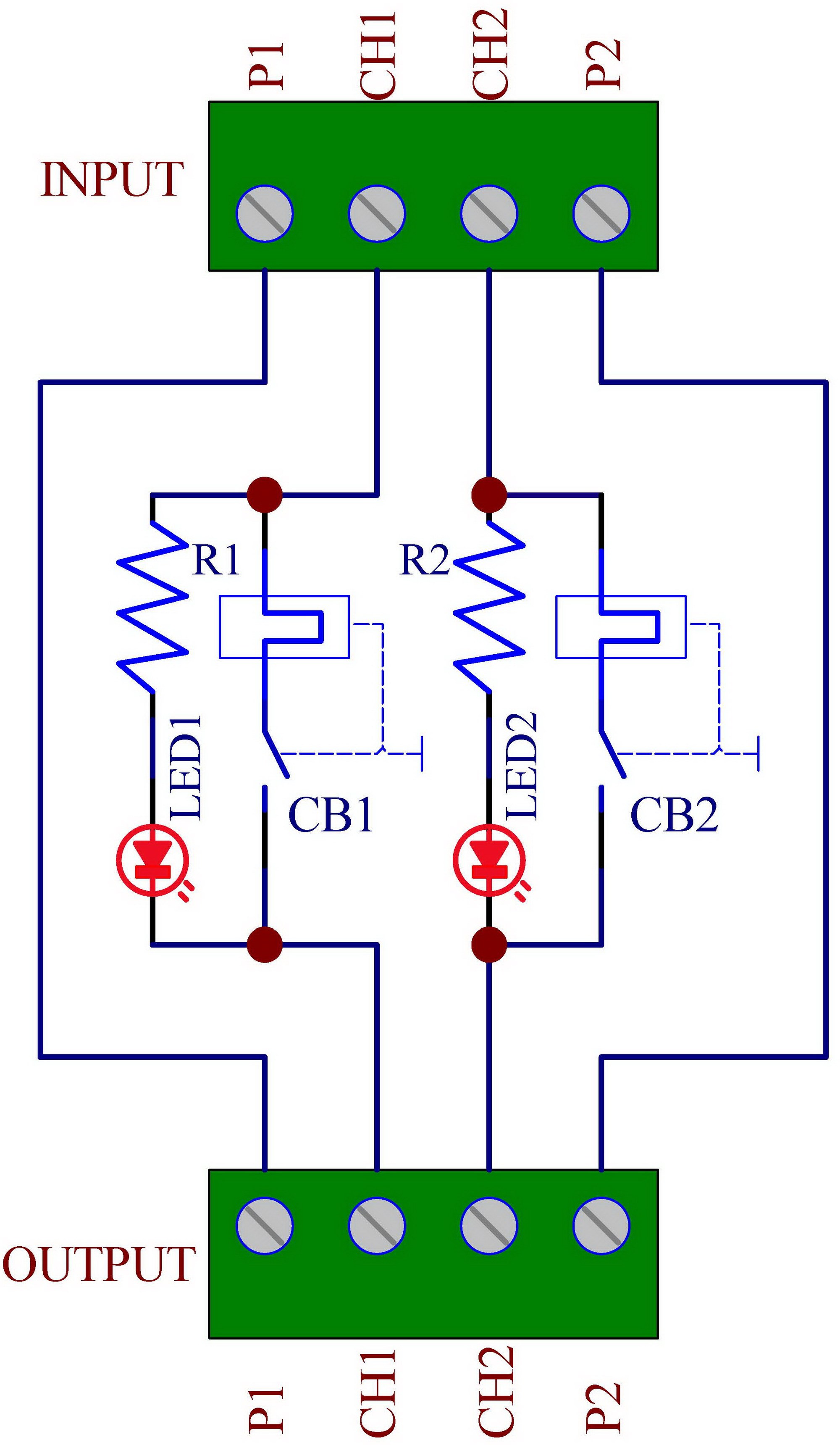

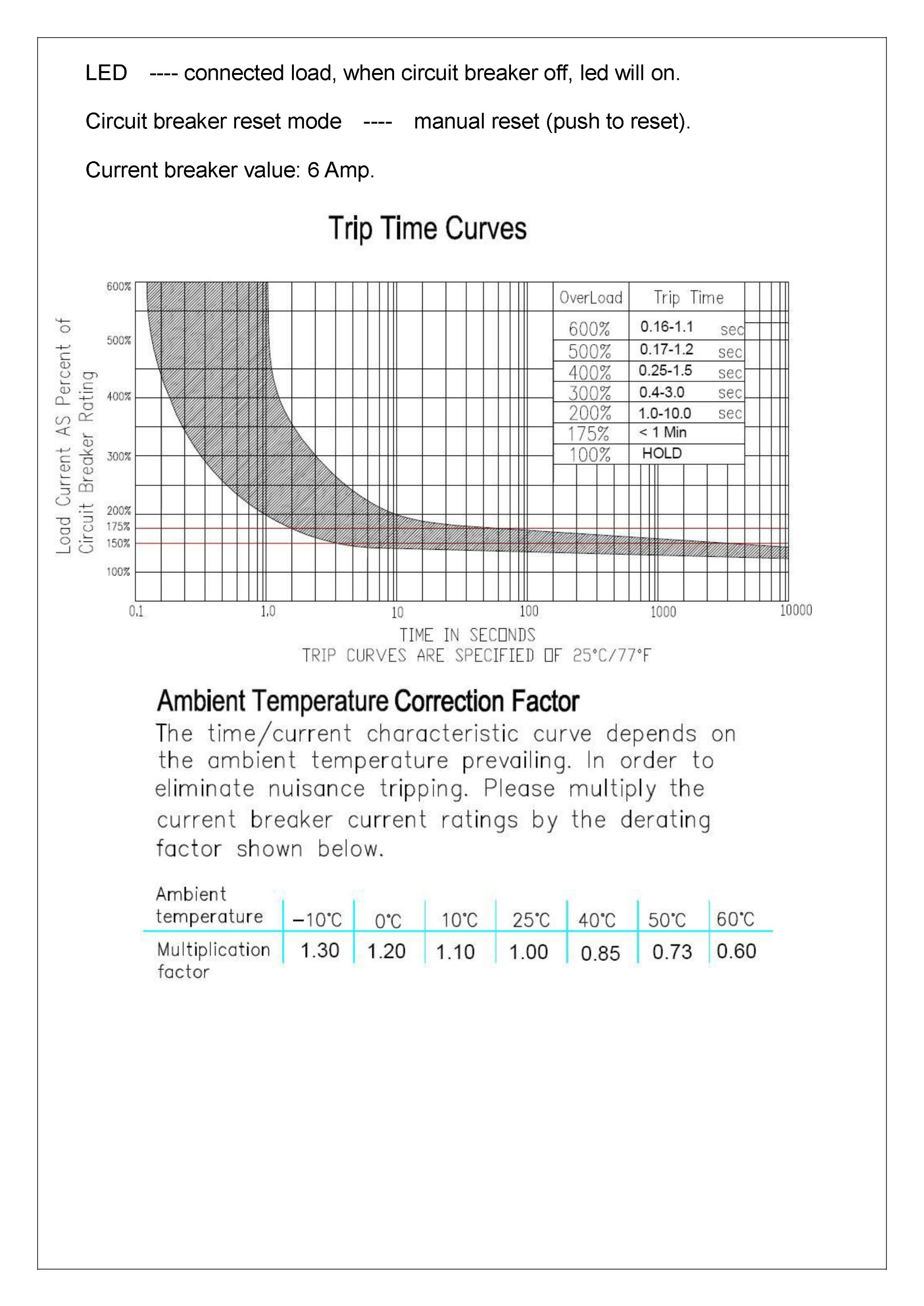

LED ---- connected load, when circuit breaker off, led will on.
Circuit breaker reset mode ---- manual reset (push to reset).
Current breaker value: 6 Amp.

Terminal block:
Pitch - 7.5mm/0.295", wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.
