OONO Screw Mount 30A/300V 8x4 Position Pluggable Terminal Block Distribution Module

SKU: D-1343P
$22.00 $22.00
OONO Screw Mount 30A/300V 8x4 Position Pluggable Terminal Block Distribution Module
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $22 = $22
save $0.00
Add to Favorites
  • OONO Screw Mount 30A/300V 8x4 Position Pluggable Terminal Block Distribution Module
  • OONO Screw Mount 30A/300V 8x4 Position Pluggable Terminal Block Distribution Module
  • OONO Screw Mount 30A/300V 8x4 Position Pluggable Terminal Block Distribution Module
  • OONO Screw Mount 30A/300V 8x4 Position Pluggable Terminal Block Distribution Module
  • OONO Screw Mount 30A/300V 8x4 Position Pluggable Terminal Block Distribution Module
  • OONO Screw Mount 30A/300V 8x4 Position Pluggable Terminal Block Distribution Module
  • OONO Screw Mount 30A/300V 8x4 Position Pluggable Terminal Block Distribution Module
  • OONO Screw Mount 30A/300V 8x4 Position Pluggable Terminal Block Distribution Module
  • OONO Screw Mount 30A/300V 8x4 Position Pluggable Terminal Block Distribution Module
  • OONO Screw Mount 30A/300V 8x4 Position Pluggable Terminal Block Distribution Module
  • OONO Screw Mount 30A/300V 8x4 Position Pluggable Terminal Block Distribution Module
  • OONO Screw Mount 30A/300V 8x4 Position Pluggable Terminal Block Distribution Module
  • OONO Screw Mount 30A/300V 8x4 Position Pluggable Terminal Block Distribution Module
  • OONO Screw Mount 30A/300V 8x4 Position Pluggable Terminal Block Distribution Module
  • OONO Screw Mount 30A/300V 8x4 Position Pluggable Terminal Block Distribution Module
  • OONO Screw Mount 30A/300V 8x4 Position Pluggable Terminal Block Distribution Module
1/1
  • OONO Screw Mount 30A/300V 8x4 Position Pluggable Terminal Block Distribution Module
  • OONO Screw Mount 30A/300V 8x4 Position Pluggable Terminal Block Distribution Module
  • OONO Screw Mount 30A/300V 8x4 Position Pluggable Terminal Block Distribution Module
  • OONO Screw Mount 30A/300V 8x4 Position Pluggable Terminal Block Distribution Module
  • OONO Screw Mount 30A/300V 8x4 Position Pluggable Terminal Block Distribution Module
  • OONO Screw Mount 30A/300V 8x4 Position Pluggable Terminal Block Distribution Module
  • OONO Screw Mount 30A/300V 8x4 Position Pluggable Terminal Block Distribution Module
  • OONO Screw Mount 30A/300V 8x4 Position Pluggable Terminal Block Distribution Module
  • Description

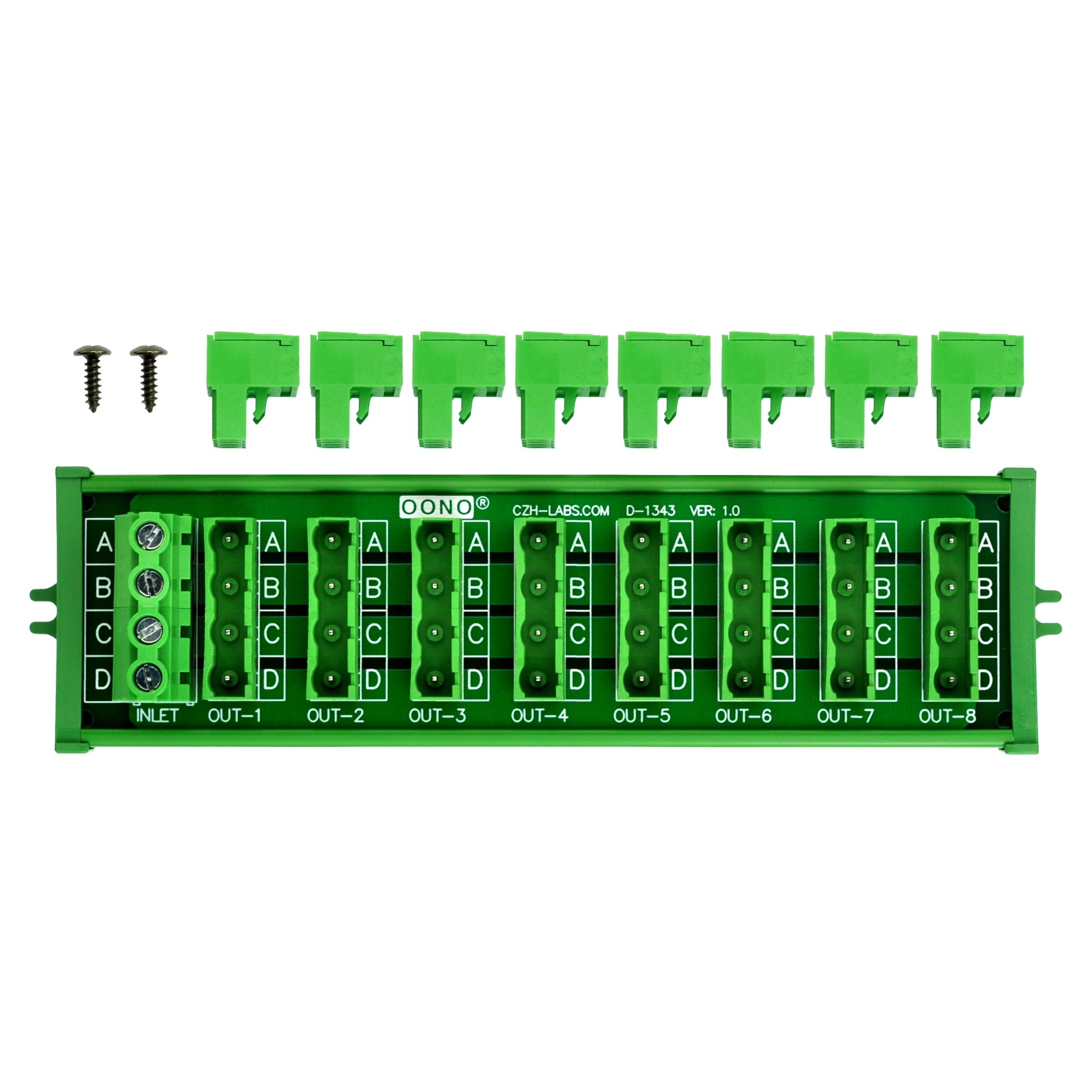

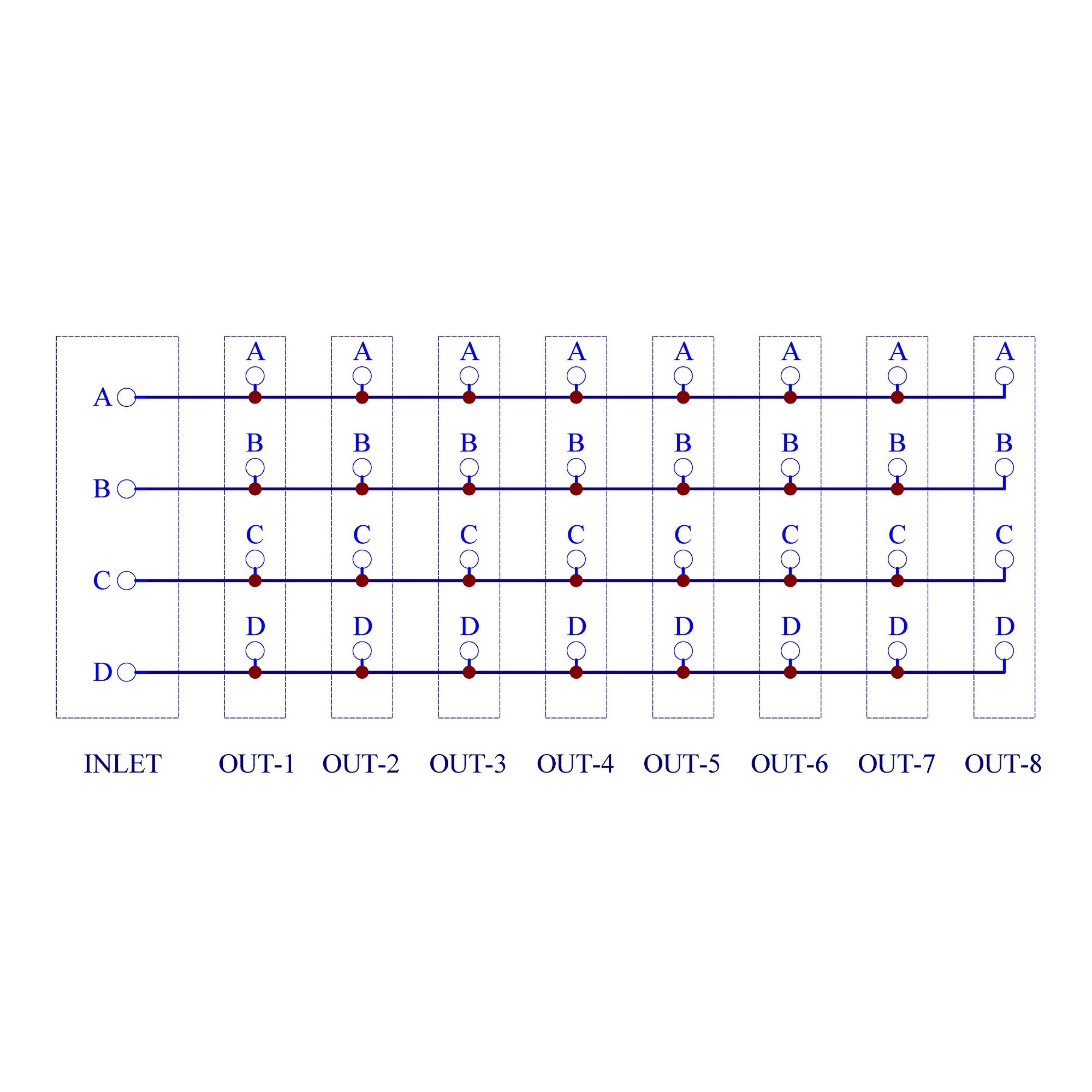

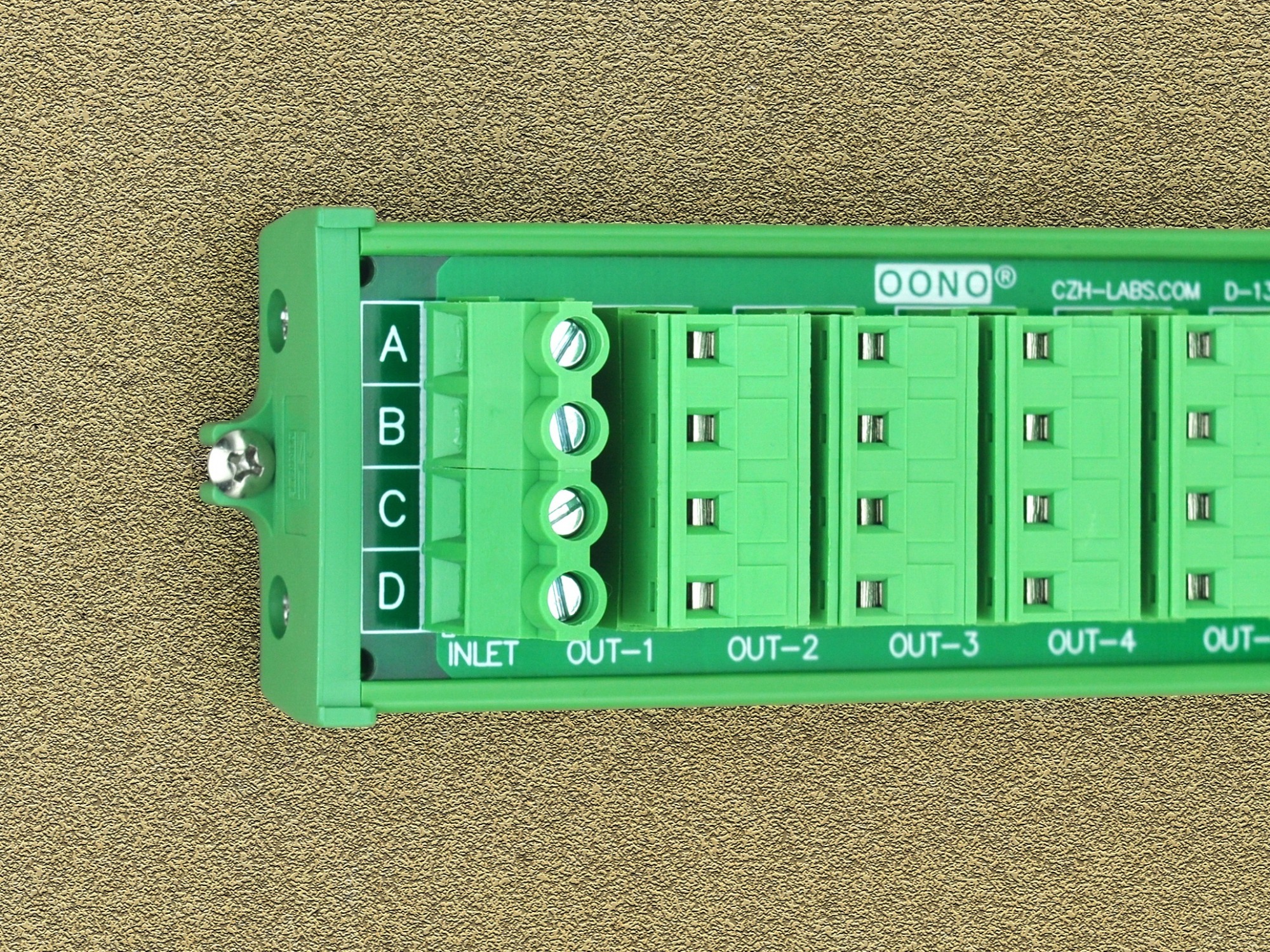

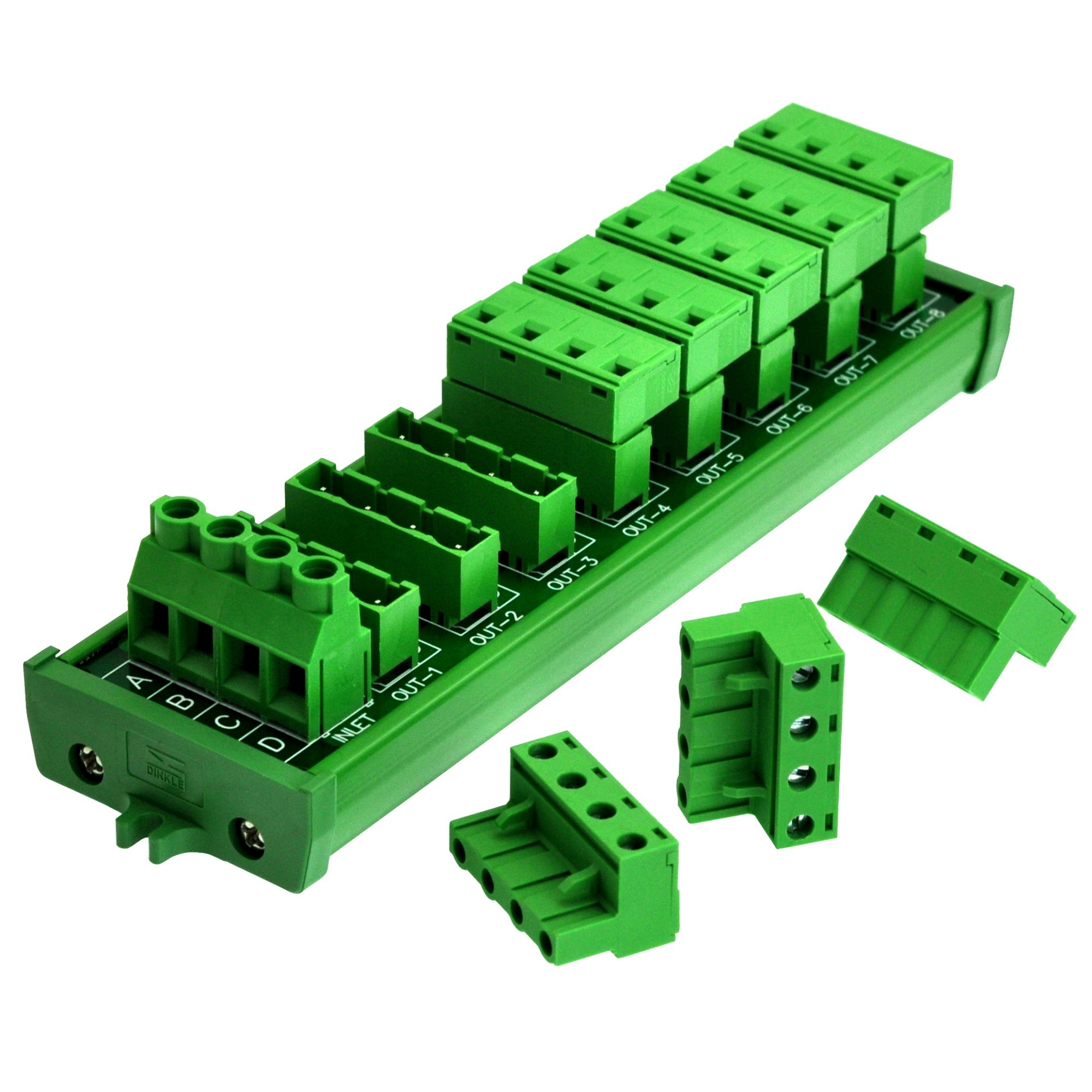

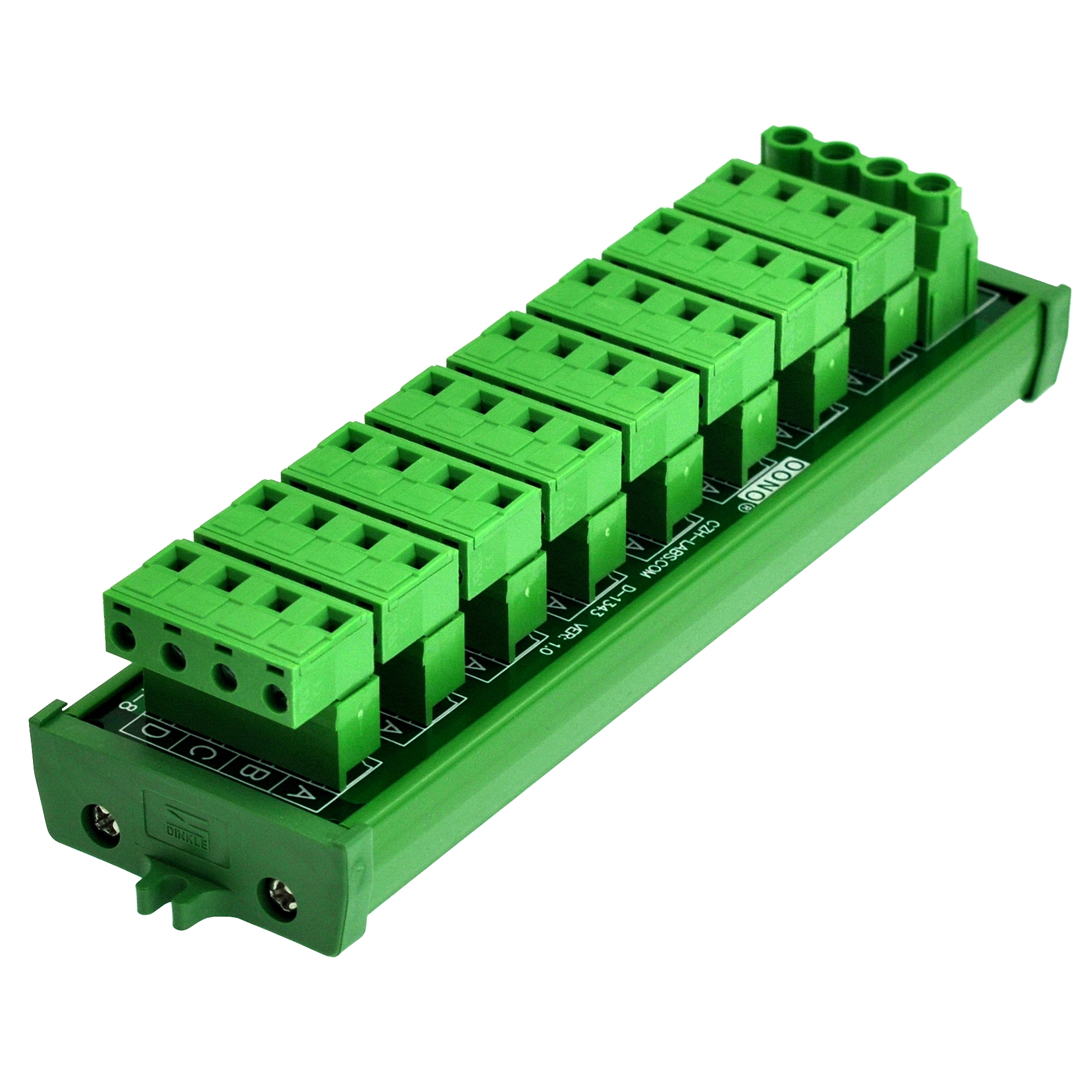

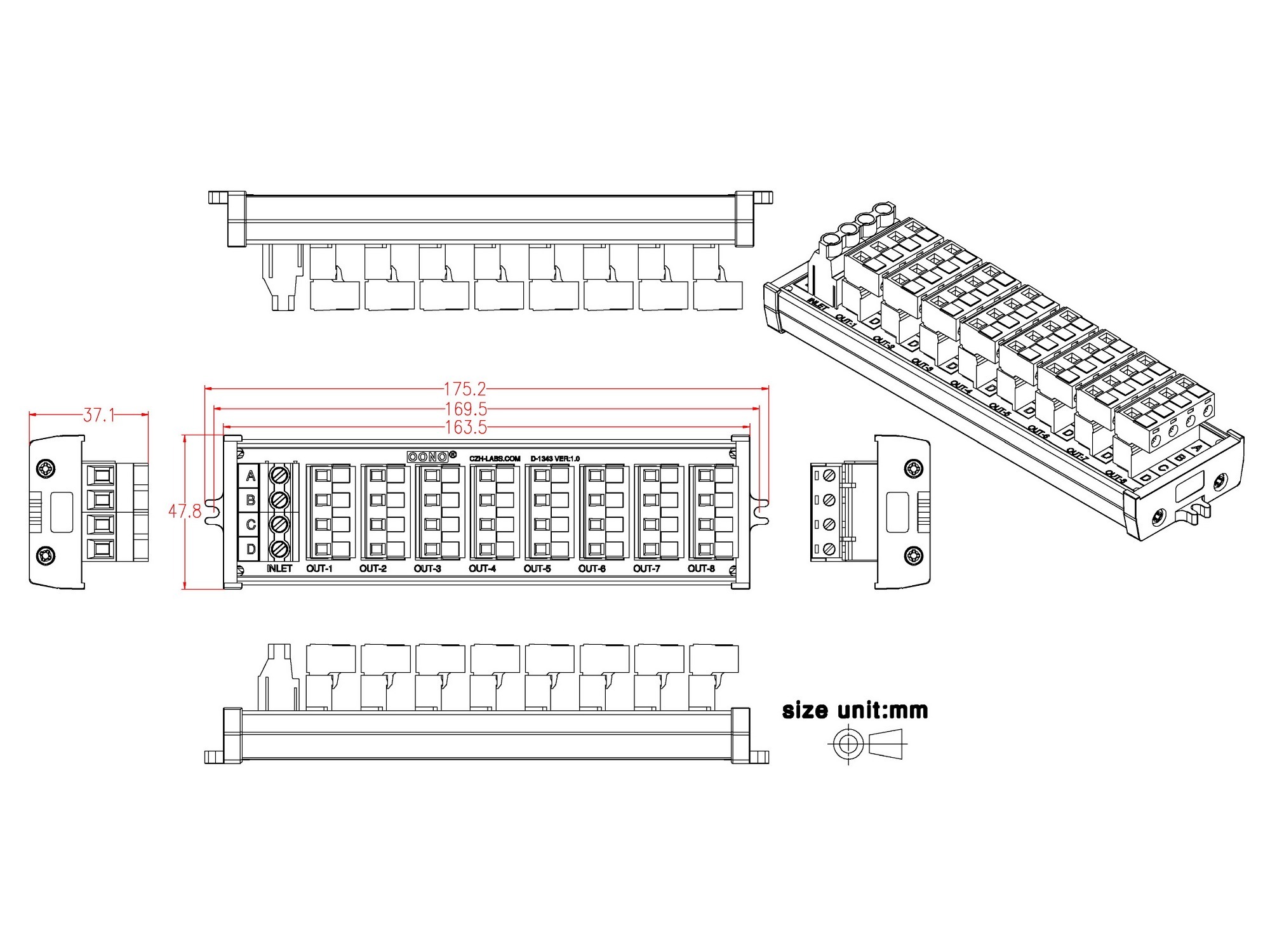

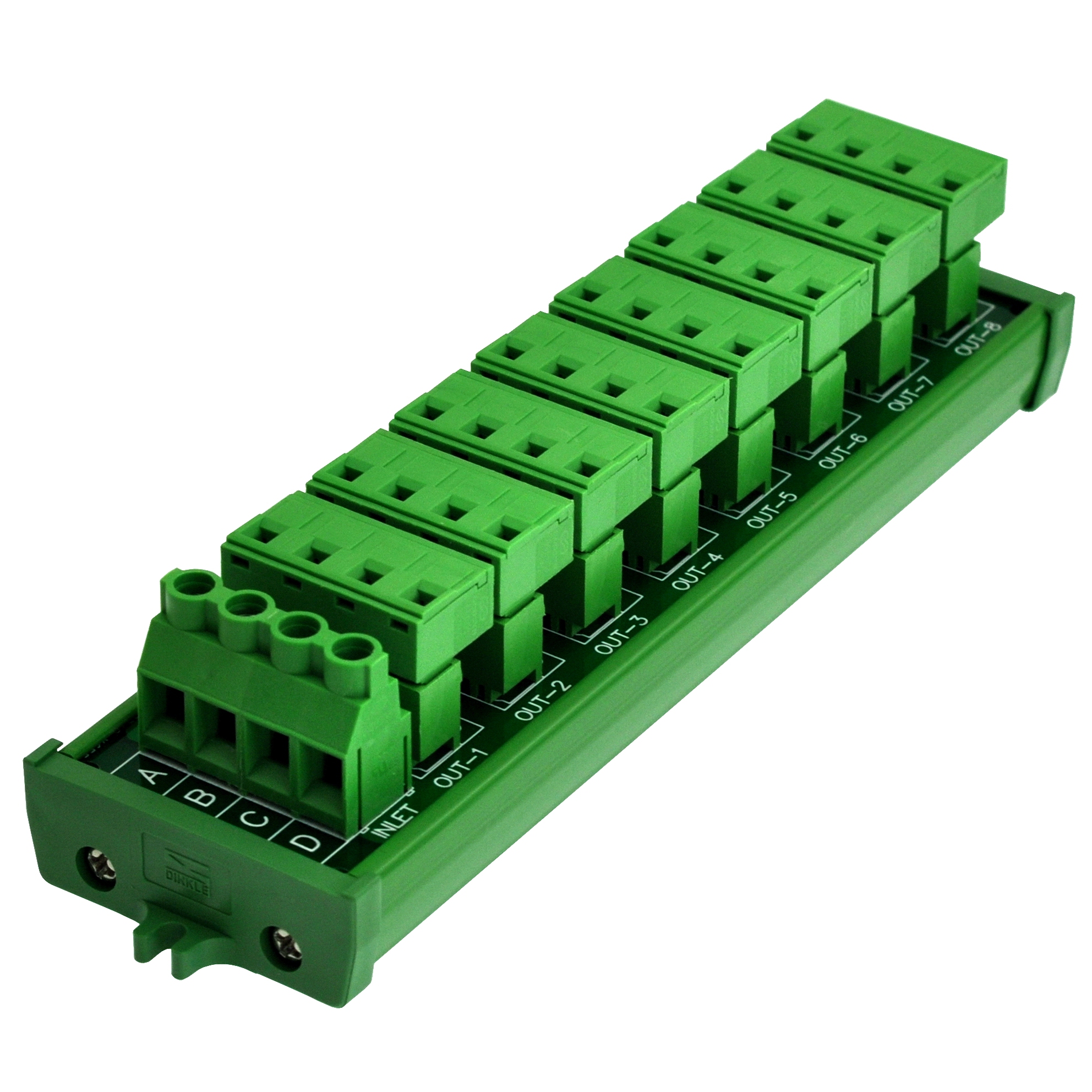

1, Screw mount 30Amp 300V 8x4 position screw terminal block distribution module.
2, Terminal block INLET A / B / C / D positions, maximum current 30Amp(each position), maximum voltage 300V. Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4mm square. Strip length 8mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
3, Terminal blocks OUT-1 to OUT-8 A / B / C / D positions, pluggable screw terminal blocks, maximum current 20Amp(each position), maximum voltage 300V. Pitch 7.62mm/0.3", Wire range 28AWG ~ 12AWG / 2.5mm square. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.

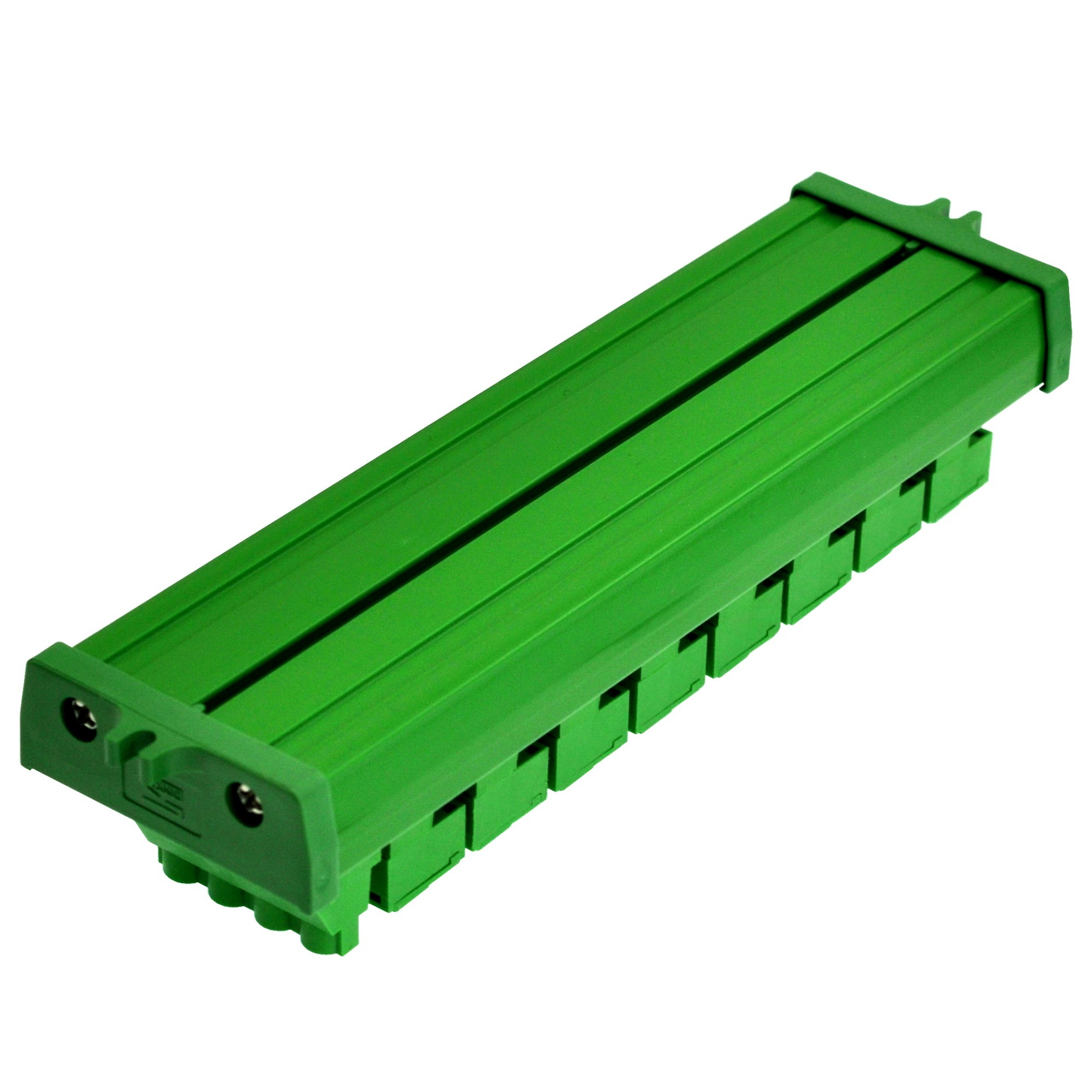

4, High quality fireproof nylon material mount carrier (not China low quality carrier). Also included are two M3 x 10mm wood screws, you can easily mount it on a wooden board.
