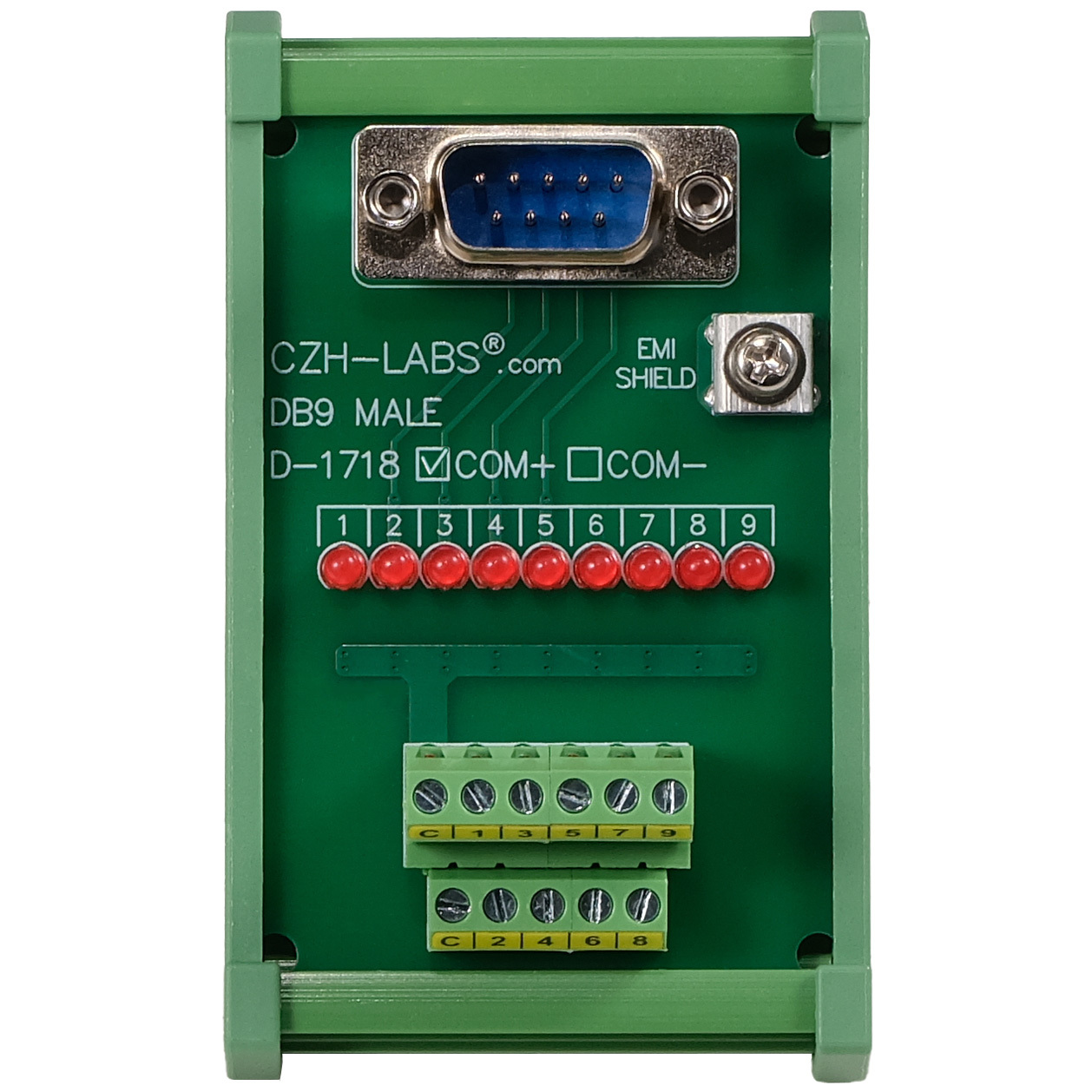

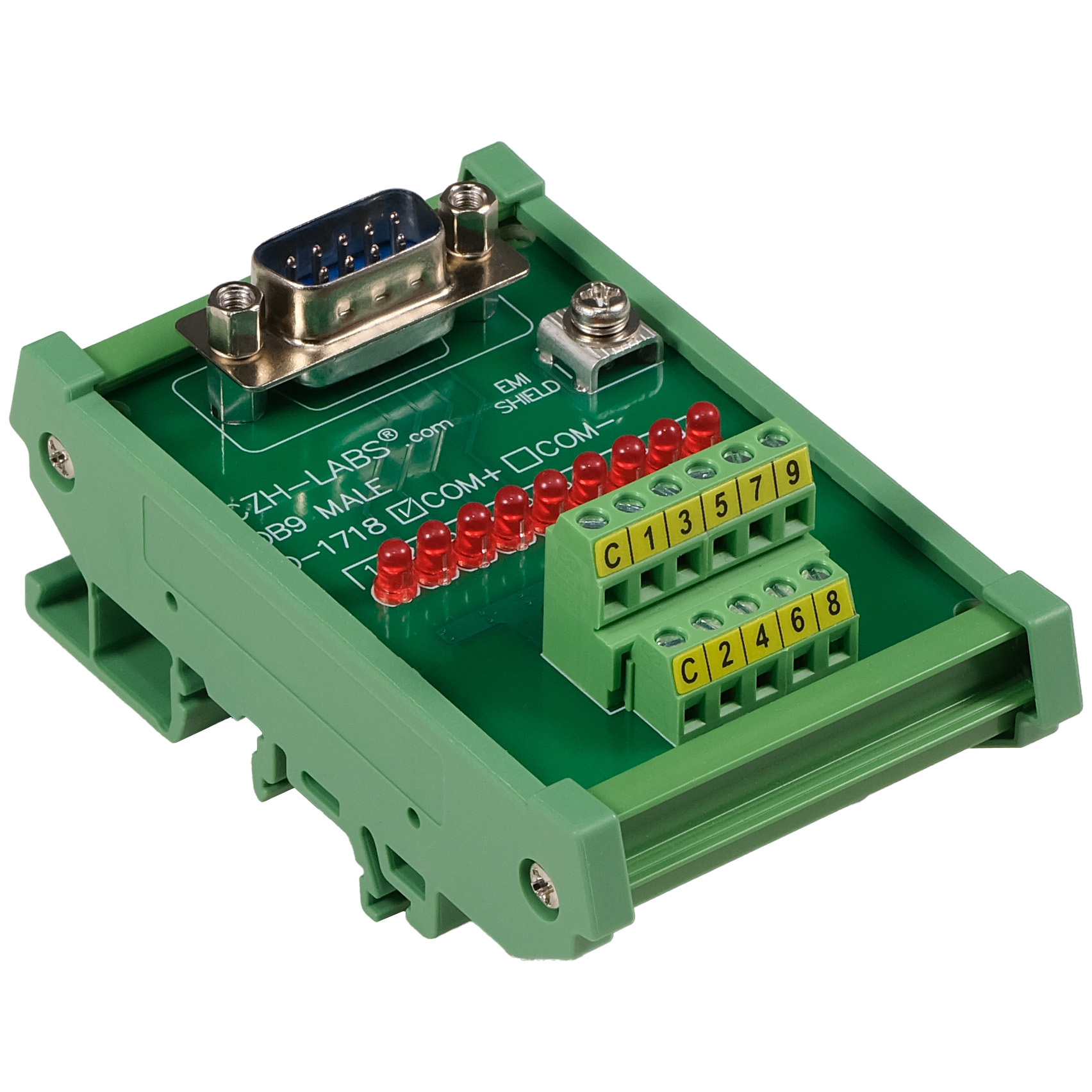

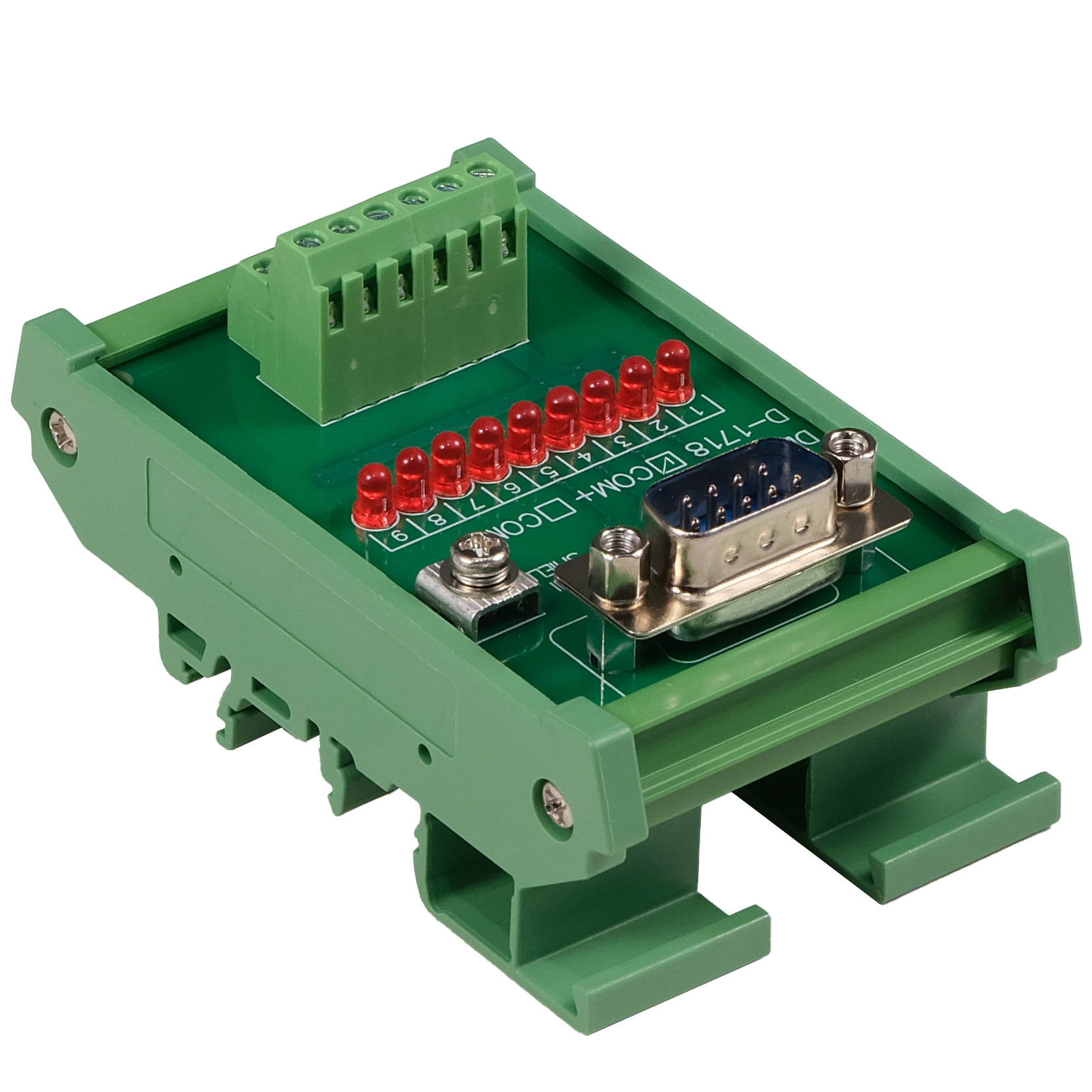

Male DB9 Interface Module, COM+ with LEDs For Circuit Indication, DIN 41652/IEC60807 D-SUB Breakout Board Module, DIN Rail Mount

SKU: D-1718AT
$30.00 $30.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $30 = $30
save $0.00
Add to Favorites
  • Male DB9 Interface Module, COM+ with LEDs For Circuit Indication, DIN 41652/IEC60807 D-SUB Breakout Board Module, DIN Rail Mount
  • Male DB9 Interface Module, COM+ with LEDs For Circuit Indication, DIN 41652/IEC60807 D-SUB Breakout Board Module, DIN Rail Mount
  • Male DB9 Interface Module, COM+ with LEDs For Circuit Indication, DIN 41652/IEC60807 D-SUB Breakout Board Module, DIN Rail Mount
  • Female DB9 Interface Module, COM+ with LEDs For Circuit Indication, DIN 41652/IEC60807 D-SUB Breakout Board Module, DIN Rail Mount
  • Male DB9 Interface Module, COM+ with LEDs For Circuit Indication, DIN 41652/IEC60807 D-SUB Breakout Board Module, DIN Rail Mount
  • Male DB9 Interface Module, COM+ with LEDs For Circuit Indication, DIN 41652/IEC60807 D-SUB Breakout Board Module, DIN Rail Mount
  • Male DB9 Interface Module, COM+ with LEDs For Circuit Indication, DIN 41652/IEC60807 D-SUB Breakout Board Module, DIN Rail Mount
  • Male DB9 Interface Module, COM+ with LEDs For Circuit Indication, DIN 41652/IEC60807 D-SUB Breakout Board Module, DIN Rail Mount
  • Male DB9 Interface Module, COM+ with LEDs For Circuit Indication, DIN 41652/IEC60807 D-SUB Breakout Board Module, DIN Rail Mount
  • Female DB9 Interface Module, COM+ with LEDs For Circuit Indication, DIN 41652/IEC60807 D-SUB Breakout Board Module, DIN Rail Mount
  • Male DB9 Interface Module, COM+ with LEDs For Circuit Indication, DIN 41652/IEC60807 D-SUB Breakout Board Module, DIN Rail Mount
  • Male DB9 Interface Module, COM+ with LEDs For Circuit Indication, DIN 41652/IEC60807 D-SUB Breakout Board Module, DIN Rail Mount
1/1
  • Male DB9 Interface Module, COM+ with LEDs For Circuit Indication, DIN 41652/IEC60807 D-SUB Breakout Board Module, DIN Rail Mount
  • Male DB9 Interface Module, COM+ with LEDs For Circuit Indication, DIN 41652/IEC60807 D-SUB Breakout Board Module, DIN Rail Mount
  • Male DB9 Interface Module, COM+ with LEDs For Circuit Indication, DIN 41652/IEC60807 D-SUB Breakout Board Module, DIN Rail Mount
  • Female DB9 Interface Module, COM+ with LEDs For Circuit Indication, DIN 41652/IEC60807 D-SUB Breakout Board Module, DIN Rail Mount
  • Male DB9 Interface Module, COM+ with LEDs For Circuit Indication, DIN 41652/IEC60807 D-SUB Breakout Board Module, DIN Rail Mount
  • Male DB9 Interface Module, COM+ with LEDs For Circuit Indication, DIN 41652/IEC60807 D-SUB Breakout Board Module, DIN Rail Mount
  • Description
Features:
1, DIN 41652 (IEC60807) D-sub DB9 male connector.
2, Screw terminal block: Pin pitch of 3.81mm/0.15", wire range of 26 - 16AWG / 1.0mm square, strip length 5mm, and M2 metric screws.

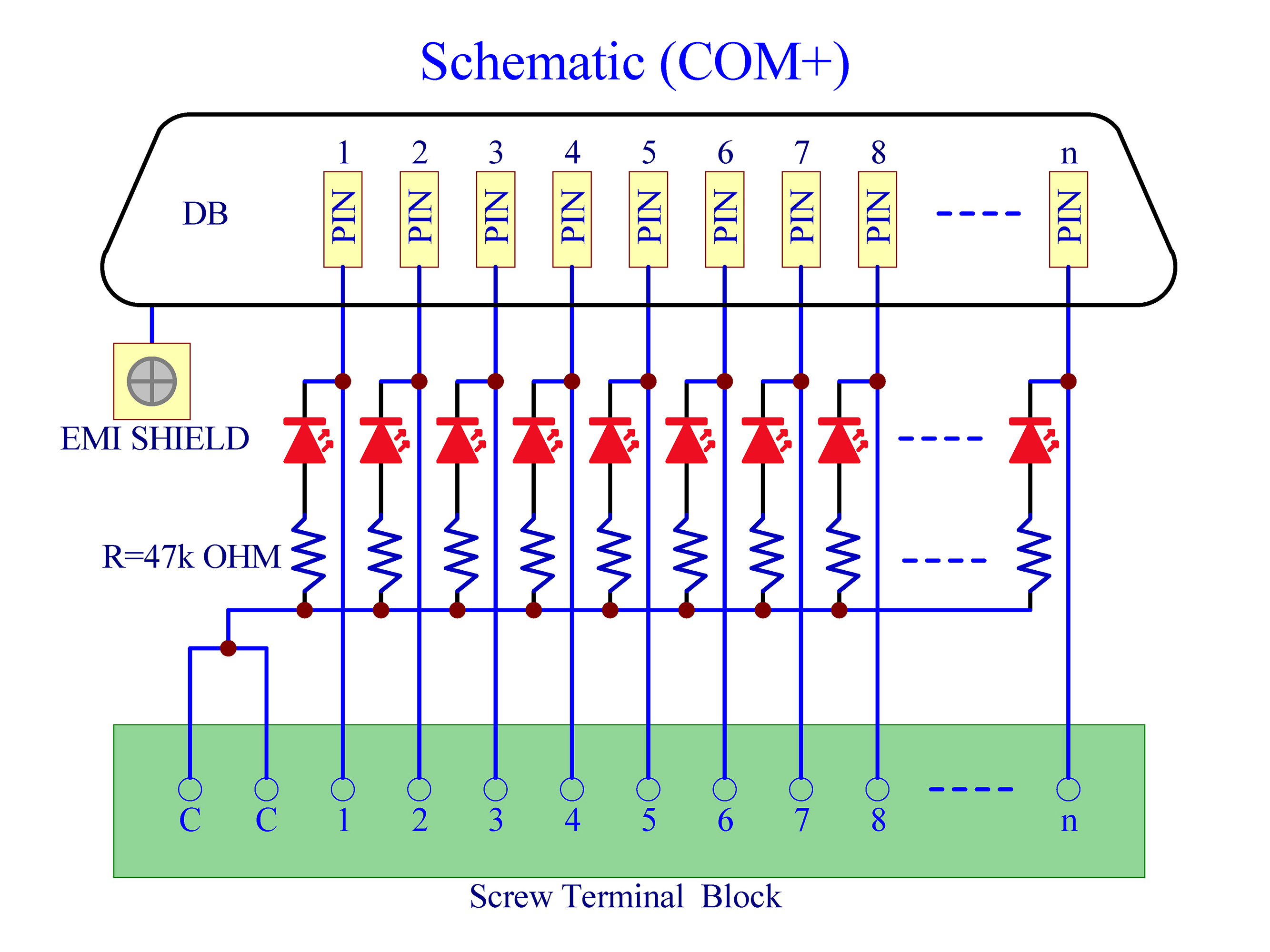

3, Each pin of the D-sub connector corresponds to a terminal block position. Each connection pin is equipped with an LED to indicate the signal status.
4, LED circuit connection type: COM+, the LED lights up when the signal terminal is at a low level.
5, Rated voltage 50V. Rated current 1 Amp / per pin. The LED supports a signal voltage range of 5V - 50V for indication.

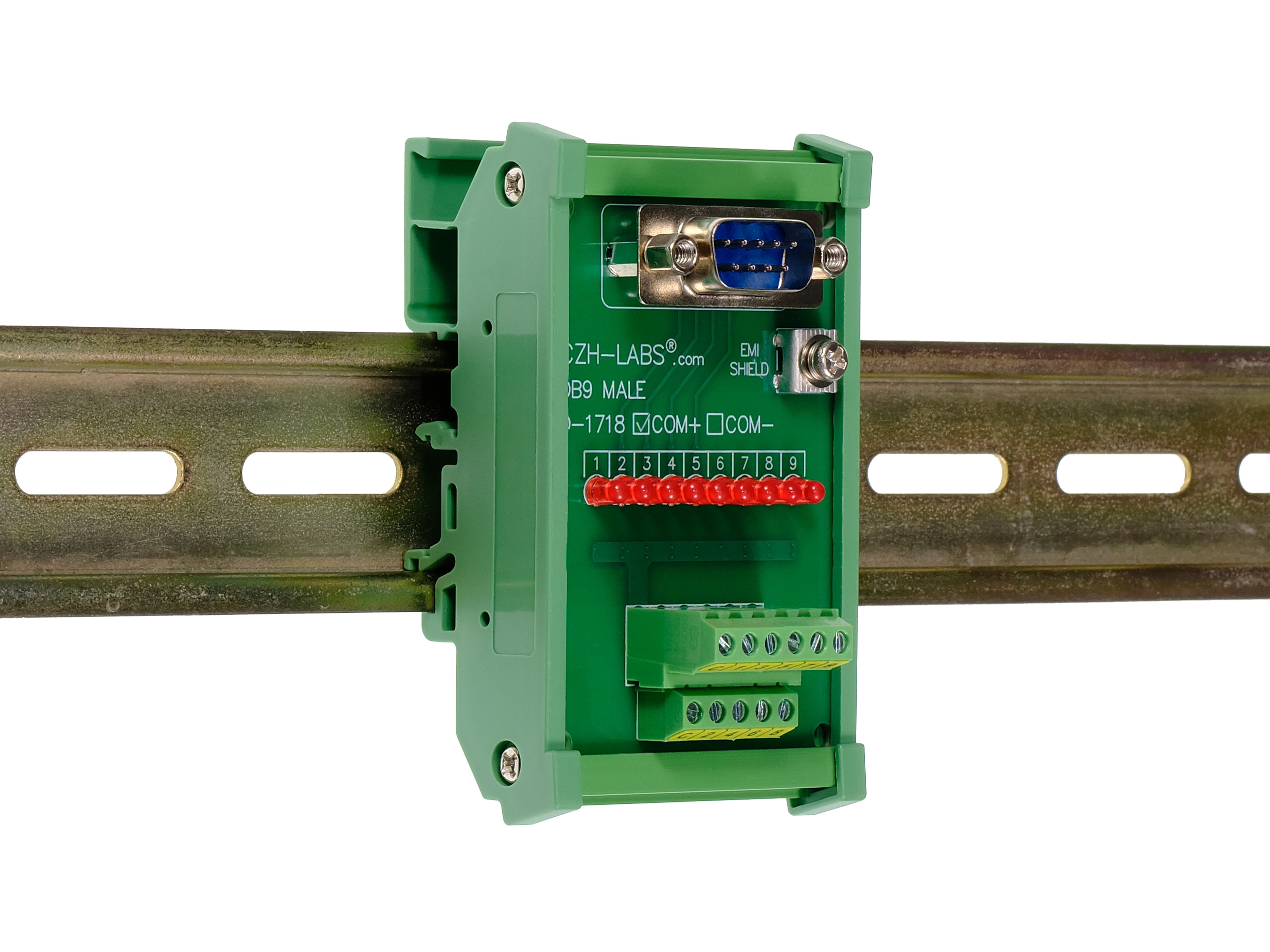

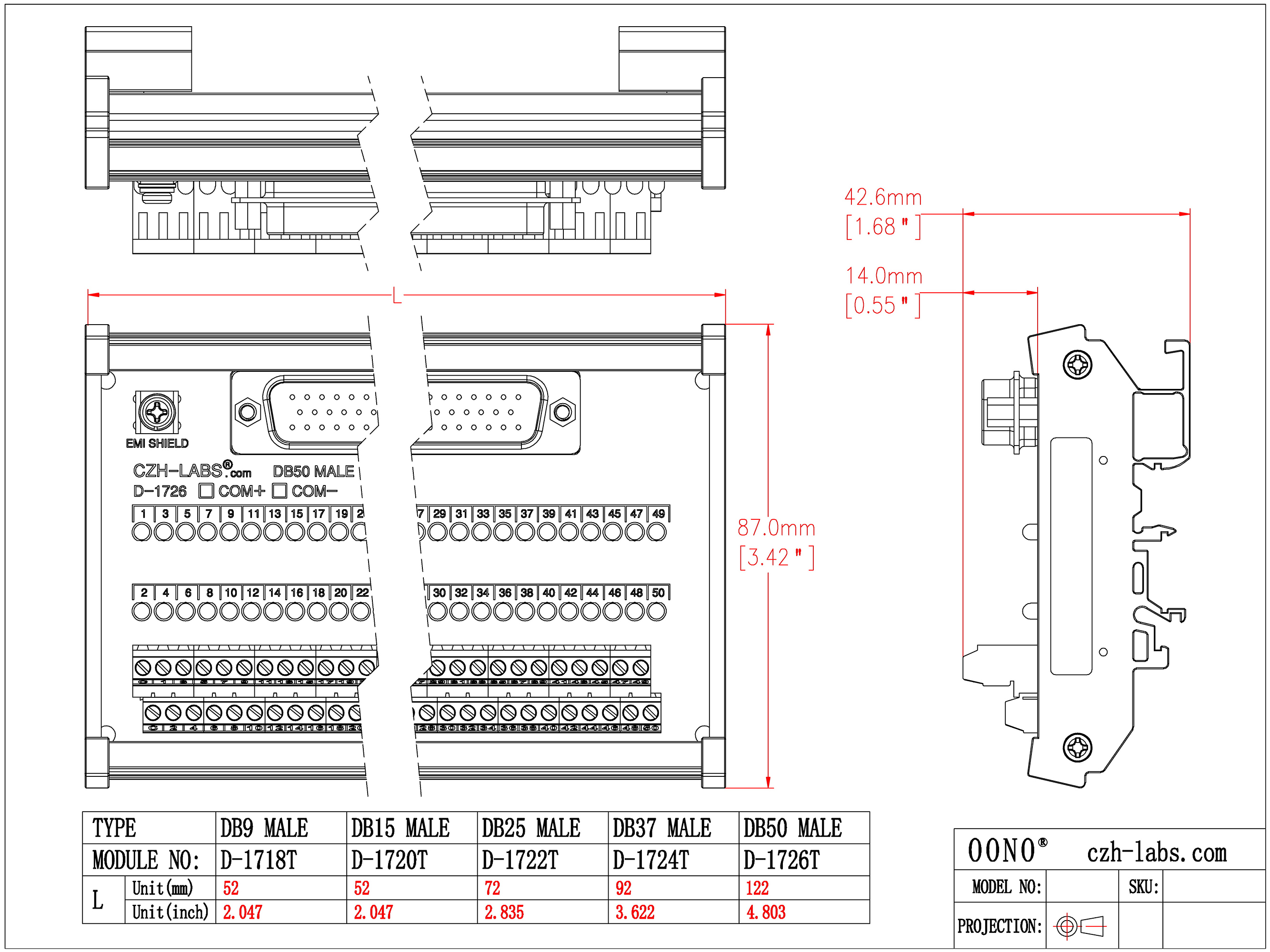

6, Support PCB screw or DIN rail mount version selections. Made from high-quality fireproof nylon, the DIN rail mount carrier supports 35mm, 32mm, or 15mm rail widths.
7, Certified for safety with UL, CE, and CQC certified terminal blocks, UL-certified IDC connector. UL 94-V0 certified PCB, UL/CE certified DIN rail mount carrier.
8, Operating Temperature: -40 to 85C.
