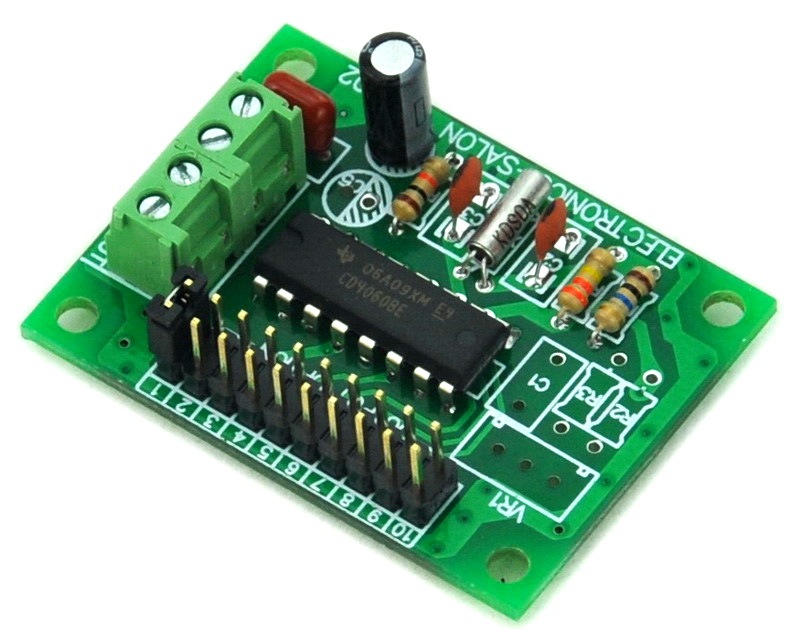

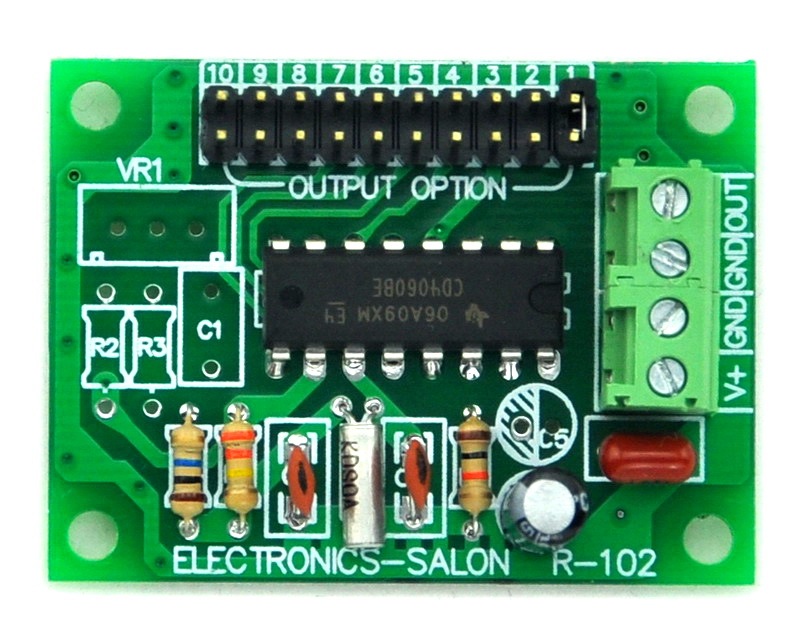

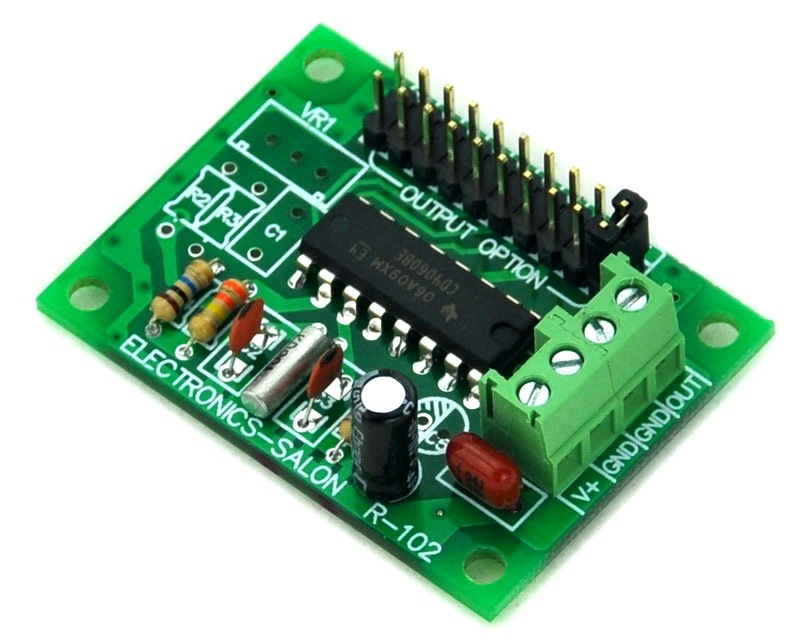

ELECTRONICS-SALON Low Frequency Square Wave Oscillator Module, 2 4 8 32 64 128 256 512 1024 2048Hz.

SKU: R-102A
$15.99 $15.99
ELECTRONICS-SALON Low Frequency Square Wave Oscillator Module, 2 4 8 32 64 128 256 512 1024 2048Hz.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $15.99 = $15.99
save $0.00
Add to Favorites
  • ELECTRONICS-SALON Low Frequency Square Wave Oscillator Module, 2 4 8 32 64 128 256 512 1024 2048Hz.
  • ELECTRONICS-SALON Low Frequency Square Wave Oscillator Module, 2 4 8 32 64 128 256 512 1024 2048Hz.
  • ELECTRONICS-SALON Low Frequency Square Wave Oscillator Module, 2 4 8 32 64 128 256 512 1024 2048Hz.
  • ELECTRONICS-SALON Low Frequency Square Wave Oscillator Module, 2 4 8 32 64 128 256 512 1024 2048Hz.
  • ELECTRONICS-SALON Low Frequency Square Wave Oscillator Module, 2 4 8 32 64 128 256 512 1024 2048Hz.
  • ELECTRONICS-SALON Low Frequency Square Wave Oscillator Module, 2 4 8 32 64 128 256 512 1024 2048Hz.
1/1
  • ELECTRONICS-SALON Low Frequency Square Wave Oscillator Module, 2 4 8 32 64 128 256 512 1024 2048Hz.
  • ELECTRONICS-SALON Low Frequency Square Wave Oscillator Module, 2 4 8 32 64 128 256 512 1024 2048Hz.
  • ELECTRONICS-SALON Low Frequency Square Wave Oscillator Module, 2 4 8 32 64 128 256 512 1024 2048Hz.
  • Description

Low Frequency Square Wave Oscillator Module.

Output Frequency: 2, 4, 8, 32, 64, 128, 256, 512, 1024, 2048 Hz, on board the jumper to choose.
Operating Voltage: 5 to 12V DC.
Operating Current: < 5mA.
Output Duty Cycle: 50% ±5%
Accuracy: +/-20 ppm
Operating Temp. Range: 0 to 70°C.
Module Size: W46mm x L34mm x H15mm.
Part Number: R-102A.
