ELECTRONICS-SALON DIN Rail Mount Common Cathode 16 Diode Network Module, 1N5408 3A 1000V.

Name: ELECTRONICS-SALON DIN Rail Mount Common Cathode 16 Diode Network Module, 1N5408 3A 1000V.
Brand: Xiken Tech
SKU: D-284T/3A
Price: 21.99 USD
Availability: InStock

SKU: D-284T/3A

$21.99 ~~$21.99~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

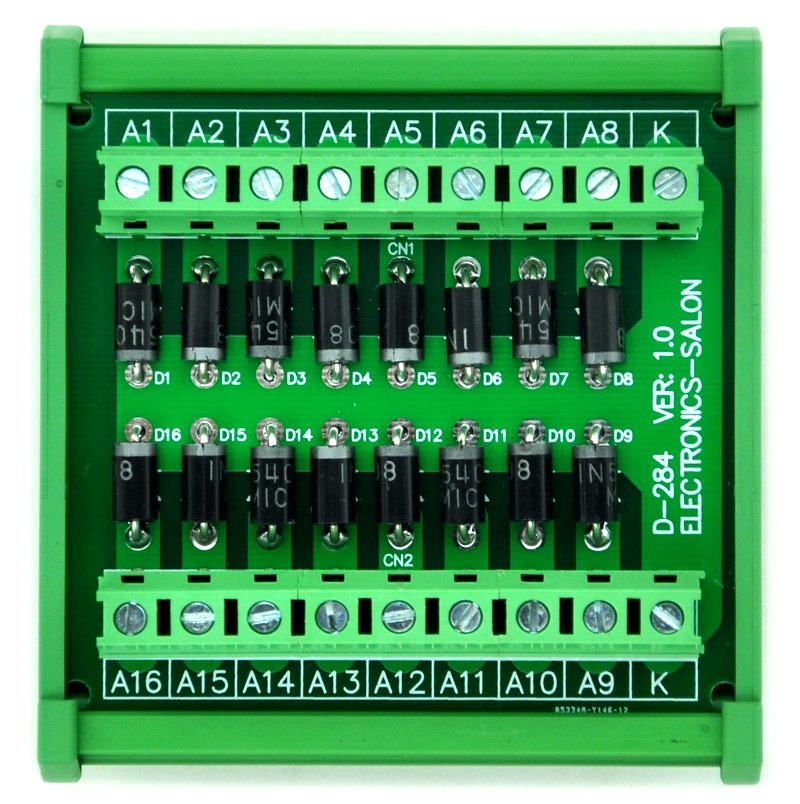

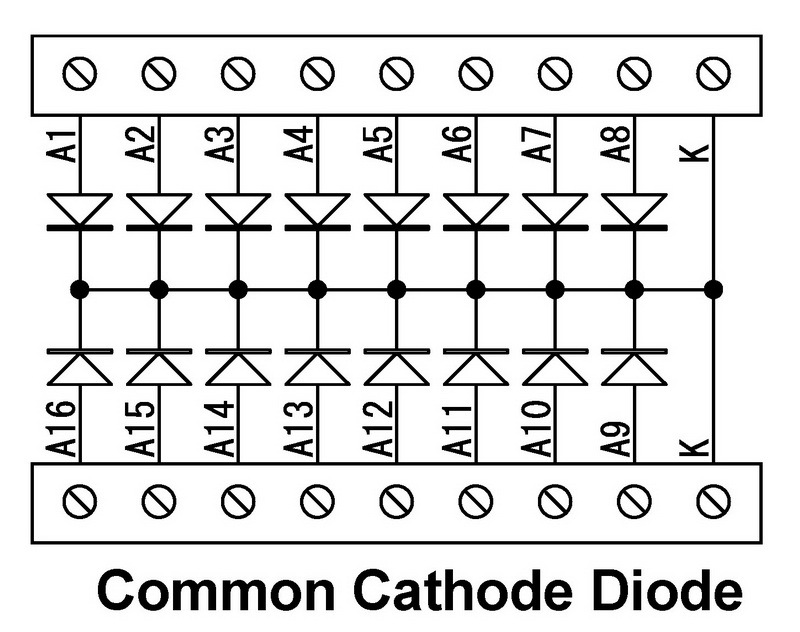

DIN Rail Mount 3 Amp 1000V Common Cathode 16 Diode Network Module.

1N5408 diodes.
Pitch 7.5mm/0.295" screw terminal block.
FR-4 fiber glass PCB, dual copper layers.
External dimensions: 83 x 87 x 40mm (L x W x H).
PCB dimensions: 80 x 72.5mm (L x W).
High quality PCB housing/carrier, DIN rail mountable - for width 35 / 32 / 15mm rails.
DIN mount case can be taken apart for panel mount use.
100% new, never used.

Rated current: 3 Amp (per anode terminal).
Cathode rated current: 20 Amp.
Maximum blocking voltage: 1000V DC.
Operating Temperature: -20ºC to 50ºC

Terminal block specifications:
Wire range: 24 ~ 12 AWG.
Strip length: 7mm.
Screws - M2.5, steel, Cr3+ Zn plated.
Pin header and Cage - Brass.
