Home > Relay Module > SSR Solid-state Relay Module > ELECTRONICS-SALON DC 5V Slim DIN Rail Mount 2Amp AC Solid State Relay Interface Module, G3MB-202P 5VDC.
  • ELECTRONICS-SALON DC 5V Slim DIN Rail Mount 2Amp AC Solid State Relay Interface Module, G3MB-202P 5VDC.
  • ELECTRONICS-SALON DC 5V Slim DIN Rail Mount 2Amp AC Solid State Relay Interface Module, G3MB-202P 5VDC.
  • ELECTRONICS-SALON DC 5V Slim DIN Rail Mount 2Amp AC Solid State Relay Interface Module, G3MB-202P 5VDC.
  • ELECTRONICS-SALON DC 5V Slim DIN Rail Mount 2Amp AC Solid State Relay Interface Module, G3MB-202P 5VDC.
  • ELECTRONICS-SALON DC 5V Slim DIN Rail Mount 2Amp AC Solid State Relay Interface Module, G3MB-202P 5VDC.
  • ELECTRONICS-SALON DC 5V Slim DIN Rail Mount 2Amp AC Solid State Relay Interface Module, G3MB-202P 5VDC.
  • ELECTRONICS-SALON DC 5V Slim DIN Rail Mount 2Amp AC Solid State Relay Interface Module, G3MB-202P 5VDC.
1/1
  • ELECTRONICS-SALON DC 5V Slim DIN Rail Mount 2Amp AC Solid State Relay Interface Module, G3MB-202P 5VDC.
  • ELECTRONICS-SALON DC 5V Slim DIN Rail Mount 2Amp AC Solid State Relay Interface Module, G3MB-202P 5VDC.
  • ELECTRONICS-SALON DC 5V Slim DIN Rail Mount 2Amp AC Solid State Relay Interface Module, G3MB-202P 5VDC.
  • ELECTRONICS-SALON DC 5V Slim DIN Rail Mount 2Amp AC Solid State Relay Interface Module, G3MB-202P 5VDC.
  • ELECTRONICS-SALON DC 5V Slim DIN Rail Mount 2Amp AC Solid State Relay Interface Module, G3MB-202P 5VDC.
  • ELECTRONICS-SALON DC 5V Slim DIN Rail Mount 2Amp AC Solid State Relay Interface Module, G3MB-202P 5VDC.
  • ELECTRONICS-SALON DC 5V Slim DIN Rail Mount 2Amp AC Solid State Relay Interface Module, G3MB-202P 5VDC.
Share:

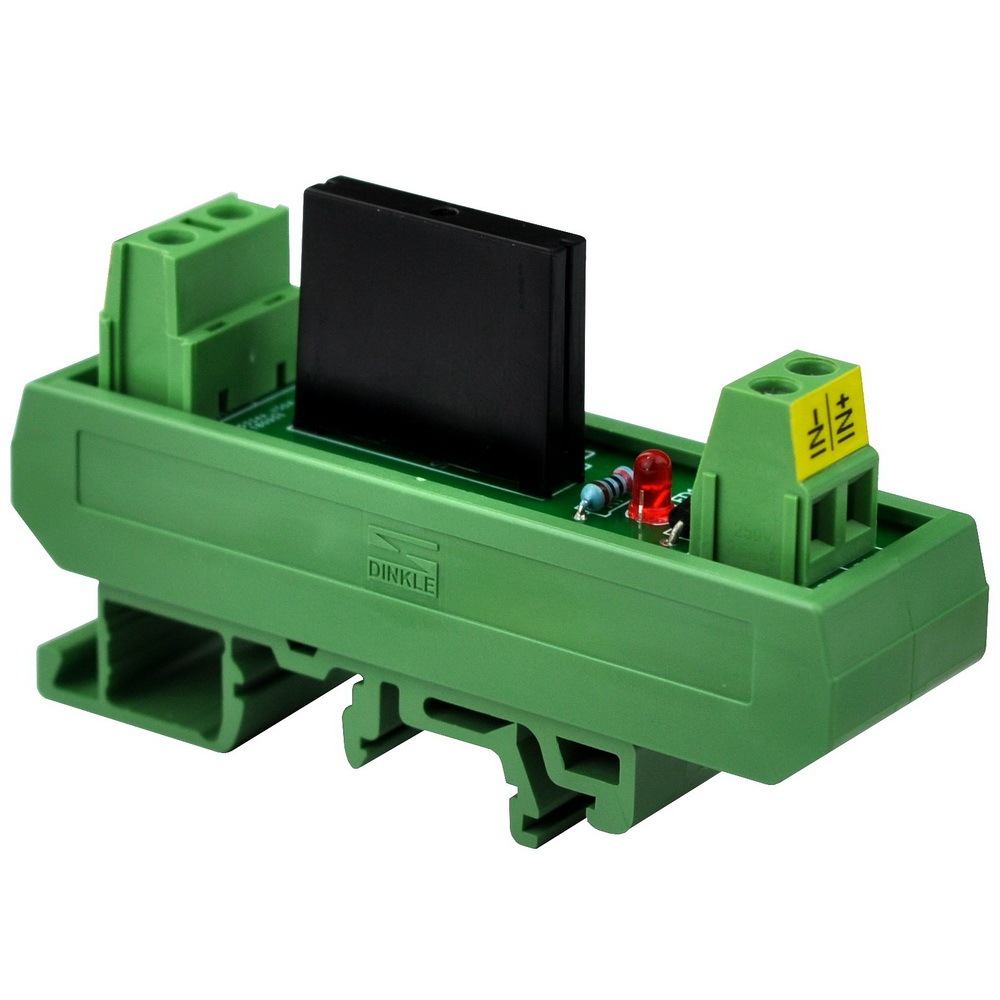

ELECTRONICS-SALON DC 5V Slim DIN Rail Mount 2Amp AC Solid State Relay Interface Module, G3MB-202P 5VDC.

SKU: D-1240T/5V
$16.00 $16.00
ELECTRONICS-SALON DC 5V Slim DIN Rail Mount 2Amp AC Solid State Relay Interface Module, G3MB-202P 5VDC.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $16 = $16
save $0.00
Add to Favorites
  • ELECTRONICS-SALON DC 5V Slim DIN Rail Mount 2Amp AC Solid State Relay Interface Module, G3MB-202P 5VDC.
  • ELECTRONICS-SALON DC 5V Slim DIN Rail Mount 2Amp AC Solid State Relay Interface Module, G3MB-202P 5VDC.
  • ELECTRONICS-SALON DC 5V Slim DIN Rail Mount 2Amp AC Solid State Relay Interface Module, G3MB-202P 5VDC.
  • ELECTRONICS-SALON DC 5V Slim DIN Rail Mount 2Amp AC Solid State Relay Interface Module, G3MB-202P 5VDC.
  • ELECTRONICS-SALON DC 5V Slim DIN Rail Mount 2Amp AC Solid State Relay Interface Module, G3MB-202P 5VDC.
  • ELECTRONICS-SALON DC 5V Slim DIN Rail Mount 2Amp AC Solid State Relay Interface Module, G3MB-202P 5VDC.
  • ELECTRONICS-SALON DC 5V Slim DIN Rail Mount 2Amp AC Solid State Relay Interface Module, G3MB-202P 5VDC.
  • ELECTRONICS-SALON DC 5V Slim DIN Rail Mount 2Amp AC Solid State Relay Interface Module, G3MB-202P 5VDC.
  • ELECTRONICS-SALON DC 5V Slim DIN Rail Mount 2Amp AC Solid State Relay Interface Module, G3MB-202P 5VDC.
  • ELECTRONICS-SALON DC 5V Slim DIN Rail Mount 2Amp AC Solid State Relay Interface Module, G3MB-202P 5VDC.
  • ELECTRONICS-SALON DC 5V Slim DIN Rail Mount 2Amp AC Solid State Relay Interface Module, G3MB-202P 5VDC.
  • ELECTRONICS-SALON DC 5V Slim DIN Rail Mount 2Amp AC Solid State Relay Interface Module, G3MB-202P 5VDC.
  • ELECTRONICS-SALON DC 5V Slim DIN Rail Mount 2Amp AC Solid State Relay Interface Module, G3MB-202P 5VDC.
  • ELECTRONICS-SALON DC 5V Slim DIN Rail Mount 2Amp AC Solid State Relay Interface Module, G3MB-202P 5VDC.
1/1
  • ELECTRONICS-SALON DC 5V Slim DIN Rail Mount 2Amp AC Solid State Relay Interface Module, G3MB-202P 5VDC.
  • ELECTRONICS-SALON DC 5V Slim DIN Rail Mount 2Amp AC Solid State Relay Interface Module, G3MB-202P 5VDC.
  • ELECTRONICS-SALON DC 5V Slim DIN Rail Mount 2Amp AC Solid State Relay Interface Module, G3MB-202P 5VDC.
  • ELECTRONICS-SALON DC 5V Slim DIN Rail Mount 2Amp AC Solid State Relay Interface Module, G3MB-202P 5VDC.
  • ELECTRONICS-SALON DC 5V Slim DIN Rail Mount 2Amp AC Solid State Relay Interface Module, G3MB-202P 5VDC.
  • ELECTRONICS-SALON DC 5V Slim DIN Rail Mount 2Amp AC Solid State Relay Interface Module, G3MB-202P 5VDC.
  • ELECTRONICS-SALON DC 5V Slim DIN Rail Mount 2Amp AC Solid State Relay Interface Module, G3MB-202P 5VDC.
  • Description
DC 5V control signal, Relay action LED indicator, relay input signal reverse connect protection.

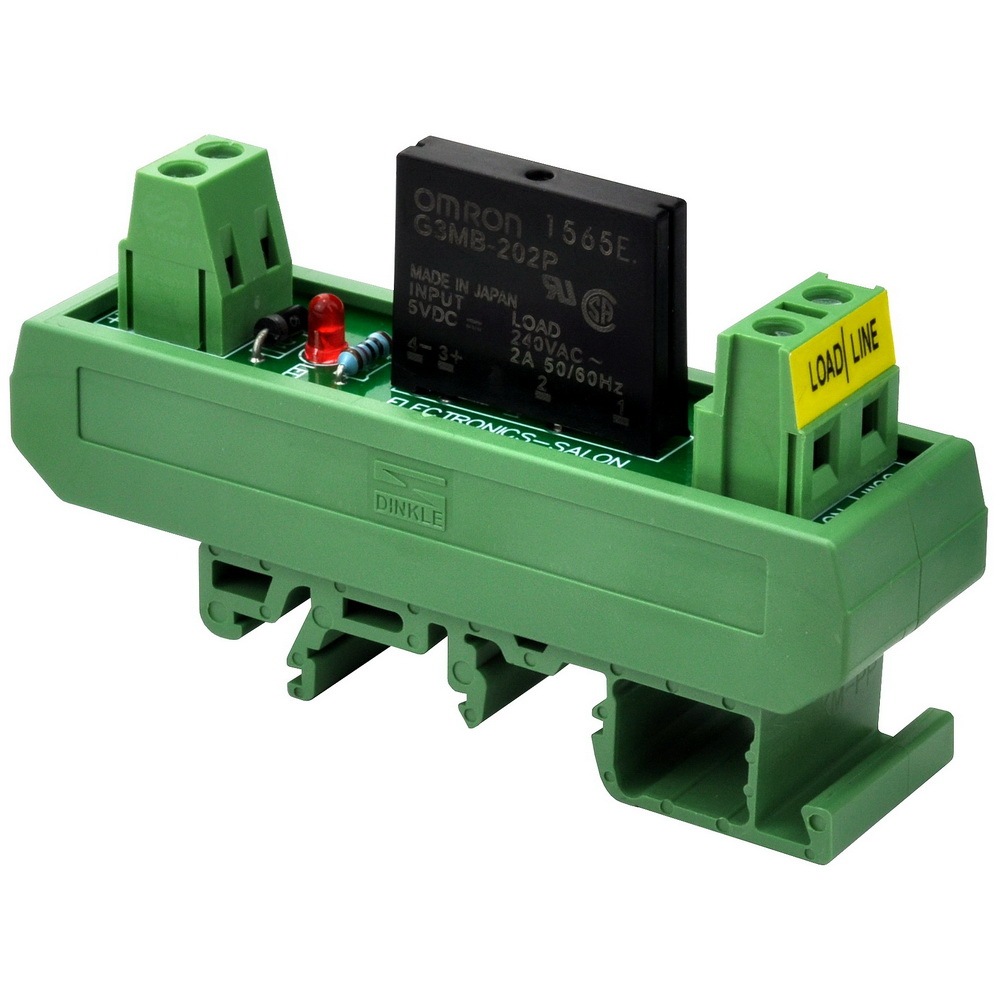

Omron G3MB-202P 5VDC 2Amp AC solid state relay.

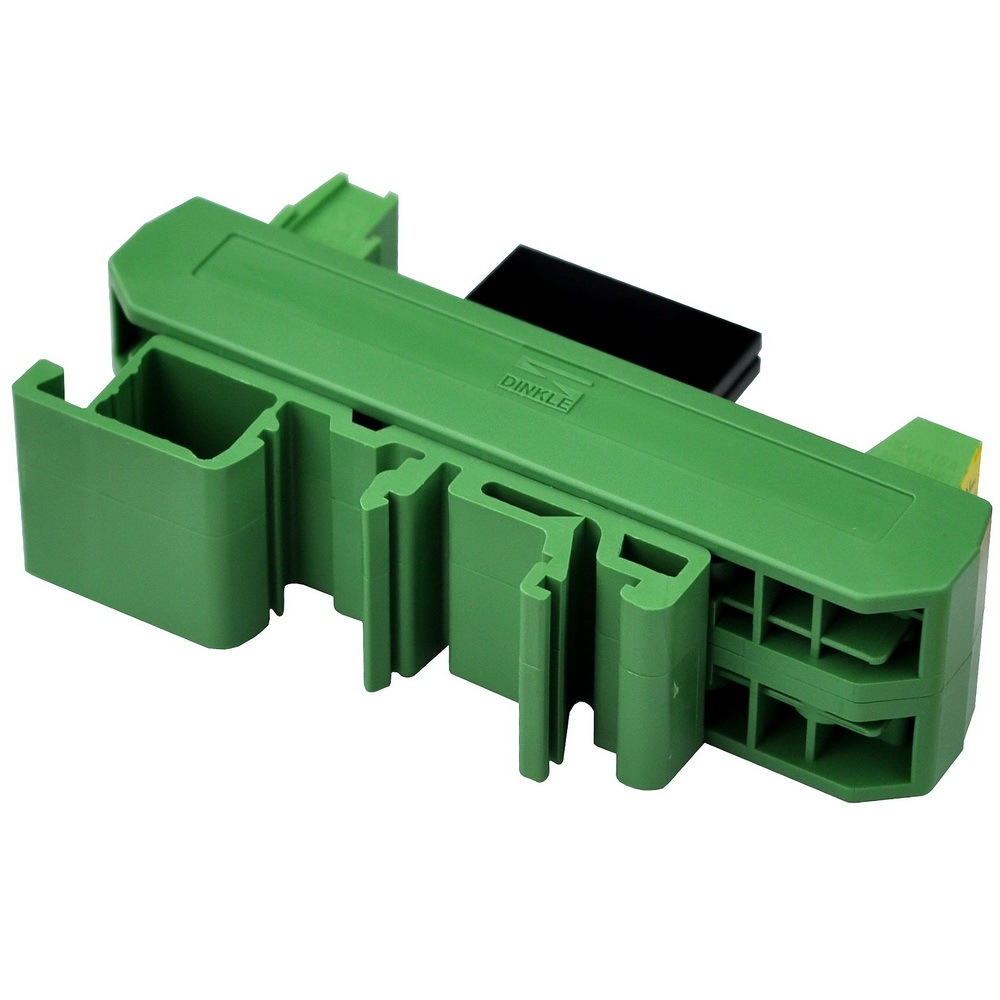

Dinkle high quality fireproof nylon material DIN rail mount housing, can support width 35mm, 32mm and 15mm rail.
High quality screw terminal blocks and clear marking label for terminal block position. Pitch 5.08mm/0.2" and 7.62mm/0.3" screw terminal blocks. Wire range 26 to 12AWG / 2.5mm square. Screws - M2.5, steel, Cr3+ Zn plated. Pin header and Cage - Brass.

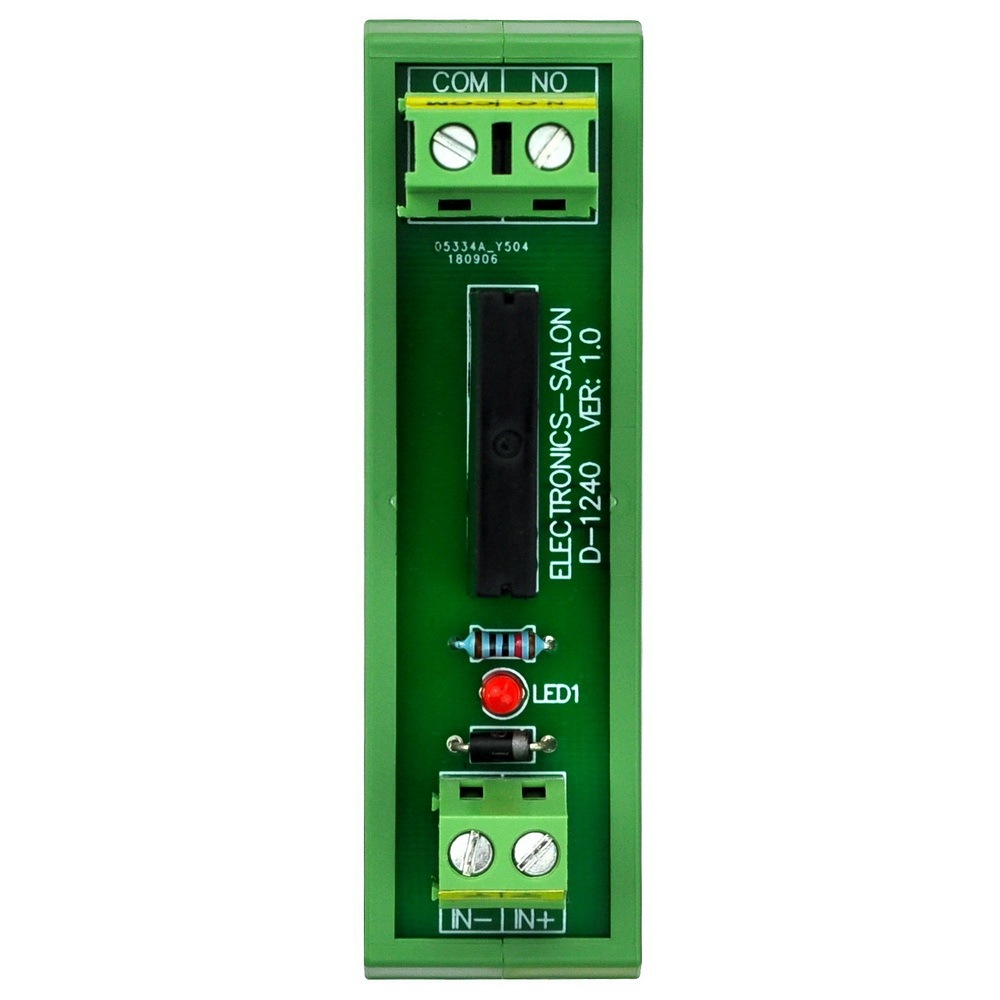

High quality glass fiber FR-4 PCB, top and bottom dual copper layers.
