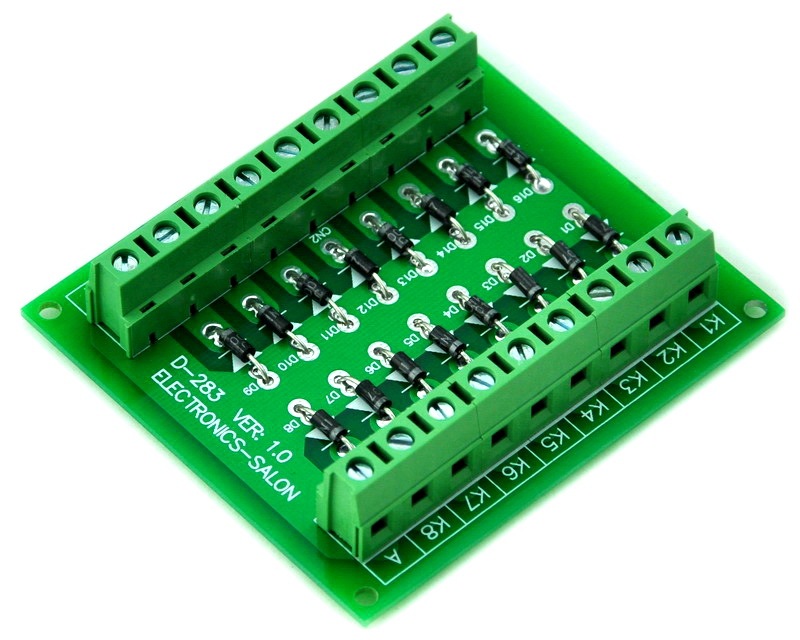

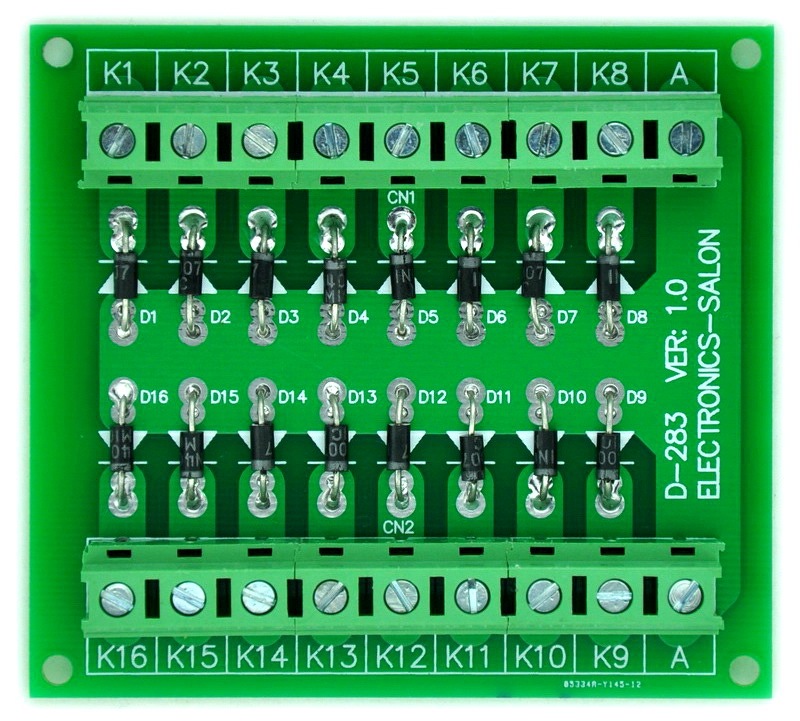

Electronics-Salon Common Anode 16 Diode Network Module, 1N4007 1A 1000V.

Name: Electronics-Salon Common Anode 16 Diode Network Module, 1N4007 1A 1000V.
Brand: Xiken Tech
SKU: D-283/1A
Price: 9.99 USD
Availability: InStock

SKU: D-283/1A

$9.99 ~~$9.99~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

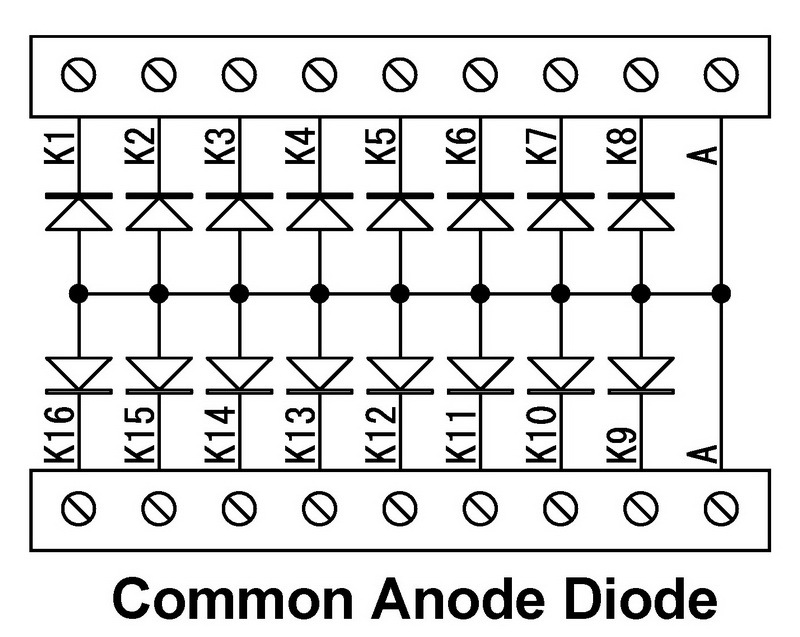

1 Amp 1000V Common Anode 16 Diode Network Module.

1N4007 diodes.
Pitch 7.5mm/0.295" screw terminal block.
FR-4 fiber glass PCB, dual copper layers.

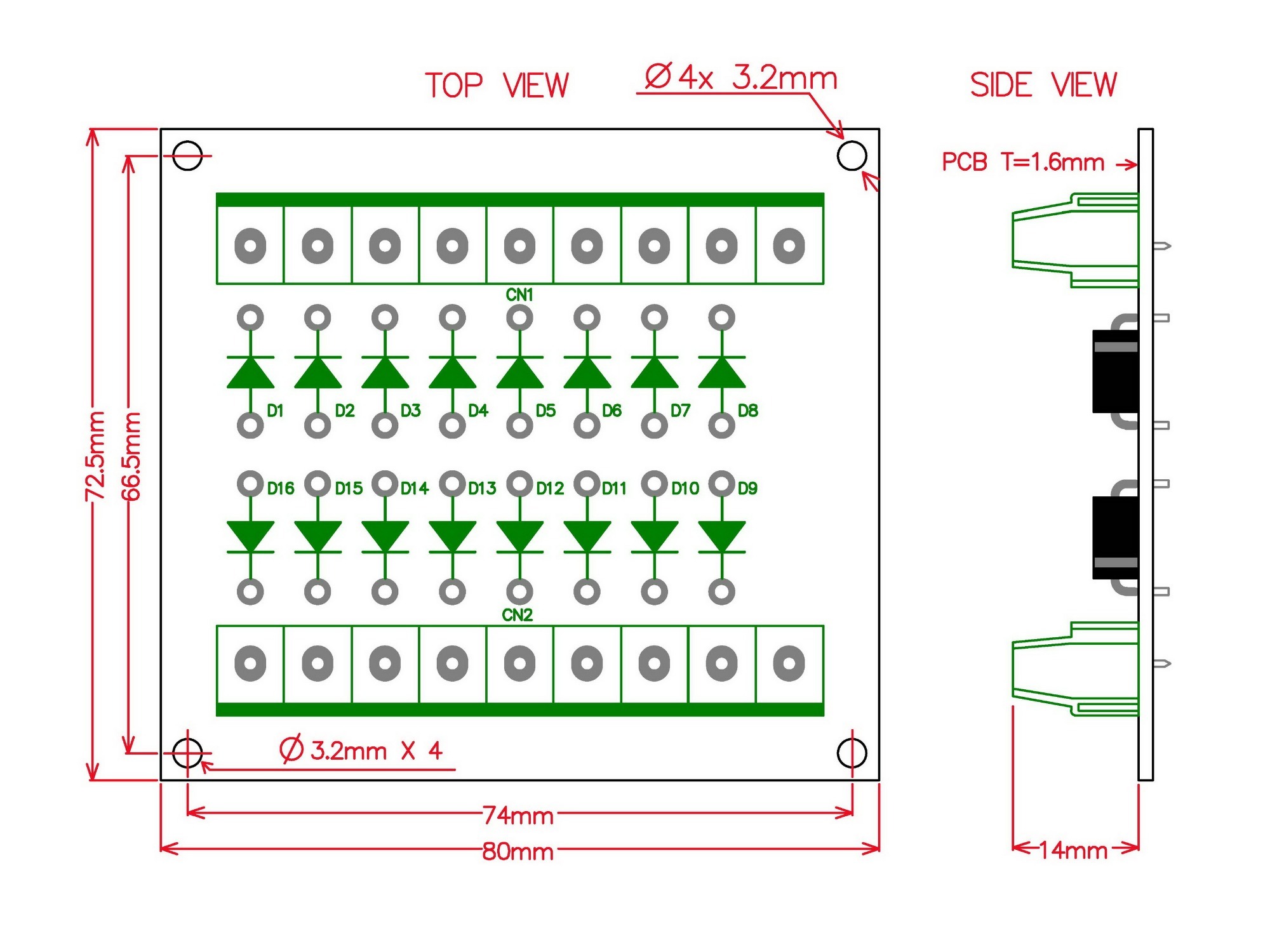

Dimensions: 80 x 72.5 x 18mm (W x L x H).
100% new, never used.

Rated current: 1 Amp (per cathode terminal).
Anode rated current: 20 Amp.
Maximum blocking voltage: 1000V DC.
Operating Temperature: -20ºC to 50ºC

Terminal block specifications:
Wire range: 24 ~ 12 AWG.
Strip length: 7mm.
Screws - M2.5, steel, Cr3+ Zn plated.
Pin header and Cage - Brass.
