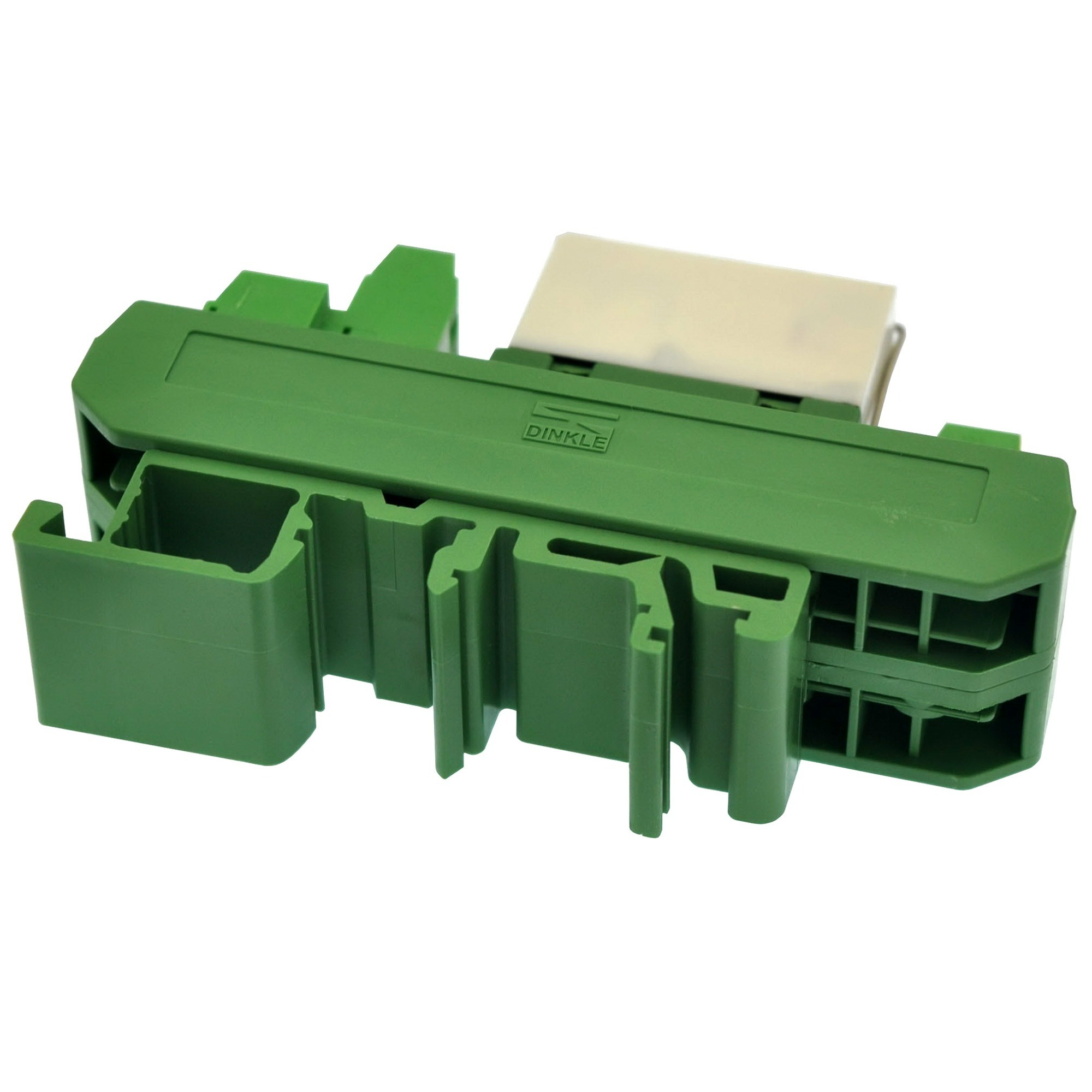

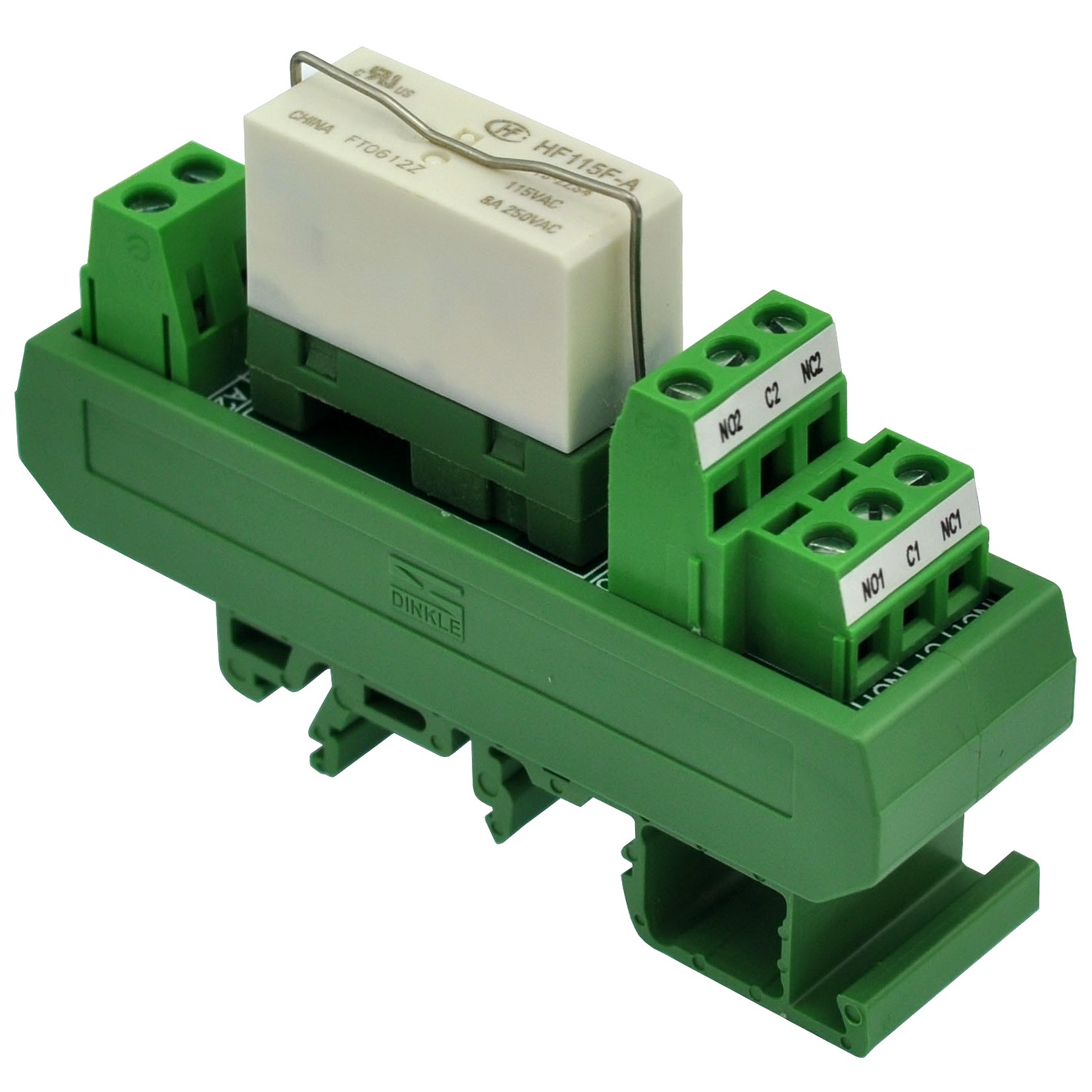

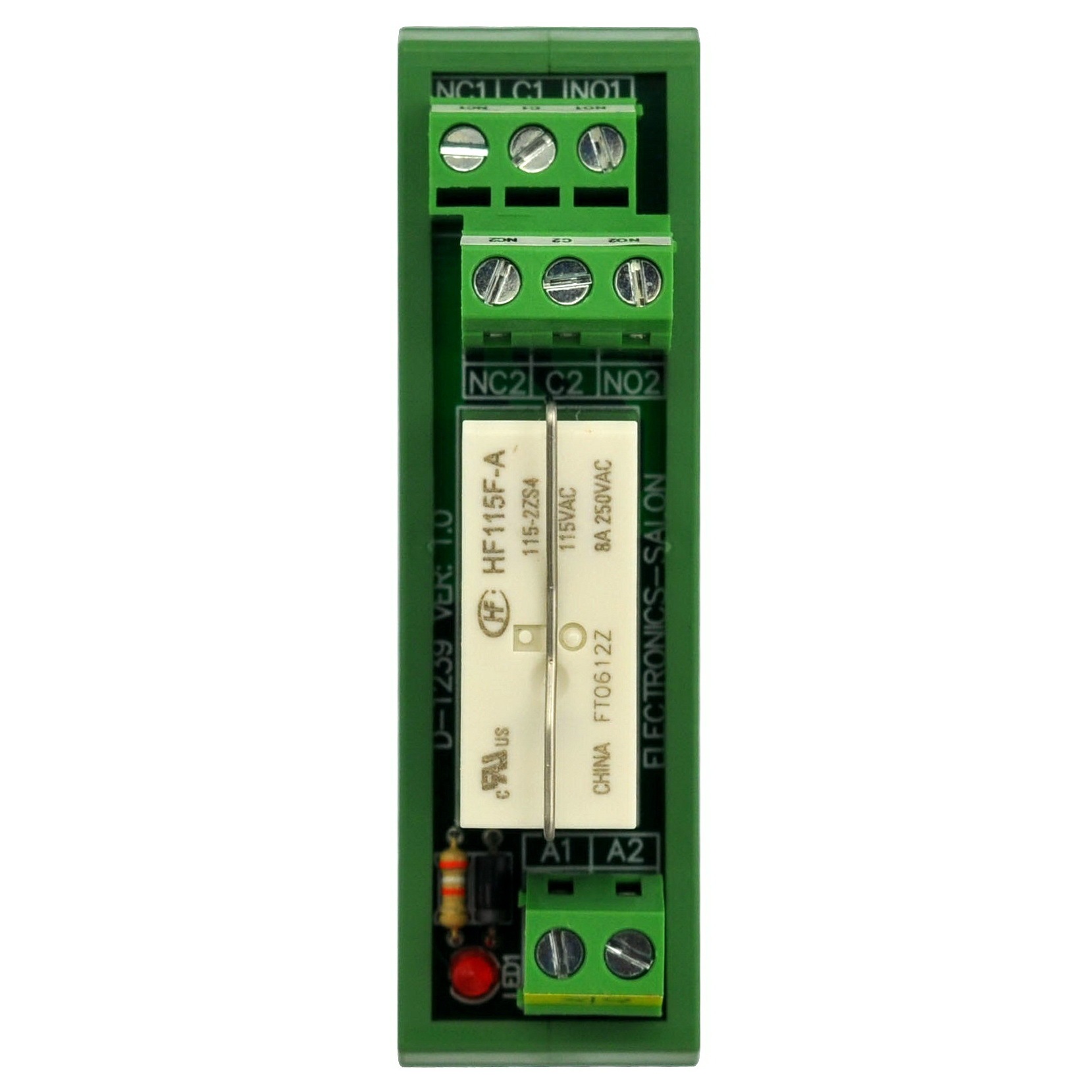

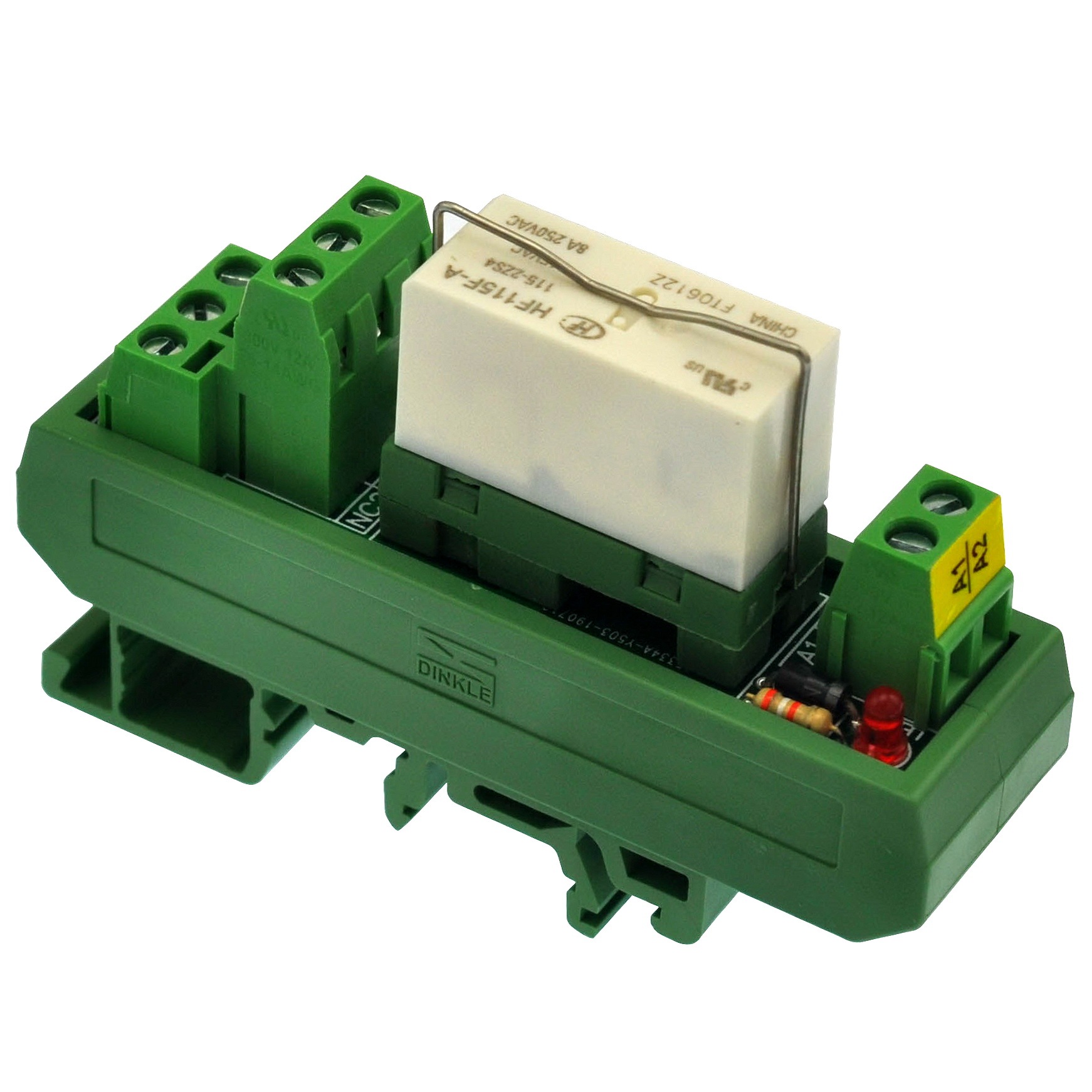

ELECTRONICS-SALON AC 115V Slim DIN Rail Mount 8Amp DPDT Power Relay Interface Module, 115VAC.

SKU: D-1239T/115V
$18.00 $18.00
ELECTRONICS-SALON AC 115V Slim DIN Rail Mount 8Amp DPDT Power Relay Interface Module, 115VAC.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $18 = $18
save $0.00
Add to Favorites
  • ELECTRONICS-SALON AC 115V Slim DIN Rail Mount 8Amp DPDT Power Relay Interface Module, 115VAC.
  • ELECTRONICS-SALON AC 115V Slim DIN Rail Mount 8Amp DPDT Power Relay Interface Module, 115VAC.
  • ELECTRONICS-SALON AC 115V Slim DIN Rail Mount 8Amp DPDT Power Relay Interface Module, 115VAC.
  • ELECTRONICS-SALON AC 115V Slim DIN Rail Mount 8Amp DPDT Power Relay Interface Module, 115VAC.
  • ELECTRONICS-SALON AC 115V Slim DIN Rail Mount 8Amp DPDT Power Relay Interface Module, 115VAC.
  • ELECTRONICS-SALON AC 115V Slim DIN Rail Mount 8Amp DPDT Power Relay Interface Module, 115VAC.
  • ELECTRONICS-SALON AC 115V Slim DIN Rail Mount 8Amp DPDT Power Relay Interface Module, 115VAC.
  • ELECTRONICS-SALON AC 115V Slim DIN Rail Mount 8Amp DPDT Power Relay Interface Module, 115VAC.
  • ELECTRONICS-SALON AC 115V Slim DIN Rail Mount 8Amp DPDT Power Relay Interface Module, 115VAC.
  • ELECTRONICS-SALON AC 115V Slim DIN Rail Mount 8Amp DPDT Power Relay Interface Module, 115VAC.
  • ELECTRONICS-SALON AC 115V Slim DIN Rail Mount 8Amp DPDT Power Relay Interface Module, 115VAC.
  • ELECTRONICS-SALON AC 115V Slim DIN Rail Mount 8Amp DPDT Power Relay Interface Module, 115VAC.
1/1
  • ELECTRONICS-SALON AC 115V Slim DIN Rail Mount 8Amp DPDT Power Relay Interface Module, 115VAC.
  • ELECTRONICS-SALON AC 115V Slim DIN Rail Mount 8Amp DPDT Power Relay Interface Module, 115VAC.
  • ELECTRONICS-SALON AC 115V Slim DIN Rail Mount 8Amp DPDT Power Relay Interface Module, 115VAC.
  • ELECTRONICS-SALON AC 115V Slim DIN Rail Mount 8Amp DPDT Power Relay Interface Module, 115VAC.
  • ELECTRONICS-SALON AC 115V Slim DIN Rail Mount 8Amp DPDT Power Relay Interface Module, 115VAC.
  • ELECTRONICS-SALON AC 115V Slim DIN Rail Mount 8Amp DPDT Power Relay Interface Module, 115VAC.
  • Description
AC 115V control signal, Relay action LED indicator.
AC 115V coil and Dual 8Amp DPDT switch power relay. Pluggable socket for support replacement relay.

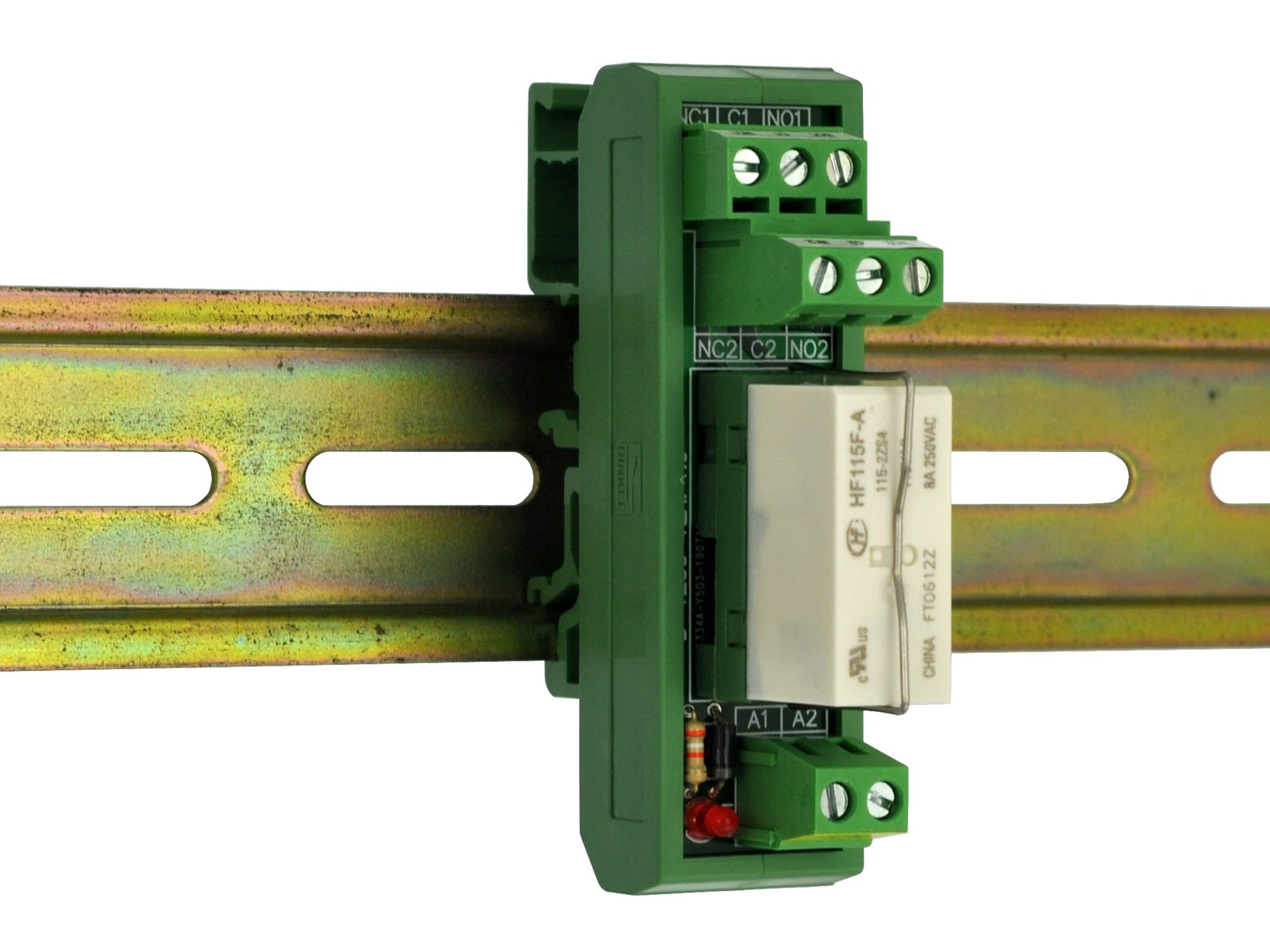

Dinkle high quality fireproof nylon material DIN rail mount housing, can support width 35mm, 32mm and 15mm rail.
High quality screw terminal blocks and clear marking label for terminal block position. Pitch 5.08mm/0.2" screw terminal block. Wire range 26 to 12AWG / 2.5mm square. Screws - M2.5, steel, Cr3+ Zn plated. Pin header and Cage - Brass.
High quality glass fiber FR-4 PCB, top and bottom dual copper layers.

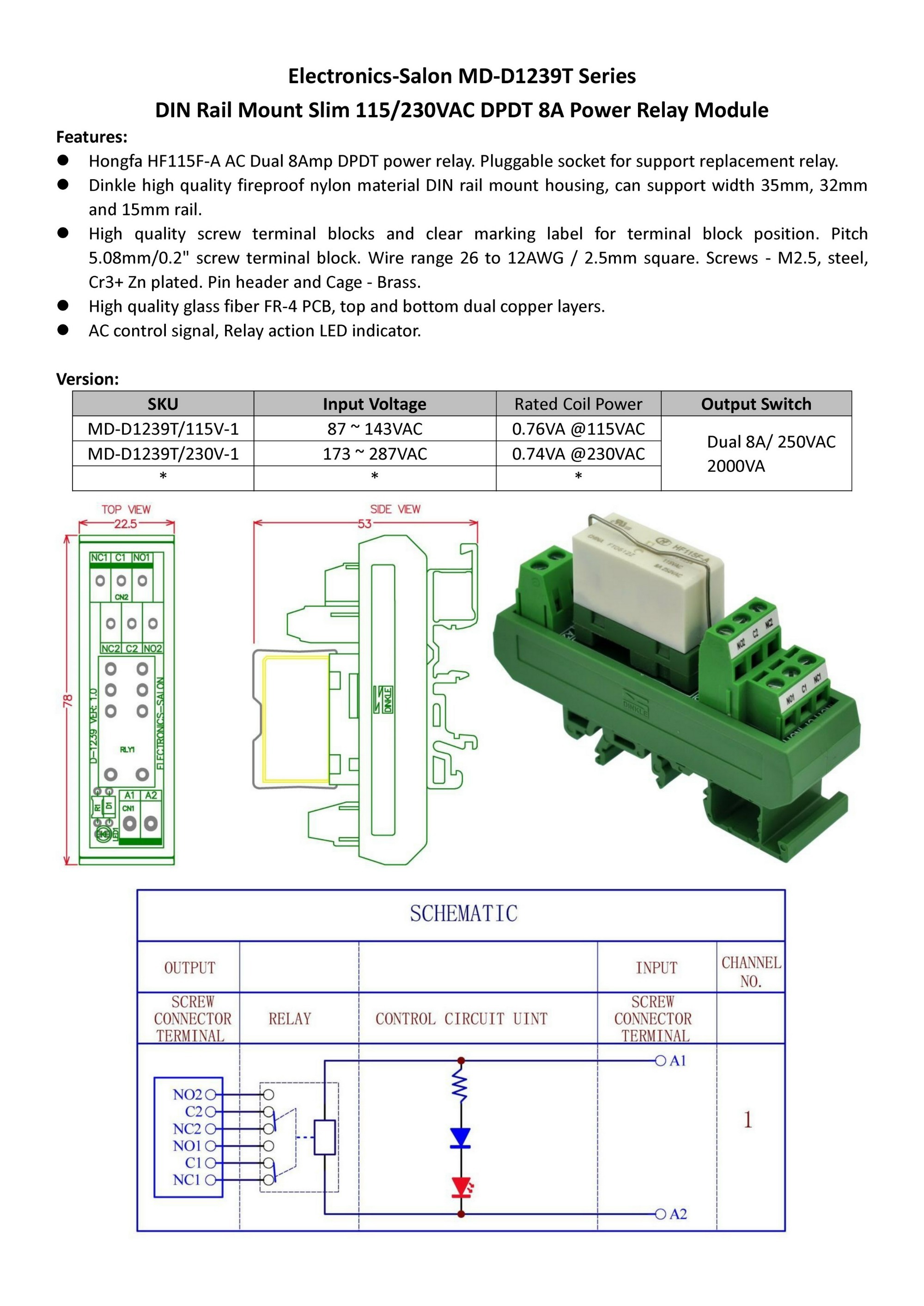

Datasheet:



Download
