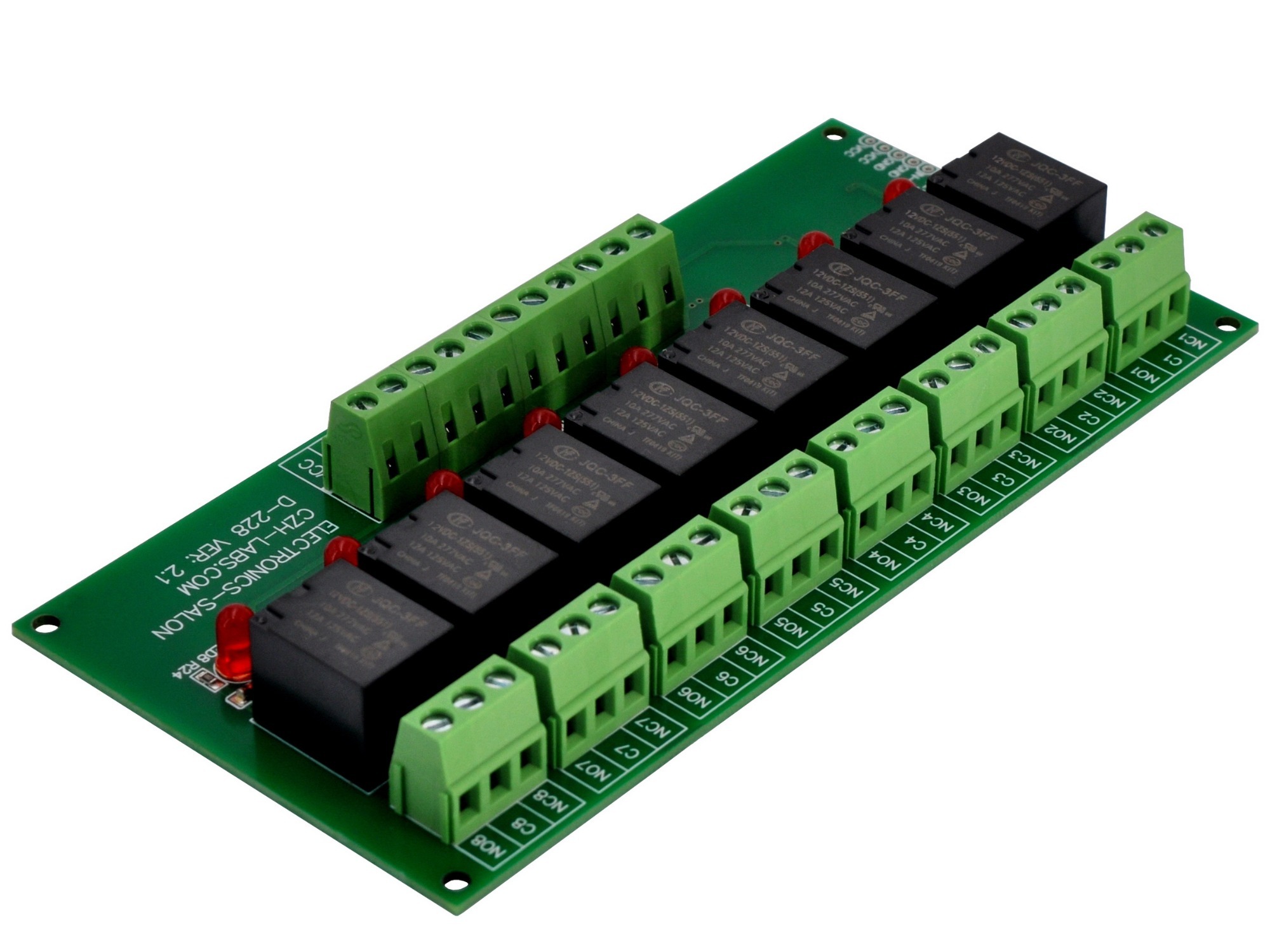

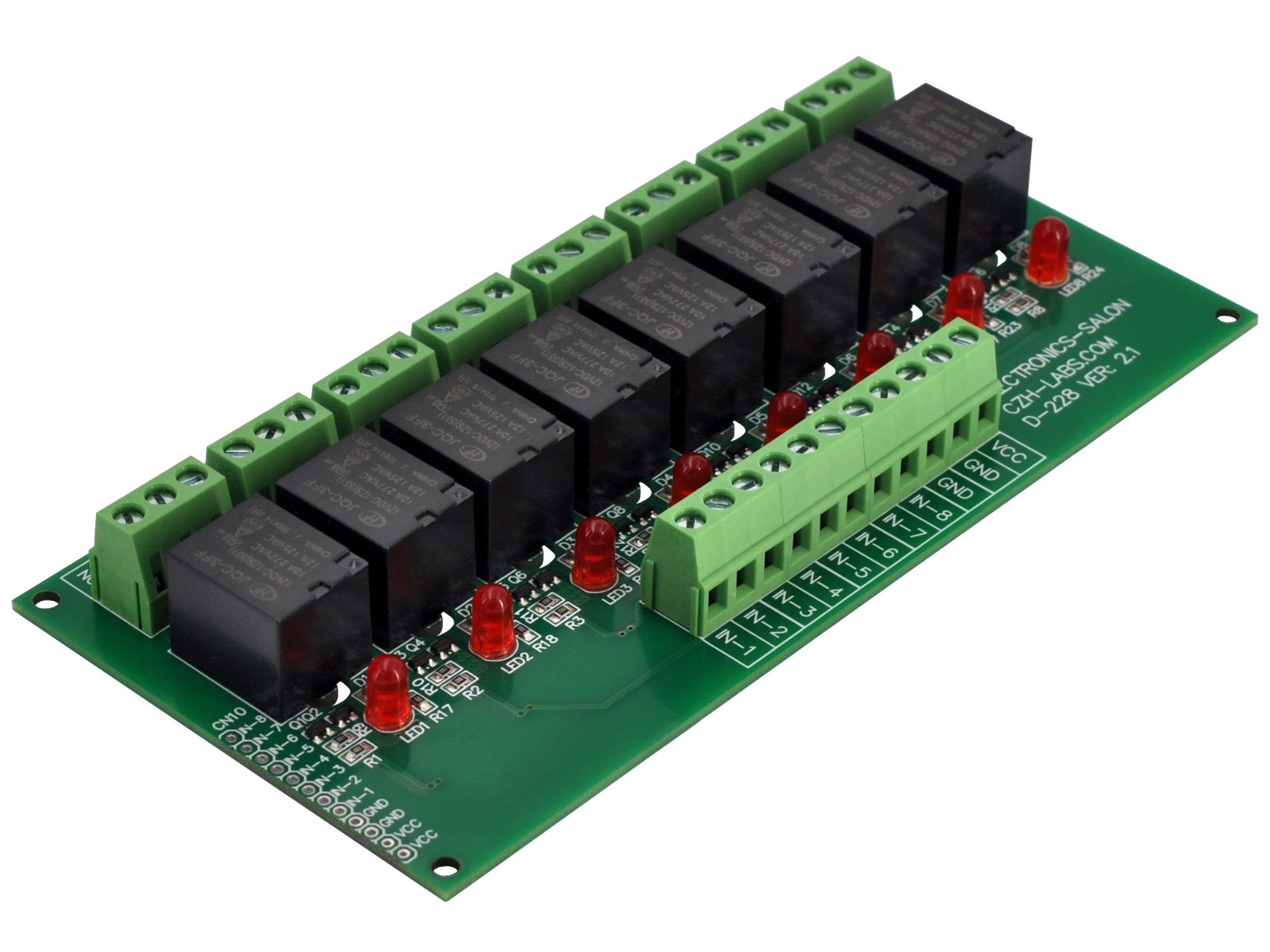

ELECTRONICS-SALON 8 Channel 10Amp SPDT Power Relay Module Board (Operating Voltage: DC 12V)

SKU: D-228N/12V
$35.00 $35.00
ELECTRONICS-SALON 8 Channel 10Amp SPDT Power Relay Module Board (Operating Voltage: DC 12V)
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $35 = $35
save $0.00
Add to Favorites
  • ELECTRONICS-SALON 8 Channel 10Amp SPDT Power Relay Module Board (Operating Voltage: DC 12V)
  • ELECTRONICS-SALON 8 Channel 10Amp SPDT Power Relay Module Board (Operating Voltage: DC 12V)
  • ELECTRONICS-SALON 8 Channel 10Amp SPDT Power Relay Module Board (Operating Voltage: DC 12V)
  • ELECTRONICS-SALON 8 Channel 10Amp SPDT Power Relay Module Board (Operating Voltage: DC 12V)
  • ELECTRONICS-SALON 8 Channel 10Amp SPDT Power Relay Module Board (Operating Voltage: DC 12V)
  • ELECTRONICS-SALON 8 Channel 10Amp SPDT Power Relay Module Board (Operating Voltage: DC 12V)
  • ELECTRONICS-SALON 8 Channel 10Amp SPDT Power Relay Module Board (Operating Voltage: DC 12V)
  • ELECTRONICS-SALON 8 Channel 10Amp SPDT Power Relay Module Board (Operating Voltage: DC 12V)
  • ELECTRONICS-SALON 8 Channel 10Amp SPDT Power Relay Module Board (Operating Voltage: DC 12V)
  • ELECTRONICS-SALON 8 Channel 10Amp SPDT Power Relay Module Board (Operating Voltage: DC 12V)
1/1
  • ELECTRONICS-SALON 8 Channel 10Amp SPDT Power Relay Module Board (Operating Voltage: DC 12V)
  • ELECTRONICS-SALON 8 Channel 10Amp SPDT Power Relay Module Board (Operating Voltage: DC 12V)
  • ELECTRONICS-SALON 8 Channel 10Amp SPDT Power Relay Module Board (Operating Voltage: DC 12V)
  • ELECTRONICS-SALON 8 Channel 10Amp SPDT Power Relay Module Board (Operating Voltage: DC 12V)
  • ELECTRONICS-SALON 8 Channel 10Amp SPDT Power Relay Module Board (Operating Voltage: DC 12V)
  • Description
This item has been assembled, and electrical test passed.
JQC-3FF Power Relays.
LED indicator for each relay channel.
Darlington transistors circuit driving relay, improve the reliability of action.
FR-4 Fiber glass PCB (Double Layer).

Operating Voltage/Current(max.): DC12V / 400mA (relay all action).
Input control signal voltage:
0V - 0.5V Low state (relay not-action),
2.5V - 20V High state (relay action).
Input control signal high state current:
2.5V: 0.1mA.
5V: 0.35mA.
12V: 1.1mA.
24V: 2.4mA.

Relay Spec:
JQC-3FF Power Relays.
Contact Rating: 125VAC/277VAC 10Amp or 28VDC 10Amp.

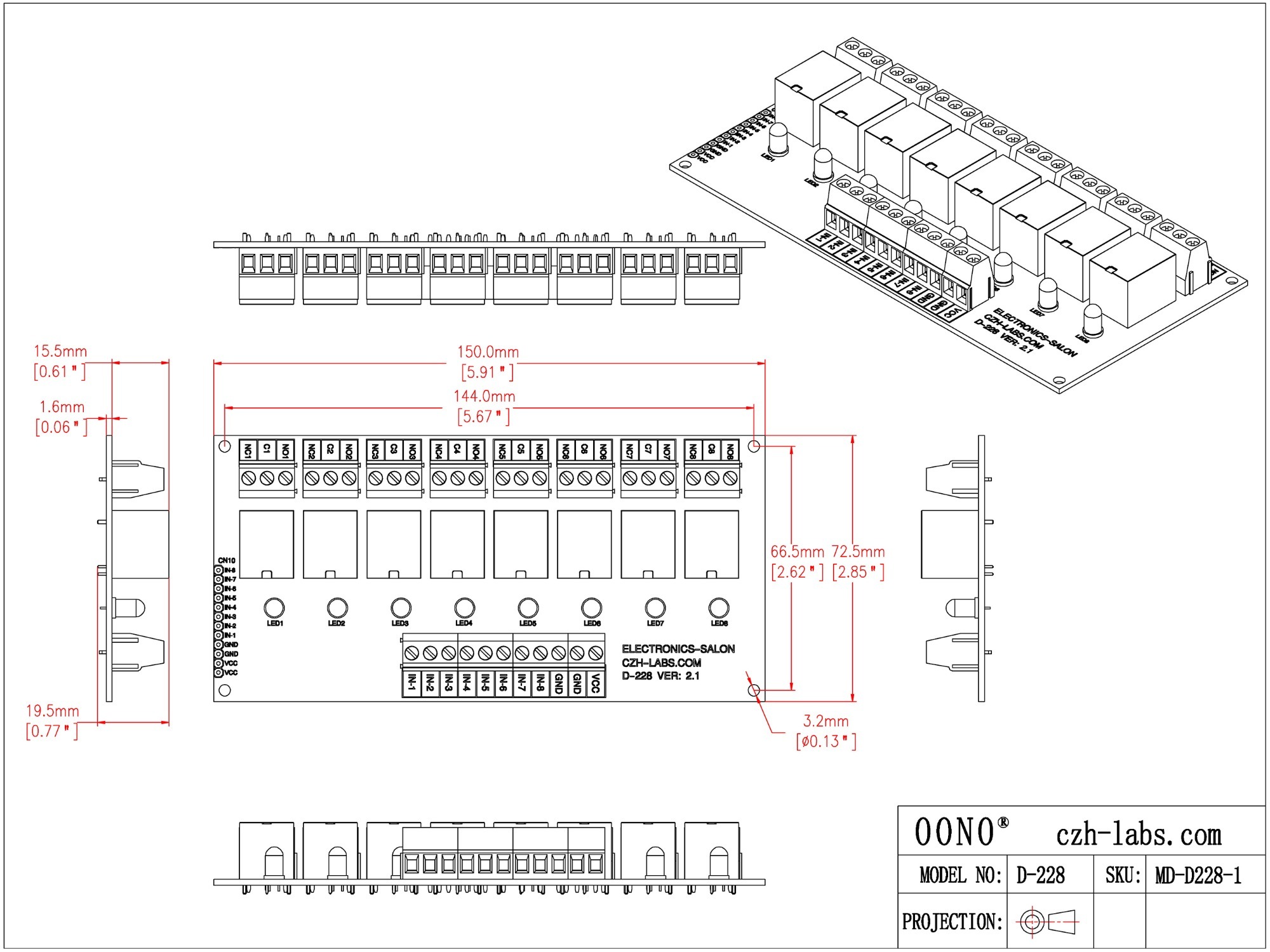

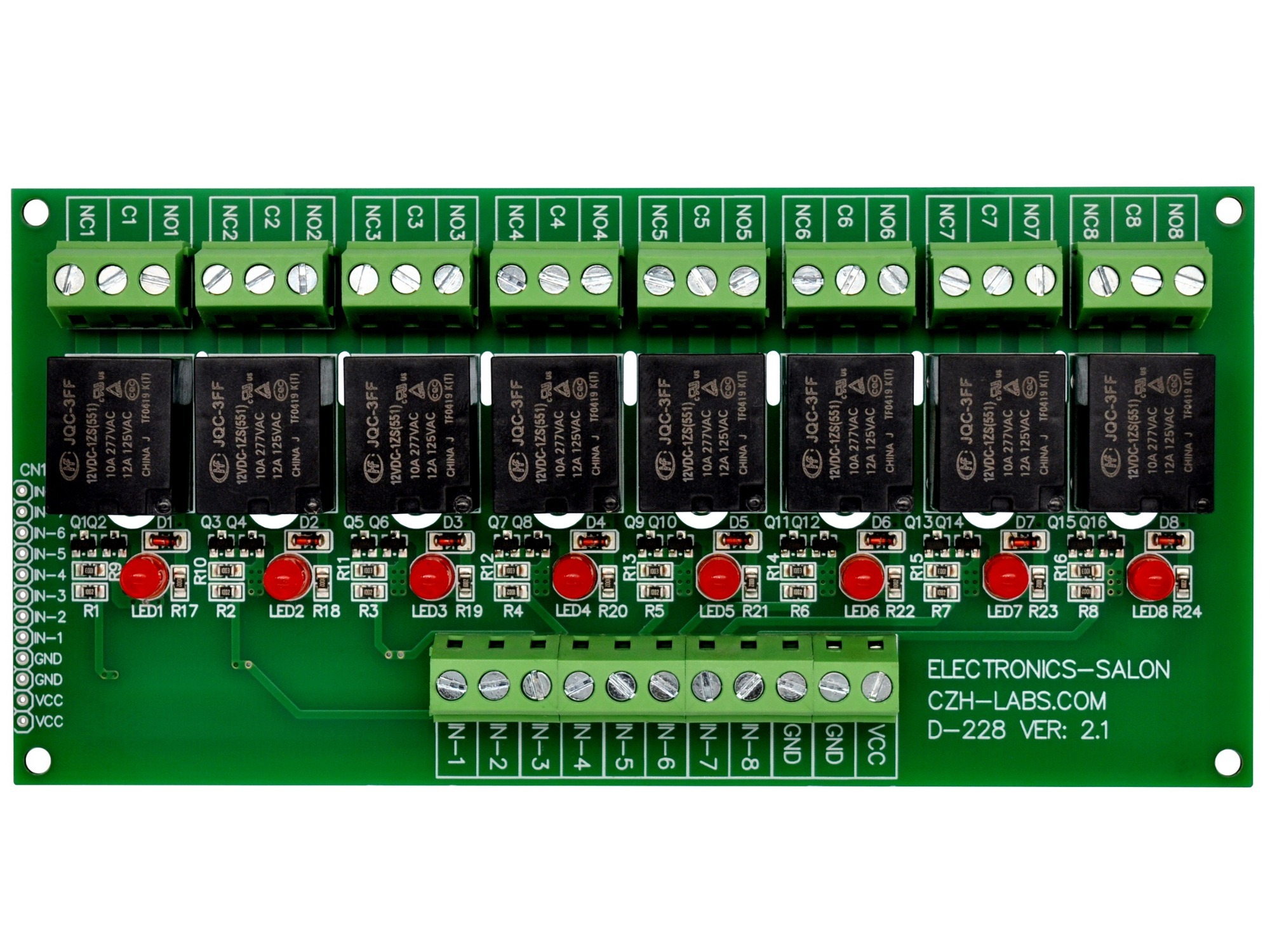

Wire connection and PCB size:

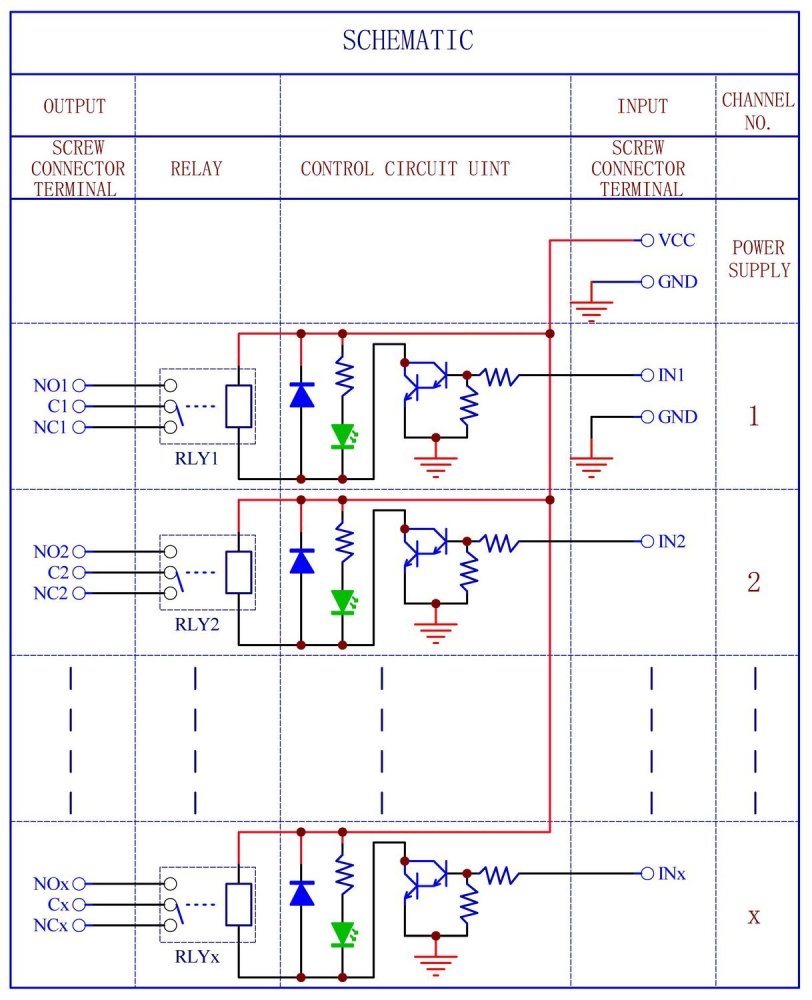

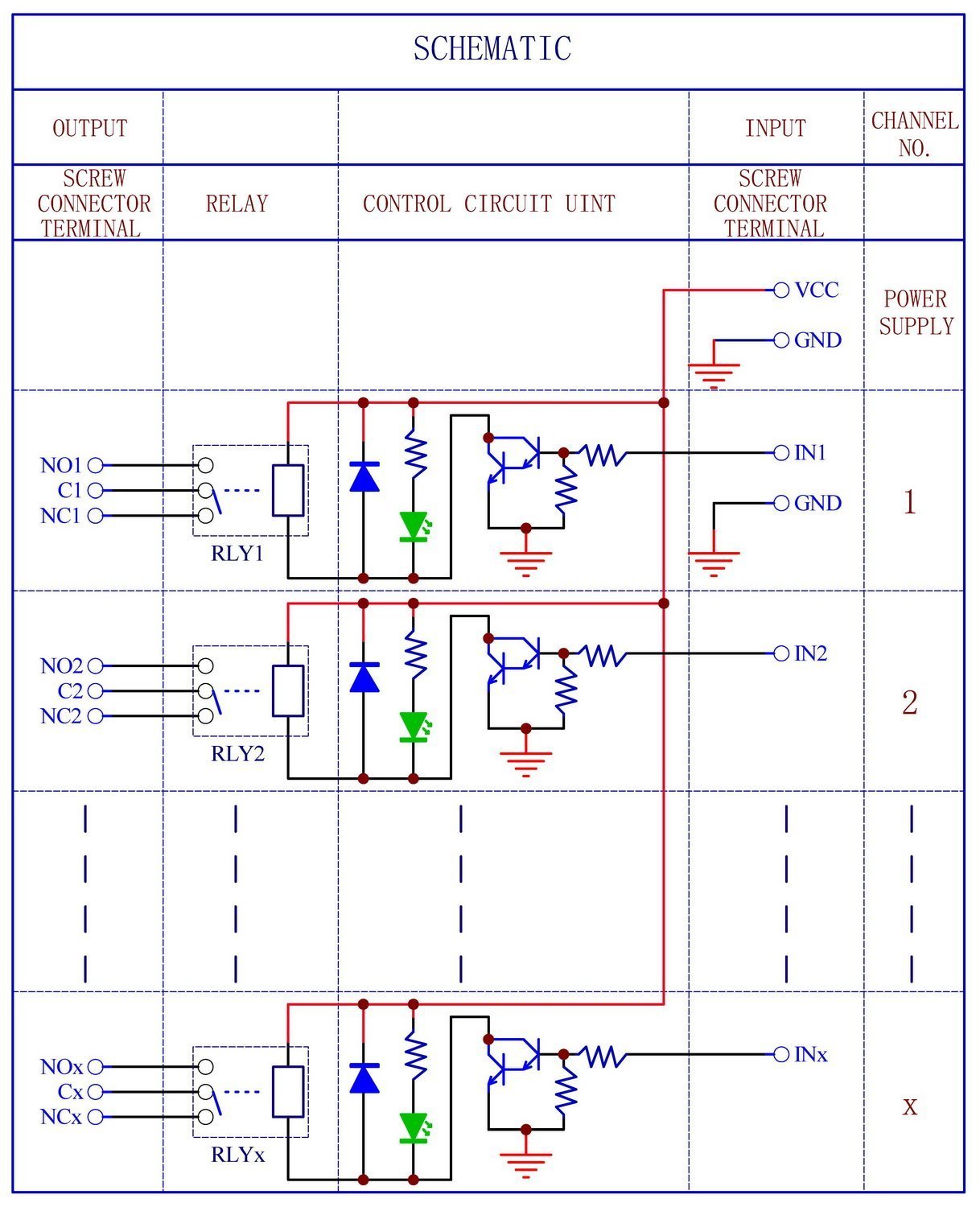

VCC: Power supply input.
GND: Power supply ground and control signal ground.
CH-x: Control signal input, Low: relay OFF, High: relay ON.
COM / NO / NC: (Cx=COMx) .
Control signal state low, the relay OFF, COM - NO disconnected, COM - NC connected.
Control signal stage high, the relay ON, COM - NO connected, COM - NC disconnected.
