Home > Relay Module > Power Relay Module > ELECTRONICS-SALON 3VDC SPST-NO 5A/250V Power Relay Module. DC3V.
  • ELECTRONICS-SALON 3VDC SPST-NO 5A/250V Power Relay Module. DC3V.
  • ELECTRONICS-SALON 3VDC SPST-NO 5A/250V Power Relay Module. DC3V.
  • ELECTRONICS-SALON 3VDC SPST-NO 5A/250V Power Relay Module. DC3V.
  • ELECTRONICS-SALON 3VDC SPST-NO 5A/250V Power Relay Module. DC3V.
  • ELECTRONICS-SALON 3VDC SPST-NO 5A/250V Power Relay Module. DC3V.
  • ELECTRONICS-SALON 3VDC SPST-NO 5A/250V Power Relay Module. DC3V.
  • ELECTRONICS-SALON 3VDC SPST-NO 5A/250V Power Relay Module. DC3V.
1/1
  • ELECTRONICS-SALON 3VDC SPST-NO 5A/250V Power Relay Module. DC3V.
  • ELECTRONICS-SALON 3VDC SPST-NO 5A/250V Power Relay Module. DC3V.
  • ELECTRONICS-SALON 3VDC SPST-NO 5A/250V Power Relay Module. DC3V.
  • ELECTRONICS-SALON 3VDC SPST-NO 5A/250V Power Relay Module. DC3V.
  • ELECTRONICS-SALON 3VDC SPST-NO 5A/250V Power Relay Module. DC3V.
  • ELECTRONICS-SALON 3VDC SPST-NO 5A/250V Power Relay Module. DC3V.
  • ELECTRONICS-SALON 3VDC SPST-NO 5A/250V Power Relay Module. DC3V.
Share:

ELECTRONICS-SALON 3VDC SPST-NO 5A/250V Power Relay Module. DC3V.

SKU: D-1222
$3.40 $3.40
ELECTRONICS-SALON 3VDC SPST-NO 5A/250V Power Relay Module. DC3V.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $3.4 = $3.4
save $0.00
Add to Favorites
  • ELECTRONICS-SALON 3VDC SPST-NO 5A/250V Power Relay Module. DC3V.
  • ELECTRONICS-SALON 3VDC SPST-NO 5A/250V Power Relay Module. DC3V.
  • ELECTRONICS-SALON 3VDC SPST-NO 5A/250V Power Relay Module. DC3V.
  • ELECTRONICS-SALON 3VDC SPST-NO 5A/250V Power Relay Module. DC3V.
  • ELECTRONICS-SALON 3VDC SPST-NO 5A/250V Power Relay Module. DC3V.
  • ELECTRONICS-SALON 3VDC SPST-NO 5A/250V Power Relay Module. DC3V.
  • ELECTRONICS-SALON 3VDC SPST-NO 5A/250V Power Relay Module. DC3V.
  • ELECTRONICS-SALON 3VDC SPST-NO 5A/250V Power Relay Module. DC3V.
  • ELECTRONICS-SALON 3VDC SPST-NO 5A/250V Power Relay Module. DC3V.
  • ELECTRONICS-SALON 3VDC SPST-NO 5A/250V Power Relay Module. DC3V.
  • ELECTRONICS-SALON 3VDC SPST-NO 5A/250V Power Relay Module. DC3V.
  • ELECTRONICS-SALON 3VDC SPST-NO 5A/250V Power Relay Module. DC3V.
  • ELECTRONICS-SALON 3VDC SPST-NO 5A/250V Power Relay Module. DC3V.
  • ELECTRONICS-SALON 3VDC SPST-NO 5A/250V Power Relay Module. DC3V.
1/1
  • ELECTRONICS-SALON 3VDC SPST-NO 5A/250V Power Relay Module. DC3V.
  • ELECTRONICS-SALON 3VDC SPST-NO 5A/250V Power Relay Module. DC3V.
  • ELECTRONICS-SALON 3VDC SPST-NO 5A/250V Power Relay Module. DC3V.
  • ELECTRONICS-SALON 3VDC SPST-NO 5A/250V Power Relay Module. DC3V.
  • ELECTRONICS-SALON 3VDC SPST-NO 5A/250V Power Relay Module. DC3V.
  • ELECTRONICS-SALON 3VDC SPST-NO 5A/250V Power Relay Module. DC3V.
  • ELECTRONICS-SALON 3VDC SPST-NO 5A/250V Power Relay Module. DC3V.
  • Description

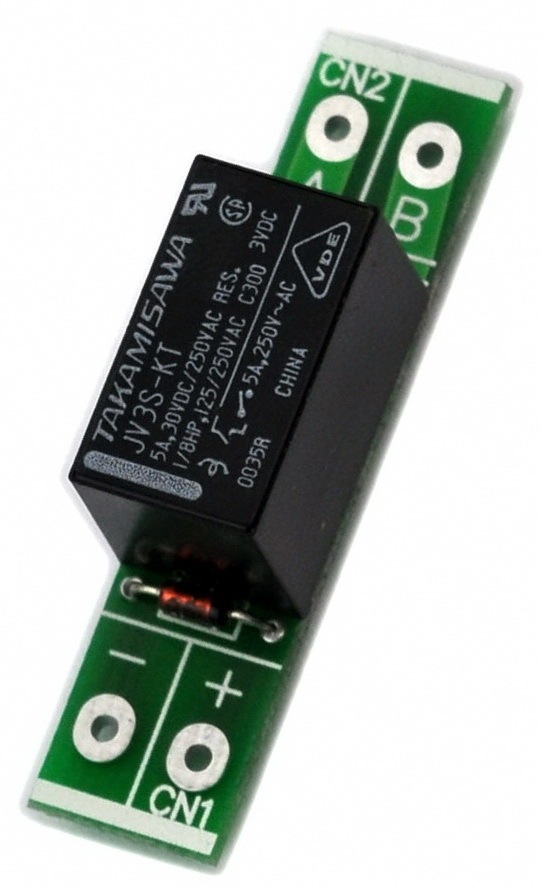

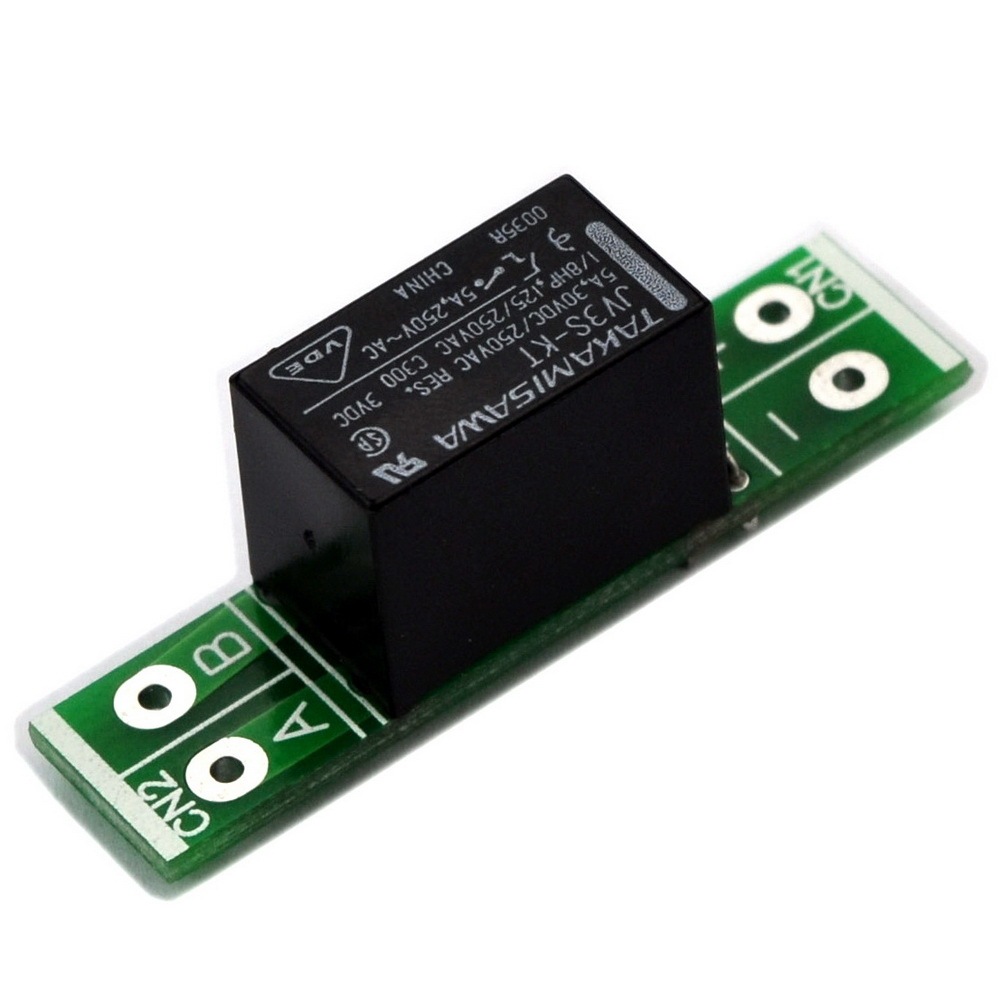

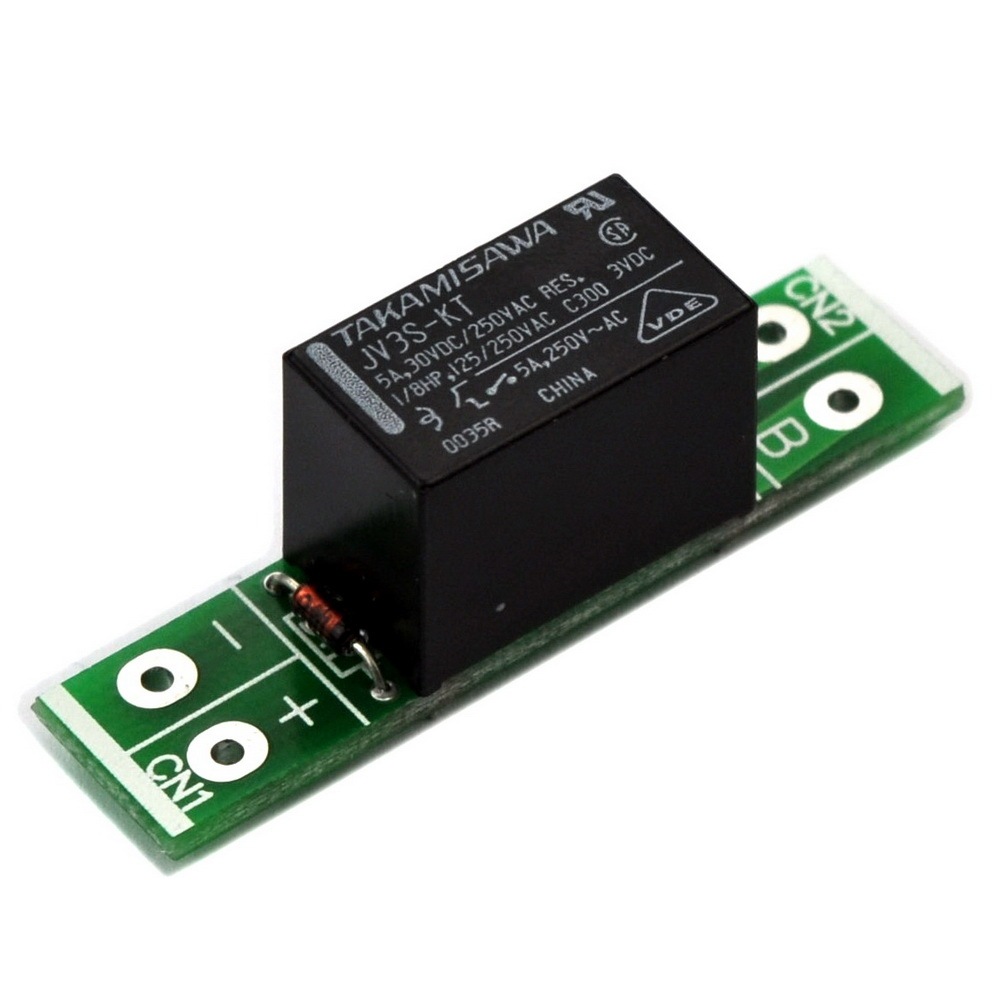

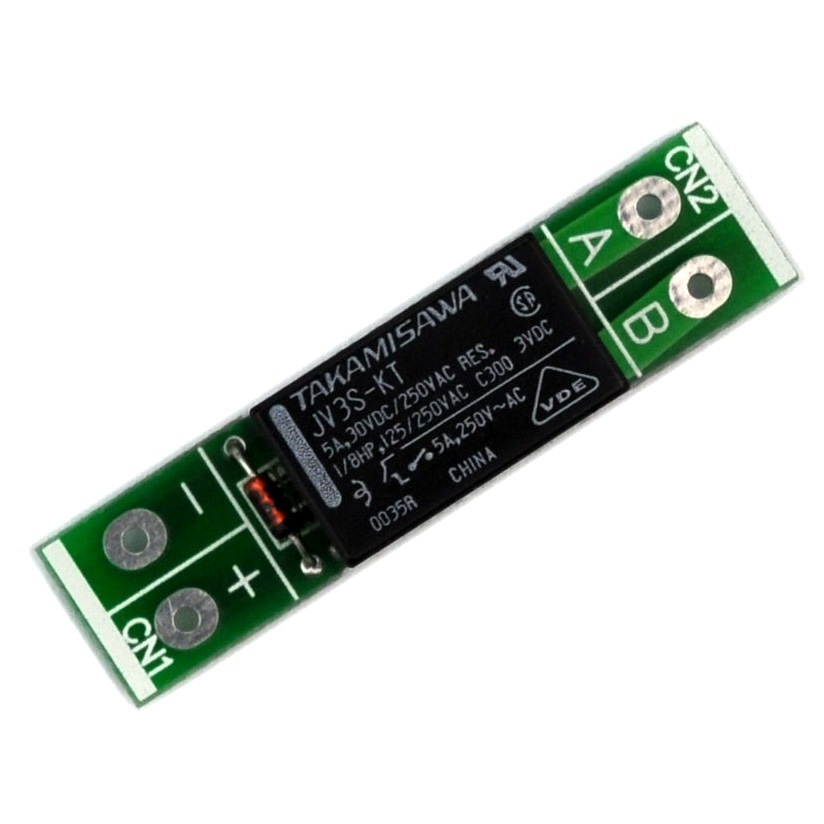

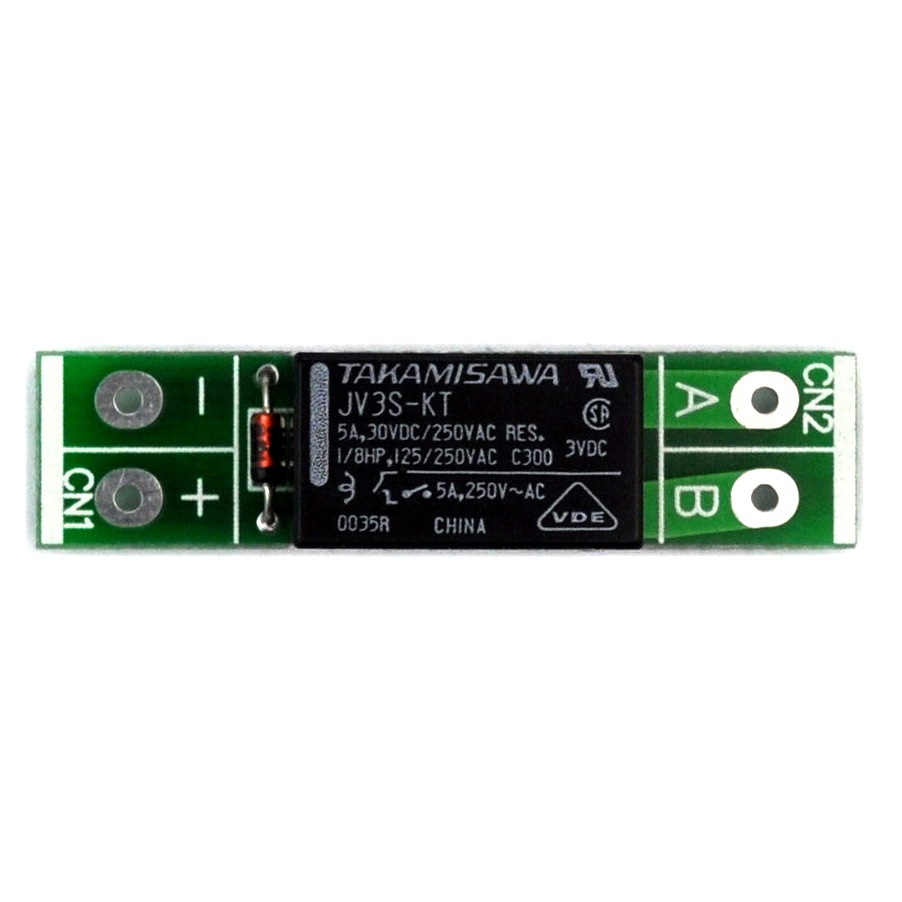

High-quality JV 3S-KT relay, FR-4 fiberglass PCB, 1N4148 freewheeling diode, all has been soldered and test passed.
Input control singal: 3VDC / 100mA, Outupt switch Contact rating: 5A/250VAC or 5A/30VDC.

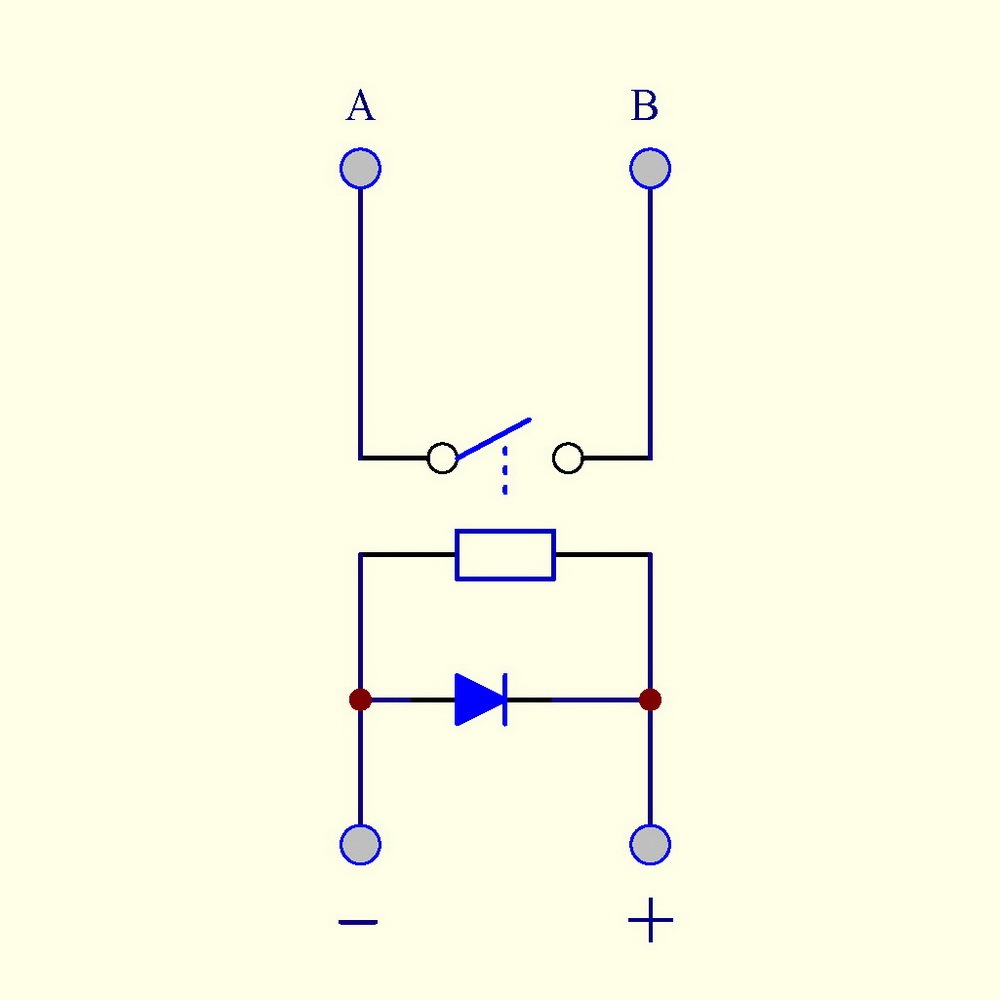

Switch configuration: 1 form A (SPST-NO).

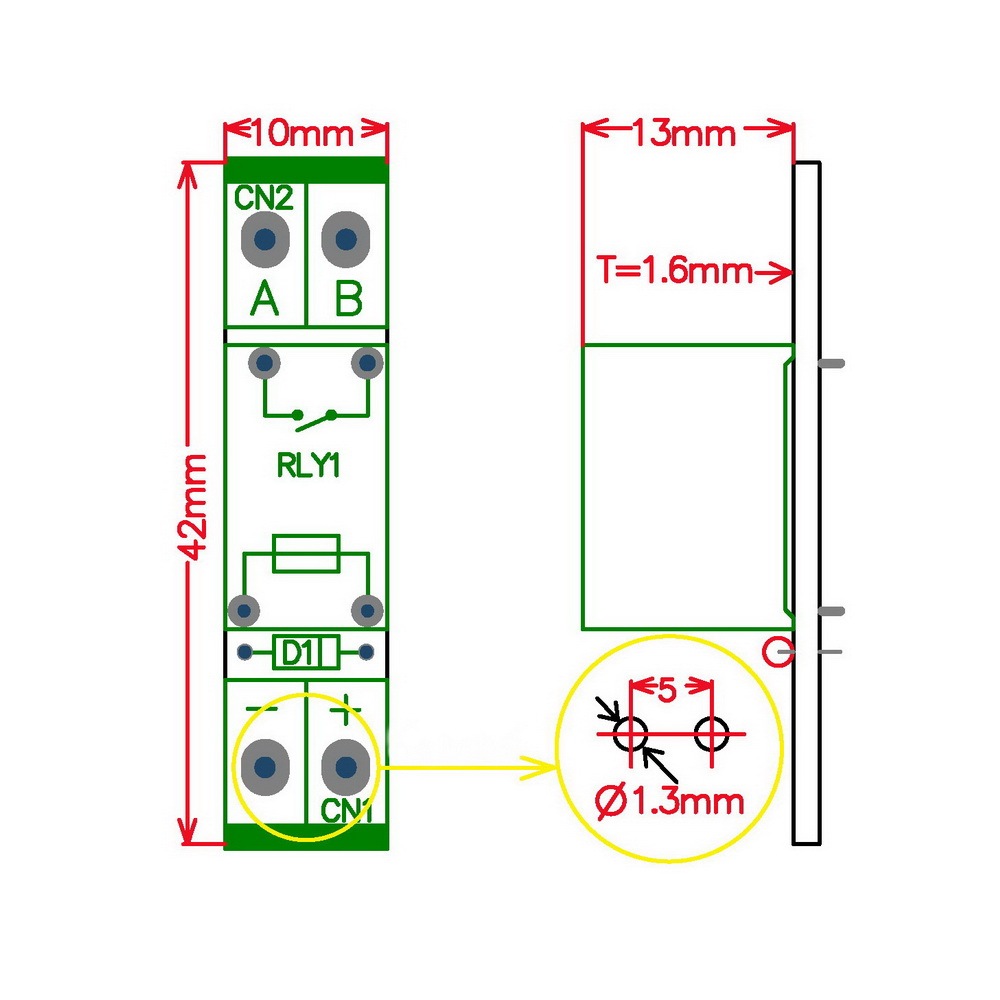

Other, the input and output no terminal block, if you want use terminal block to connect wires, you can mount pitch 5.0 / 5.08mm standard terminal block.
