ELECTRONICS-SALON 2048Hz ~ 0.00049Hz(1/2048Hz) Extremely / Super Low Frequency Square Wave Oscillator Module, Square Wave Signal Generator. Total 22 o

SKU: R-103
$16.99 $16.99
ELECTRONICS-SALON 2048Hz ~ 0.00049Hz(1/2048Hz) Extremely / Super Low Frequency Square Wave Oscillator Module, Square Wave Signal Generator. Total 22 output ports, at the same time can output 22 frequencies.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $16.99 = $16.99
save $0.00
Add to Favorites
  • ELECTRONICS-SALON 2048Hz ~ 0.00049Hz(1/2048Hz) Extremely / Super Low Frequency Square Wave Oscillator Module, Square Wave Signal Generator. Total 22 o
  • ELECTRONICS-SALON 2048Hz ~ 0.00049Hz(1/2048Hz) Extremely / Super Low Frequency Square Wave Oscillator Module, Square Wave Signal Generator. Total 22 o
  • ELECTRONICS-SALON 2048Hz ~ 0.00049Hz(1/2048Hz) Extremely / Super Low Frequency Square Wave Oscillator Module, Square Wave Signal Generator. Total 22 o
  • ELECTRONICS-SALON 2048Hz ~ 0.00049Hz(1/2048Hz) Extremely / Super Low Frequency Square Wave Oscillator Module, Square Wave Signal Generator. Total 22 o
  • ELECTRONICS-SALON 2048Hz ~ 0.00049Hz(1/2048Hz) Extremely / Super Low Frequency Square Wave Oscillator Module, Square Wave Signal Generator. Total 22 o
  • ELECTRONICS-SALON 2048Hz ~ 0.00049Hz(1/2048Hz) Extremely / Super Low Frequency Square Wave Oscillator Module, Square Wave Signal Generator. Total 22 o
  • ELECTRONICS-SALON 2048Hz ~ 0.00049Hz(1/2048Hz) Extremely / Super Low Frequency Square Wave Oscillator Module, Square Wave Signal Generator. Total 22 o
  • ELECTRONICS-SALON 2048Hz ~ 0.00049Hz(1/2048Hz) Extremely / Super Low Frequency Square Wave Oscillator Module, Square Wave Signal Generator. Total 22 o
  • ELECTRONICS-SALON 2048Hz ~ 0.00049Hz(1/2048Hz) Extremely / Super Low Frequency Square Wave Oscillator Module, Square Wave Signal Generator. Total 22 o
  • ELECTRONICS-SALON 2048Hz ~ 0.00049Hz(1/2048Hz) Extremely / Super Low Frequency Square Wave Oscillator Module, Square Wave Signal Generator. Total 22 o
  • ELECTRONICS-SALON 2048Hz ~ 0.00049Hz(1/2048Hz) Extremely / Super Low Frequency Square Wave Oscillator Module, Square Wave Signal Generator. Total 22 o
  • ELECTRONICS-SALON 2048Hz ~ 0.00049Hz(1/2048Hz) Extremely / Super Low Frequency Square Wave Oscillator Module, Square Wave Signal Generator. Total 22 o
1/1
  • ELECTRONICS-SALON 2048Hz ~ 0.00049Hz(1/2048Hz) Extremely / Super Low Frequency Square Wave Oscillator Module, Square Wave Signal Generator. Total 22 o
  • ELECTRONICS-SALON 2048Hz ~ 0.00049Hz(1/2048Hz) Extremely / Super Low Frequency Square Wave Oscillator Module, Square Wave Signal Generator. Total 22 o
  • ELECTRONICS-SALON 2048Hz ~ 0.00049Hz(1/2048Hz) Extremely / Super Low Frequency Square Wave Oscillator Module, Square Wave Signal Generator. Total 22 o
  • ELECTRONICS-SALON 2048Hz ~ 0.00049Hz(1/2048Hz) Extremely / Super Low Frequency Square Wave Oscillator Module, Square Wave Signal Generator. Total 22 o
  • ELECTRONICS-SALON 2048Hz ~ 0.00049Hz(1/2048Hz) Extremely / Super Low Frequency Square Wave Oscillator Module, Square Wave Signal Generator. Total 22 o
  • ELECTRONICS-SALON 2048Hz ~ 0.00049Hz(1/2048Hz) Extremely / Super Low Frequency Square Wave Oscillator Module, Square Wave Signal Generator. Total 22 o
  • Description

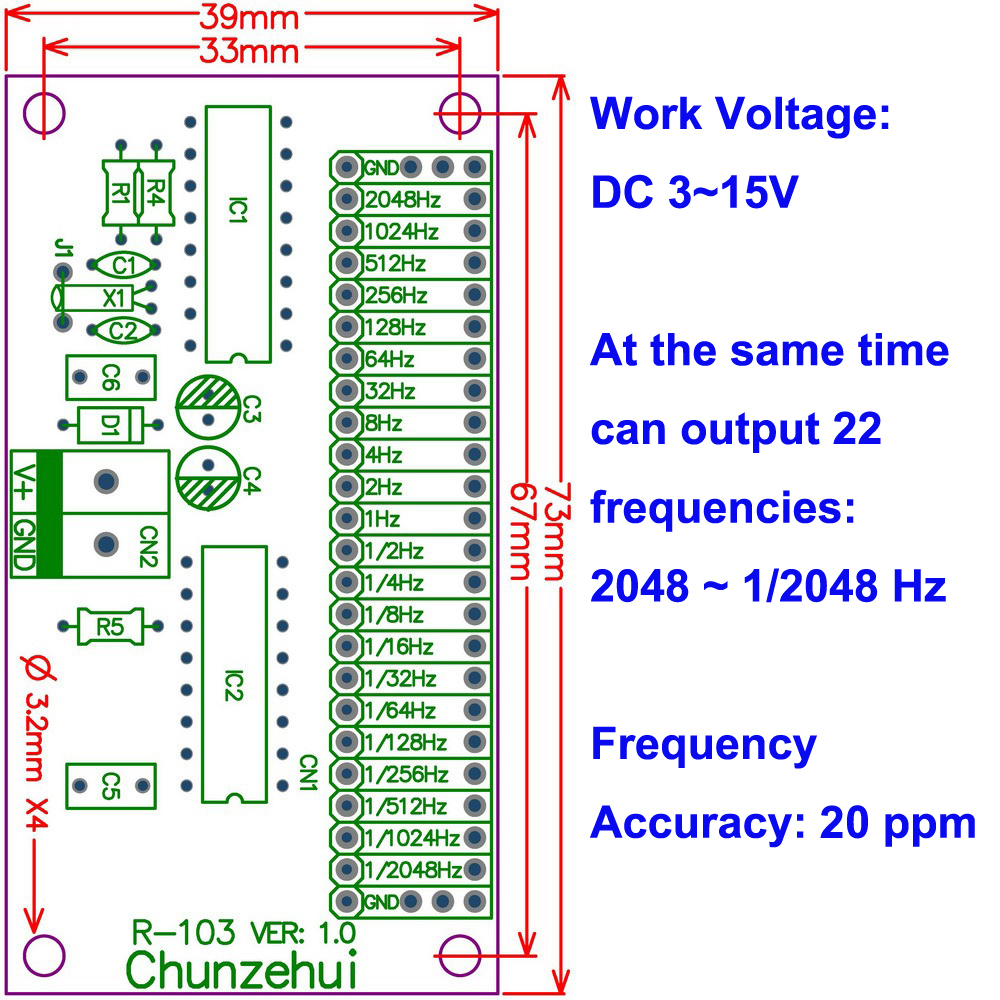

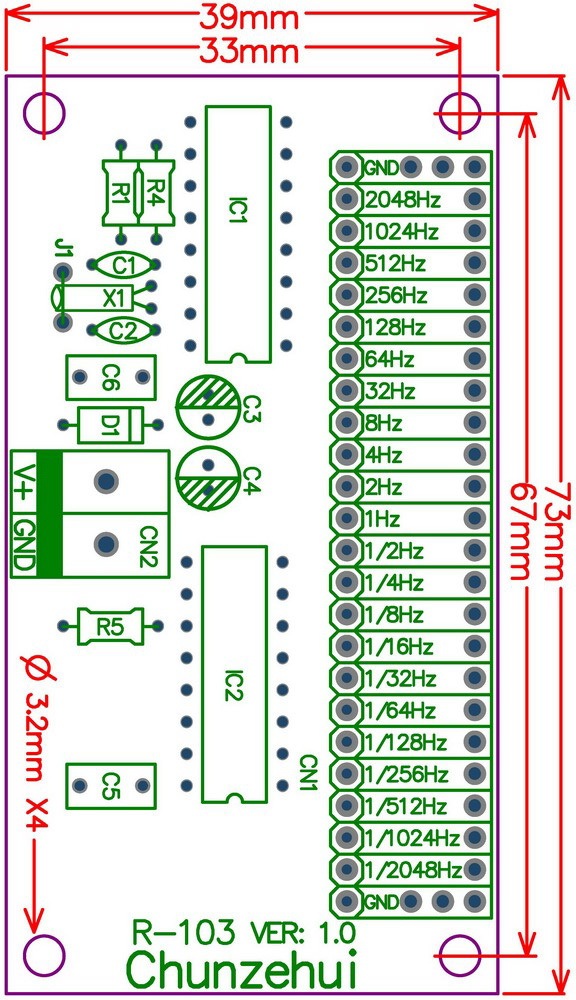

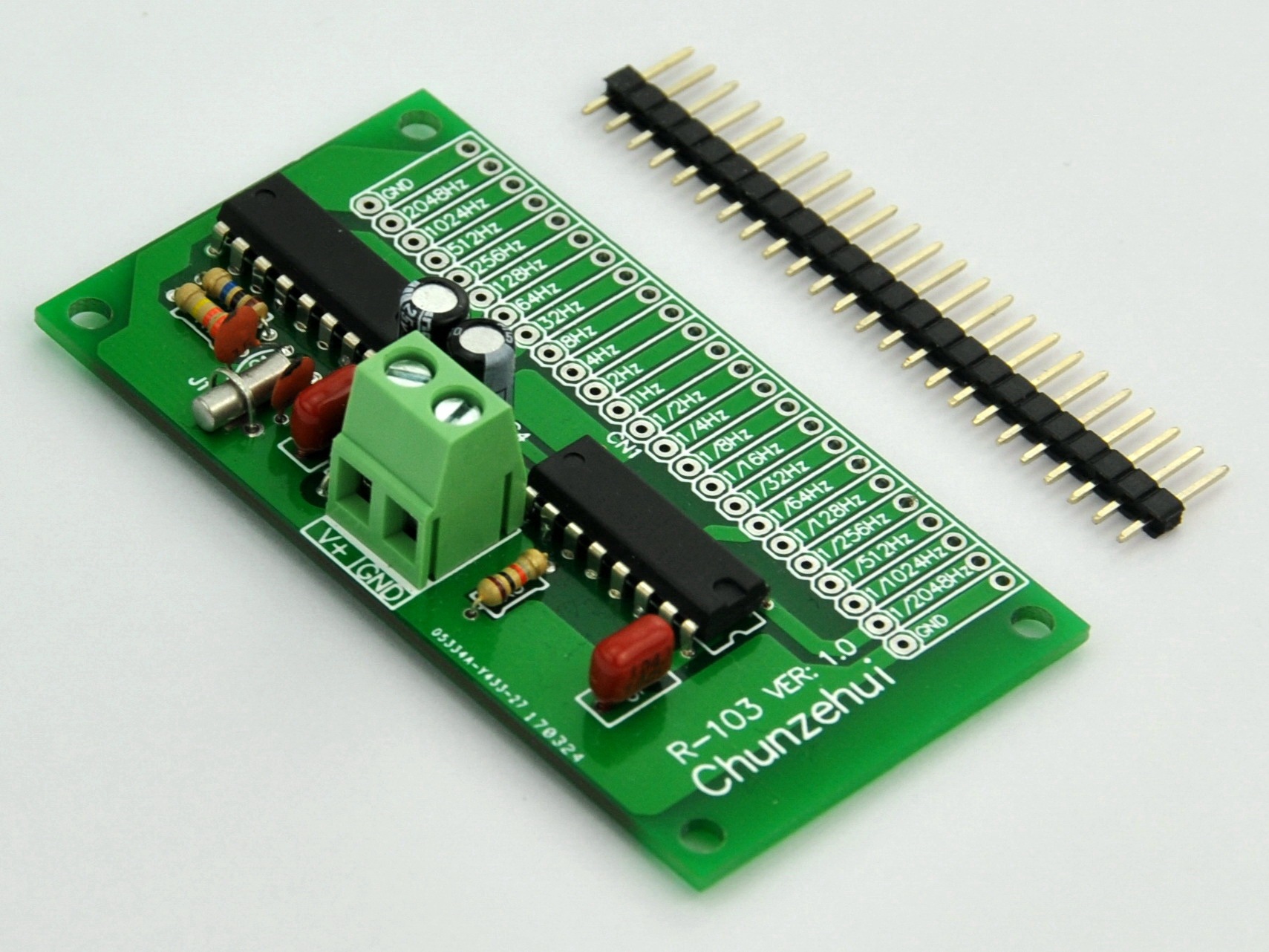

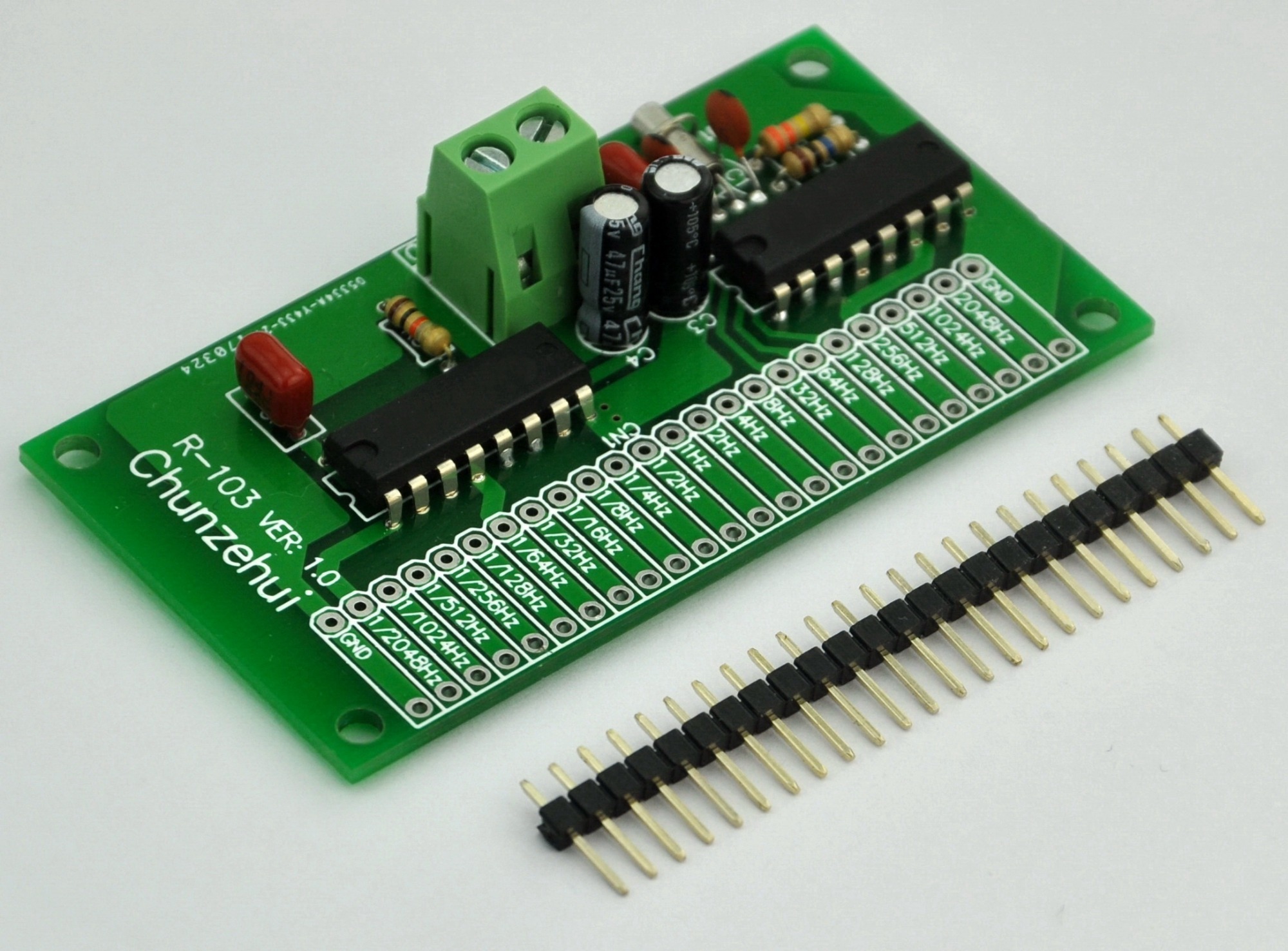

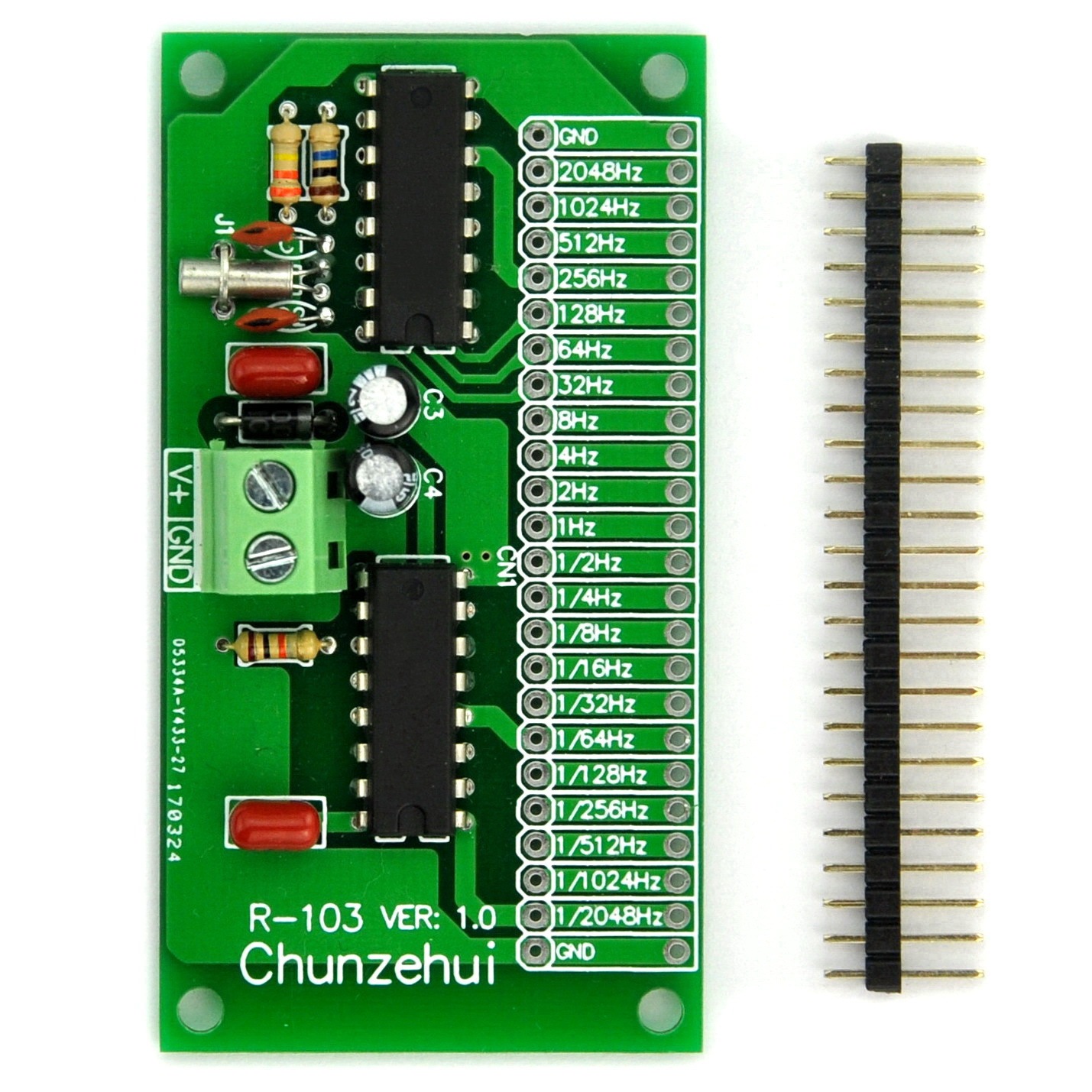

Extremely / Super Low Frequency Square Wave Oscillator Module

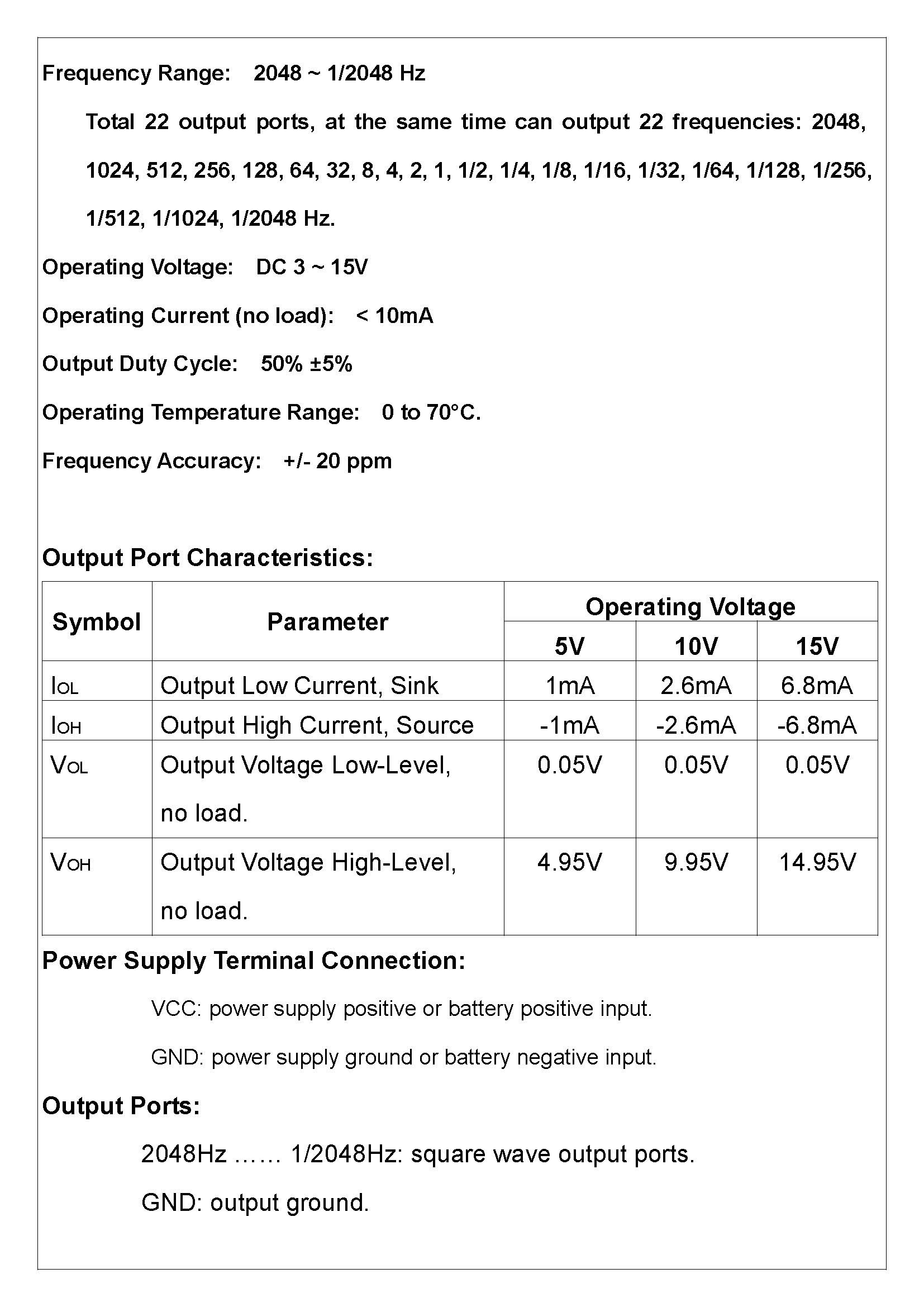

Frequency Range: 2048 ~ 1/2048 Hz
Total 22 output ports, at the same time can output 22 frequencies: 2048, 1024, 512, 256, 128, 64, 32, 8, 4, 2, 1, 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 1/256, 1/512, 1/1024, 1/2048 Hz.
Operating Voltage: DC 3 ~ 15V
Operating Current (no load): < 10mA
Output Duty Cycle: 50% ±5%
Operating Temperature Range: 0 to 70°C.
Frequency Accuracy: +/- 20 ppm
