ELECTRONICS-SALON 1KHz to 33MHz Adjustable Oscillator Module, LTC1799.

Name: ELECTRONICS-SALON 1KHz to 33MHz Adjustable Oscillator Module, LTC1799.
Brand: Xiken Tech
SKU: R-100
Price: 14.99 USD
Availability: InStock

SKU: R-100

$14.99 ~~$14.99~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

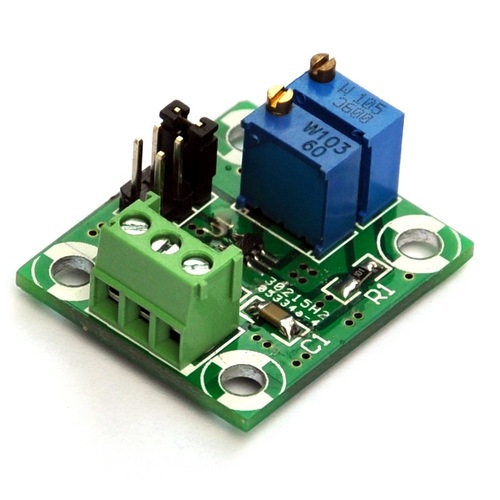

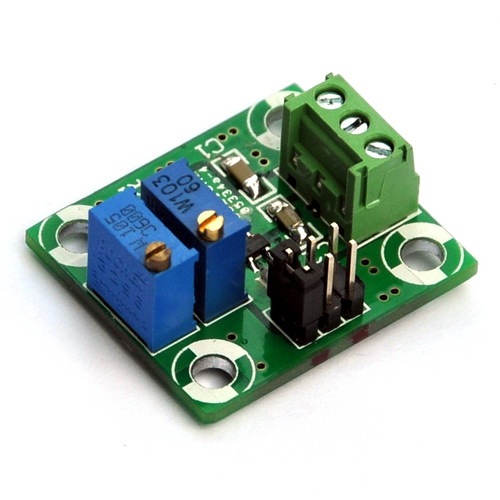

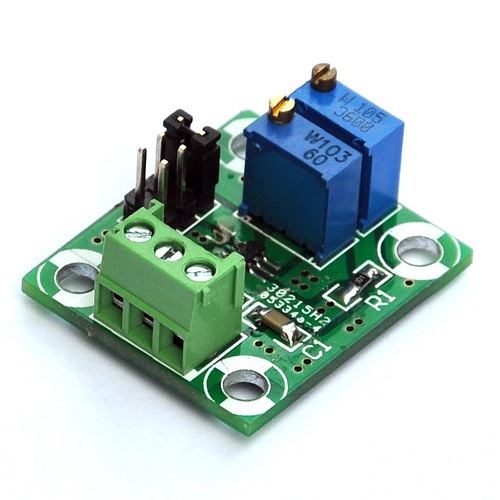

1 Piece Frequency 1KHz to 33MHz Adjustable Square Wave Oscillator Module.
Operating Voltage: 2.7 to 5.5V DC.
Operating Current: < 5mA.
Operating Temp. Range: 0 to 70°C.

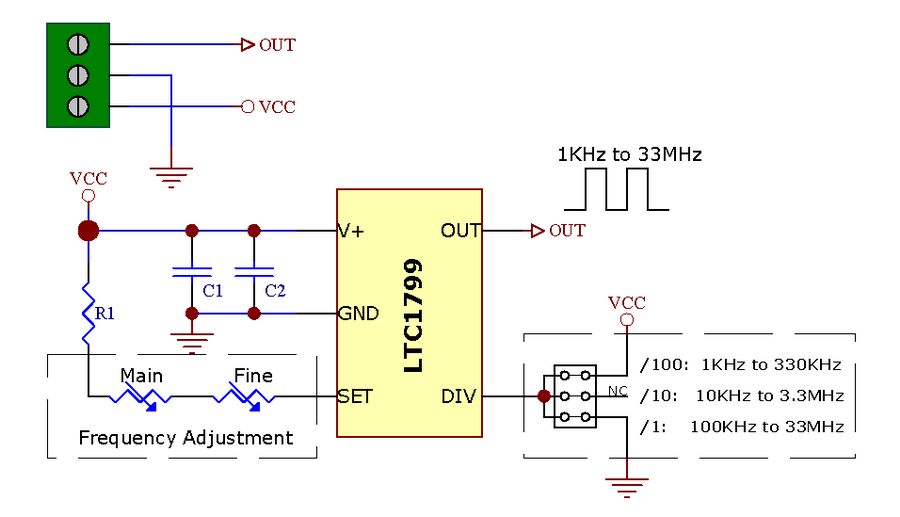

Design based on LTC1799 IC.

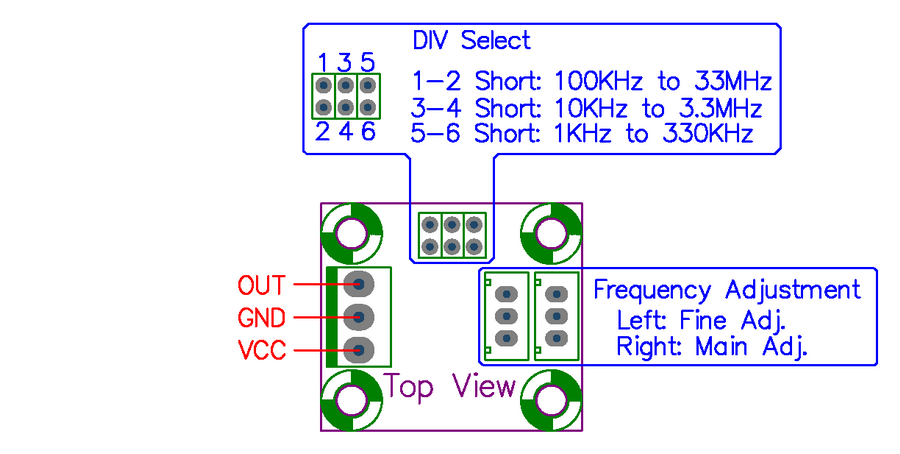

Two 25 turns precision trimming potentiometer
Terminal blocks, easy connection wire.
FR-4 fiber glass material PCB (double layer).

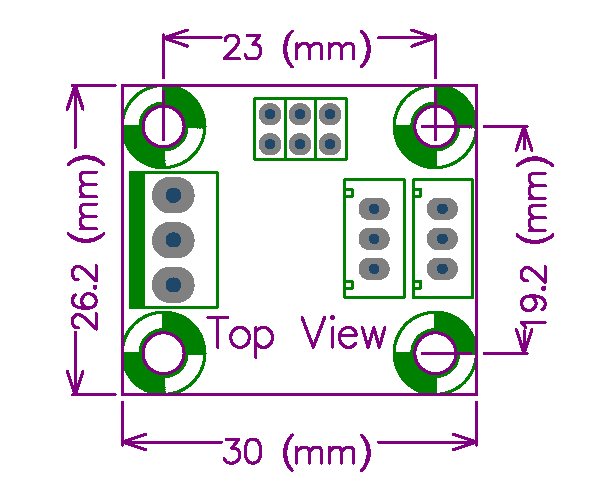

PCB size : 30 x 26.2 mm
Maximum height : 15 mm

Fast Start-Up Time: <1ms
+/- 40ppm/°C Temperature Stability
0.05%/V Supply Stability
50% ±1% Duty Cycle 1kHz to 2MHz
50% ±5% Duty Cycle 2MHz to 20MHz
100 Ohm CMOS Output Drive.
