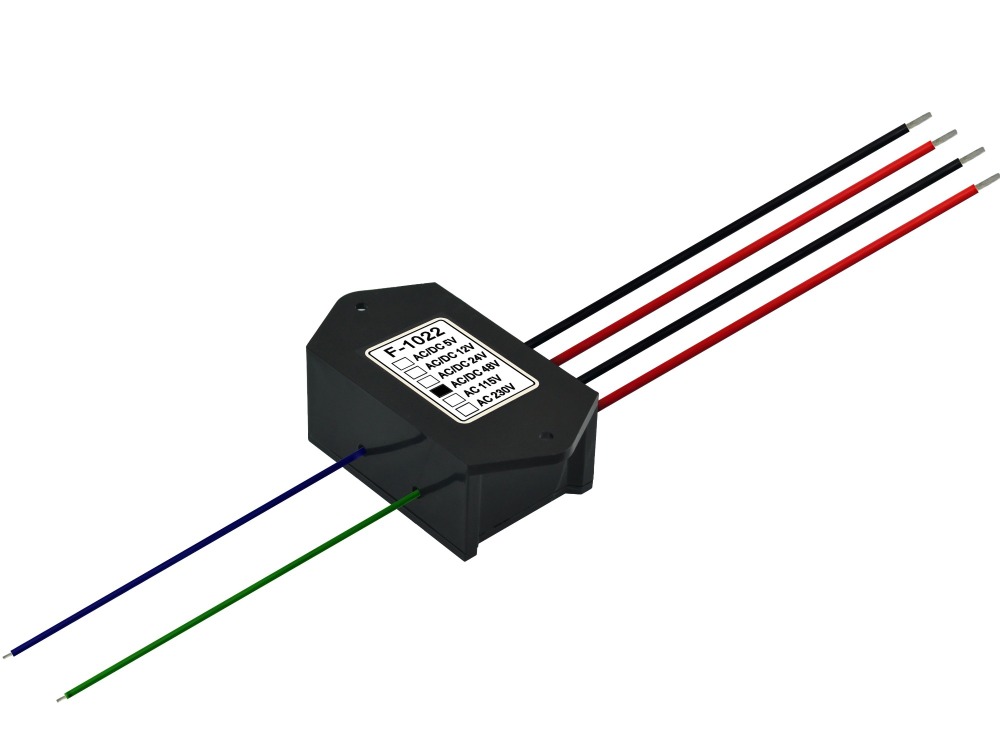

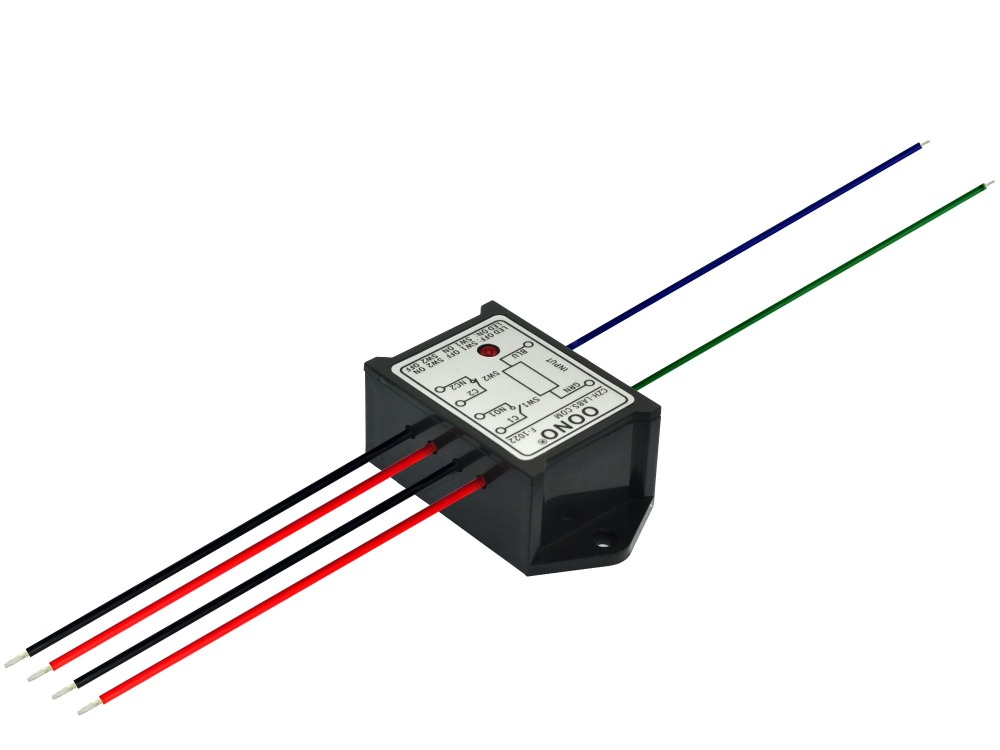

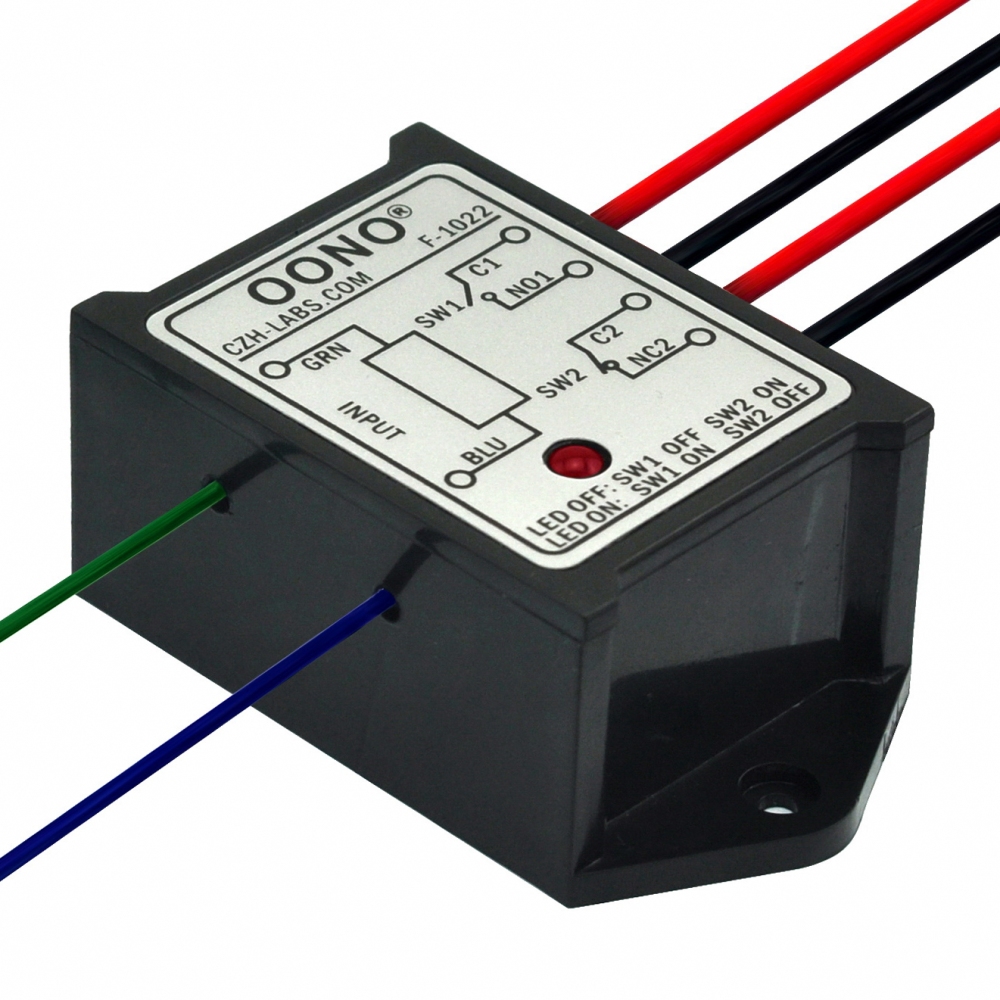

DPST 1NO 1NC 8Amp Power Relay Module, AC/DC 48V Control Voltage

SKU: F-1022/48V
$12.99 $12.99
DPST 1NO 1NC 8Amp Power Relay Module, AC/DC 48V Control Voltage
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $12.99 = $12.99
save $0.00
Add to Favorites
  • DPST 1NO 1NC 8Amp Power Relay Module, AC/DC 48V Control Voltage
  • DPST 1NO 1NC 8Amp Power Relay Module, AC/DC 48V Control Voltage
  • DPST 1NO 1NC 8Amp Power Relay Module, AC/DC 48V Control Voltage
  • DPST 1NO 1NC 8Amp Power Relay Module, AC/DC 48V Control Voltage
  • DPST 1NO 1NC 8Amp Power Relay Module, AC/DC 48V Control Voltage
  • DPST 1NO 1NC 8Amp Power Relay Module, AC/DC 48V Control Voltage
  • DPST 1NO 1NC 8Amp Power Relay Module, AC/DC 48V Control Voltage
  • DPST 1NO 1NC 8Amp Power Relay Module, AC/DC 48V Control Voltage
  • DPST 1NO 1NC 8Amp Power Relay Module, AC/DC 48V Control Voltage
  • DPST 1NO 1NC 8Amp Power Relay Module, AC/DC 48V Control Voltage
  • DPST 1NO 1NC 8Amp Power Relay Module, AC/DC 48V Control Voltage
  • DPST 1NO 1NC 8Amp Power Relay Module, AC/DC 48V Control Voltage
1/1
  • DPST 1NO 1NC 8Amp Power Relay Module, AC/DC 48V Control Voltage
  • DPST 1NO 1NC 8Amp Power Relay Module, AC/DC 48V Control Voltage
  • DPST 1NO 1NC 8Amp Power Relay Module, AC/DC 48V Control Voltage
  • DPST 1NO 1NC 8Amp Power Relay Module, AC/DC 48V Control Voltage
  • DPST 1NO 1NC 8Amp Power Relay Module, AC/DC 48V Control Voltage
  • DPST 1NO 1NC 8Amp Power Relay Module, AC/DC 48V Control Voltage
  • Description

1, Input control signal: Voltage AC or DC 48V, Current 9mA.
2, Output switch DPST 1NO 1NC(Double Pole Single Throw, 1x Normally Open and 1x Normally Close ), rated current 8A/250VAC or 8A/30VDC (one switch).
3, Compact plastic case and wires connects for easy mount.
4, LED indication for relay action.
5, This is a simple and practical passive relay module, which is very convenient to use. It can support both Normally Open and Normally Close. Two screw mounting holes are convenient for you to fix it on the wall or wooden board. Of course, you can also choose not to lock the screw.
