DIP-8 Component to Screw Terminal Adapter PCB, w/Simple DIN Rail Mount Bracket.

Name: DIP-8 Component to Screw Terminal Adapter PCB, w/Simple DIN Rail Mount Bracket.
Brand: Xiken Tech
SKU: D-1025US
Price: 10 USD
Availability: InStock

SKU: D-1025US

$10.00 ~~$10.00~~

CZH-LABS DIP-8 Component to Screw Terminal Adapter PCB, w/Simple DIN Rail Mount Bracket.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

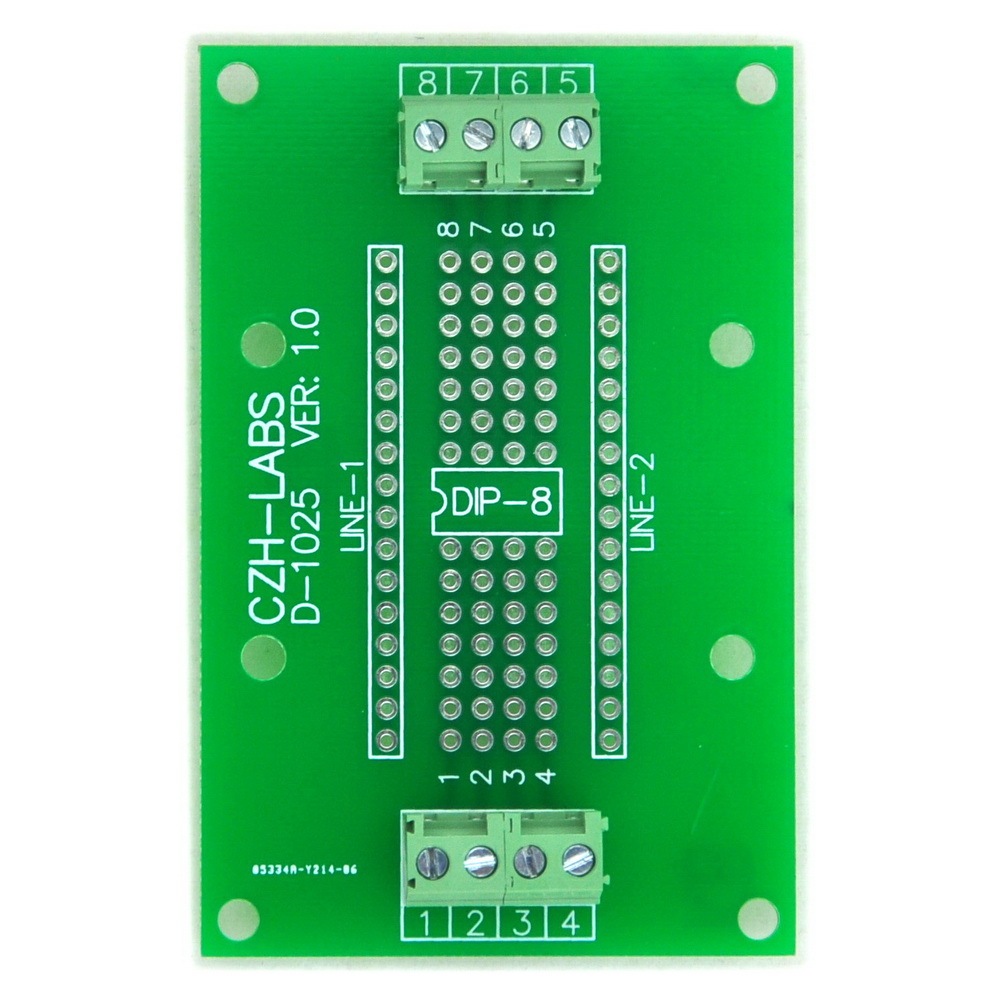

DIP-8 Component to Screw Terminal Adapter Board, with Simple DIN Rail Mount Bracket.

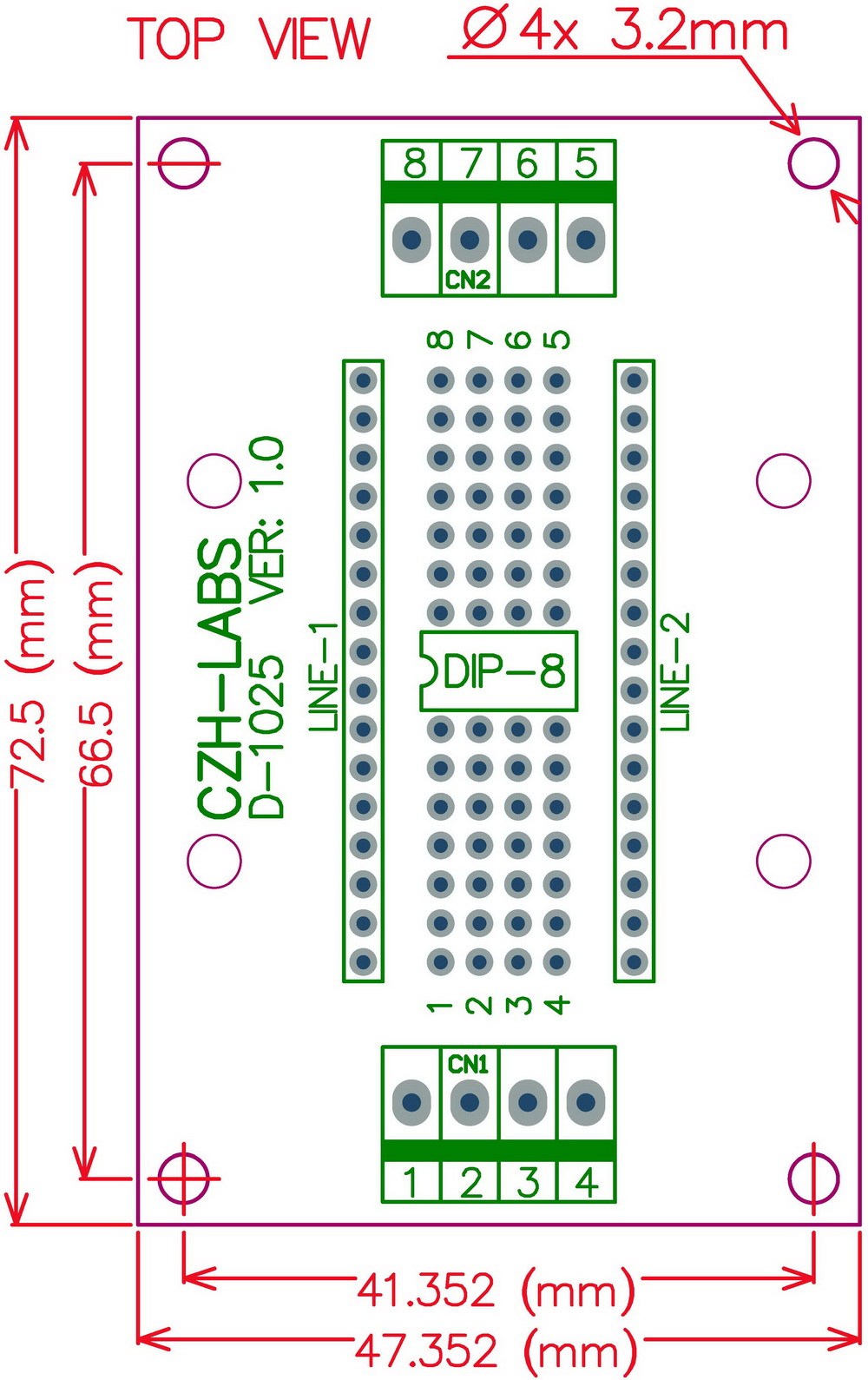

PCB Dimension: 47.35mm x 72.5mm, thickness : 1.6mm.
Material : FR-4 (glass fiber).

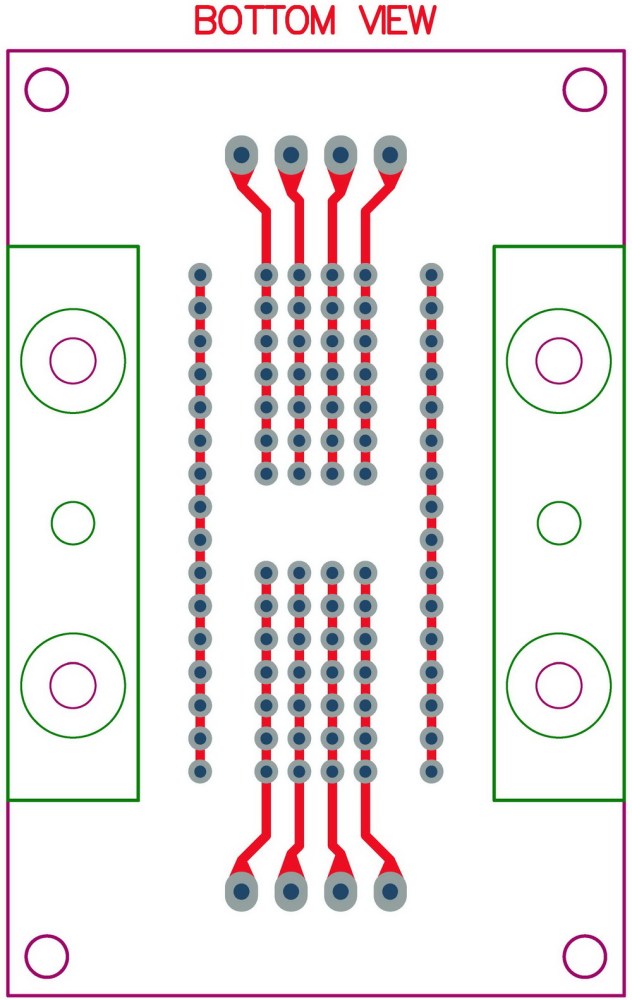

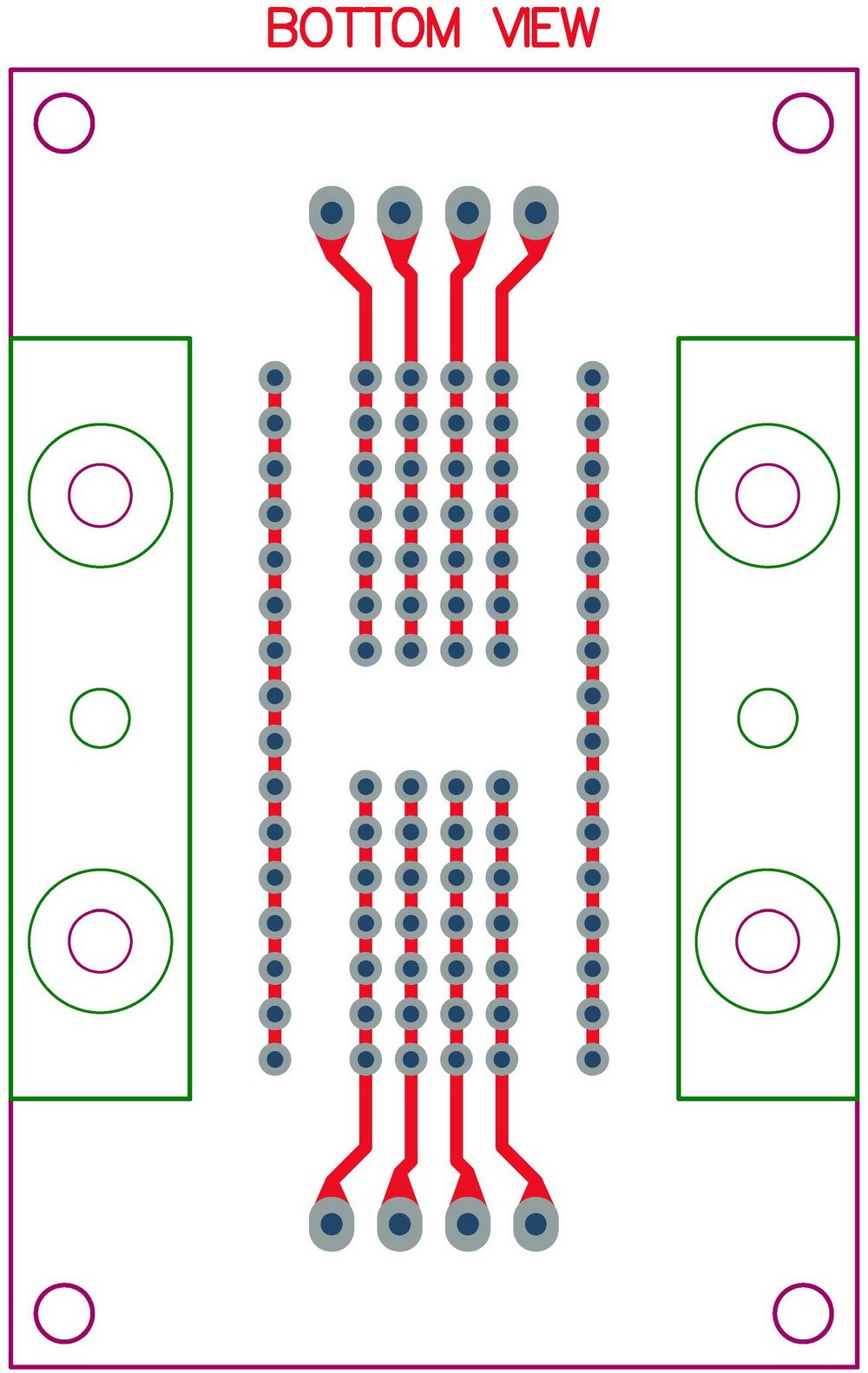

Solder pads grid (pitch) 2.54mm / 0.1", hole diameter 0.9mm, all holes are plated through.
Terminal block pitch 3.81mm/0.15", wire range 26~16AWG/1mm2.

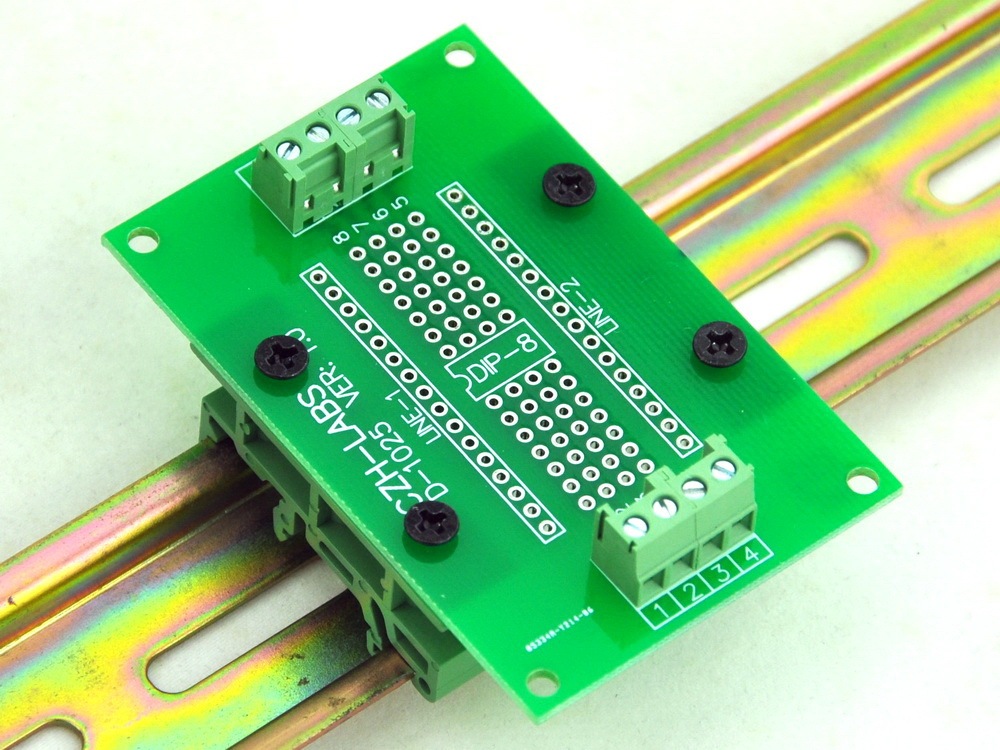

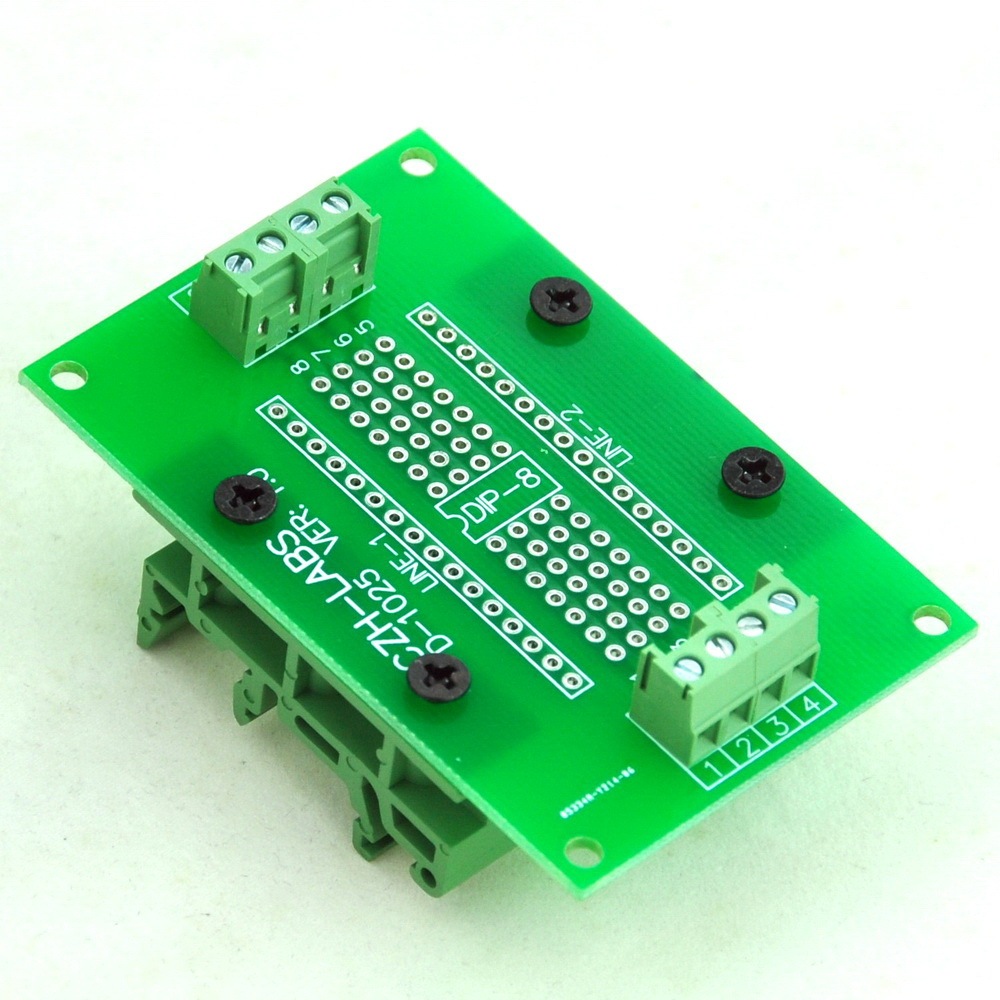

Simple DIN rail bracket, for width 35 / 32 / 15mm DIN rail.

Note: 1, the item included terminal blocks, but unsoldered (unassembled).
2, the item included a pair DIN rail bracket and four screws, but not include DIN rail.

Other version DIP-8, 14, 16, 18, 20, 28, 32, 40 please visit our store.
