DIP-18 Component to Screw Terminal Adapter Board, w/HQ DIN Rail Mount Carrier.

Name: DIP-18 Component to Screw Terminal Adapter Board, w/HQ DIN Rail Mount Carrier.
Brand: Xiken Tech
SKU: D-1028UT
Price: 17 USD
Availability: InStock

SKU: D-1028UT

$17.00 ~~$17.00~~

CZH-LABS DIP-18 Component to Screw Terminal Adapter Board, w/HQ DIN Rail Mount Carrier.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

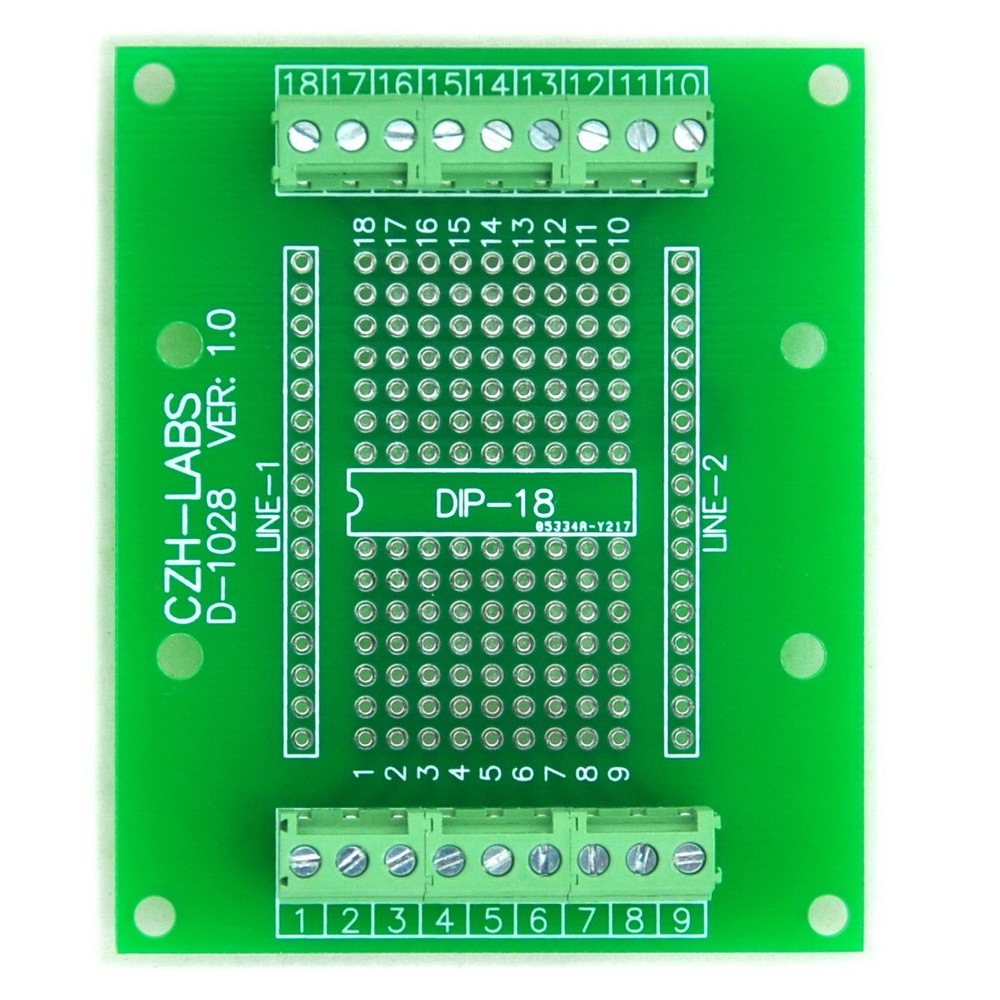

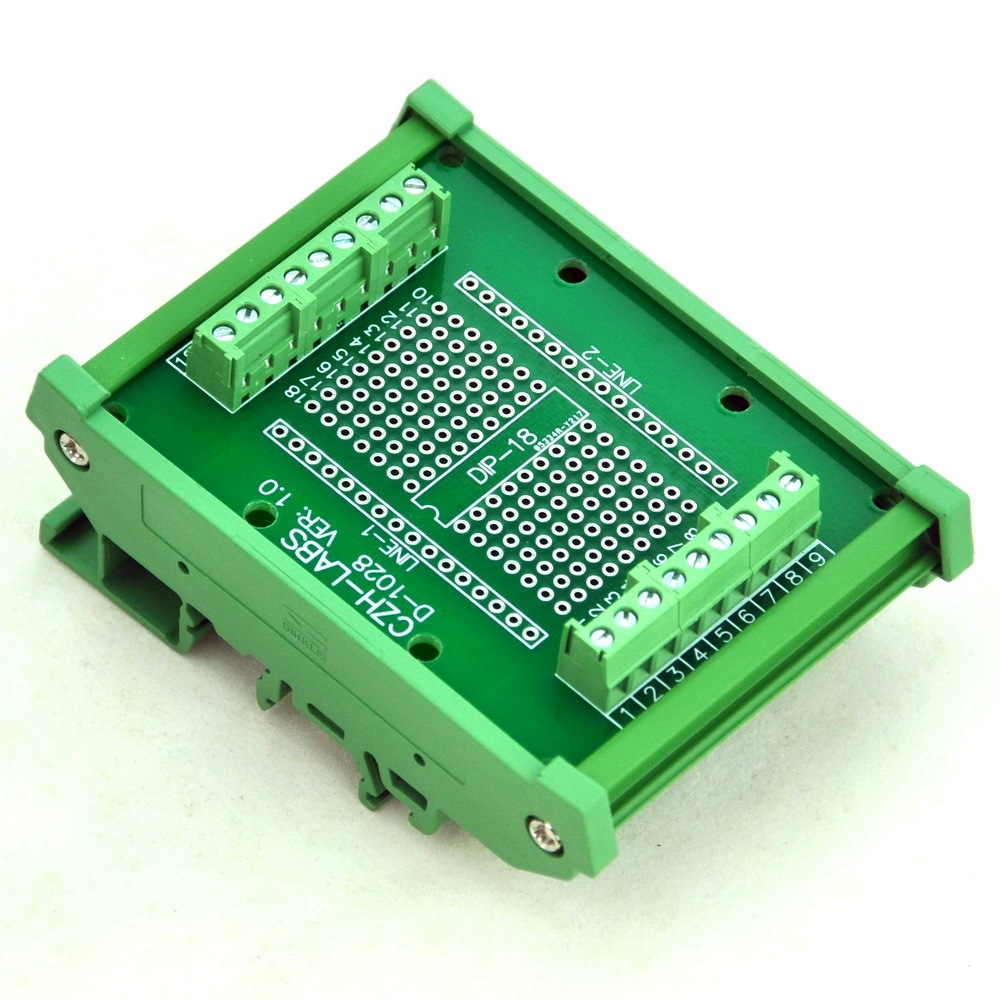

DIP-18 Component to Screw Terminal Adapter Board, with High Quality DIN Rail Mount Carrier.

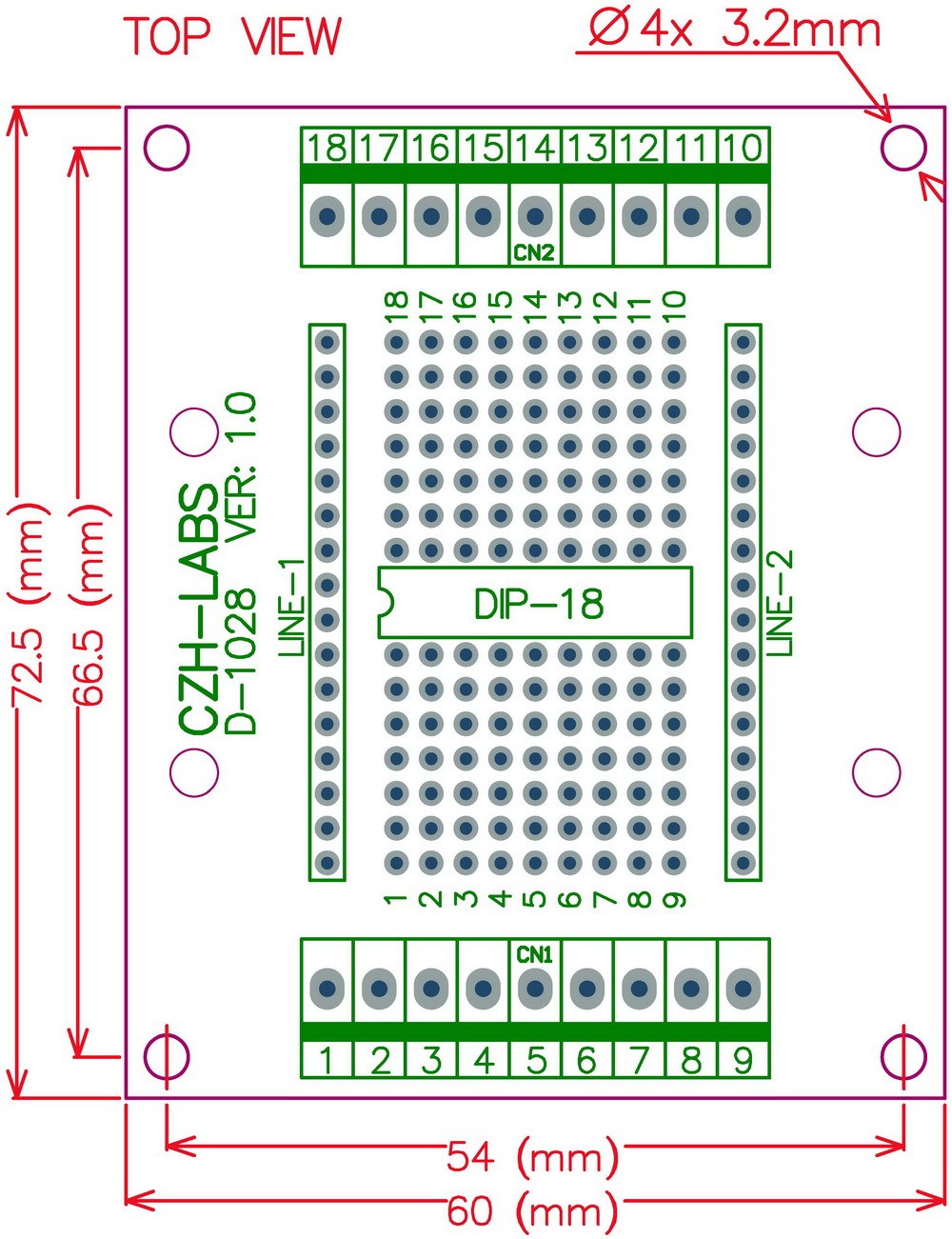

PCB Dimension: 60mm x 72.5mm, thickness : 1.6mm.
Material : FR-4 (glass fiber).

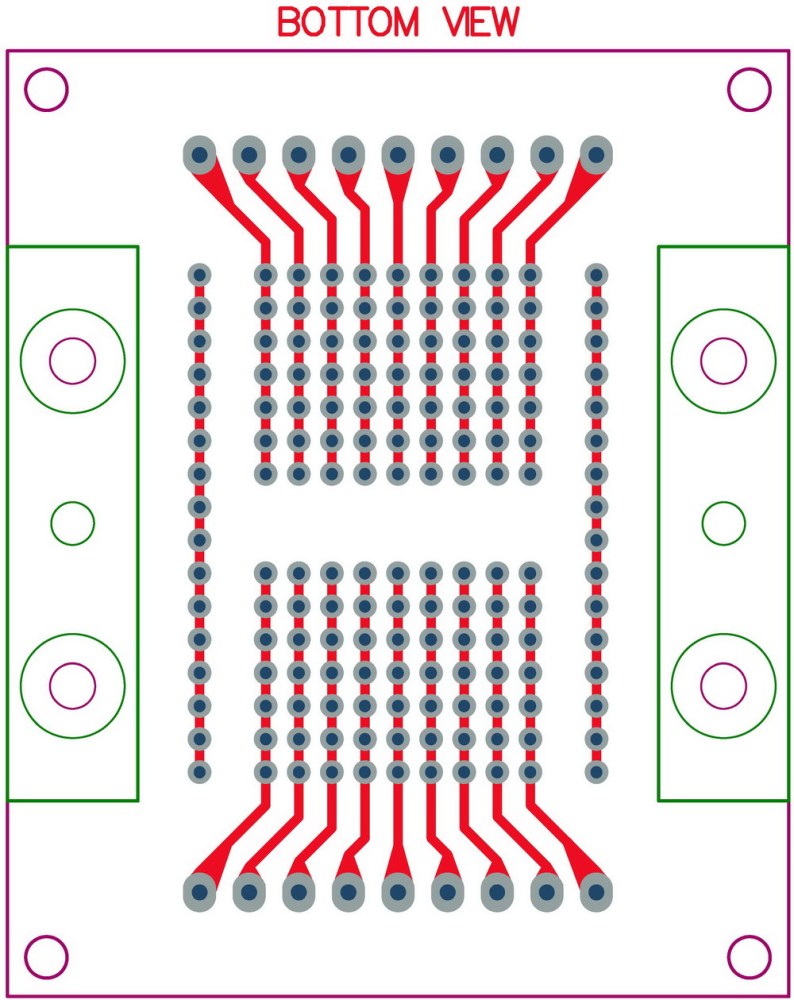

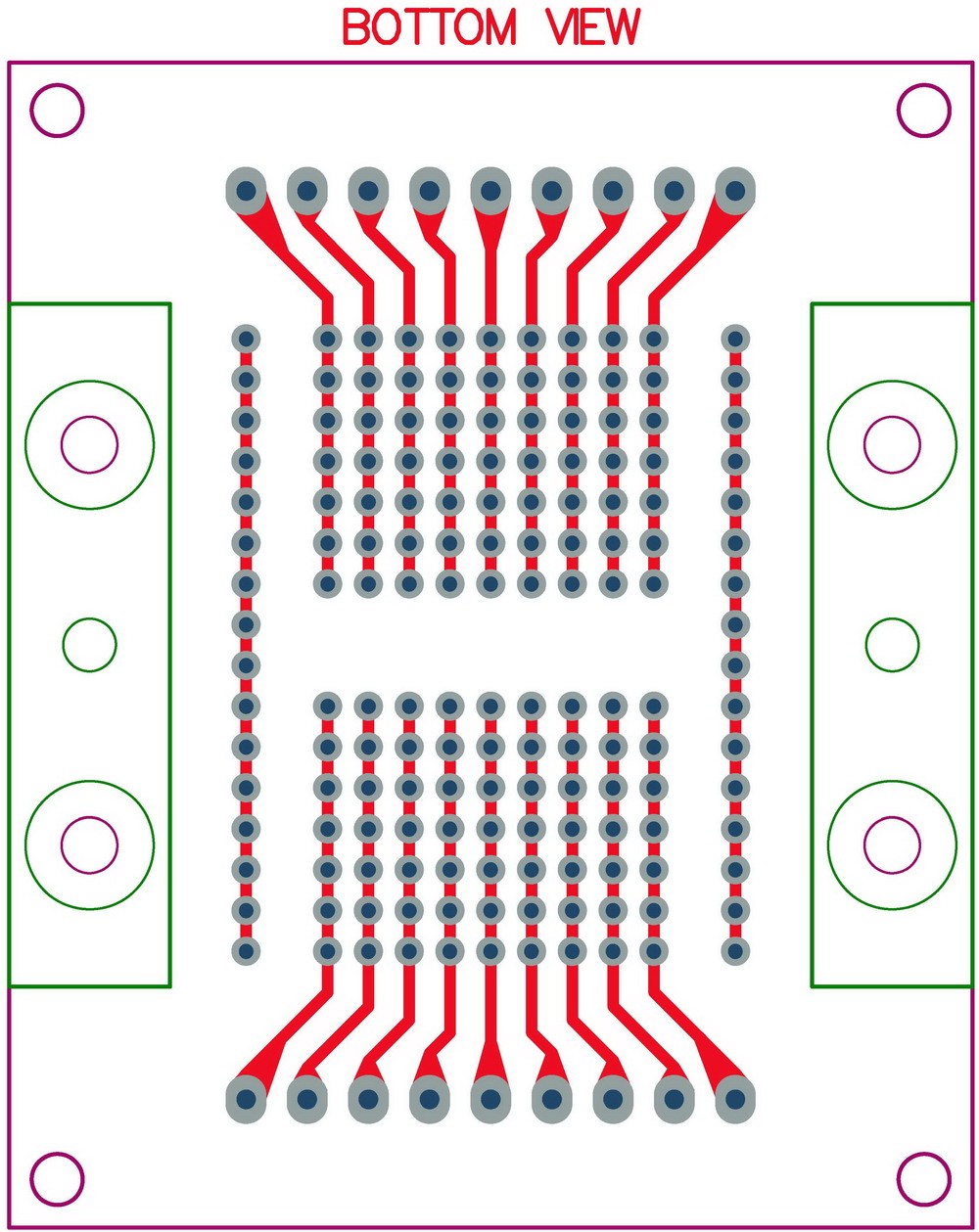

Solder pads grid (pitch) 2.54mm / 0.1", hole diameter 0.9mm, all holes are plated through.
Terminal block pitch 3.81mm/0.15", wire range 26~16AWG/1mm2.
High Quality DIN rail carrier, for width 35 / 32 / 15mm DIN rail.

Note: 1, the item included terminal blocks, but unsoldered (unassembled).
2, the item included 1 set DIN rail carrier, but not include DIN rail.

Other version DIP-8, 14, 16, 18, 20, 28, 32, 40 please visit our store.
