DIP-14 Component to Screw Terminal Block Adapter Board, DIP14 PCB.

Name: DIP-14 Component to Screw Terminal Block Adapter Board, DIP14 PCB.
Brand: Xiken Tech
SKU: D-1026U
Price: 7 USD
Availability: InStock

SKU: D-1026U

$7.00 ~~$7.00~~

CZH-LABS DIP-14 Component to Screw Terminal Block Adapter Board, DIP14 PCB.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

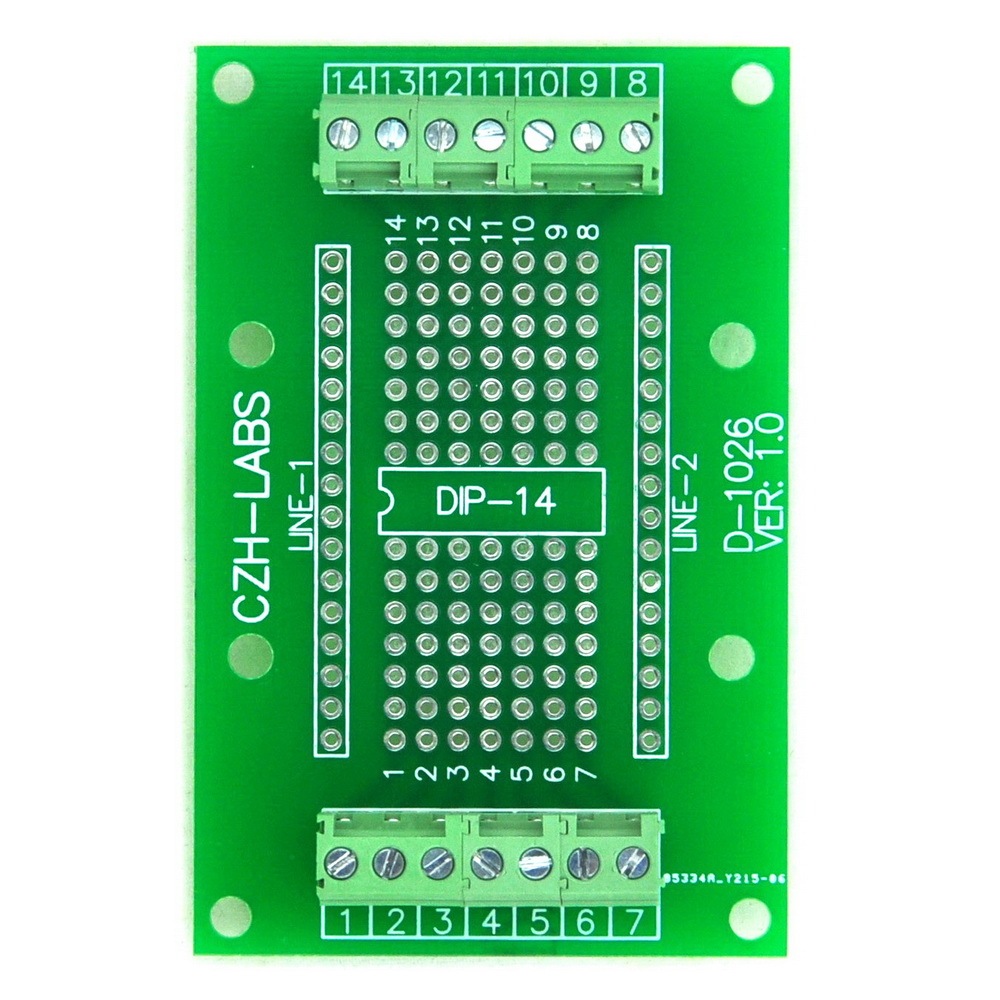

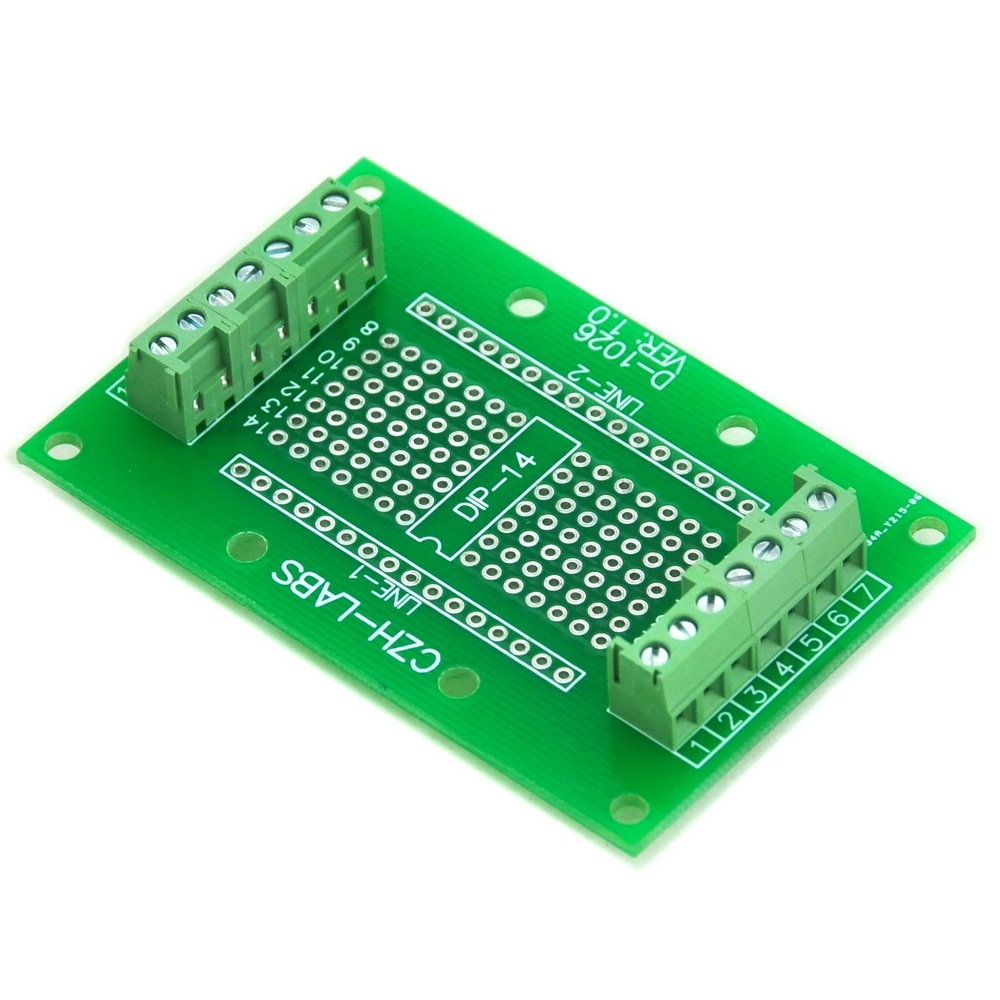

DIP-14 Component to Screw Terminal Adapter Board.

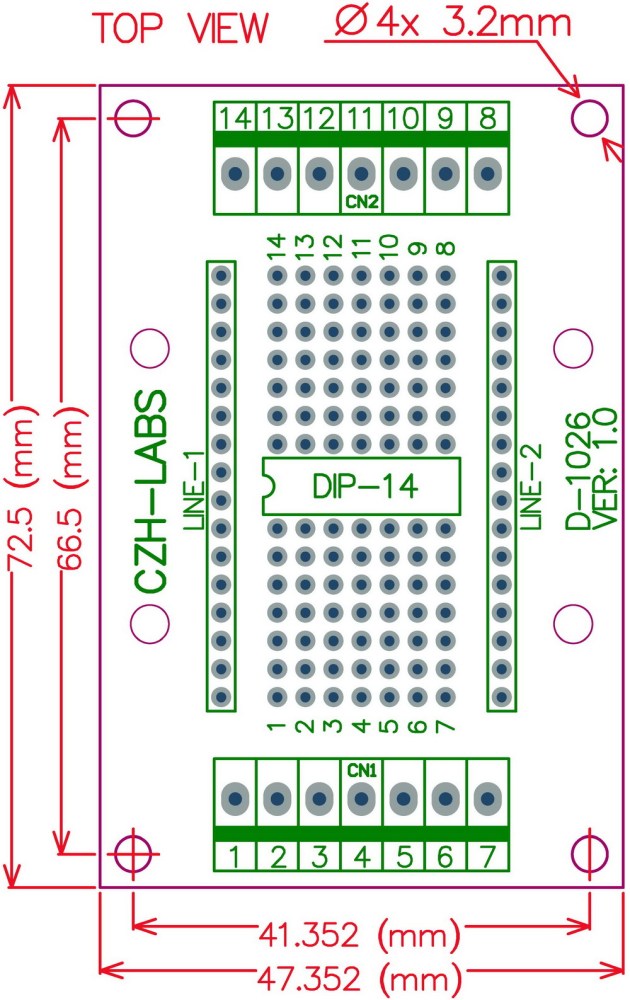

PCB Dimension: 47.35mm x 72.5mm, thickness : 1.6mm.
Material : FR-4 (glass fiber).

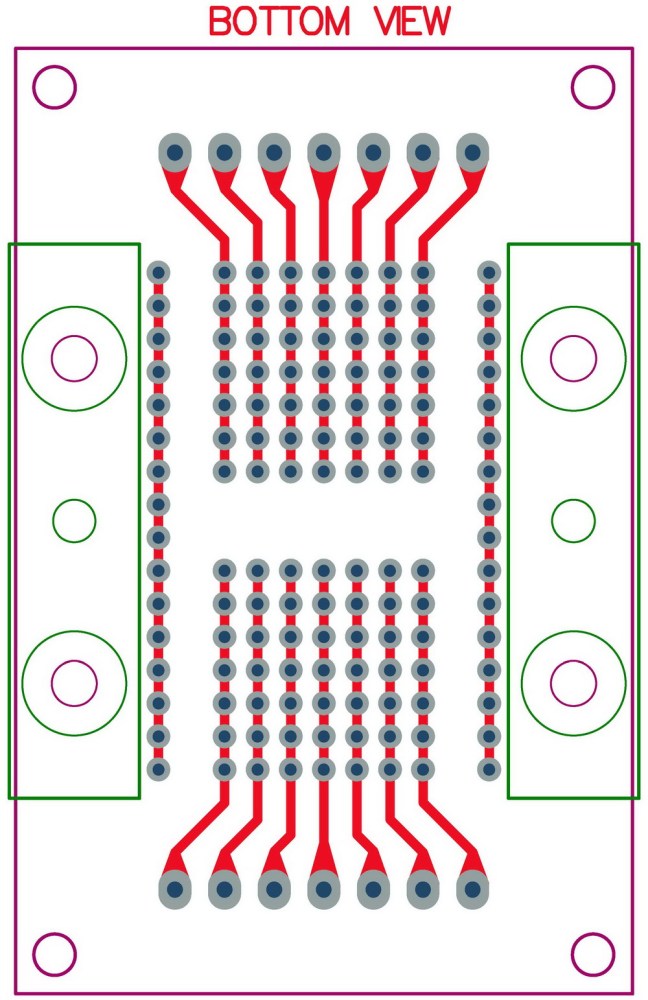

Solder pads grid (pitch) 2.54mm / 0.1", hole diameter 0.9mm, all holes are plated through.
Terminal block pitch 3.81mm/0.15", wire range 26~16AWG/1mm2.
Note: these terminal blocks unsoldered (unassembled).

Other version DIP-8, 14, 16, 18, 20, 28, 32, 40 please visit our store.
