DIN Rail Mount Safety Relay Module, 24V AC/DC, G7SA-4A2B, 4PST-NO DPST-NC.

SKU: D-1134T
$50.00 $50.00
CZH-LABS DIN Rail Mount Safety Relay Module, 24V AC/DC, G7SA-4A2B, 4PST-NO DPST-NC.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $50 = $50
save $0.00
Add to Favorites
  • DIN Rail Mount Safety Relay Module, 24V AC/DC, G7SA-4A2B, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 24V AC/DC, G7SA-4A2B, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 24V AC/DC, G7SA-4A2B, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 24V AC/DC, G7SA-4A2B, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 24V AC/DC, G7SA-4A2B, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 24V AC/DC, G7SA-4A2B, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 24V AC/DC, G7SA-4A2B, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 24V AC/DC, G7SA-4A2B, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 24V AC/DC, G7SA-4A2B, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 24V AC/DC, G7SA-4A2B, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 24V AC/DC, G7SA-4A2B, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 24V AC/DC, G7SA-4A2B, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 24V AC/DC, G7SA-4A2B, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 24V AC/DC, G7SA-4A2B, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 24V AC/DC, G7SA-4A2B, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 24V AC/DC, G7SA-4A2B, 4PST-NO DPST-NC.
1/1
  • DIN Rail Mount Safety Relay Module, 24V AC/DC, G7SA-4A2B, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 24V AC/DC, G7SA-4A2B, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 24V AC/DC, G7SA-4A2B, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 24V AC/DC, G7SA-4A2B, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 24V AC/DC, G7SA-4A2B, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 24V AC/DC, G7SA-4A2B, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 24V AC/DC, G7SA-4A2B, 4PST-NO DPST-NC.
  • DIN Rail Mount Safety Relay Module, 24V AC/DC, G7SA-4A2B, 4PST-NO DPST-NC.
  • Description

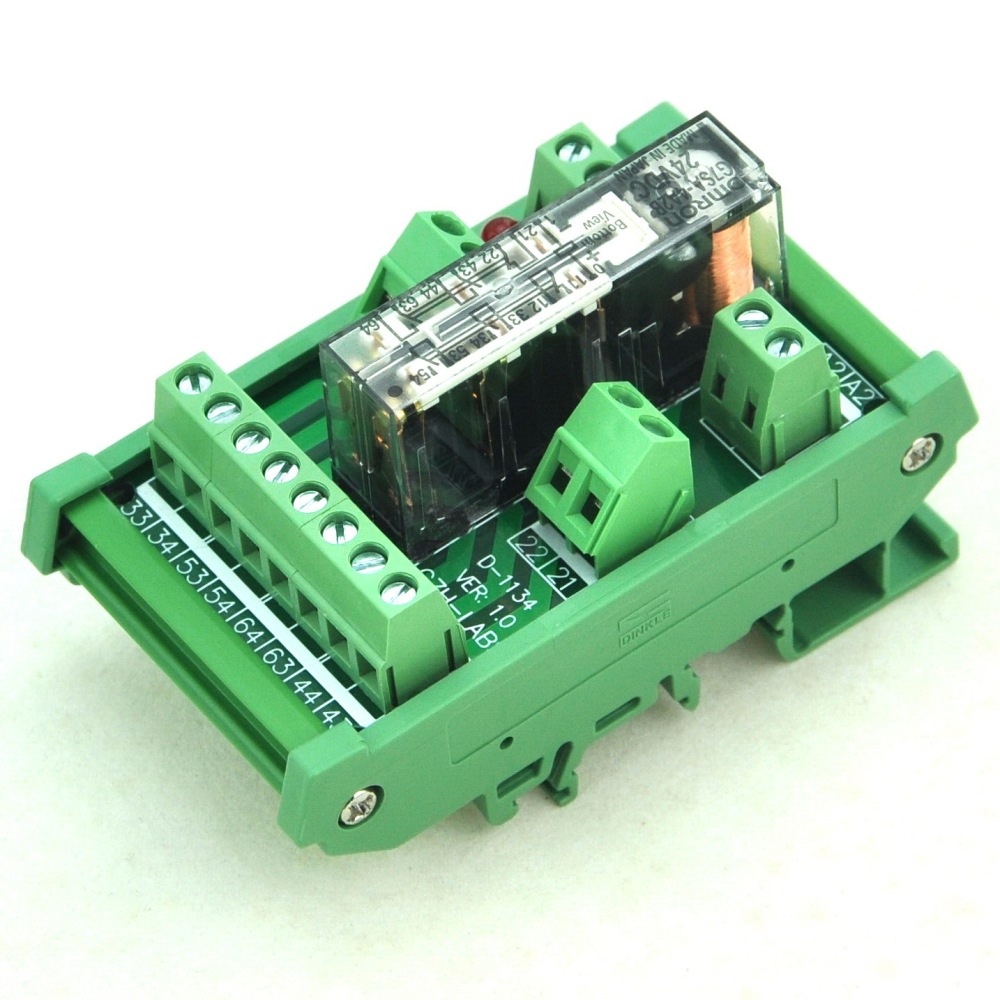

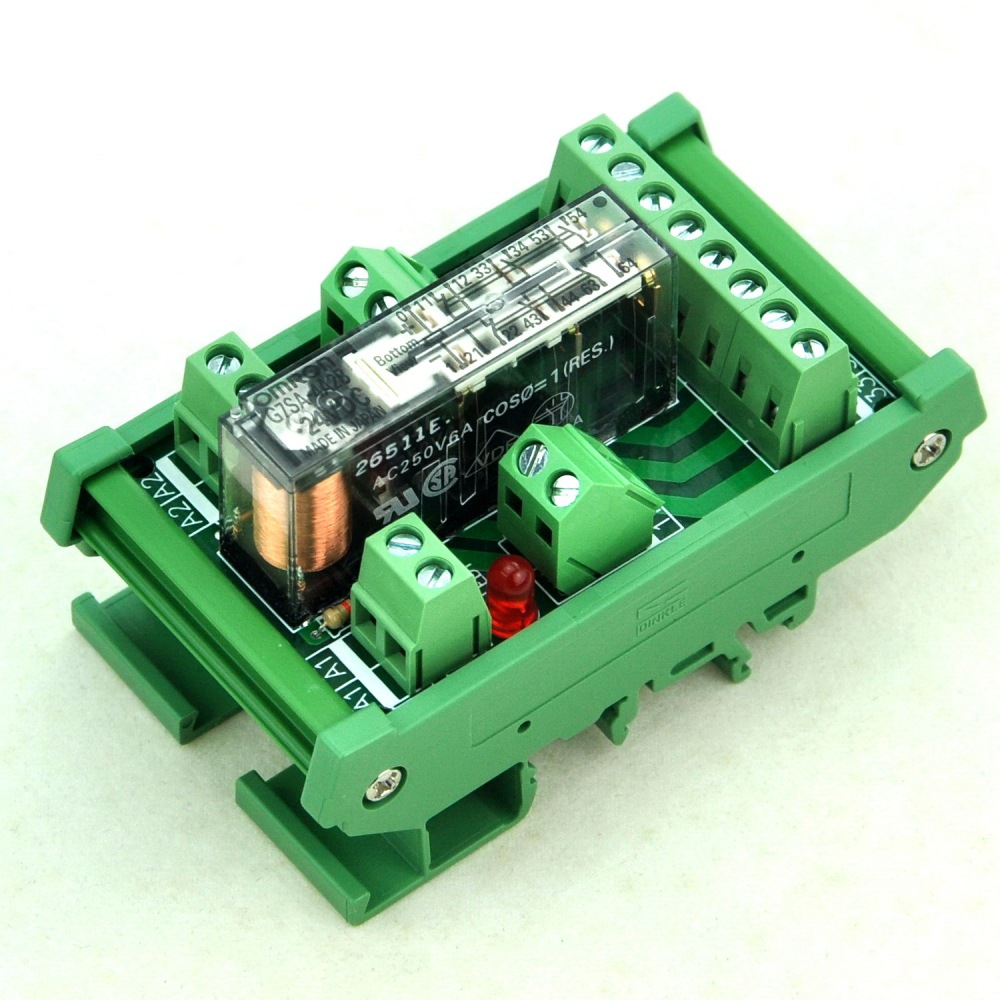

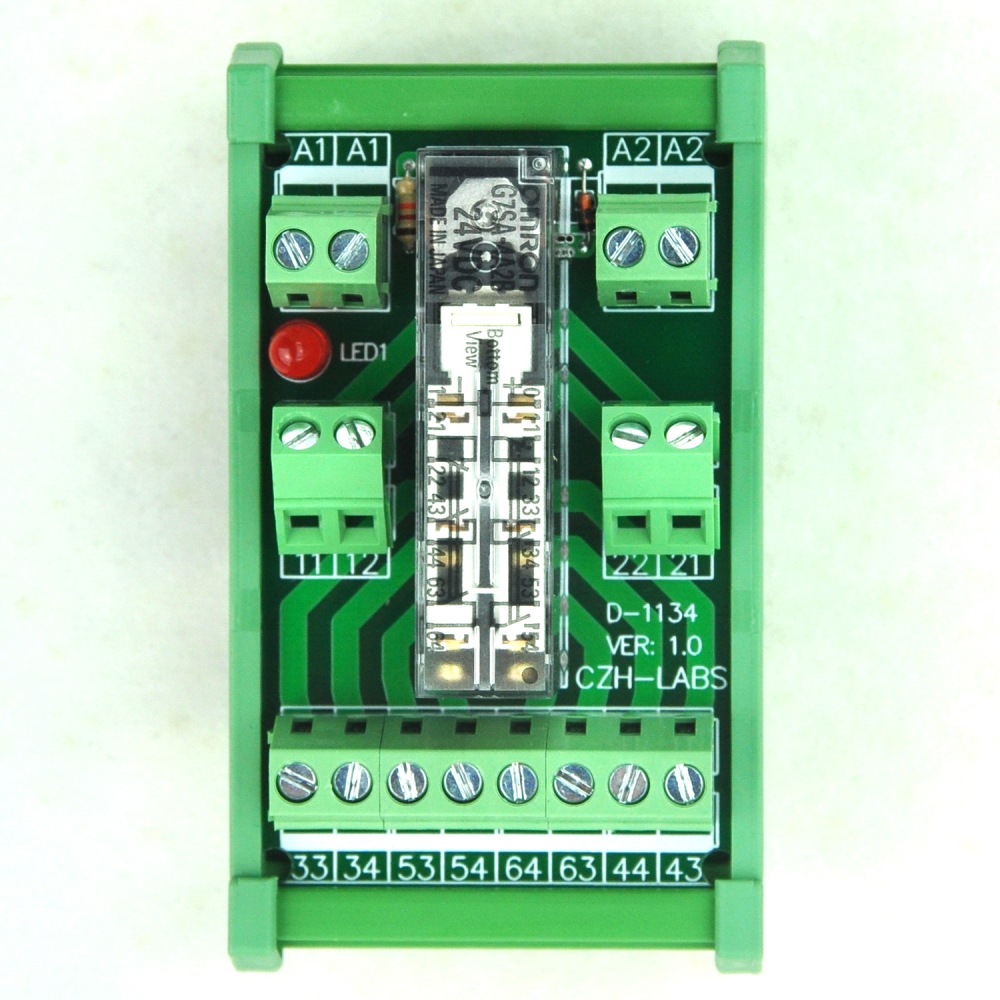

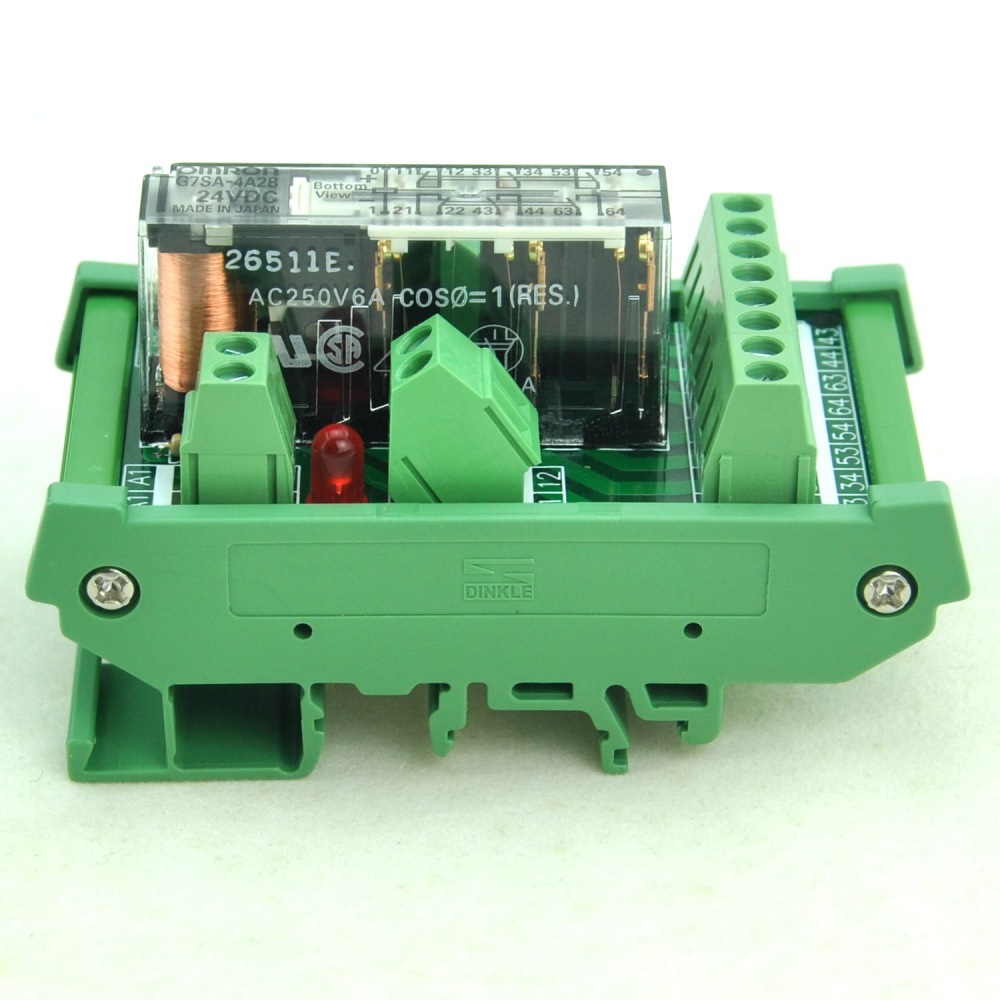

DIN Rail Mount Safety Relay Module, 24V AC/DC, G7SA-4A2B, 4PST-NO DPST-NC.

Operating voltage: DC 24V(18 to 26.4V), or AC 24V(20 to 25V).
Operating current: 23mA(at 24VDC).

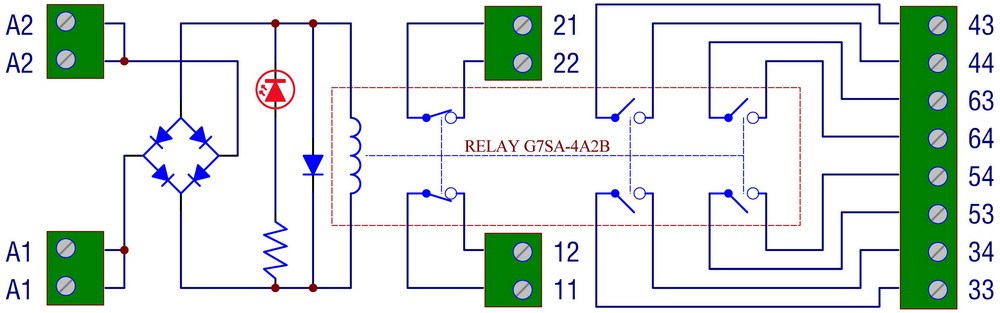

Poles / Contact configuration: 6 poles / 4PST-NO, DPST-NC.
Switch voltage / current: 250VAC / 6A.
Relay number: G7SA-4A2B 24VDC.
Relay coil protection by means of a freewheeling diode.
LED indication to denote relay actuation.

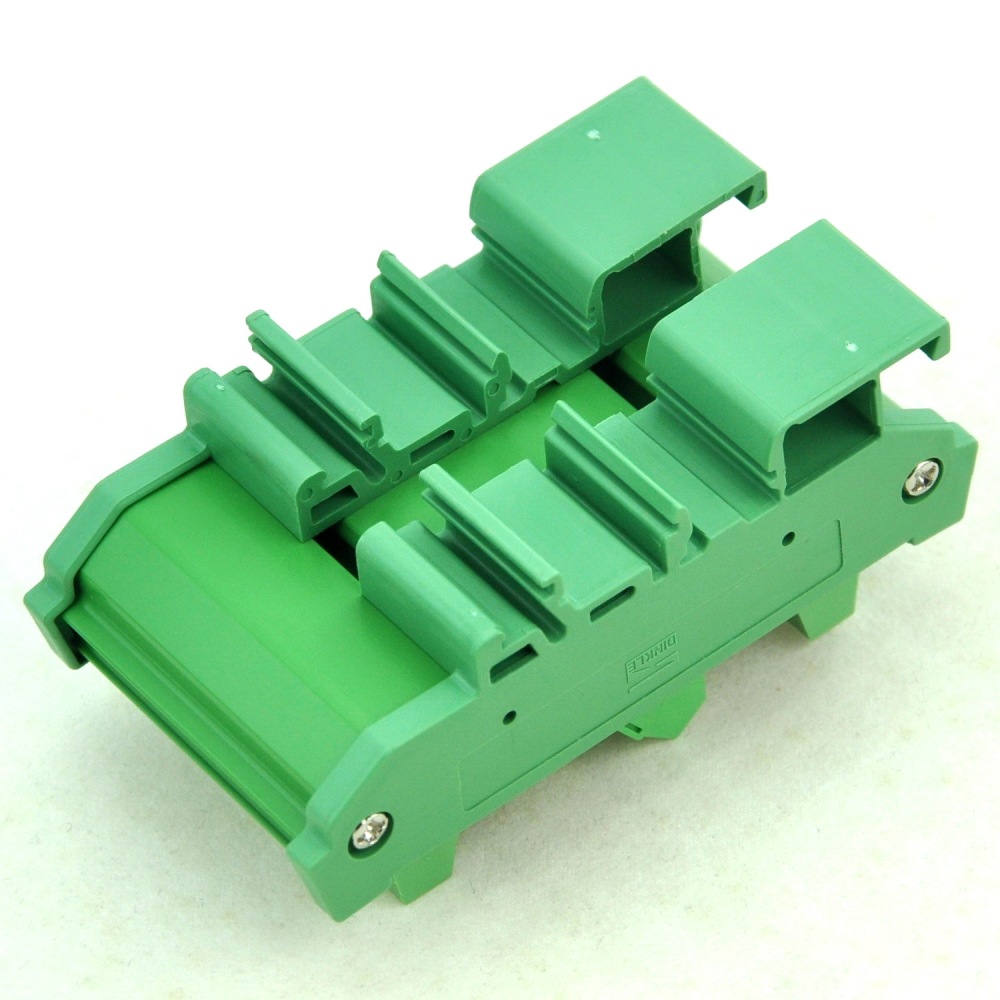

High quality fireproof materials DIN rail mount carrier, can support width 15mm/32mm/35mm rail.
100% new, never used.
