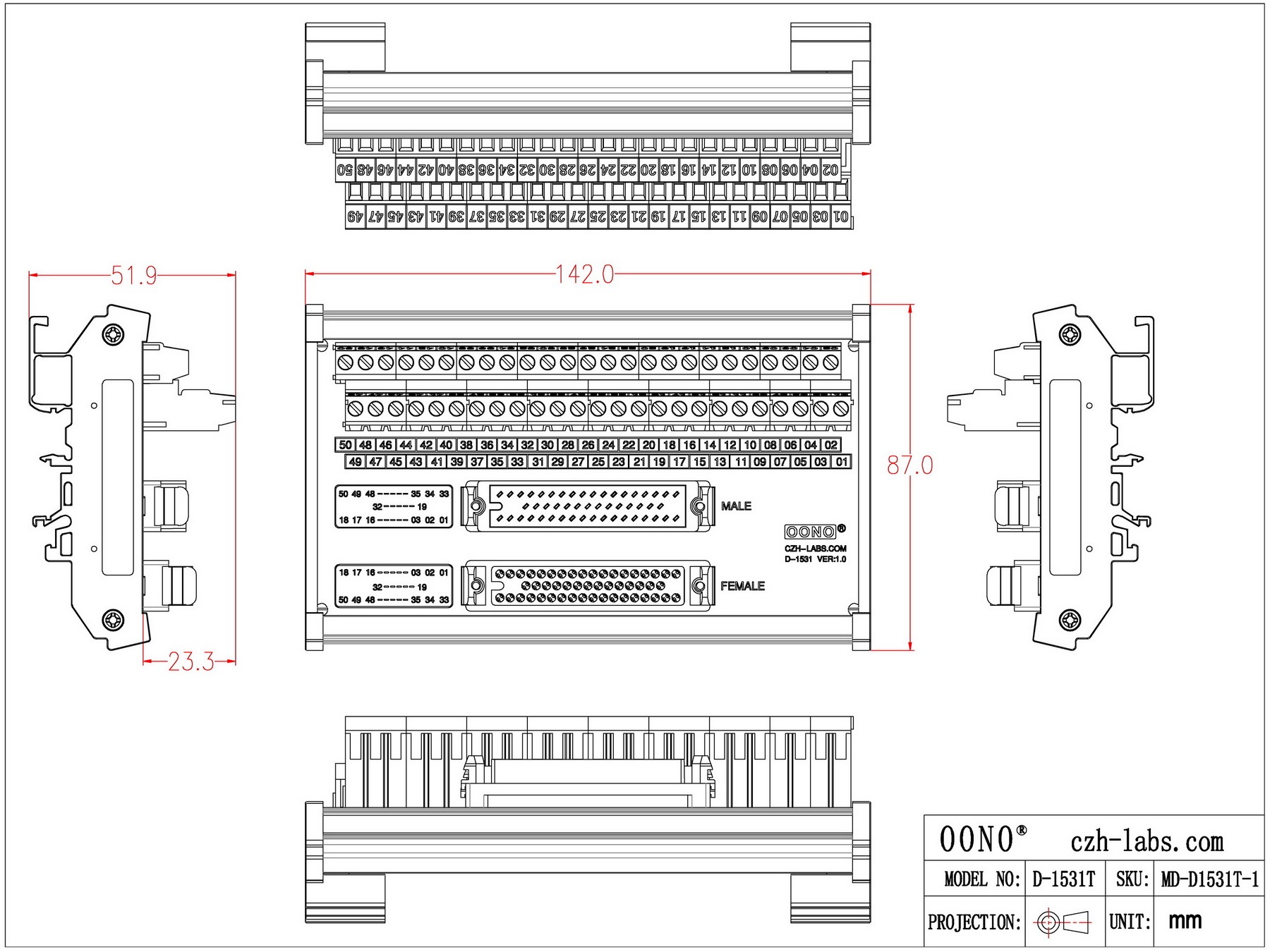

DIN Rail Mount MR50 Male-Female Breakout Board Terminal Block Interface Module, MR-50RMD2 MR-50RFD2

SKU: D-1531T
$65.00 $65.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-max
    Please select the information you wantX
Quantity:
1 * $65 = $65
save $0.00
Add to Favorites
  • DIN Rail Mount MR50 Male-Female Breakout Board Terminal Block Interface Module, MR-50RMD2 MR-50RFD2
  • DIN Rail Mount MR50 Male-Female Breakout Board Terminal Block Interface Module, MR-50RMD2 MR-50RFD2
  • DIN Rail Mount MR50 Male-Female Breakout Board Terminal Block Interface Module, MR-50RMD2 MR-50RFD2
  • DIN Rail Mount MR50 Male-Female Breakout Board Terminal Block Interface Module, MR-50RMD2 MR-50RFD2
  • DIN Rail Mount MR50 Male-Female Breakout Board Terminal Block Interface Module, MR-50RMD2 MR-50RFD2
  • DIN Rail Mount MR50 Male-Female Breakout Board Terminal Block Interface Module, MR-50RMD2 MR-50RFD2
  • DIN Rail Mount MR50 Male-Female Breakout Board Terminal Block Interface Module, MR-50RMD2 MR-50RFD2
  • DIN Rail Mount MR50 Male-Female Breakout Board Terminal Block Interface Module, MR-50RMD2 MR-50RFD2
  • DIN Rail Mount MR50 Male-Female Breakout Board Terminal Block Interface Module, MR-50RMD2 MR-50RFD2
  • DIN Rail Mount MR50 Male-Female Breakout Board Terminal Block Interface Module, MR-50RMD2 MR-50RFD2
  • DIN Rail Mount MR50 Male-Female Breakout Board Terminal Block Interface Module, MR-50RMD2 MR-50RFD2
  • DIN Rail Mount MR50 Male-Female Breakout Board Terminal Block Interface Module, MR-50RMD2 MR-50RFD2
  • DIN Rail Mount MR50 Male-Female Breakout Board Terminal Block Interface Module, MR-50RMD2 MR-50RFD2
  • DIN Rail Mount MR50 Male-Female Breakout Board Terminal Block Interface Module, MR-50RMD2 MR-50RFD2
  • DIN Rail Mount MR50 Male-Female Breakout Board Terminal Block Interface Module, MR-50RMD2 MR-50RFD2
  • DIN Rail Mount MR50 Male-Female Breakout Board Terminal Block Interface Module, MR-50RMD2 MR-50RFD2
1/1
  • DIN Rail Mount MR50 Male-Female Breakout Board Terminal Block Interface Module, MR-50RMD2 MR-50RFD2
  • DIN Rail Mount MR50 Male-Female Breakout Board Terminal Block Interface Module, MR-50RMD2 MR-50RFD2
  • DIN Rail Mount MR50 Male-Female Breakout Board Terminal Block Interface Module, MR-50RMD2 MR-50RFD2
  • DIN Rail Mount MR50 Male-Female Breakout Board Terminal Block Interface Module, MR-50RMD2 MR-50RFD2
  • DIN Rail Mount MR50 Male-Female Breakout Board Terminal Block Interface Module, MR-50RMD2 MR-50RFD2
  • DIN Rail Mount MR50 Male-Female Breakout Board Terminal Block Interface Module, MR-50RMD2 MR-50RFD2
  • DIN Rail Mount MR50 Male-Female Breakout Board Terminal Block Interface Module, MR-50RMD2 MR-50RFD2
  • DIN Rail Mount MR50 Male-Female Breakout Board Terminal Block Interface Module, MR-50RMD2 MR-50RFD2
  • Description

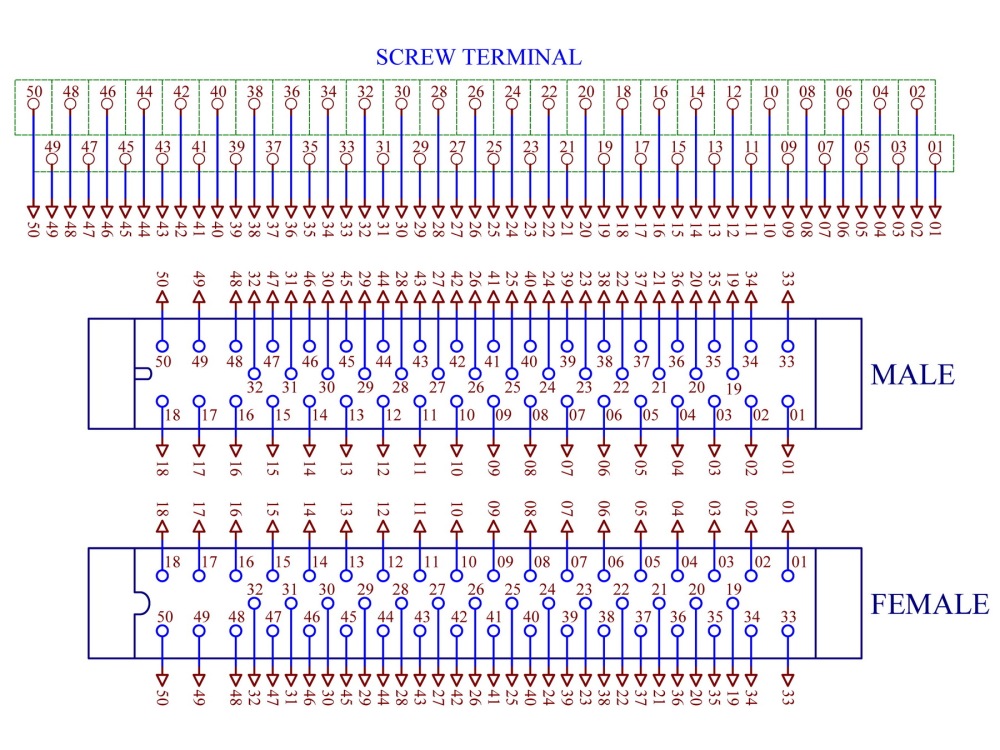

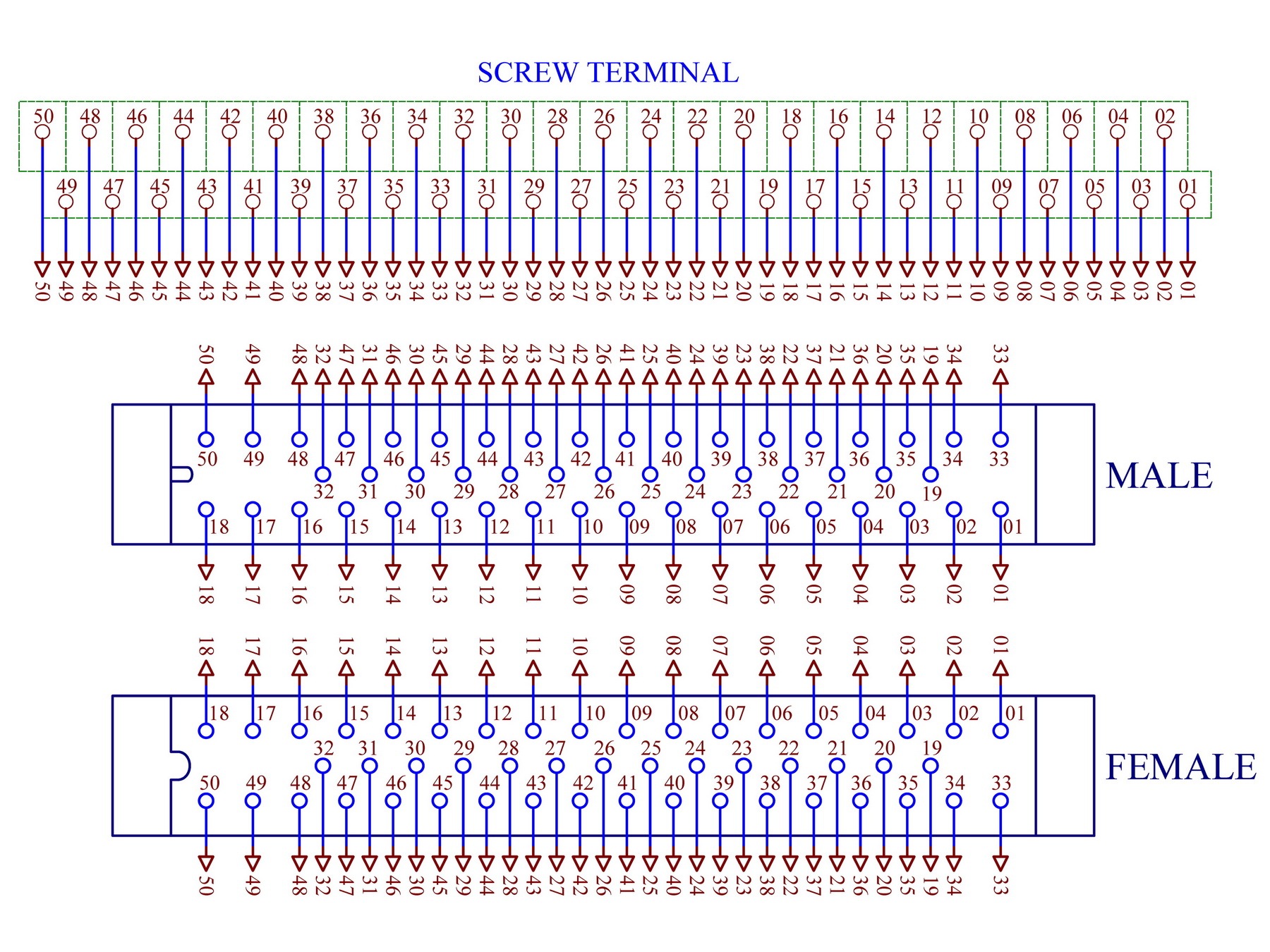

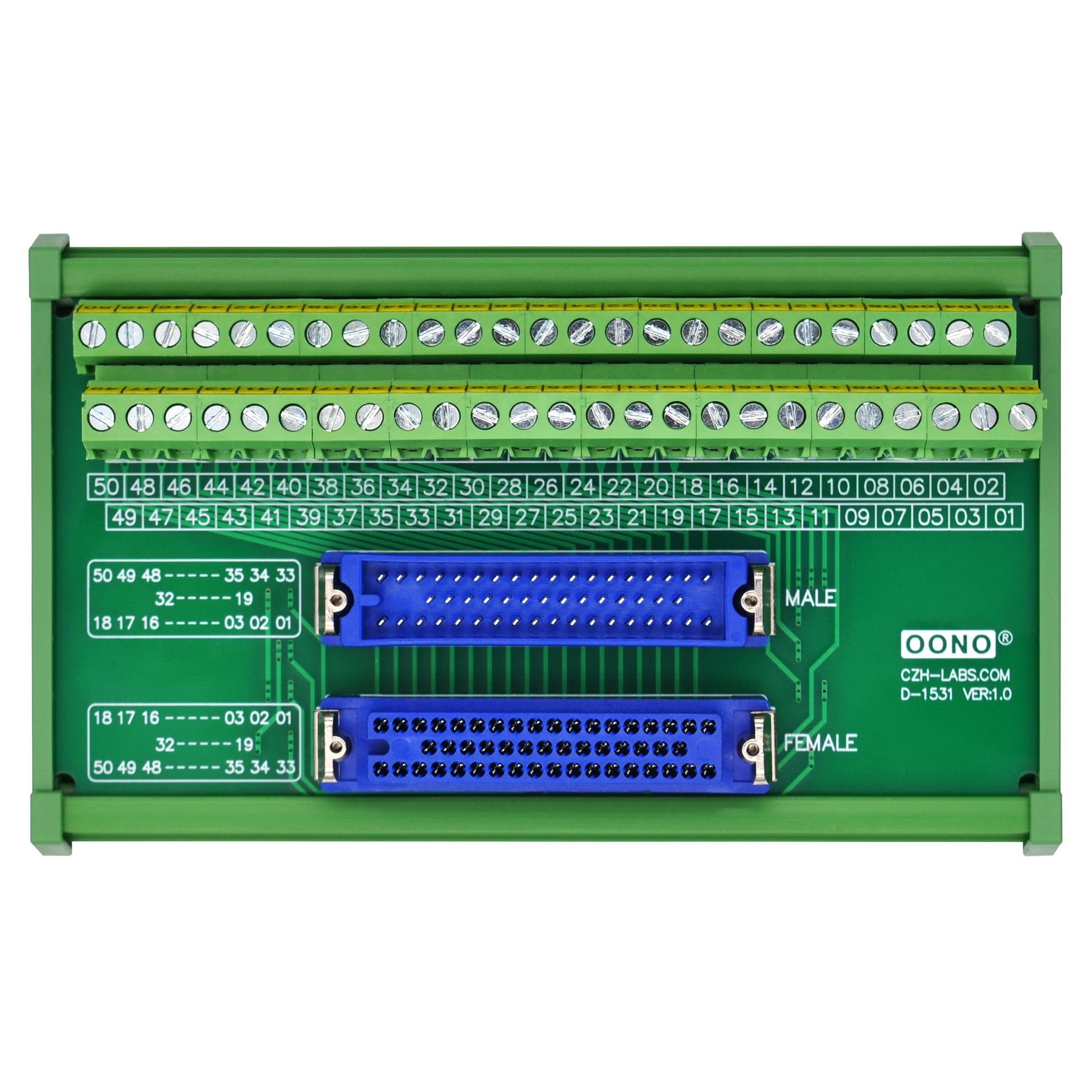

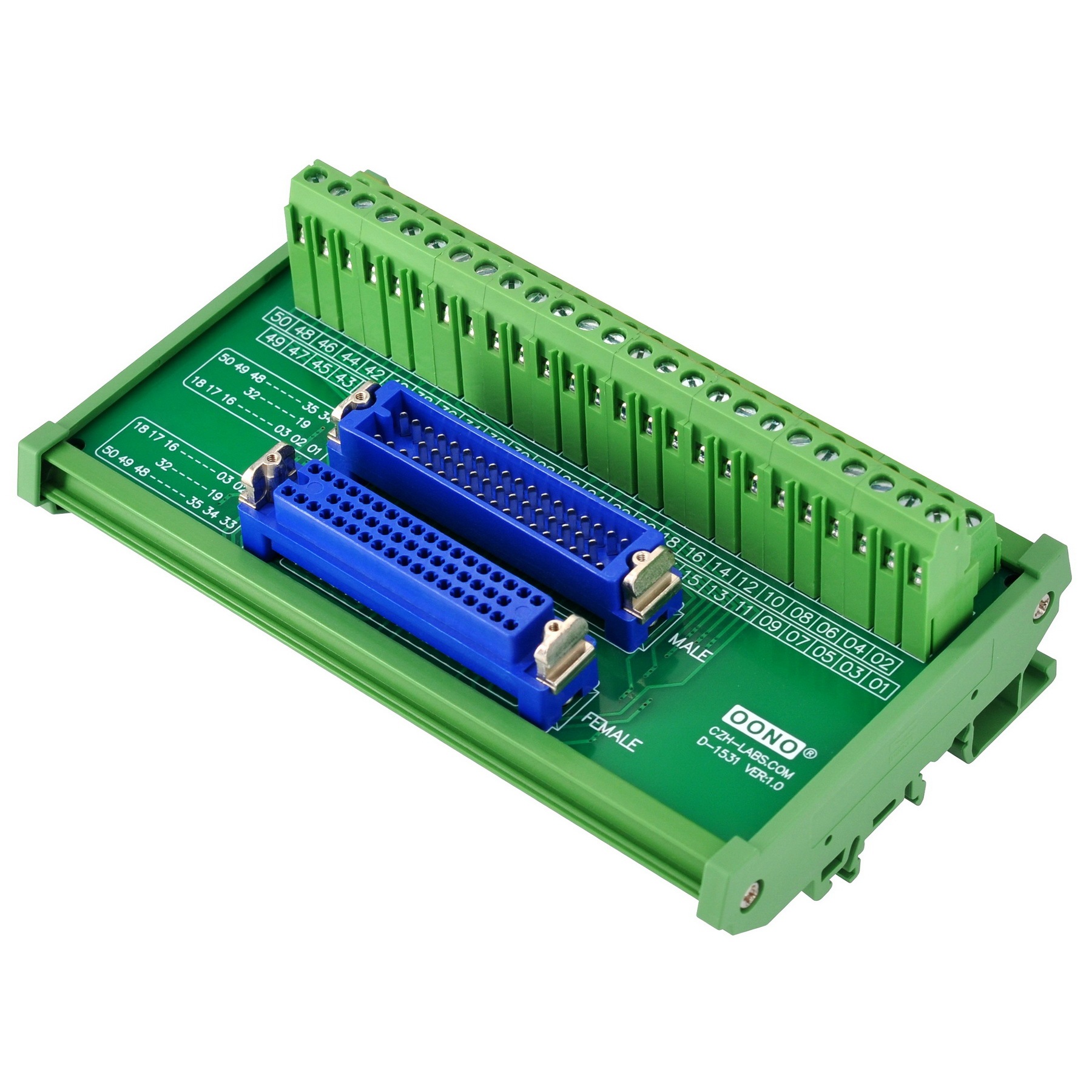

1, DIN rail mount MR50 Male(MR-50RMD2) to Female(MR-50RFD2) breakout board terminal block interface module. Male header, female header and screw terminal 1:1:1 connects for per line.
2, Rated voltage: 70V. Rated current: 1.5Amp / per pin. Operating temperature: -40C to 105C. (MR50 connectors rated voltage and current are 300V / 3 Amp, but due to the limitations of the PCB layout, do not exceed 70V / 1.5 Amp when used).

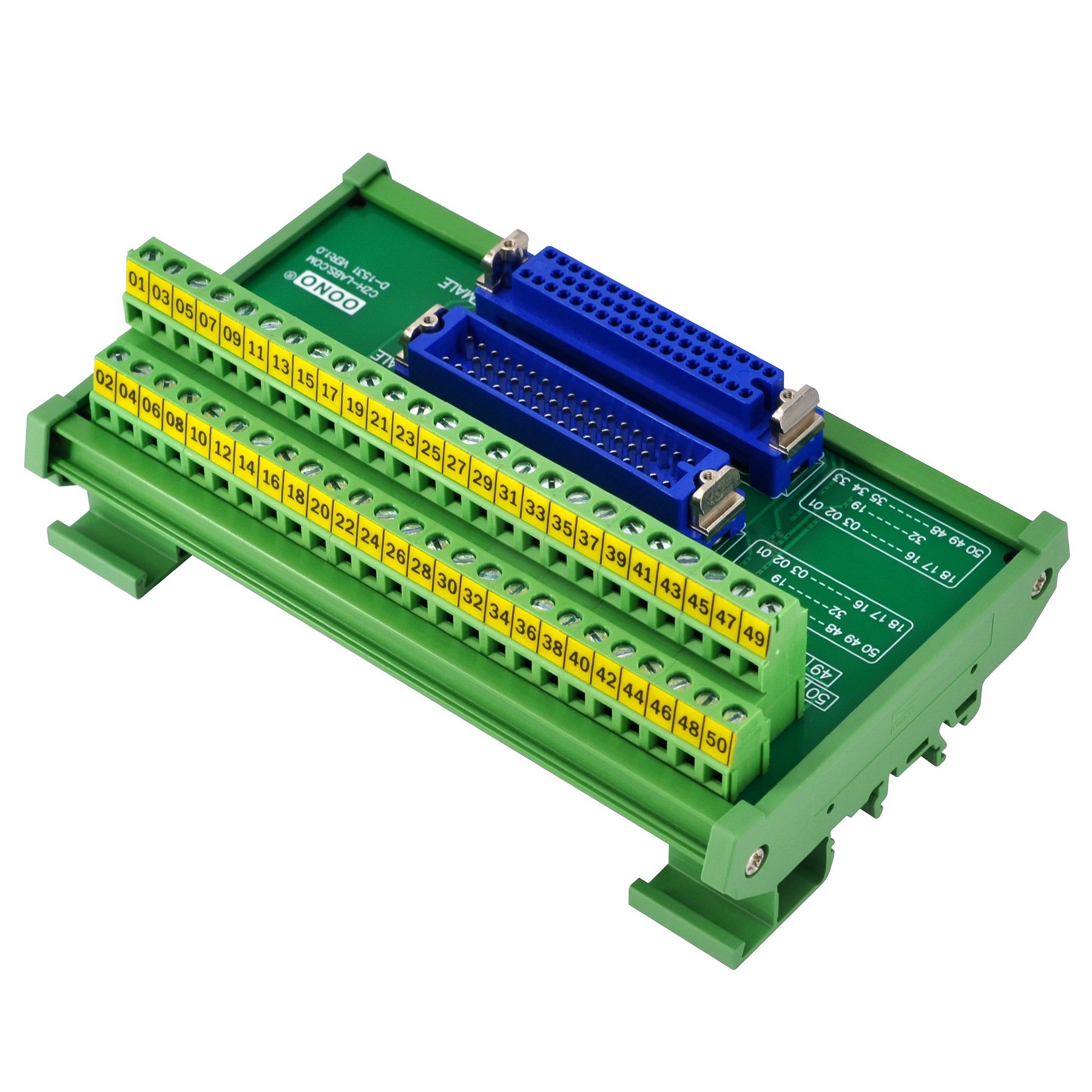

3, Terminal Block: Pitch 5.08mm/0.2" screw terminal block. Wire range 26 to 12AWG / 2.5mm square. Strip length 7mm / 0.28”. Screws - M2.5.

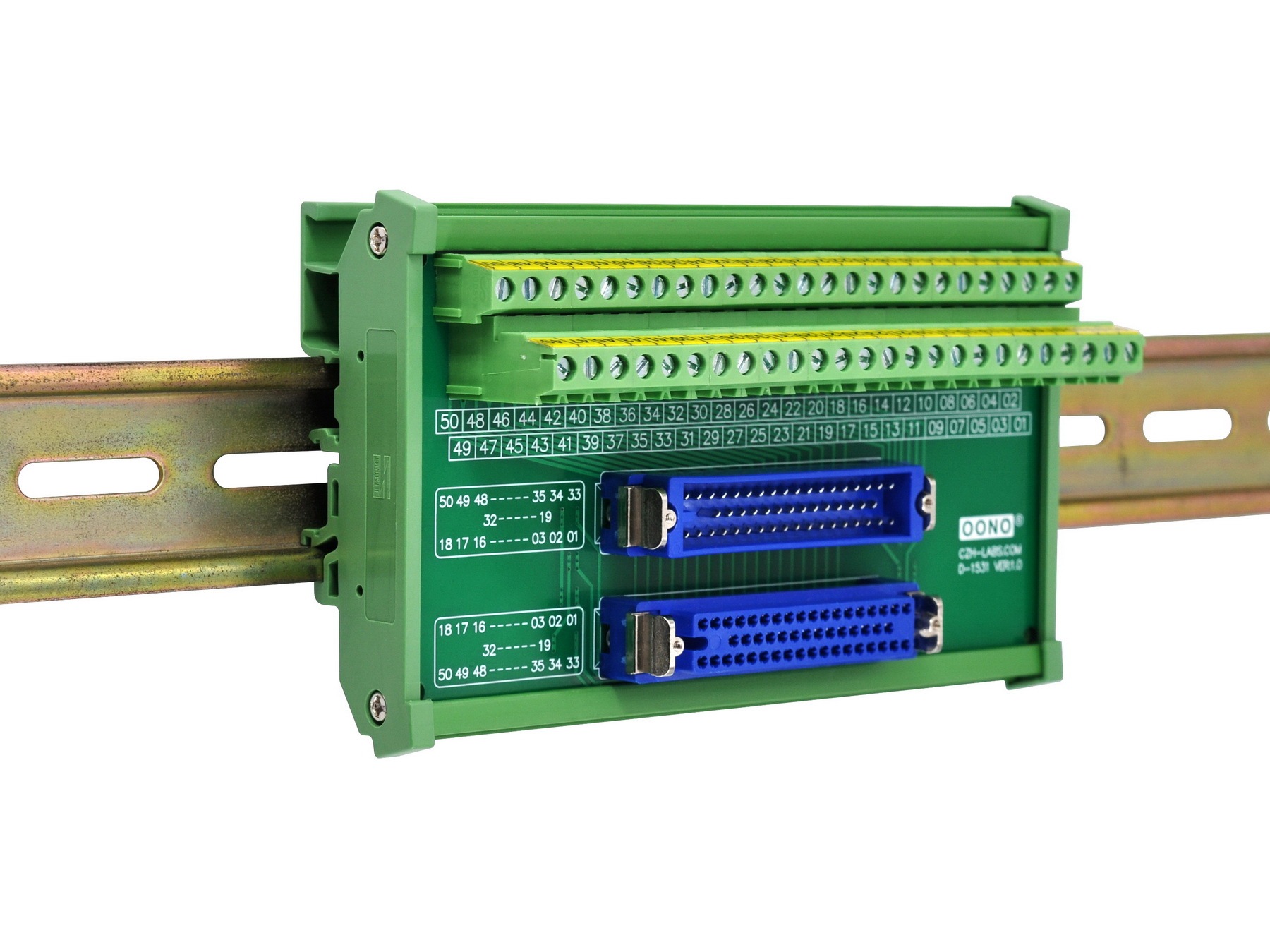

4, Fireproof nylon material DIN rail mount carrier can support width 35mm 32mm 15mm rail. FR-4 fiberglass dual copper layers PCB.
5, UL CE certified nylon material DIN rail mount carrier. UL CE CQC certified terminal blocks. UL CE certified connectors. UL 94-V0 certified PCB.
