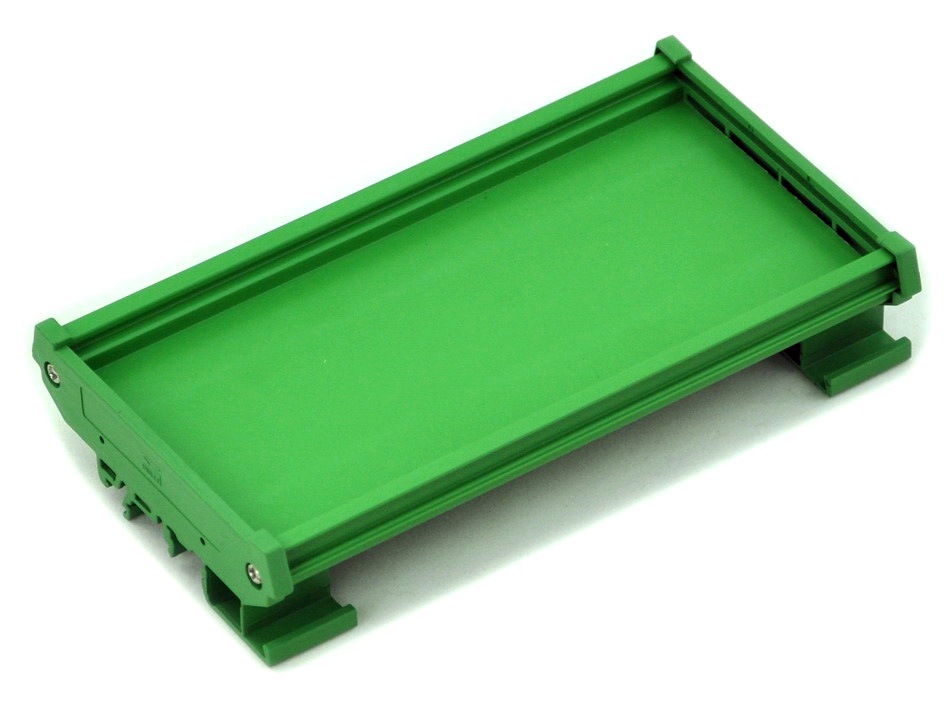

DIN Rail Mount Carrier, for 100mm x 72mm PCB, Housing, Bracket

SKU: CASE-044/100-1
$14.00 $14.00
DIN Rail Mount Carrier, for 100mm x 72mm PCB, Housing, Bracket
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-29
20% Off
30-99
30% Off
100-299
40% Off
300-max
    Please select the information you wantX
Quantity:
1 * $14 = $14
save $0.00
Add to Favorites
  • DIN Rail Mount Carrier, for 100mm x 72mm PCB, Housing, Bracket
  • DIN Rail Mount Carrier, for 120mm x 72mm PCB, Housing, Bracket
  • DIN Rail Mount Carrier, for 120mm x 72mm PCB, Housing, Bracket
  • DIN Rail Mount Carrier, for 120mm x 72mm PCB, Housing, Bracket
  • DIN Rail Mount Carrier, for 120mm x 72mm PCB, Housing, Bracket
  • DIN Rail Mount Carrier, for 120mm x 72mm PCB, Housing, Bracket
  • DIN Rail Mount Carrier, for 100mm x 72mm PCB, Housing, Bracket
  • DIN Rail Mount Carrier, for 120mm x 72mm PCB, Housing, Bracket
  • DIN Rail Mount Carrier, for 120mm x 72mm PCB, Housing, Bracket
  • DIN Rail Mount Carrier, for 120mm x 72mm PCB, Housing, Bracket
  • DIN Rail Mount Carrier, for 120mm x 72mm PCB, Housing, Bracket
  • DIN Rail Mount Carrier, for 120mm x 72mm PCB, Housing, Bracket
1/1
  • DIN Rail Mount Carrier, for 100mm x 72mm PCB, Housing, Bracket
  • DIN Rail Mount Carrier, for 120mm x 72mm PCB, Housing, Bracket
  • DIN Rail Mount Carrier, for 120mm x 72mm PCB, Housing, Bracket
  • DIN Rail Mount Carrier, for 120mm x 72mm PCB, Housing, Bracket
  • DIN Rail Mount Carrier, for 120mm x 72mm PCB, Housing, Bracket
  • DIN Rail Mount Carrier, for 120mm x 72mm PCB, Housing, Bracket
  • Description

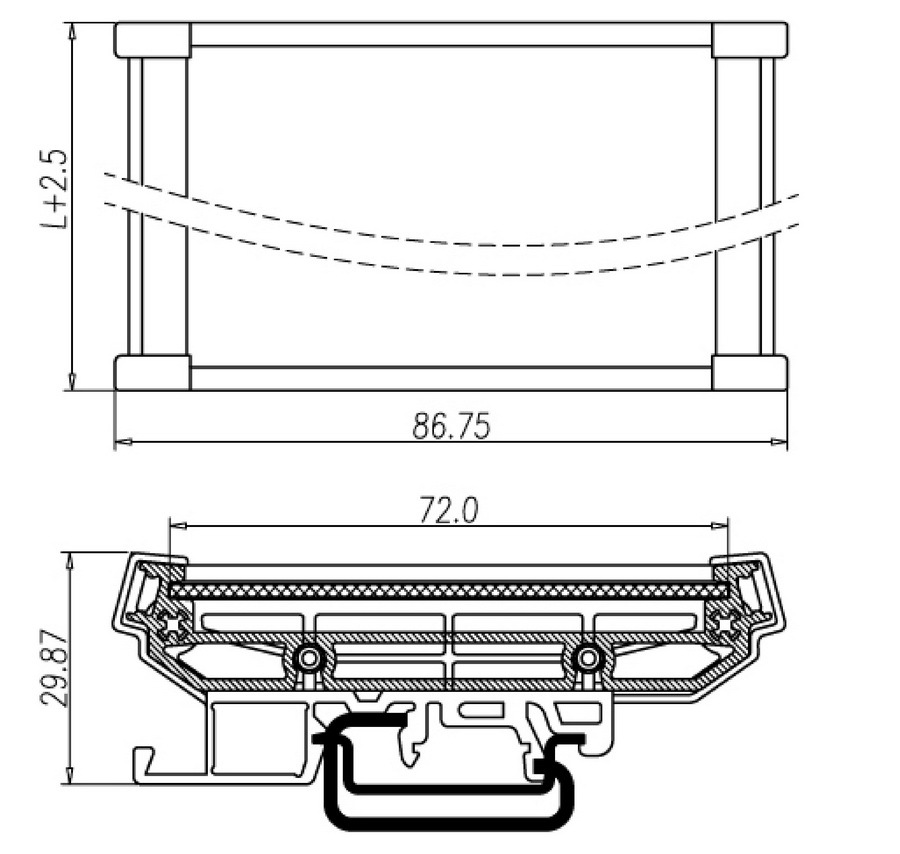

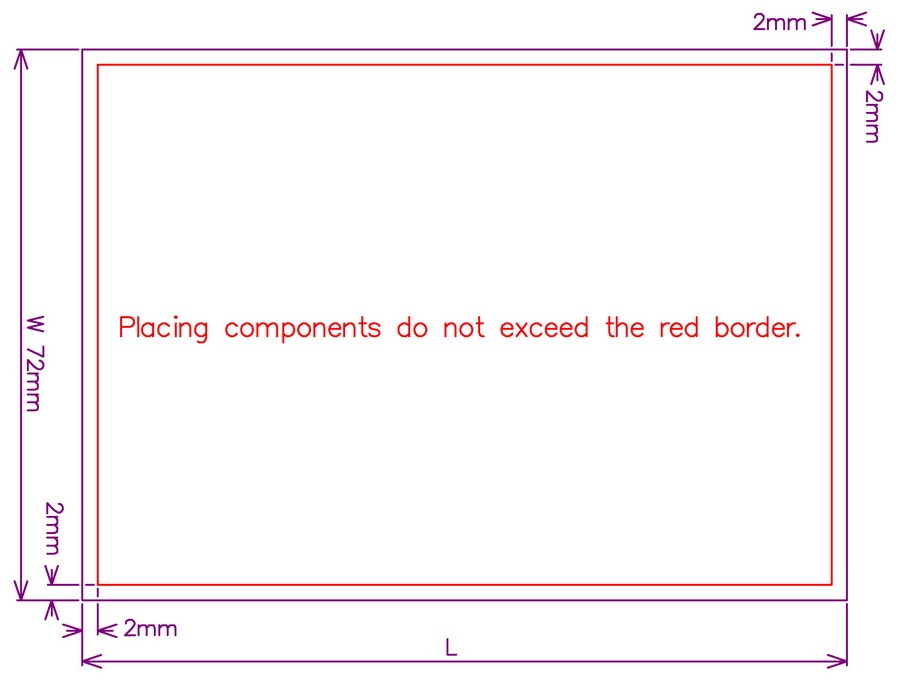

Support PCB Size: 100mm x 72mm, matching PCB thickness 1.6mm to 2.0mm (recommended 2.0mm).
Manufacturer: DINKLE (Taiwan).
Material: fireproof nylon material (not China low quality product, through our tests, the materials of many similar products in mainland China are not fireproof).
Can support width 35mm, 32mm and 15mm rail.
100% new, never used. RoHS compliant.

We support the special length customized services, length range 40mm to 500mm, customized version MOQ 30pcs.

Note: the item not include PCB and DIN rail.
