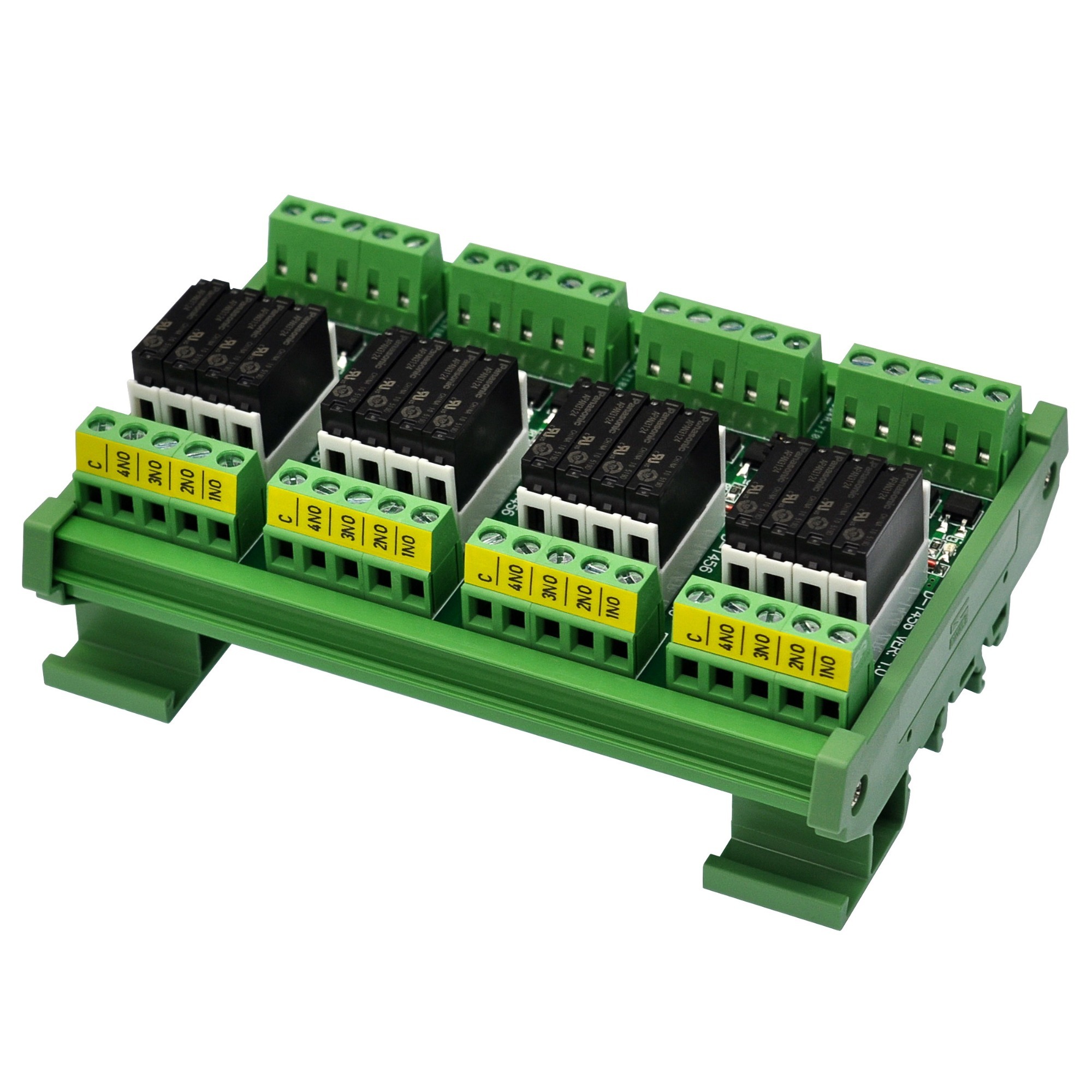

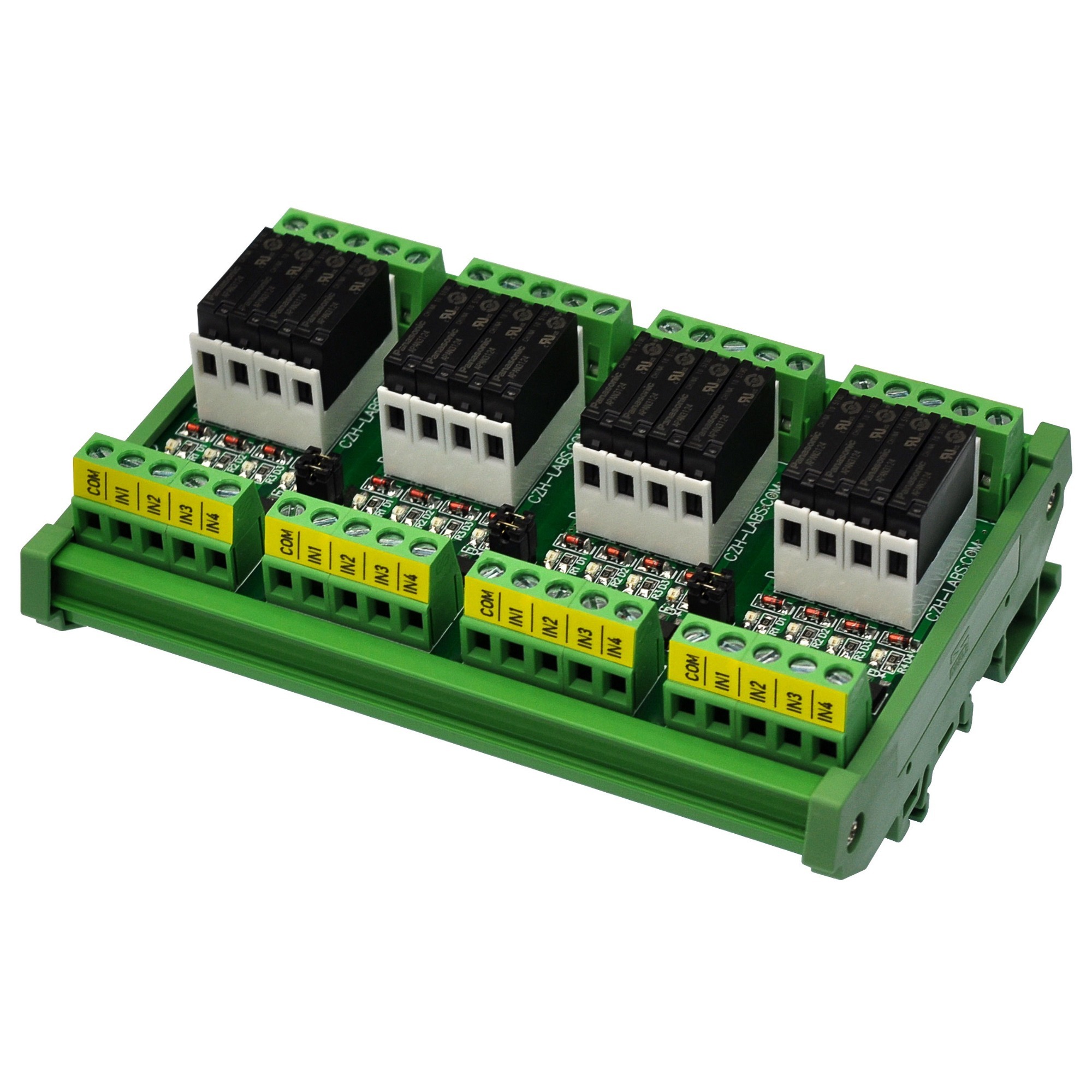

DIN Rail Mount AC/DC 5V 12V 24V 16 SPST-NO 5Amp Power Relay Module

SKU: D-1456T5V/16
$79.00 $79.00
DIN Rail Mount AC/DC 5V 12V 24V 16 SPST-NO 5Amp Power Relay Module
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-max
    Please select the information you want X
  • Voltage:
    AC/DC 5V
    AC/DC 12V
    AC/DC 24V
    Please select the information you wantX
Quantity:
1 * $79 = $79
save $0.00
Add to Favorites
  • DIN Rail Mount AC/DC 5V 12V 24V 16 SPST-NO 5Amp Power Relay Module
  • DIN Rail Mount AC/DC 5V 12V 24V 16 SPST-NO 5Amp Power Relay Module
  • DIN Rail Mount AC/DC 5V 12V 24V 16 SPST-NO 5Amp Power Relay Module
  • DIN Rail Mount AC/DC 5V 12V 24V 16 SPST-NO 5Amp Power Relay Module
  • DIN Rail Mount AC/DC 5V 12V 24V 16 SPST-NO 5Amp Power Relay Module
  • DIN Rail Mount AC/DC 5V 12V 24V 16 SPST-NO 5Amp Power Relay Module
  • DIN Rail Mount AC/DC 5V 12V 24V 16 SPST-NO 5Amp Power Relay Module
  • DIN Rail Mount AC/DC 5V 12V 24V 16 SPST-NO 5Amp Power Relay Module
  • DIN Rail Mount AC/DC 5V 12V 24V 16 SPST-NO 5Amp Power Relay Module
  • DIN Rail Mount AC/DC 5V 12V 24V 16 SPST-NO 5Amp Power Relay Module
  • DIN Rail Mount AC/DC 5V 12V 24V 16 SPST-NO 5Amp Power Relay Module
  • DIN Rail Mount AC/DC 5V 12V 24V 16 SPST-NO 5Amp Power Relay Module
  • DIN Rail Mount AC/DC 5V 12V 24V 16 SPST-NO 5Amp Power Relay Module
  • DIN Rail Mount AC/DC 5V 12V 24V 16 SPST-NO 5Amp Power Relay Module
  • DIN Rail Mount AC/DC 5V 12V 24V 16 SPST-NO 5Amp Power Relay Module
  • DIN Rail Mount AC/DC 5V 12V 24V 16 SPST-NO 5Amp Power Relay Module
  • DIN Rail Mount AC/DC 5V 12V 24V 16 SPST-NO 5Amp Power Relay Module
  • DIN Rail Mount AC/DC 5V 12V 24V 16 SPST-NO 5Amp Power Relay Module
1/1
  • DIN Rail Mount AC/DC 5V 12V 24V 16 SPST-NO 5Amp Power Relay Module
  • DIN Rail Mount AC/DC 5V 12V 24V 16 SPST-NO 5Amp Power Relay Module
  • DIN Rail Mount AC/DC 5V 12V 24V 16 SPST-NO 5Amp Power Relay Module
  • DIN Rail Mount AC/DC 5V 12V 24V 16 SPST-NO 5Amp Power Relay Module
  • DIN Rail Mount AC/DC 5V 12V 24V 16 SPST-NO 5Amp Power Relay Module
  • DIN Rail Mount AC/DC 5V 12V 24V 16 SPST-NO 5Amp Power Relay Module
  • DIN Rail Mount AC/DC 5V 12V 24V 16 SPST-NO 5Amp Power Relay Module
  • DIN Rail Mount AC/DC 5V 12V 24V 16 SPST-NO 5Amp Power Relay Module
  • DIN Rail Mount AC/DC 5V 12V 24V 16 SPST-NO 5Amp Power Relay Module
  • Description

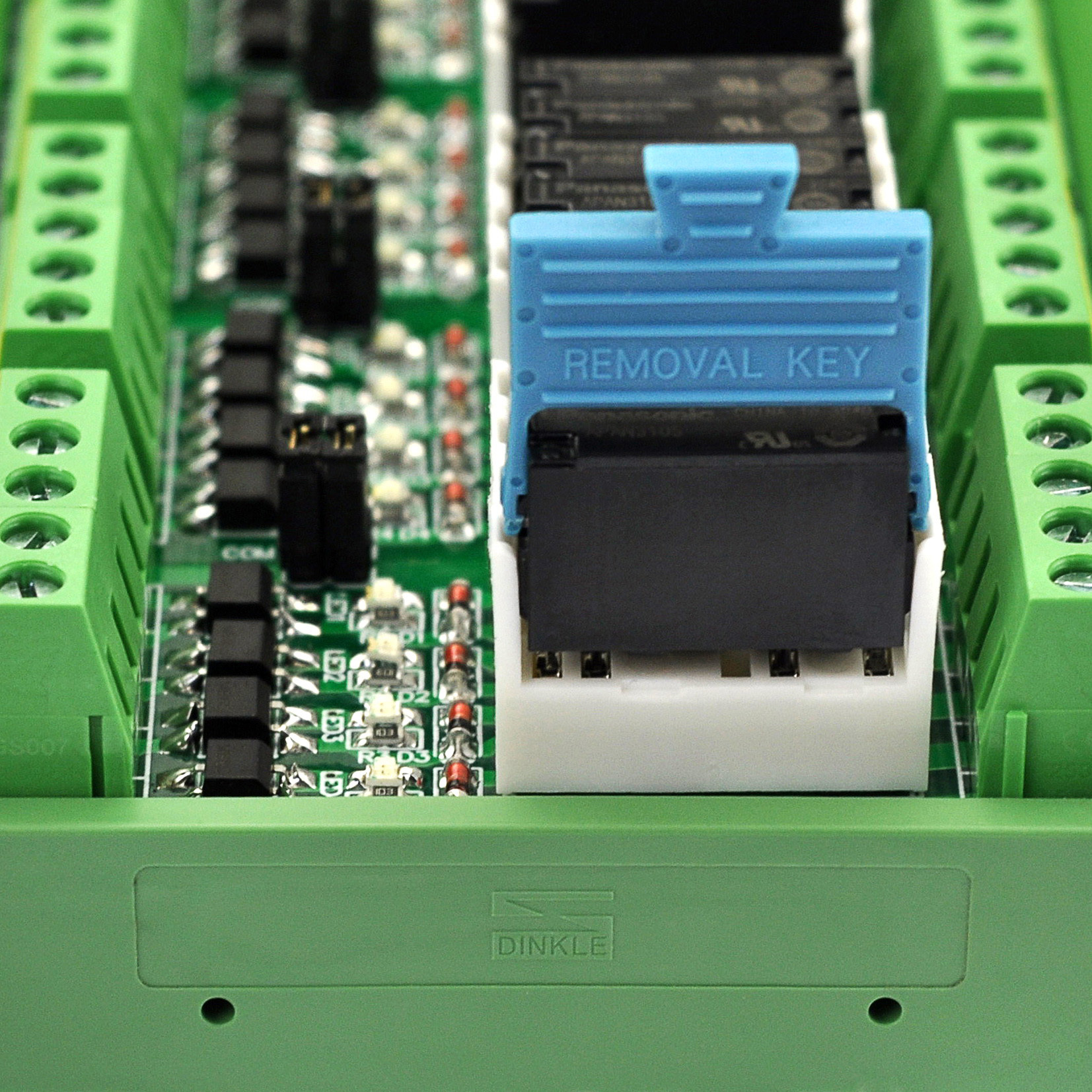

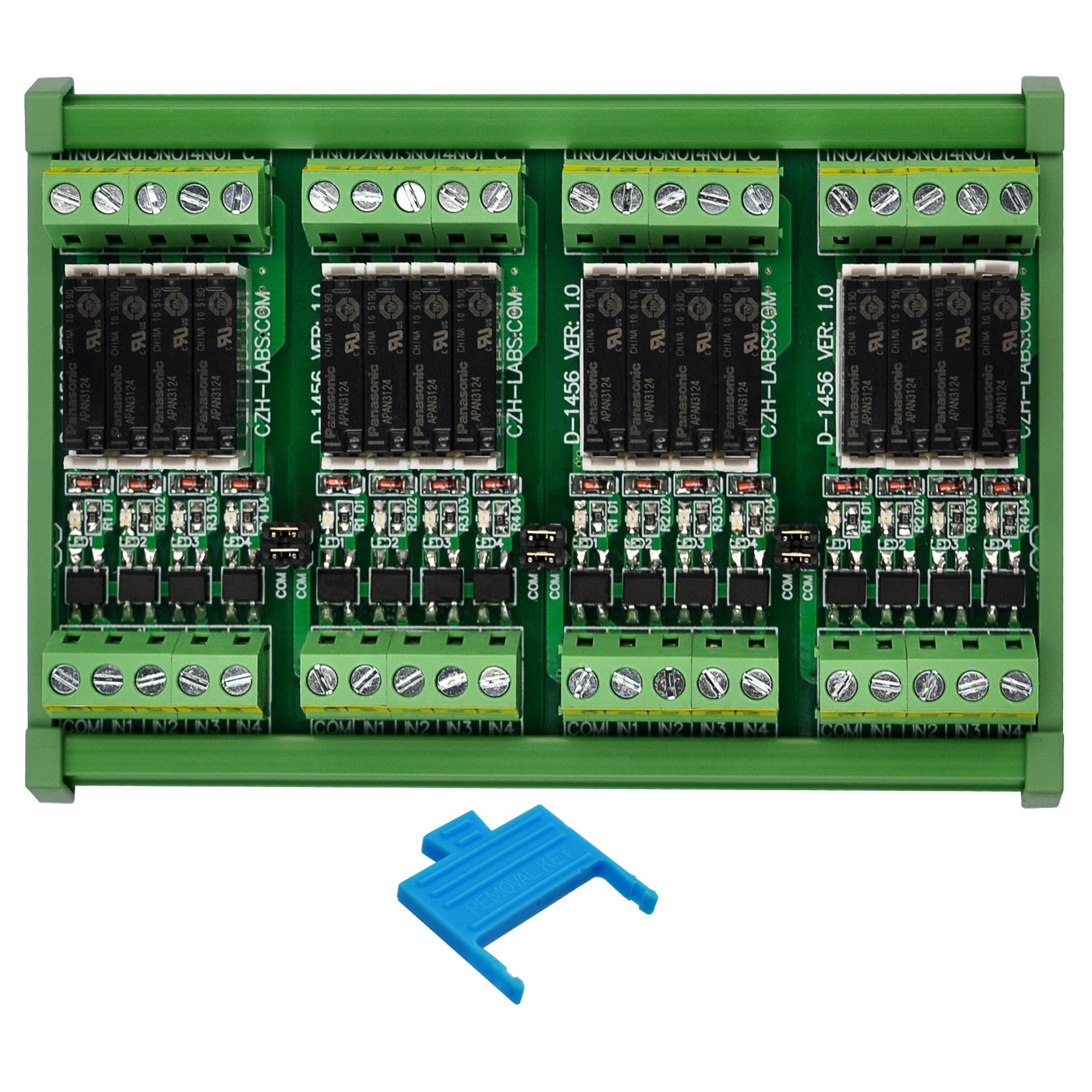

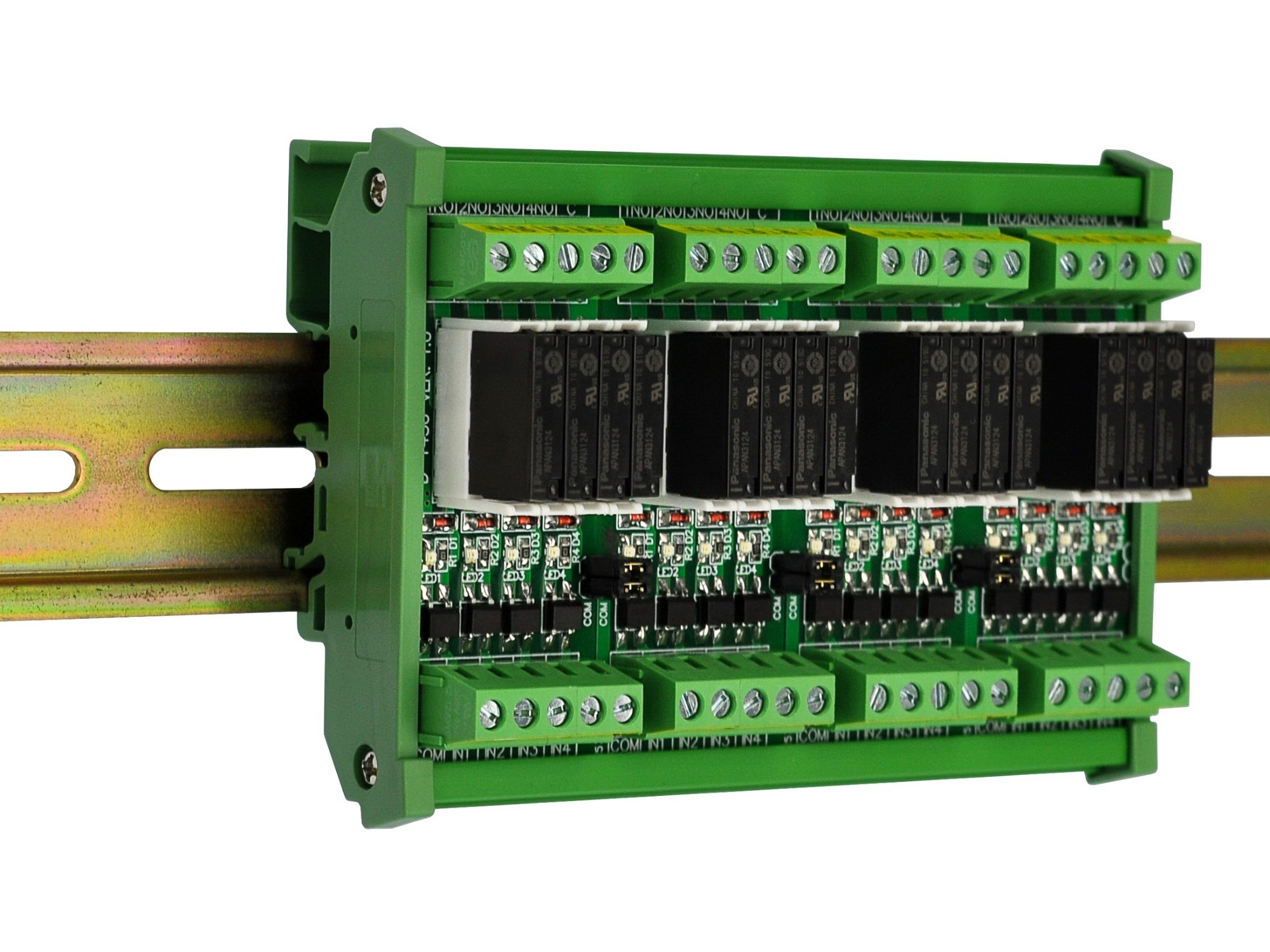

1, Original Panasonic APAN3105, APAN3112 or APAN3124 relay, with removal key, easy to replace pluggable relay. Relay switch type SPST-NO(when the relay no action switch status off). Switching current up to 5Amp/250V or 5Amp/30VDC.

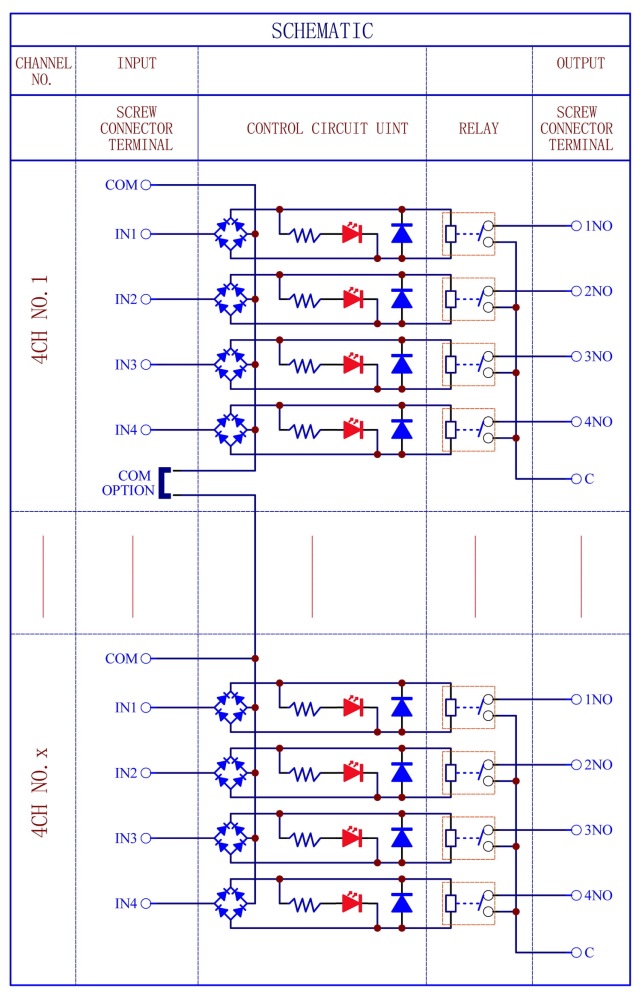

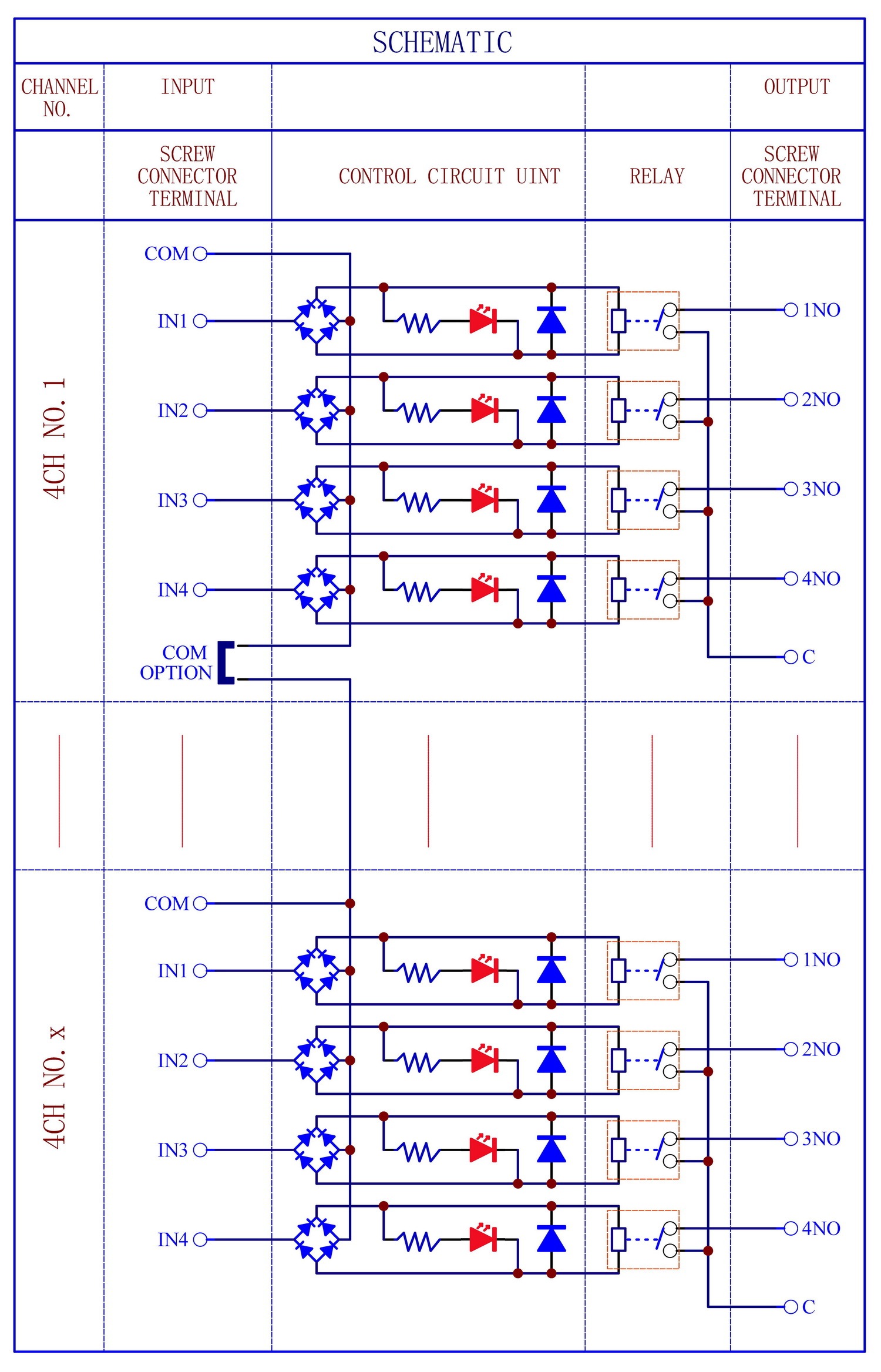

2, Users can flexibly configured control signal mode according to controllers output, can support DC Common Positive(for NPN / Sink output controllers), DC Common Negative(for PNP/Source output controllers) or AC 50/60 Hz Signal. LED indicator for each relay channel. Relay coil protection by means of a freewheeling diode.

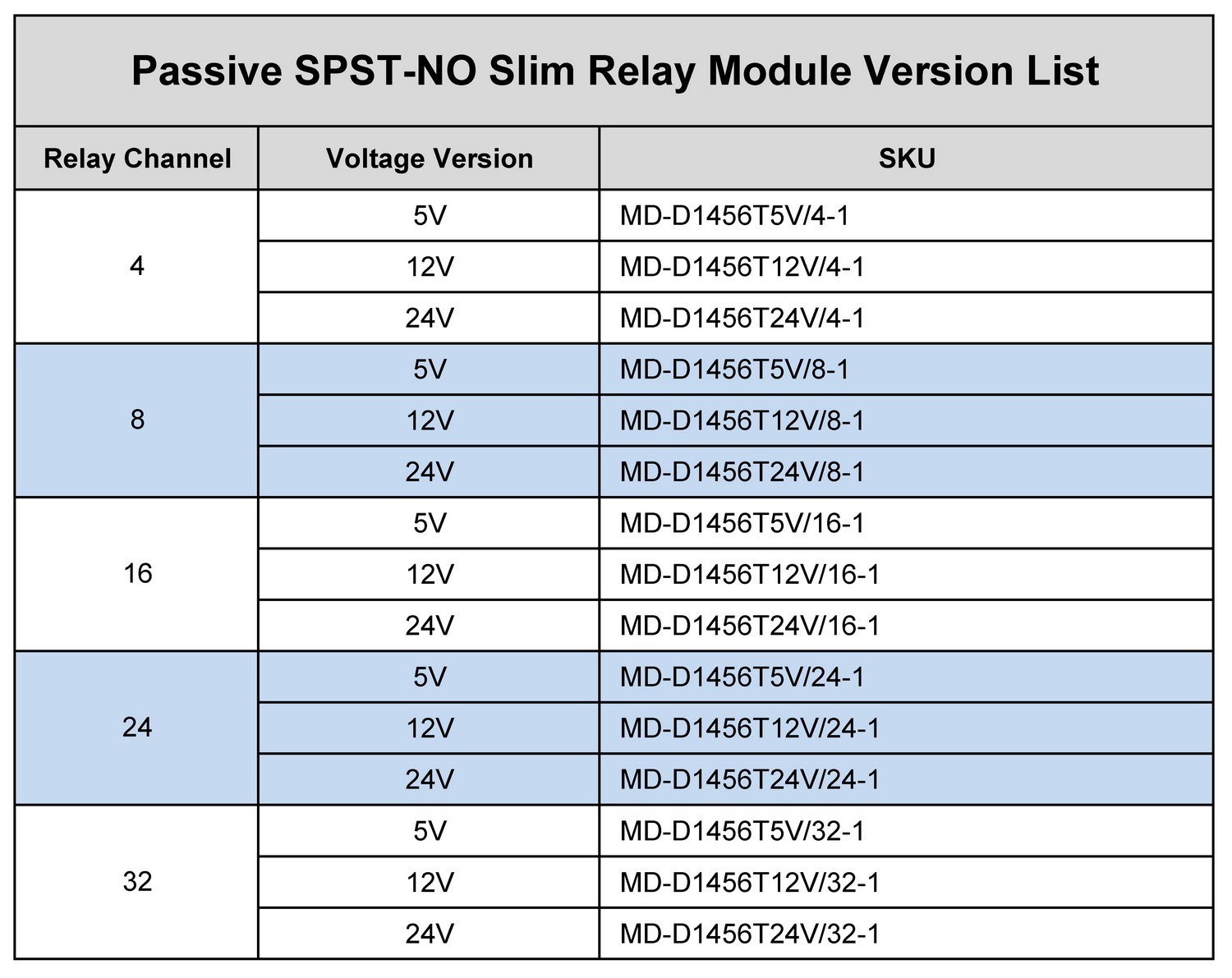

3, Operating voltage 5V / 12V / 24V versions selectable. Relay number 4 / 8 / 16 / 24 / 32 channels to selectable.
4, High quality terminal block: Pitch 5.0mm/0.197", Wire range 28AWG ~ 12AWG / 2.5mm square, Strip length 7mm. Screws - M2.5,steel,Cr3+ Zn plated. Pin header and Cage - Brass.

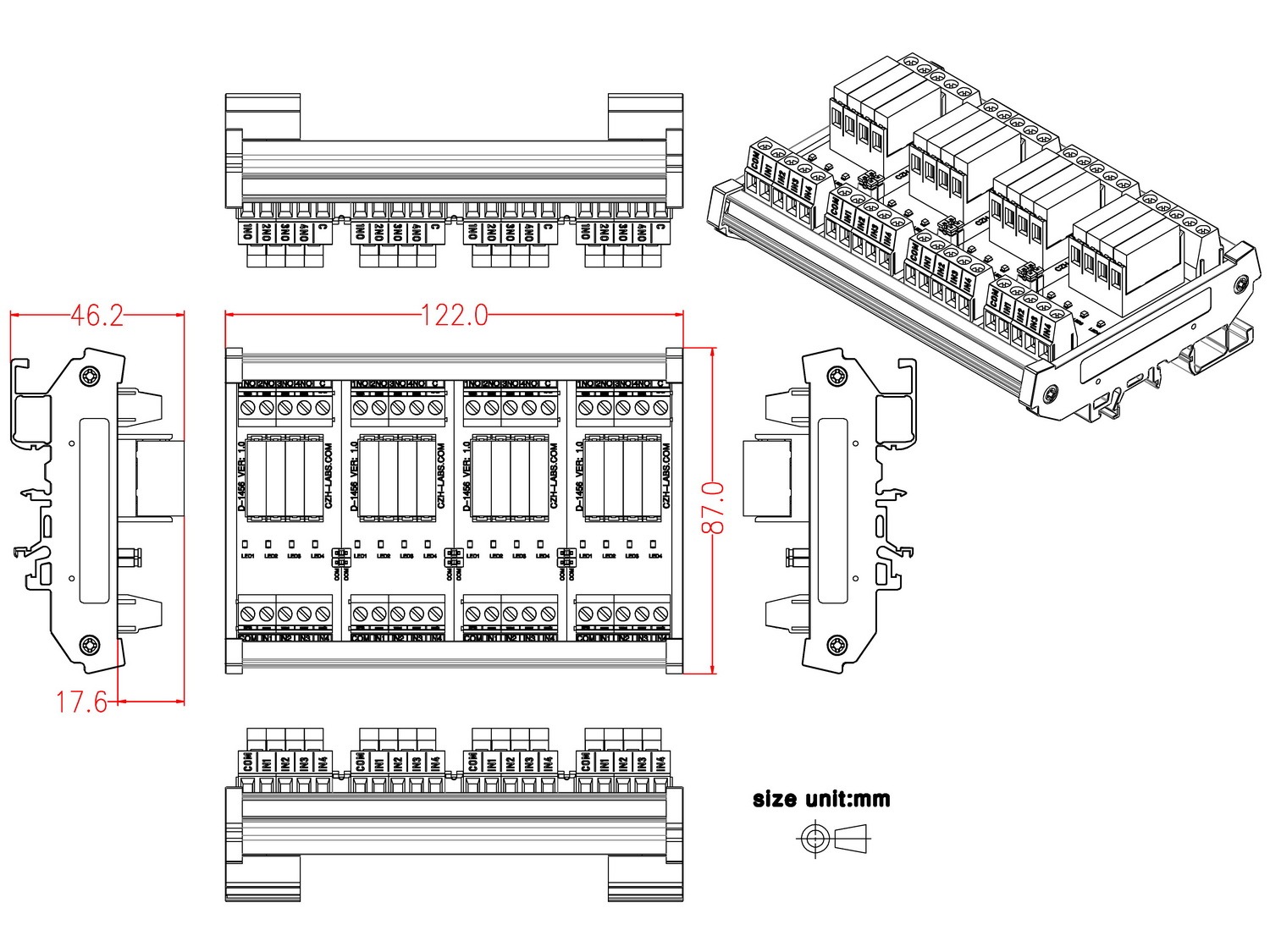

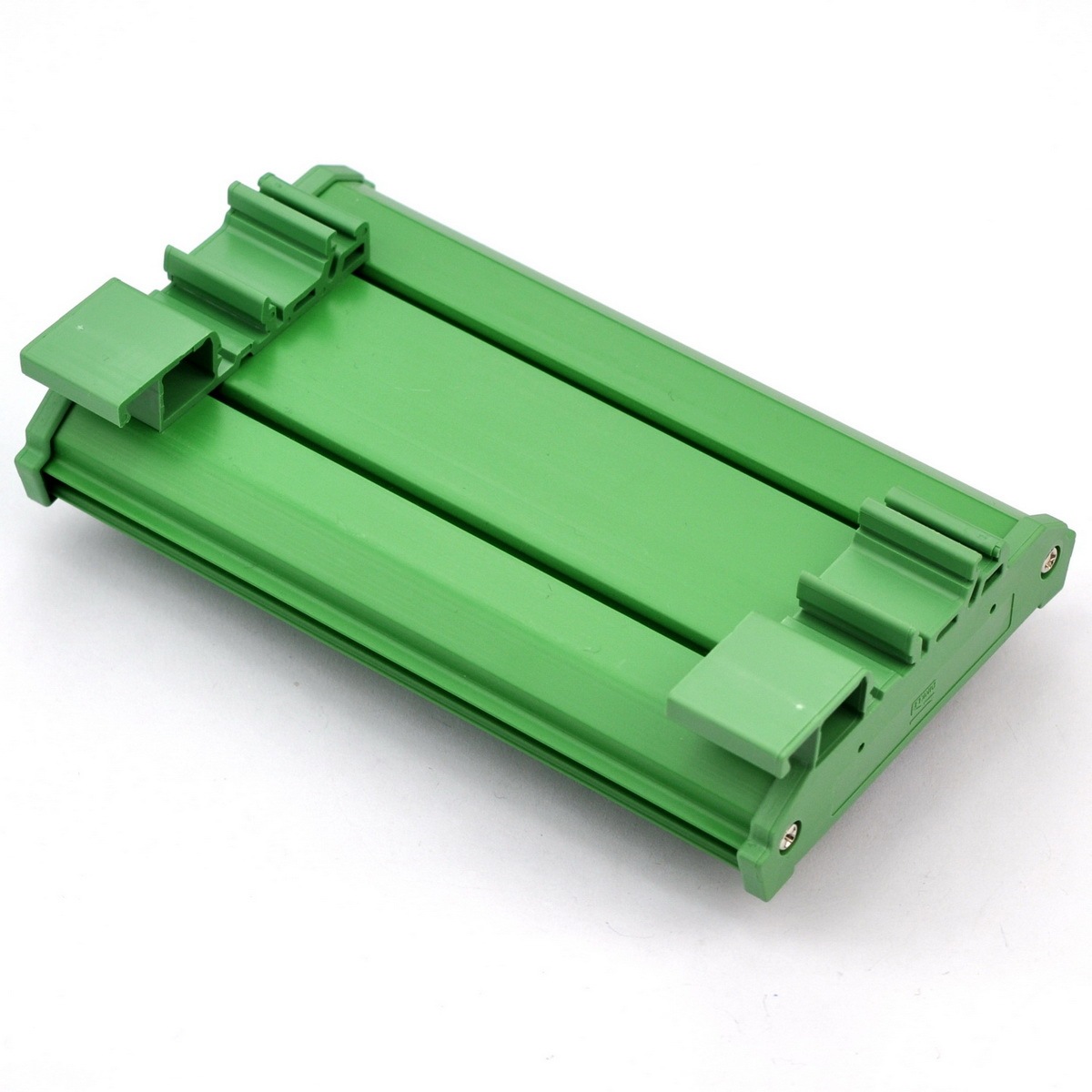

5, High quality DIN rail mount carrier, fireproof nylon material (not China low quality carrier), can support width 35mm / 32mm / 15mm rail. FR-4 fiber glass dual layers PCB.

Datasheet: https://www.czh-labs.com/tmp/madeimg/datasheet/d-1456.pdf
