Home > Switch Module > DIN Rail Mount 6 Channel Paddle Rocker Switch AC 115V 230V Power Distribution Strip Module
  • DIN Rail Mount 6 Channel Paddle Rocker Switch AC 115V 230V Power Distribution Strip Module
  • DIN Rail Mount 6 Channel Paddle Rocker Switch AC 115V 230V Power Distribution Strip Module
  • DIN Rail Mount 6 Channel Paddle Rocker Switch AC 115V 230V Power Distribution Strip Module
  • DIN Rail Mount 6 Channel Paddle Rocker Switch AC 115V 230V Power Distribution Strip Module
  • DIN Rail Mount 6 Channel Paddle Rocker Switch AC 115V 230V Power Distribution Strip Module
  • DIN Rail Mount 6 Channel Paddle Rocker Switch AC 115V 230V Power Distribution Strip Module
1/1
  • DIN Rail Mount 6 Channel Paddle Rocker Switch AC 115V 230V Power Distribution Strip Module
  • DIN Rail Mount 6 Channel Paddle Rocker Switch AC 115V 230V Power Distribution Strip Module
  • DIN Rail Mount 6 Channel Paddle Rocker Switch AC 115V 230V Power Distribution Strip Module
  • DIN Rail Mount 6 Channel Paddle Rocker Switch AC 115V 230V Power Distribution Strip Module
  • DIN Rail Mount 6 Channel Paddle Rocker Switch AC 115V 230V Power Distribution Strip Module
  • DIN Rail Mount 6 Channel Paddle Rocker Switch AC 115V 230V Power Distribution Strip Module
Share:

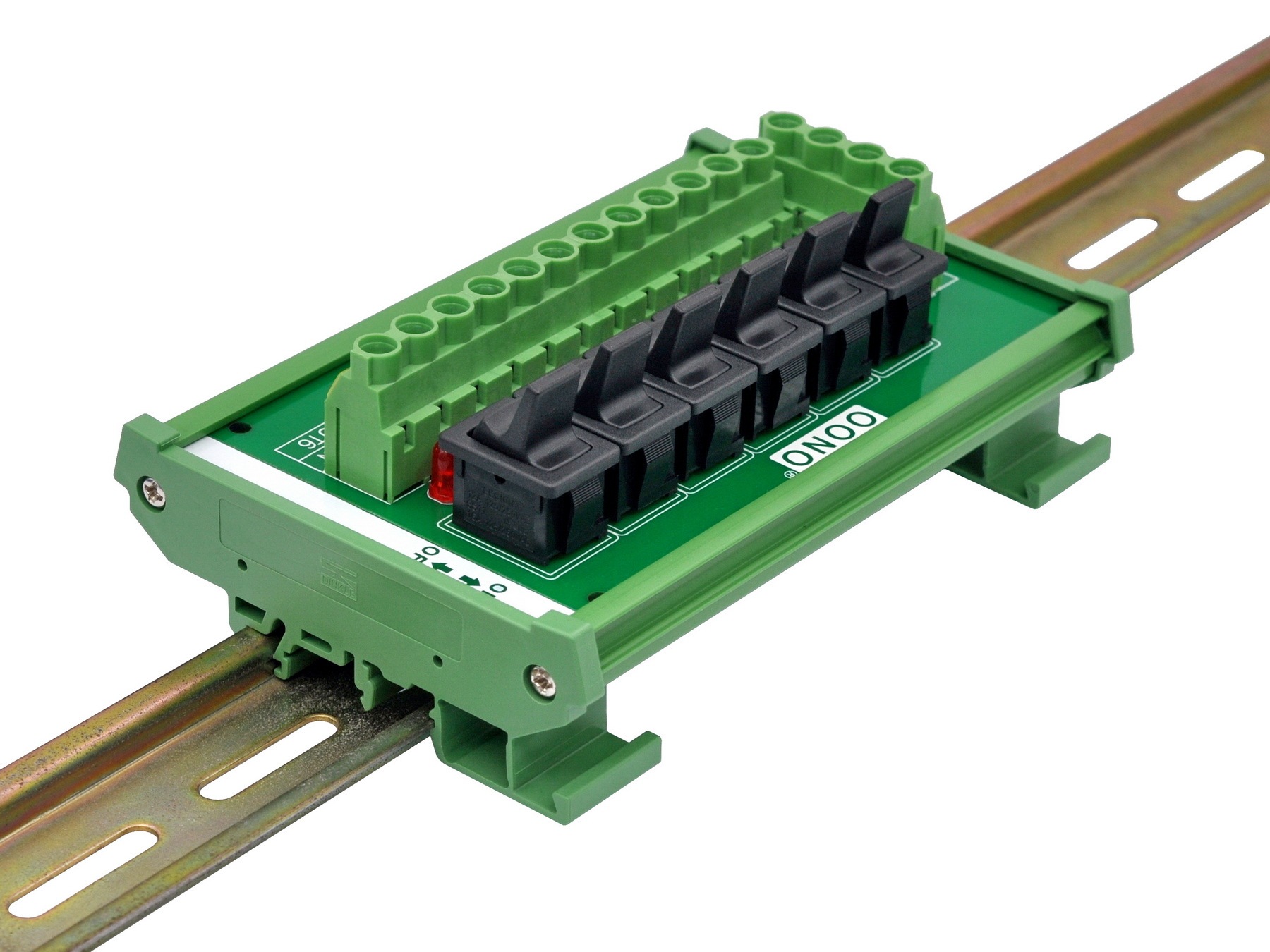

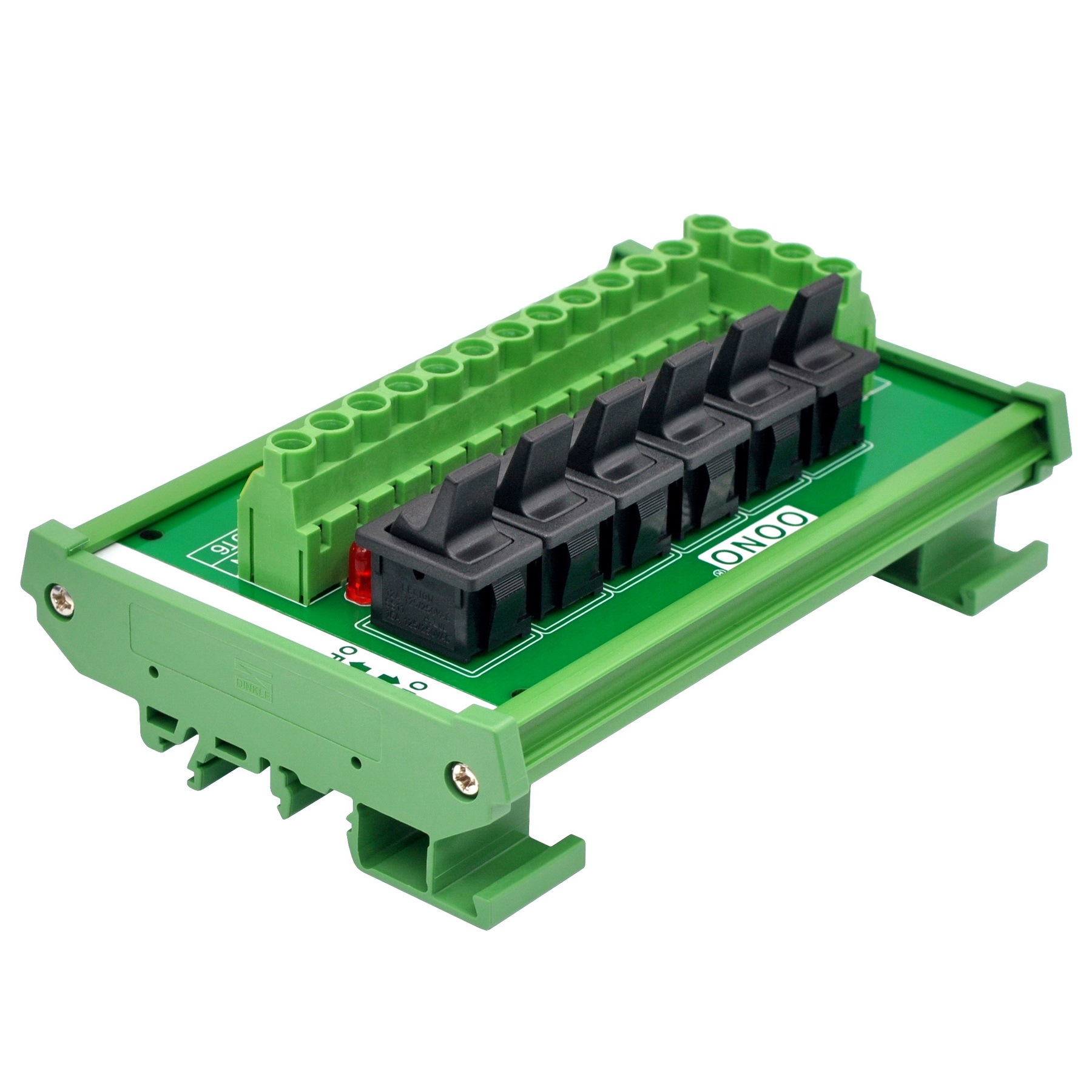

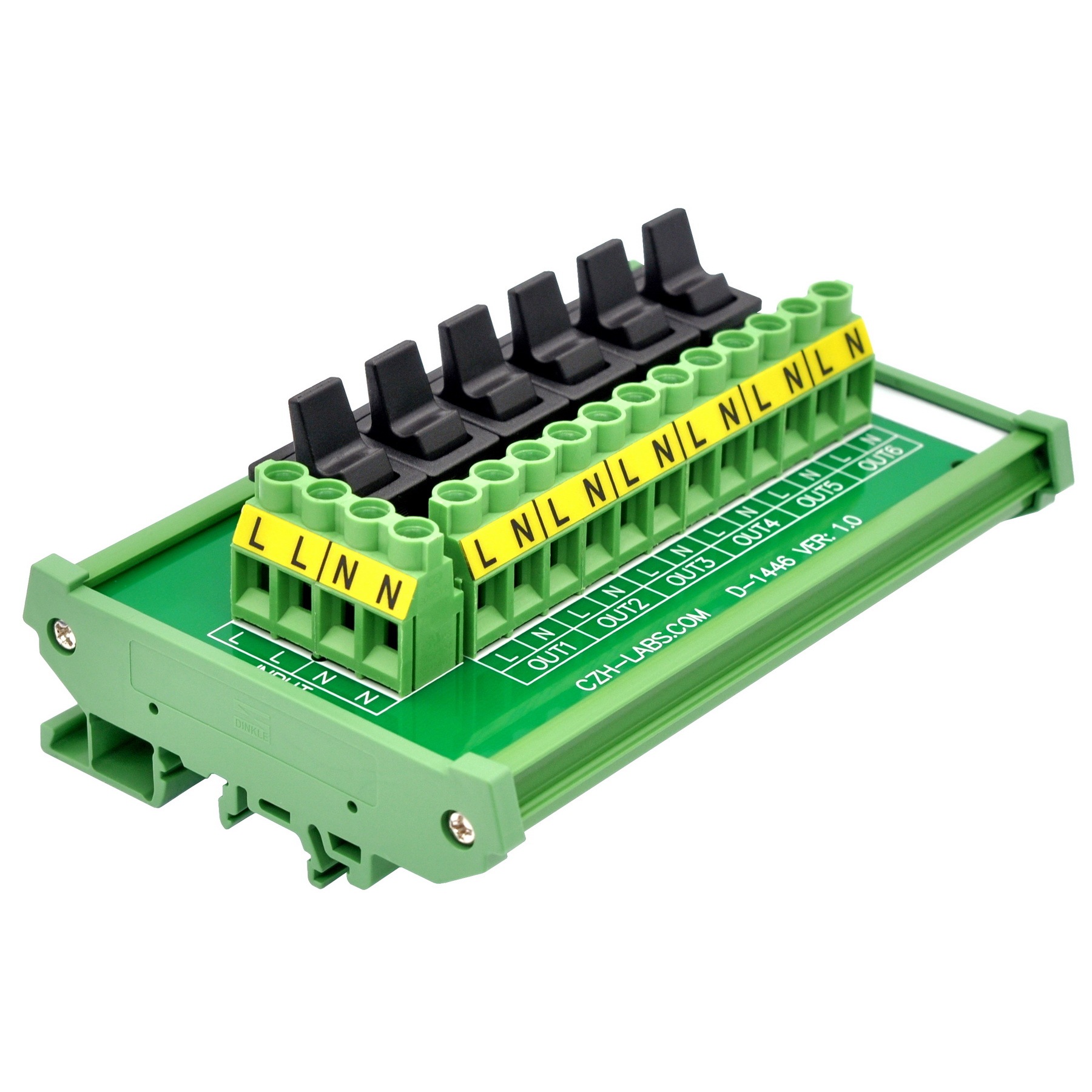

DIN Rail Mount 6 Channel Paddle Rocker Switch AC 115V 230V Power Distribution Strip Module

SKU: D-1446TK
$32.00 $32.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-max
    Please select the information you wantX
Quantity:
1 * $32 = $32
save $0.00
Add to Favorites
  • DIN Rail Mount 6 Channel Paddle Rocker Switch AC 115V 230V Power Distribution Strip Module
  • DIN Rail Mount 6 Channel Paddle Rocker Switch AC 115V 230V Power Distribution Strip Module
  • DIN Rail Mount 6 Channel Paddle Rocker Switch AC 115V 230V Power Distribution Strip Module
  • DIN Rail Mount 6 Channel Paddle Rocker Switch AC 115V 230V Power Distribution Strip Module
  • DIN Rail Mount 6 Channel Paddle Rocker Switch AC 115V 230V Power Distribution Strip Module
  • DIN Rail Mount 6 Channel Paddle Rocker Switch AC 115V 230V Power Distribution Strip Module
  • DIN Rail Mount 6 Channel Paddle Rocker Switch AC 115V 230V Power Distribution Strip Module
  • DIN Rail Mount 6 Channel Paddle Rocker Switch AC 115V 230V Power Distribution Strip Module
  • DIN Rail Mount 6 Channel Paddle Rocker Switch AC 115V 230V Power Distribution Strip Module
  • DIN Rail Mount 6 Channel Paddle Rocker Switch AC 115V 230V Power Distribution Strip Module
  • DIN Rail Mount 6 Channel Paddle Rocker Switch AC 115V 230V Power Distribution Strip Module
  • DIN Rail Mount 6 Channel Paddle Rocker Switch AC 115V 230V Power Distribution Strip Module
1/1
  • DIN Rail Mount 6 Channel Paddle Rocker Switch AC 115V 230V Power Distribution Strip Module
  • DIN Rail Mount 6 Channel Paddle Rocker Switch AC 115V 230V Power Distribution Strip Module
  • DIN Rail Mount 6 Channel Paddle Rocker Switch AC 115V 230V Power Distribution Strip Module
  • DIN Rail Mount 6 Channel Paddle Rocker Switch AC 115V 230V Power Distribution Strip Module
  • DIN Rail Mount 6 Channel Paddle Rocker Switch AC 115V 230V Power Distribution Strip Module
  • DIN Rail Mount 6 Channel Paddle Rocker Switch AC 115V 230V Power Distribution Strip Module
  • Description
1, Working voltage AC 70 to 250V. Maximum total input current 30 Amps. 6 Channels output, each channel maximum output current 10 Amps.
2, Input terminals pitch 7.62mm/0.3", maximum current 30 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.
3, Output terminals pitch 7.62mm/0.3", wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw.
4, Paddle rocker switch ON/OFF power output for each channel. With switch power ON LED indication function.
5, High quality fireproof nylon material DIN rail mount carrier, can support width 35mm 32mm 15mm rail. FR-4 fiberglass dual copper layers PCB.
