Home > Power Distribution Module > DIN Rail Mount - Screw Terminal Block Distribution Module > DIN Rail Mount 52Amp 300V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 52Amp 300V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 52Amp 300V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 52Amp 300V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 52Amp 300V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 52Amp 300V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 52Amp 300V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 52Amp 300V 6 Position Screw Terminal Block Distribution Module
1/1
  • DIN Rail Mount 52Amp 300V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 52Amp 300V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 52Amp 300V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 52Amp 300V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 52Amp 300V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 52Amp 300V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 52Amp 300V 6 Position Screw Terminal Block Distribution Module
Share:

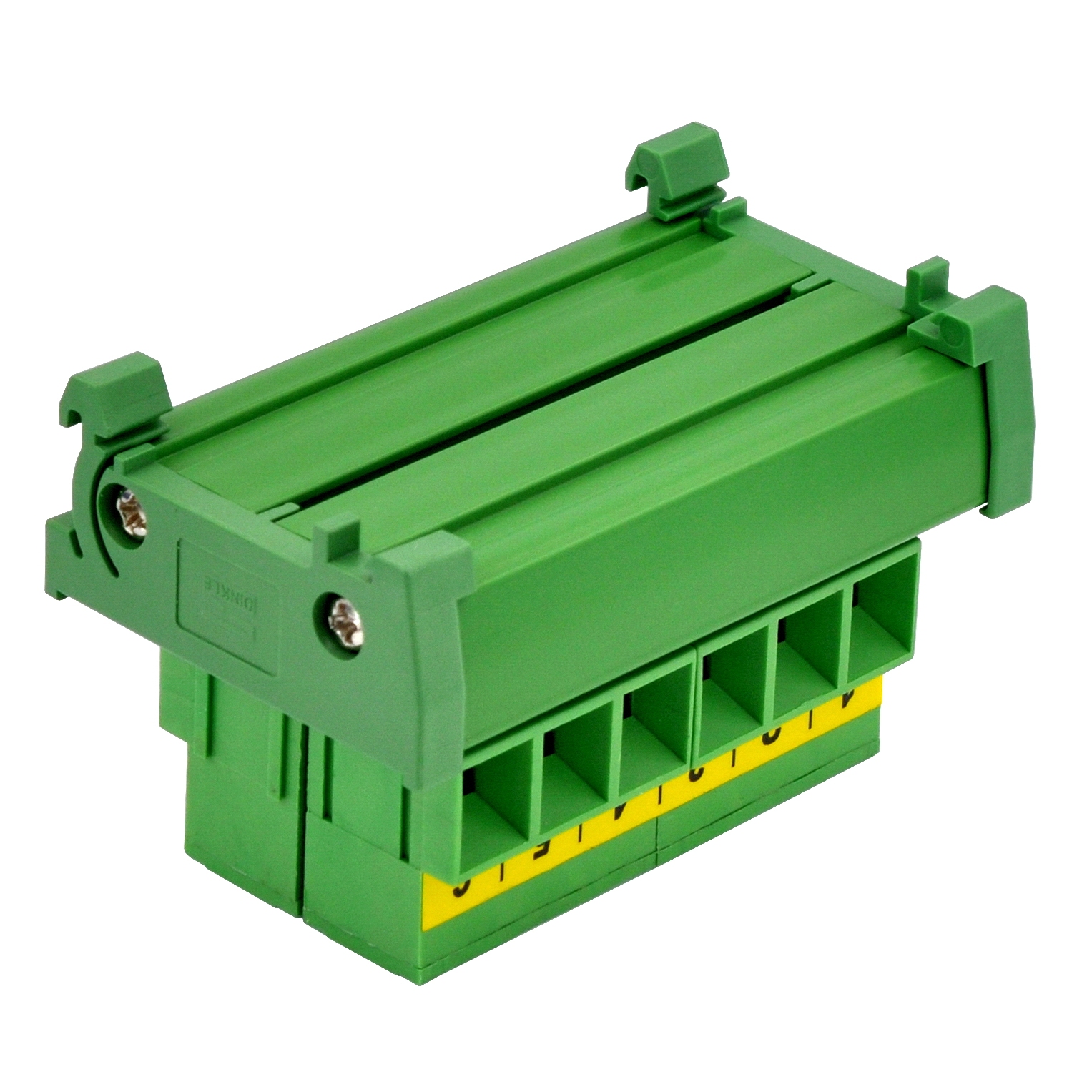

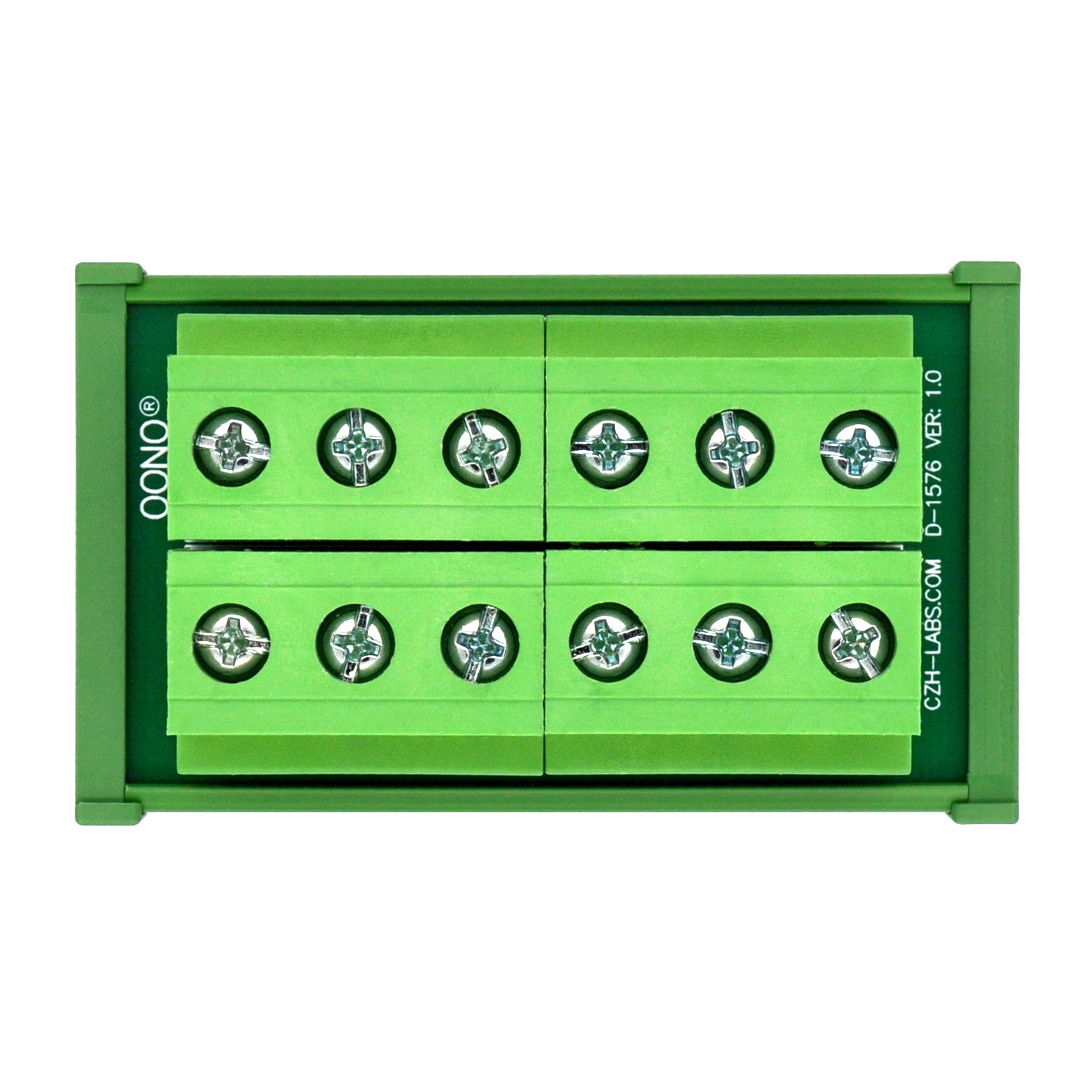

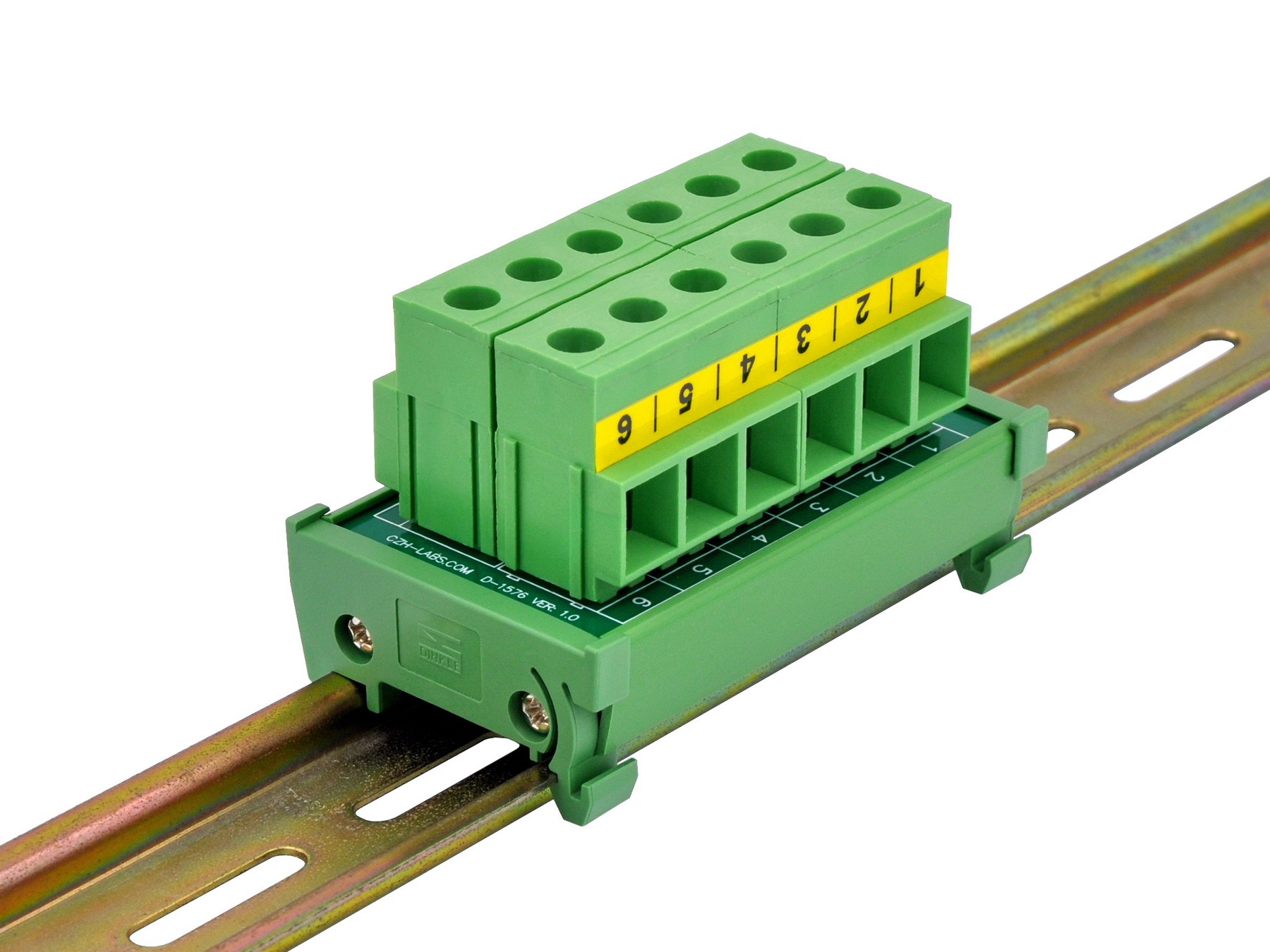

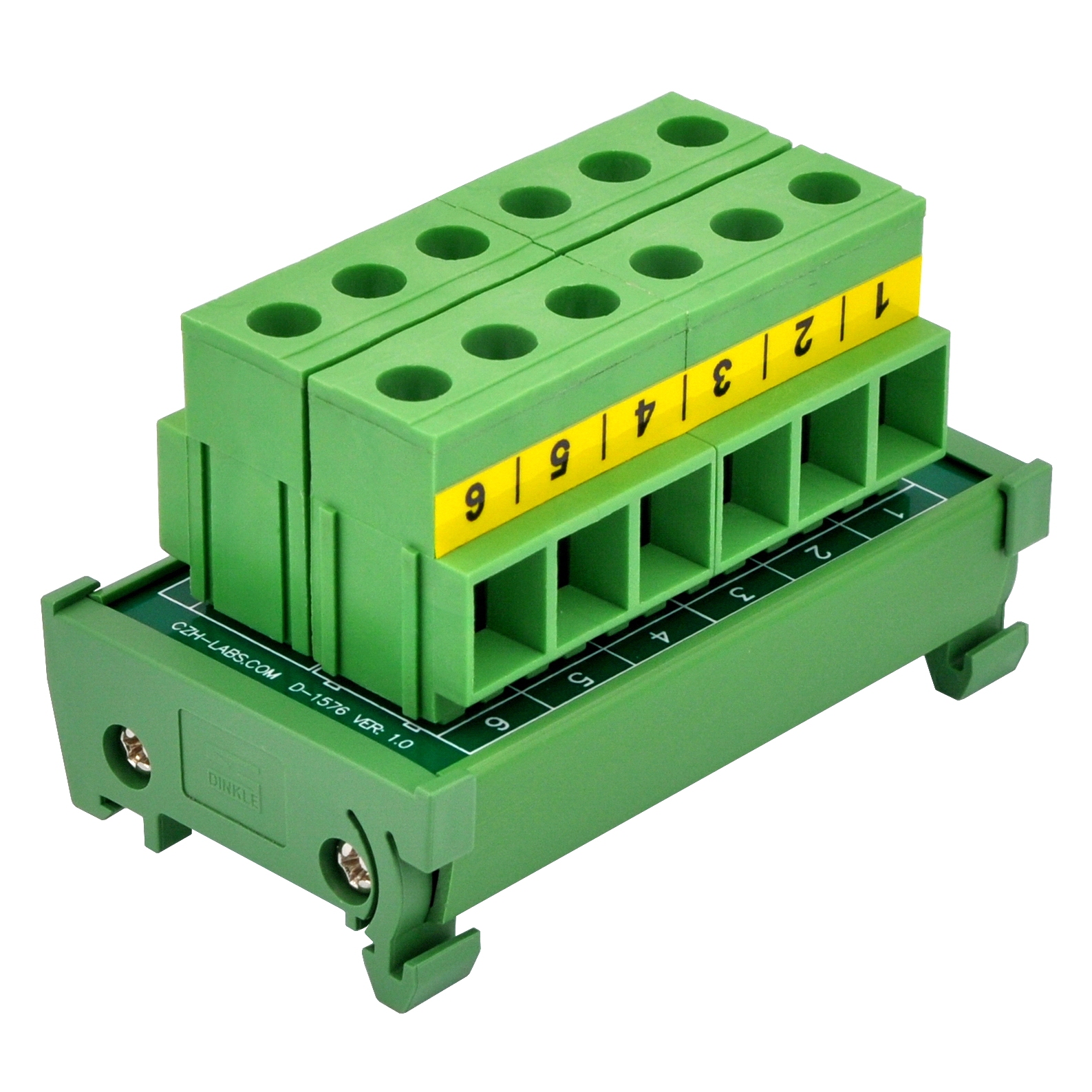

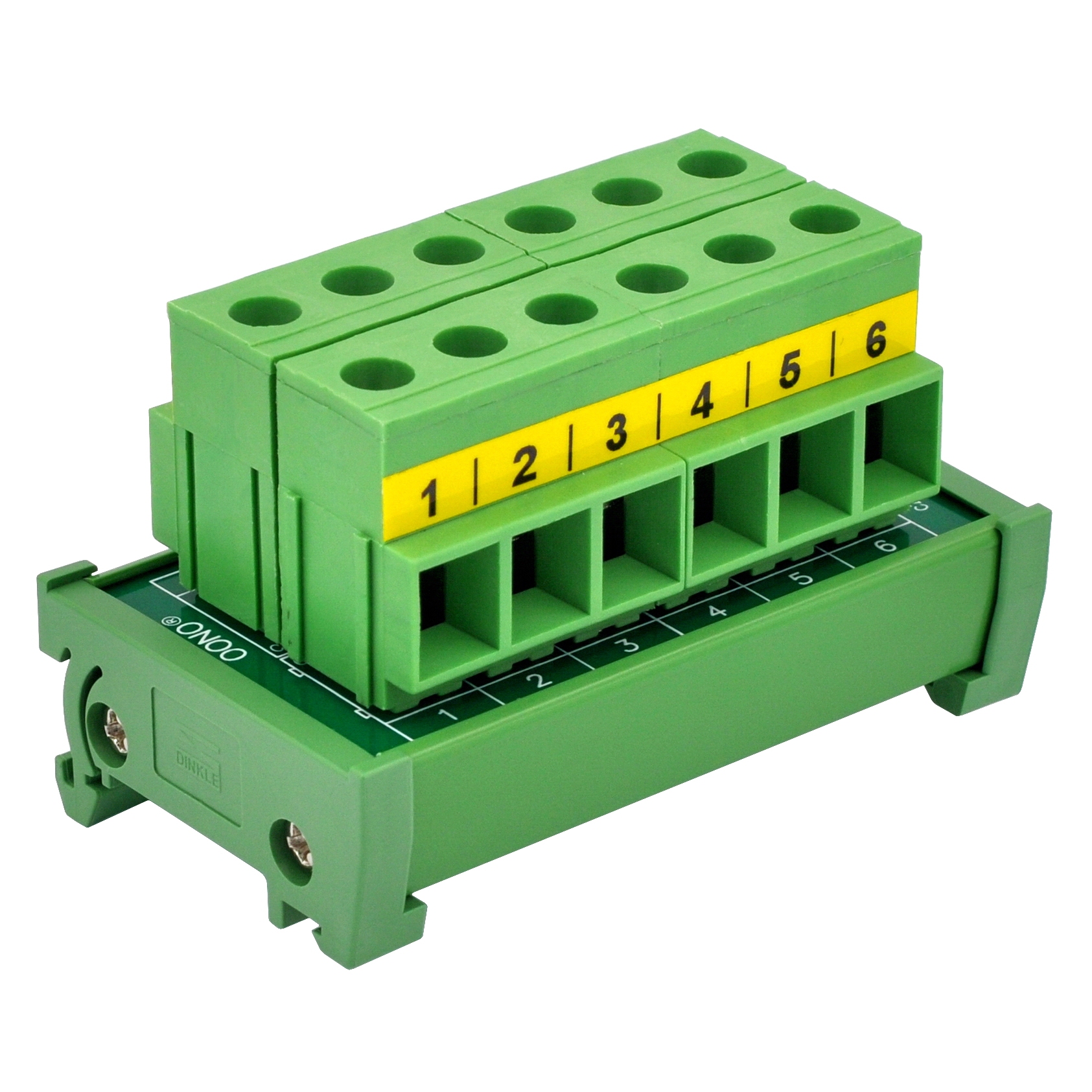

DIN Rail Mount 52Amp 300V 6 Position Screw Terminal Block Distribution Module

SKU: D-1576T
$24.00 $24.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-max
    Please select the information you wantX
Quantity:
1 * $24 = $24
save $0.00
Add to Favorites
  • DIN Rail Mount 52Amp 300V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 52Amp 300V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 52Amp 300V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 52Amp 300V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 52Amp 300V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 52Amp 300V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 52Amp 300V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 52Amp 300V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 52Amp 300V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 52Amp 300V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 52Amp 300V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 52Amp 300V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 52Amp 300V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 52Amp 300V 6 Position Screw Terminal Block Distribution Module
1/1
  • DIN Rail Mount 52Amp 300V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 52Amp 300V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 52Amp 300V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 52Amp 300V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 52Amp 300V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 52Amp 300V 6 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 52Amp 300V 6 Position Screw Terminal Block Distribution Module
  • Description
1, DIN Rail Mount 52Amp 300V 6 Position Screw Terminal Block Distribution Module.
2, Terminal Block: Maximum current 52 Amp (each position). Maximum voltage 300V. Pitch 10.16mm/0.4", Wire range 20AWG ~ 6AWG / 10mm square. Strip length 10mm. Screws - M4,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
3, High quality fireproof nylon material DIN rail mount carrier, can support width 35mm rail. FR-4 fiberglass dual copper layers PCB
4, UL CE CQC certified terminal blocks. UL CE certified nylon material mount carrier. UL 94-V0 certified PCB.
5, Operating Temperature Range: -40 to +105C.
