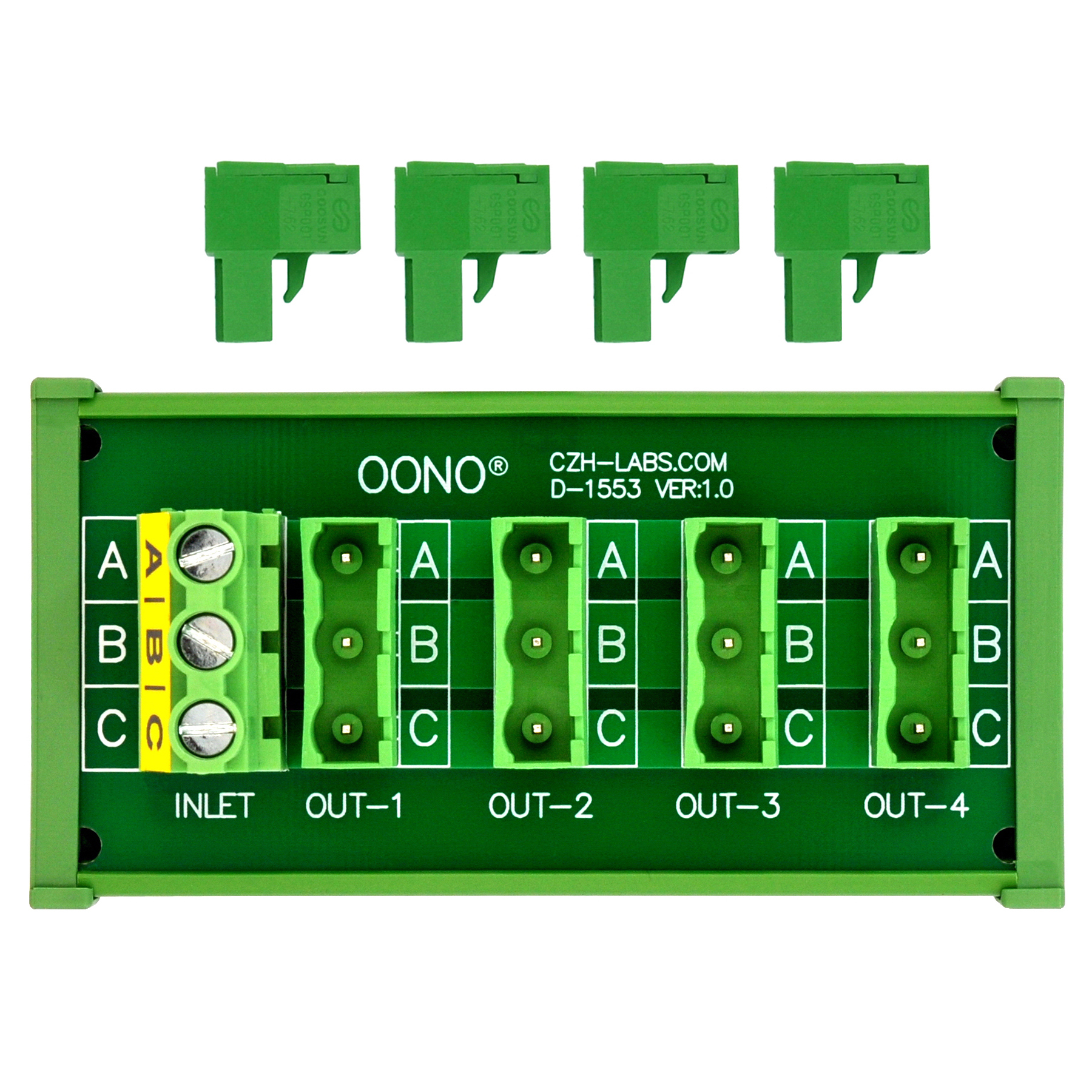

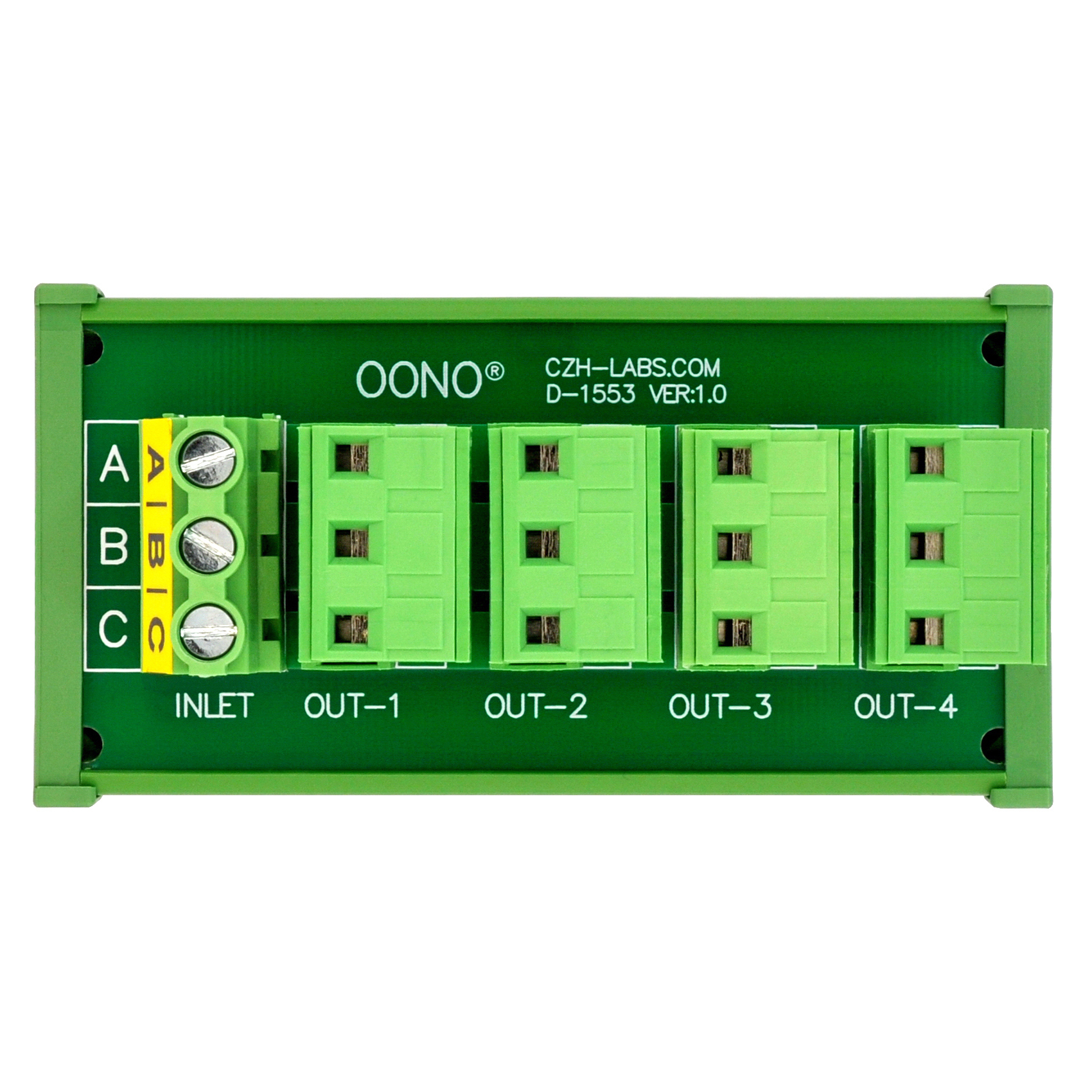

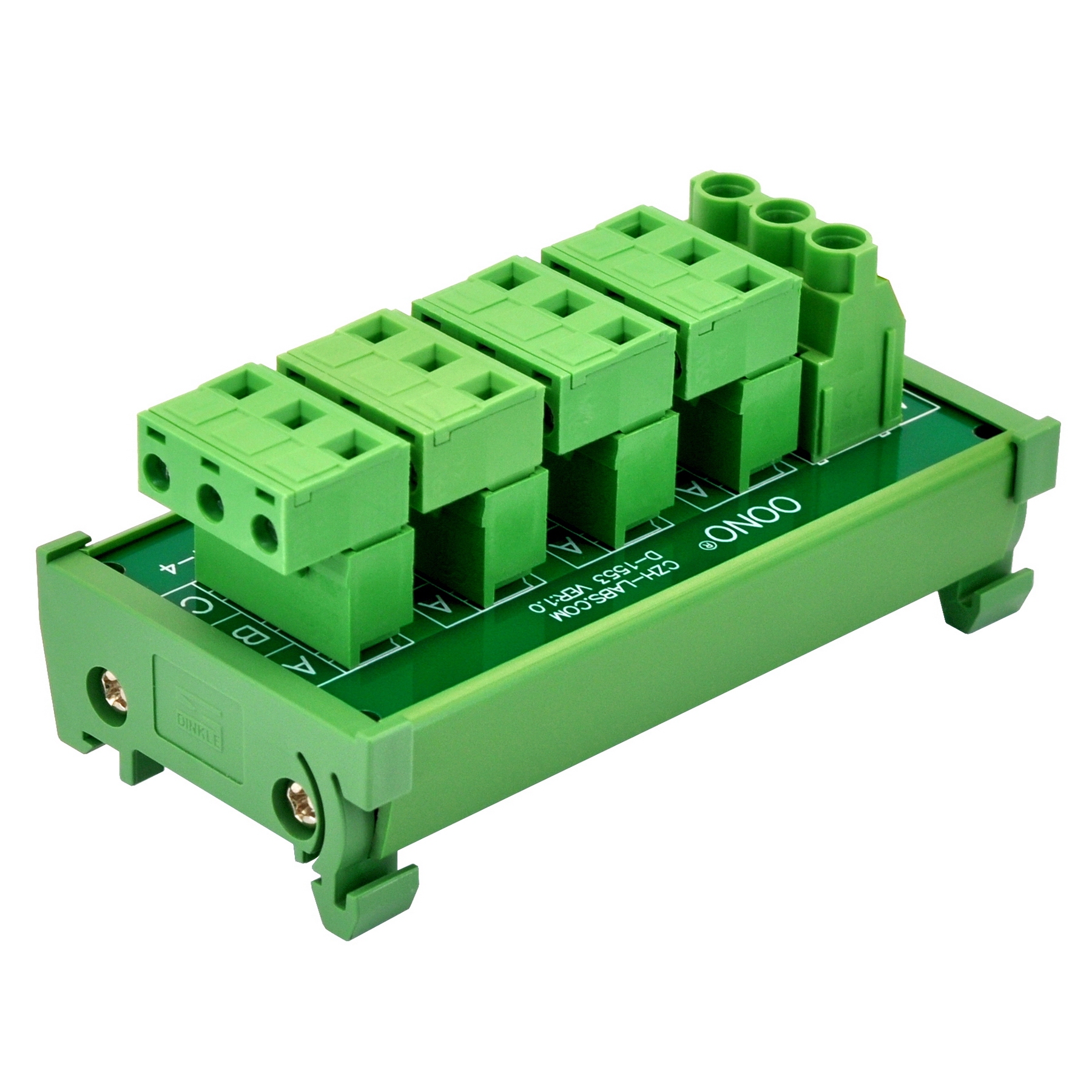

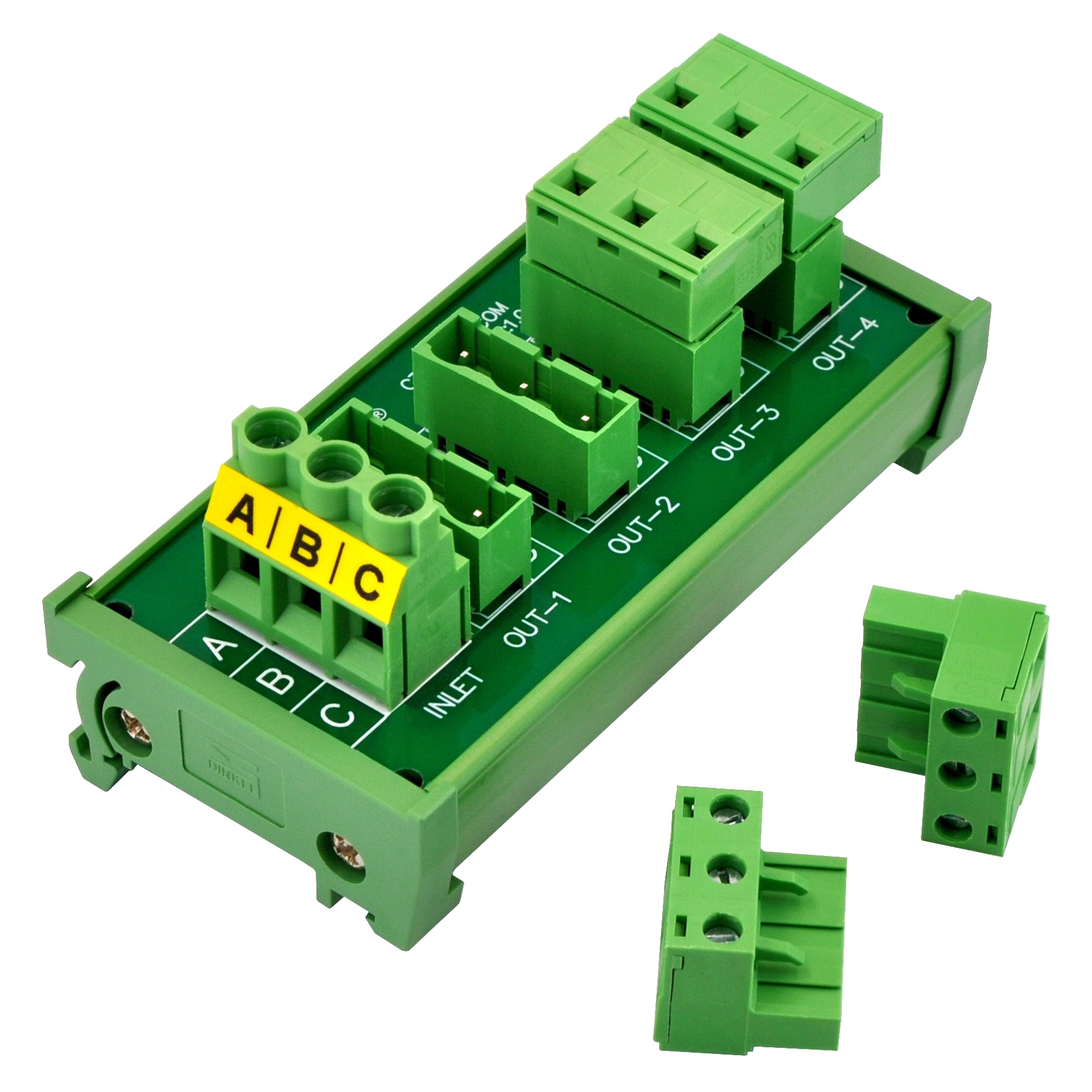

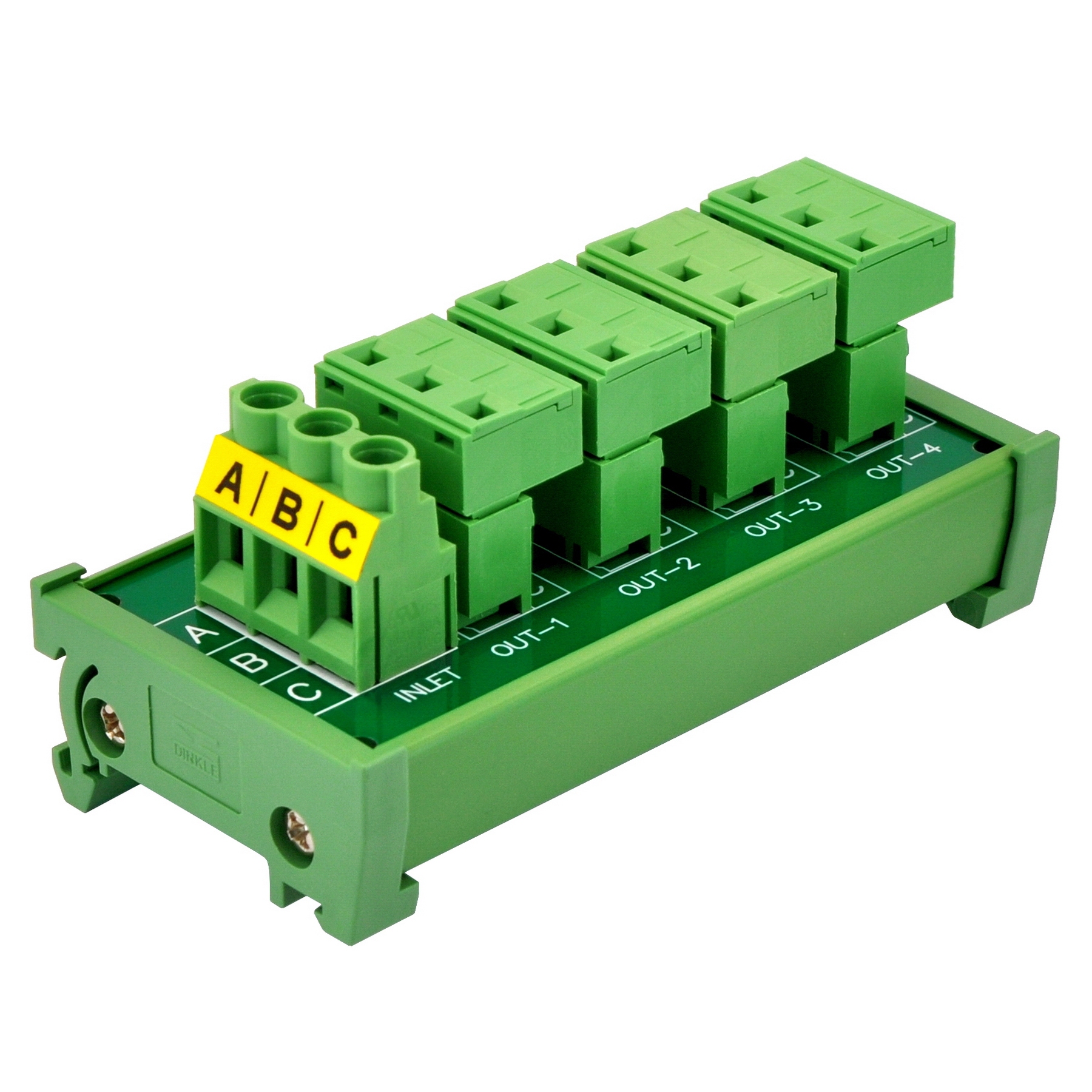

DIN Rail Mount 30A/300V 4x3 Position Pluggable Terminal Block Distribution Module, OONO D-1553T

SKU: D-1553T
$18.00 $18.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-max
    Please select the information you wantX
Quantity:
1 * $18 = $18
save $0.00
Add to Favorites
  • DIN Rail Mount 30A/300V 4x3 Position Pluggable Terminal Block Distribution Module, OONO D-1553T
  • DIN Rail Mount 30A/300V 4x3 Position Pluggable Terminal Block Distribution Module, OONO D-1553T
  • DIN Rail Mount 30A/300V 4x3 Position Pluggable Terminal Block Distribution Module, OONO D-1553T
  • DIN Rail Mount 30A/300V 4x3 Position Pluggable Terminal Block Distribution Module, OONO D-1553T
  • DIN Rail Mount 30A/300V 4x3 Position Pluggable Terminal Block Distribution Module, OONO D-1553T
  • DIN Rail Mount 30A/300V 4x3 Position Pluggable Terminal Block Distribution Module, OONO D-1553T
  • DIN Rail Mount 30A/300V 4x3 Position Pluggable Terminal Block Distribution Module, OONO D-1553T
  • DIN Rail Mount 30A/300V 4x3 Position Pluggable Terminal Block Distribution Module, OONO D-1553T
  • DIN Rail Mount 30A/300V 4x3 Position Pluggable Terminal Block Distribution Module, OONO D-1553T
  • DIN Rail Mount 30A/300V 4x3 Position Pluggable Terminal Block Distribution Module, OONO D-1553T
  • DIN Rail Mount 30A/300V 4x3 Position Pluggable Terminal Block Distribution Module, OONO D-1553T
  • DIN Rail Mount 30A/300V 4x3 Position Pluggable Terminal Block Distribution Module, OONO D-1553T
  • DIN Rail Mount 30A/300V 4x3 Position Pluggable Terminal Block Distribution Module, OONO D-1553T
  • DIN Rail Mount 30A/300V 4x3 Position Pluggable Terminal Block Distribution Module, OONO D-1553T
  • DIN Rail Mount 30A/300V 4x3 Position Pluggable Terminal Block Distribution Module, OONO D-1553T
  • DIN Rail Mount 30A/300V 4x3 Position Pluggable Terminal Block Distribution Module, OONO D-1553T
1/1
  • DIN Rail Mount 30A/300V 4x3 Position Pluggable Terminal Block Distribution Module, OONO D-1553T
  • DIN Rail Mount 30A/300V 4x3 Position Pluggable Terminal Block Distribution Module, OONO D-1553T
  • DIN Rail Mount 30A/300V 4x3 Position Pluggable Terminal Block Distribution Module, OONO D-1553T
  • DIN Rail Mount 30A/300V 4x3 Position Pluggable Terminal Block Distribution Module, OONO D-1553T
  • DIN Rail Mount 30A/300V 4x3 Position Pluggable Terminal Block Distribution Module, OONO D-1553T
  • DIN Rail Mount 30A/300V 4x3 Position Pluggable Terminal Block Distribution Module, OONO D-1553T
  • DIN Rail Mount 30A/300V 4x3 Position Pluggable Terminal Block Distribution Module, OONO D-1553T
  • DIN Rail Mount 30A/300V 4x3 Position Pluggable Terminal Block Distribution Module, OONO D-1553T
  • Description
1, DIN rail mount 30Amp 300V 4x3 position screw terminal block distribution module.
2, Terminal block INLET A / B / C positions, maximum current 30Amp(each position), maximum voltage 300V. Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4mm square. Strip length 8mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
3, Terminal blocks OUT-1 to OUT-4 A / B / C positions, pluggable screw terminal blocks, maximum current 20Amp(each position), maximum voltage 300V. Pitch 7.62mm/0.3", Wire range 28AWG ~ 12AWG / 2.5mm square. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.

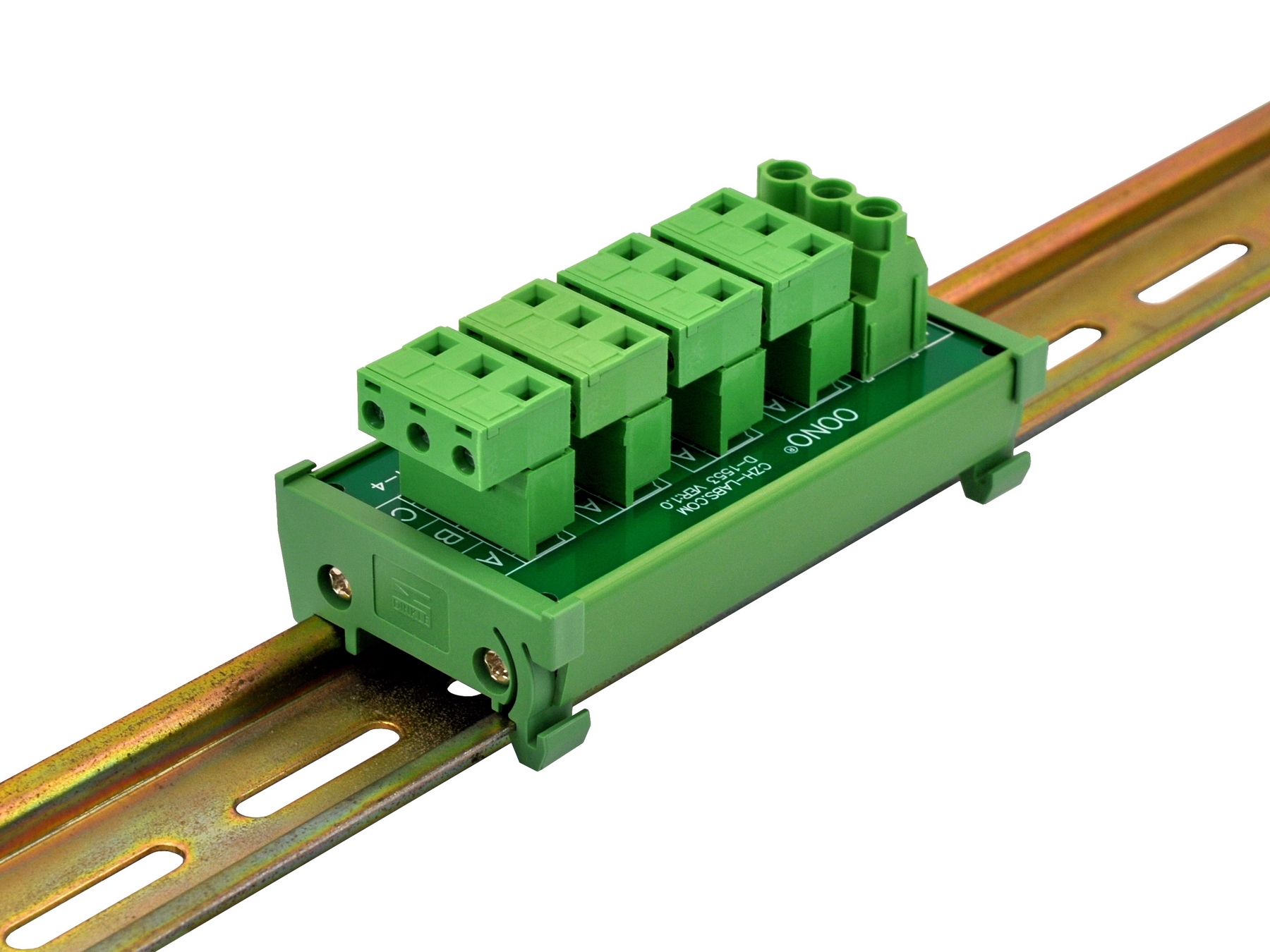

4, High quality fireproof nylon material DIN rail mount carrier, can support width 35mm rail.
5, FR-4 fiberglass dual copper layers PCB, UL 94-V0 certified PCB. UL CE CQC certified terminal blocks. UL CE certified nylon material mount carrier.
