DIN Rail Mount 30A/300V 12 Position Screw Terminal Block Distribution Module

SKU: D-1373T
$13.90 $13.90
DIN Rail Mount 30A/300V 12 Position Screw Terminal Block Distribution Module
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $13.9 = $13.9
save $0.00
Add to Favorites
  • DIN Rail Mount 30A/300V 12 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 30A/300V 12 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 30A/300V 12 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 30A/300V 12 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 30A/300V 12 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 30A/300V 12 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 30A/300V 12 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 30A/300V 12 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 30A/300V 12 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 30A/300V 12 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 30A/300V 12 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 30A/300V 12 Position Screw Terminal Block Distribution Module
1/1
  • DIN Rail Mount 30A/300V 12 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 30A/300V 12 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 30A/300V 12 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 30A/300V 12 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 30A/300V 12 Position Screw Terminal Block Distribution Module
  • DIN Rail Mount 30A/300V 12 Position Screw Terminal Block Distribution Module
  • Description

1, DIN Rail Mount 30A/300V 12 Position Screw Terminal Block Distribution Module.
2, Terminal Block: Pitch 7.62mm/0.3", Strip length 8mm. Screws - M3,steel,Cr3+ Zn plated. Pin header and Cage - Brass.
3, Wire range 26AWG ~ 10AWG / 4.0mm square. Rated voltage 300V, rated current 30Amp(per position).

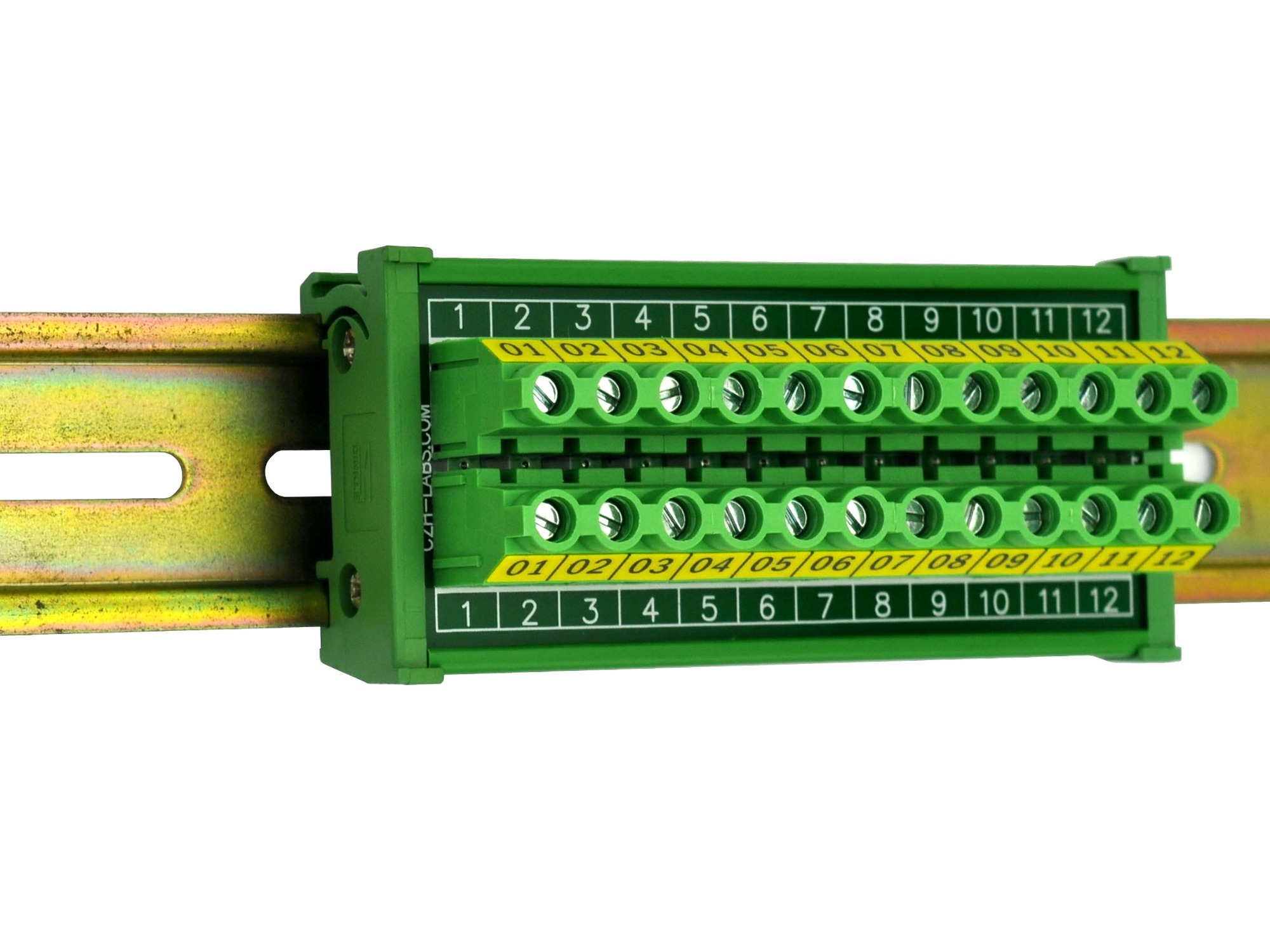

4, High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm rail.

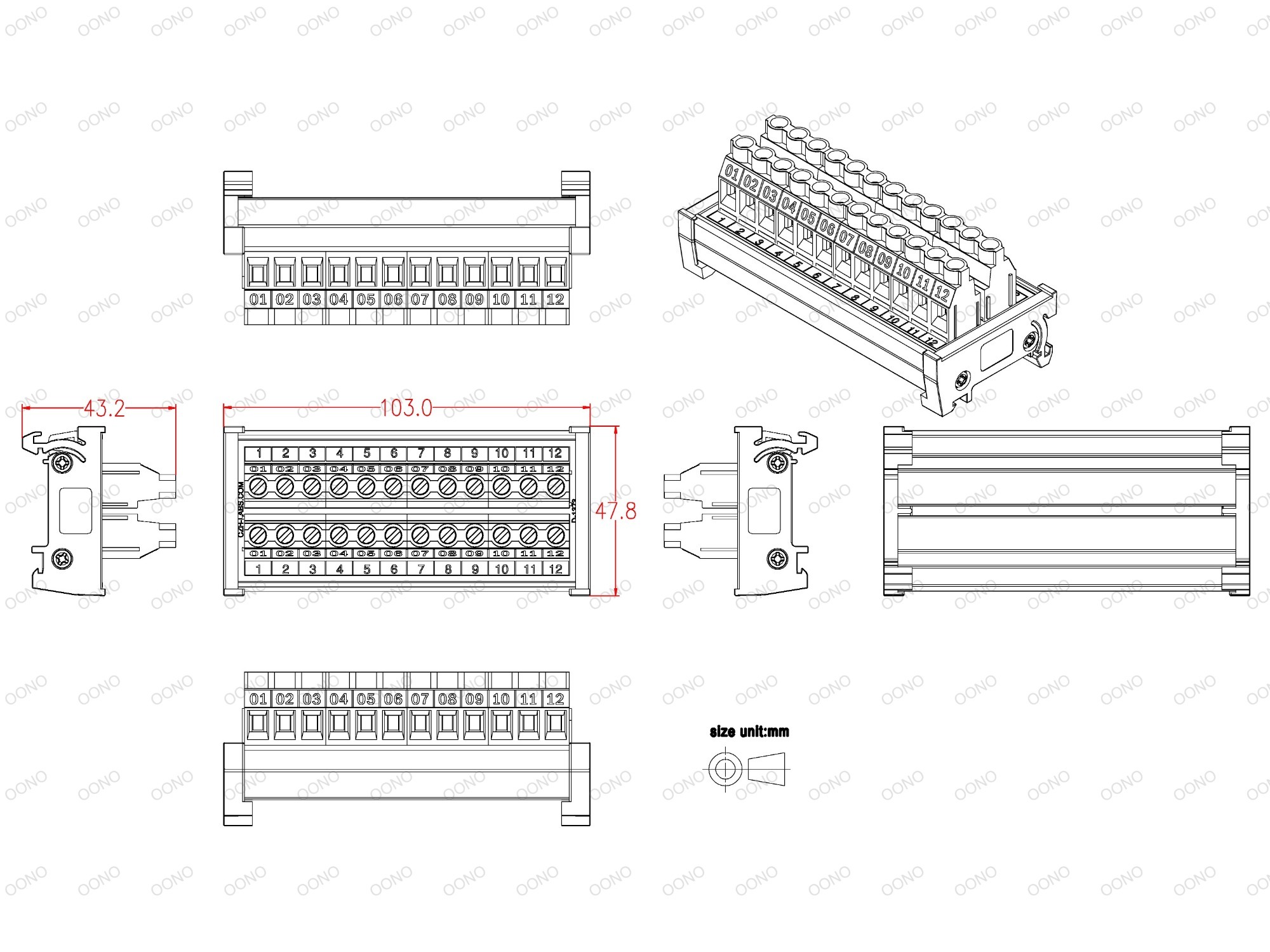

5, External dimensions: L103mm x W47.8mm x H37.3mm / 4.05" x 1.89" x 1.47"
