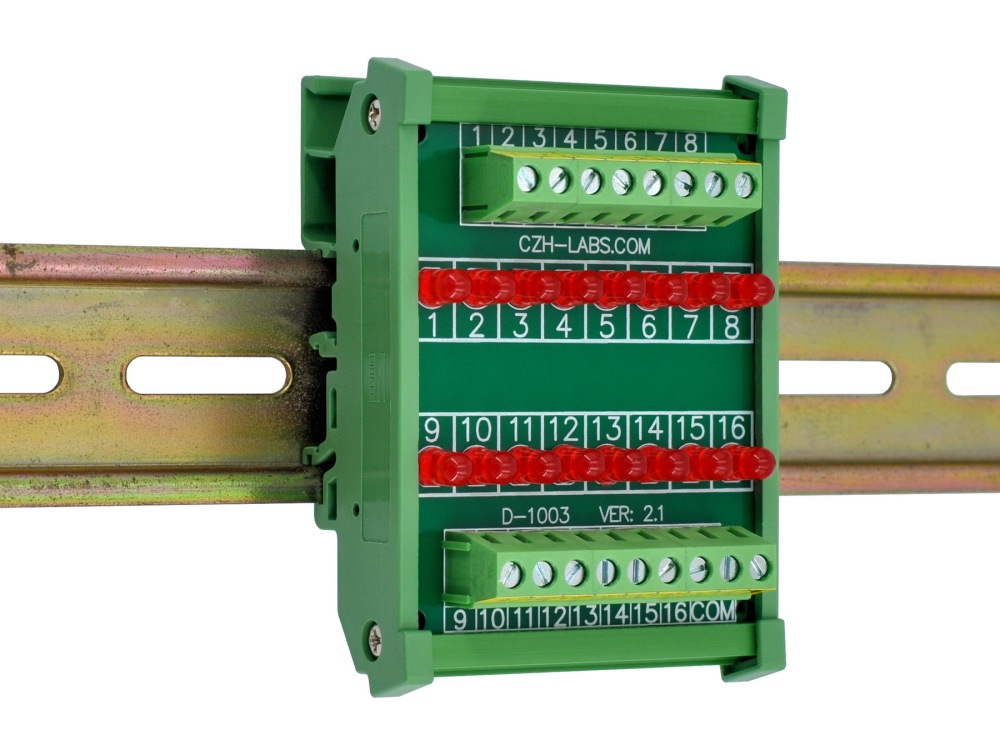

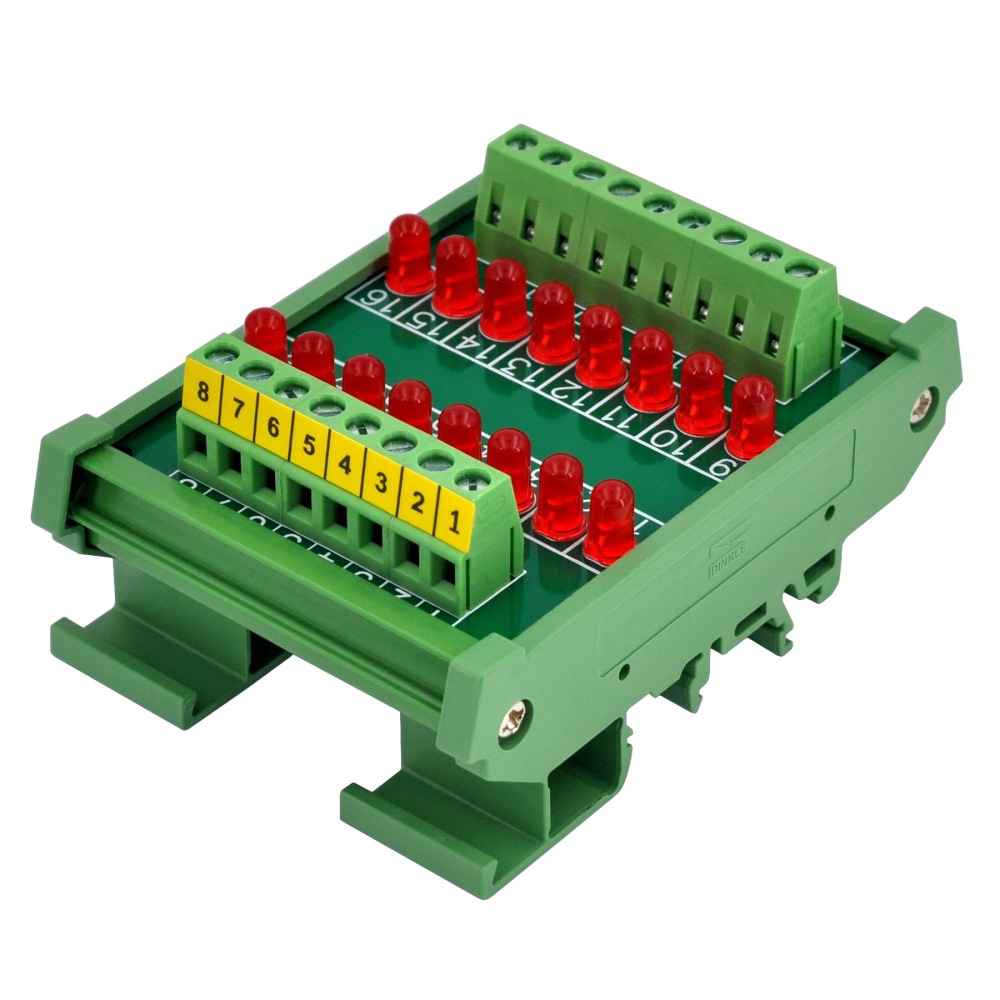

DIN Rail Mount 16 LEDs Indicator Light Module, Red, Support 5~50VDC Common Positive/Negative

SKU: D-1003T/RED
$19.90 $19.90
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $19.9 = $19.9
save $0.00
Add to Favorites
  • DIN Rail Mount 16 LEDs Indicator Light Module, Red, Support 5~50VDC Common Positive/Negative
  • DIN Rail Mount 16 LEDs Indicator Light Module, Red, Support 5~50VDC Common Positive/Negative
  • DIN Rail Mount 16 LEDs Indicator Light Module, Red, Support 5~50VDC Common Positive/Negative
  • DIN Rail Mount 16 LEDs Indicator Light Module, Red, Support 5~50VDC Common Positive/Negative
  • DIN Rail Mount 16 LEDs Indicator Light Module, Red, Support 5~50VDC Common Positive/Negative
  • DIN Rail Mount 16 LEDs Indicator Light Module, Red, Support 5~50VDC Common Positive/Negative
  • DIN Rail Mount 16 LEDs Indicator Light Module, Red, Support 5~50VDC Common Positive/Negative
  • DIN Rail Mount 16 LEDs Indicator Light Module, Red, Support 5~50VDC Common Positive/Negative
  • DIN Rail Mount 16 LEDs Indicator Light Module, Red, Support 5~50VDC Common Positive/Negative
  • DIN Rail Mount 16 LEDs Indicator Light Module, Red, Support 5~50VDC Common Positive/Negative
  • DIN Rail Mount 16 LEDs Indicator Light Module, Red, Support 5~50VDC Common Positive/Negative
  • DIN Rail Mount 16 LEDs Indicator Light Module, Red, Support 5~50VDC Common Positive/Negative
  • DIN Rail Mount 16 LEDs Indicator Light Module, Red, Support 5~50VDC Common Positive/Negative
  • DIN Rail Mount 16 LEDs Indicator Light Module, Red, Support 5~50VDC Common Positive/Negative
1/1
  • DIN Rail Mount 16 LEDs Indicator Light Module, Red, Support 5~50VDC Common Positive/Negative
  • DIN Rail Mount 16 LEDs Indicator Light Module, Red, Support 5~50VDC Common Positive/Negative
  • DIN Rail Mount 16 LEDs Indicator Light Module, Red, Support 5~50VDC Common Positive/Negative
  • DIN Rail Mount 16 LEDs Indicator Light Module, Red, Support 5~50VDC Common Positive/Negative
  • DIN Rail Mount 16 LEDs Indicator Light Module, Red, Support 5~50VDC Common Positive/Negative
  • DIN Rail Mount 16 LEDs Indicator Light Module, Red, Support 5~50VDC Common Positive/Negative
  • DIN Rail Mount 16 LEDs Indicator Light Module, Red, Support 5~50VDC Common Positive/Negative
  • Description
16 Channels LED Indicator Light Module.
Operating voltage: 5 ~ 50VDC. Diameter 5mm LEDs.
Color: Red.
Support Common Positive and Common Negative control modes.
Terminal Block: Pitch 5.0mm/0.197" screw terminal blocks. Wire range 26 to 12AWG / 2.5mm square. Strip length 7mm / 0.28" Screws - M2.5, steel, Cr3+ Zn plated. Pin header and Cage - Brass. FR-4 fiber glass PCB.
High quality Taiwan DINKLE Fireproof nylon material DIN rail mount carrier, can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.

Drive current (one LED):
At 5VDC: 0.3mA
At 12VDC: 1mA
At 24VDC: 2.2mA
At 48VDC: 4.6mA
