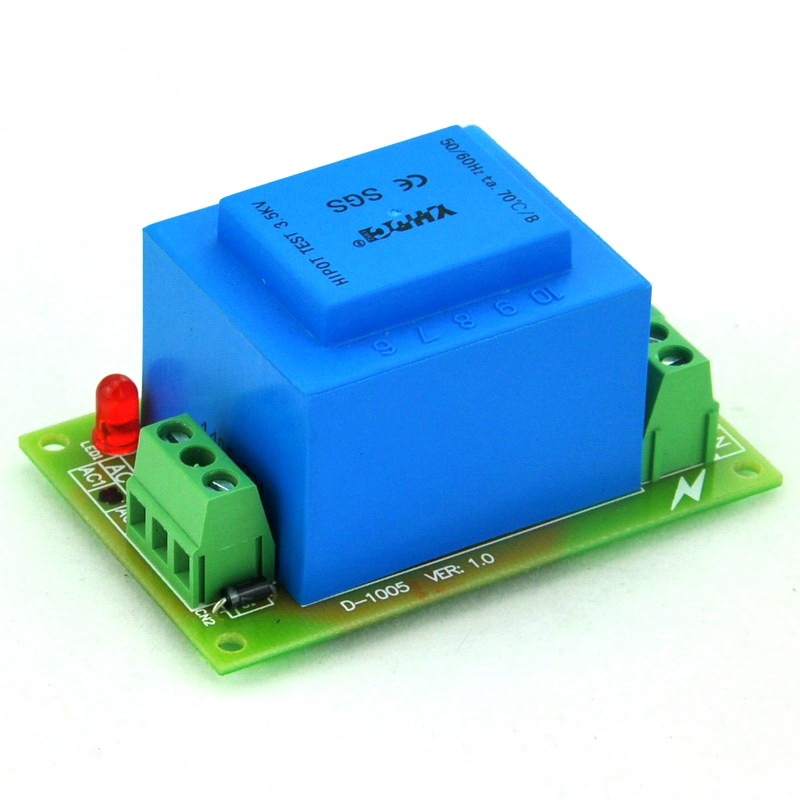

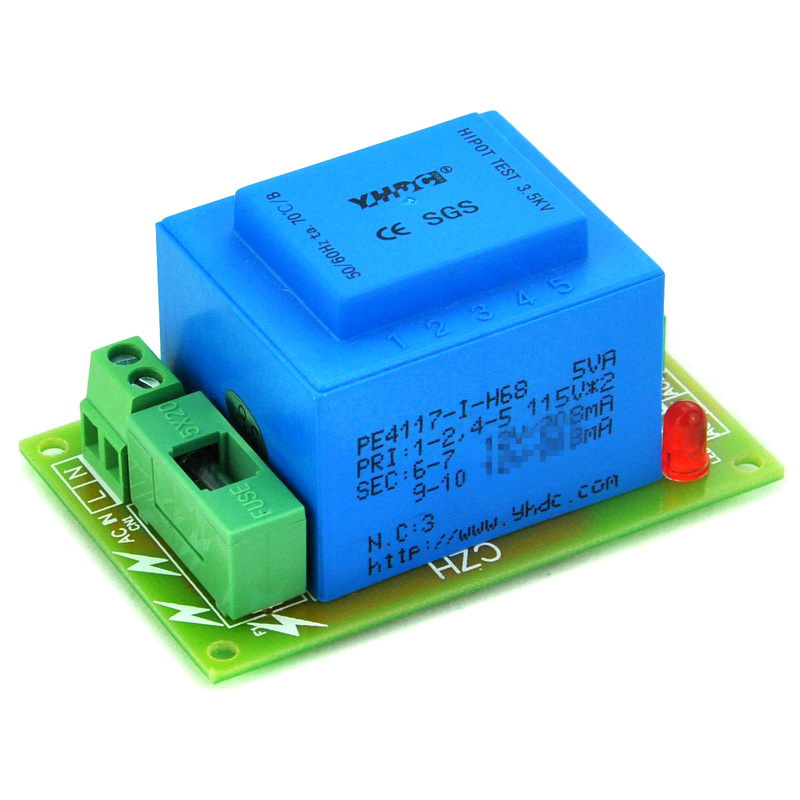

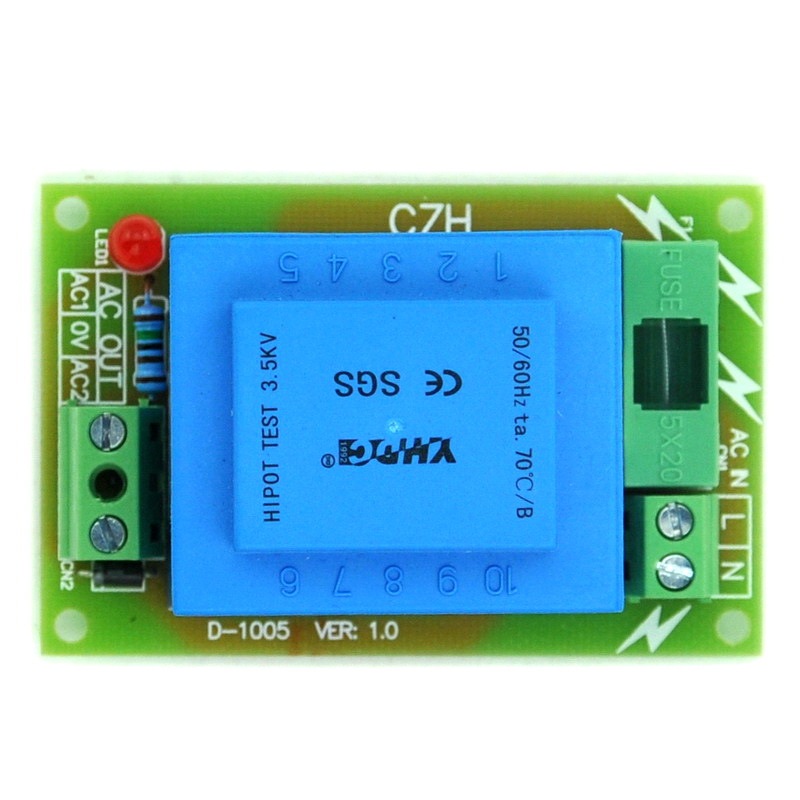

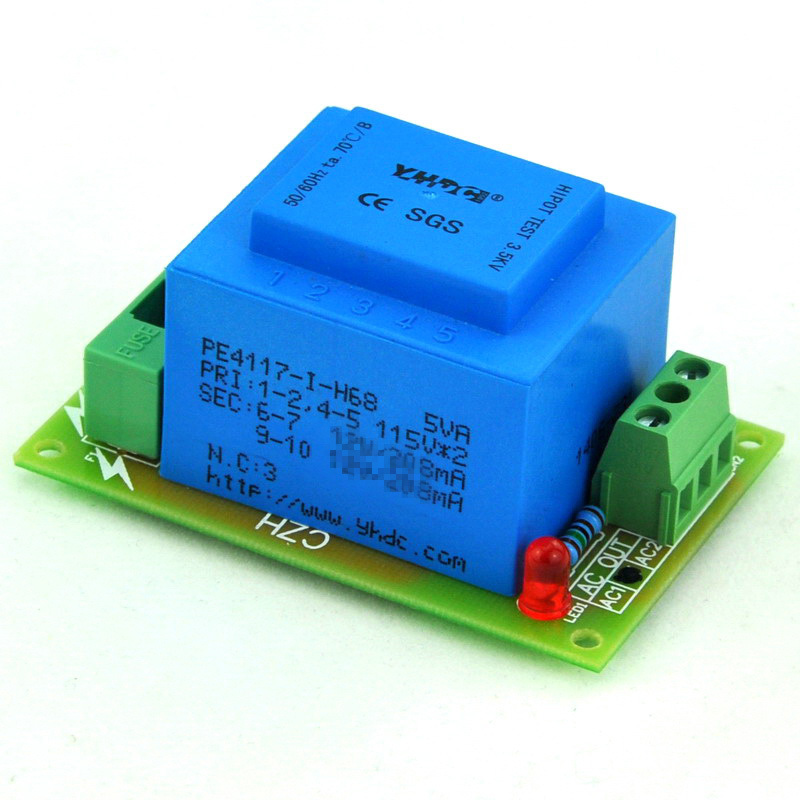

CZH Primary 230VAC, Secondary 24VAC, 5VA Power Transformer Module, D-1005/M, AC24V.

SKU: D-1005/M
$15.00 $15.00
CZH Primary 230VAC, Secondary 24VAC, 5VA Power Transformer Module, D-1005/M, AC24V.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
1 * $15 = $15
save $0.00
Add to Favorites
  • CZH Primary 230VAC, Secondary 24VAC, 5VA Power Transformer Module, D-1005/M, AC24V.
  • CZH Primary 230VAC, Secondary 24VAC, 5VA Power Transformer Module, D-1005/M, AC24V.
  • CZH Primary 230VAC, Secondary 24VAC, 5VA Power Transformer Module, D-1005/M, AC24V.
  • CZH Primary 230VAC, Secondary 24VAC, 5VA Power Transformer Module, D-1005/M, AC24V.
  • CZH Primary 230VAC, Secondary 24VAC, 5VA Power Transformer Module, D-1005/M, AC24V.
  • CZH Primary 230VAC, Secondary 24VAC, 5VA Power Transformer Module, D-1005/M, AC24V.
  • CZH Primary 230VAC, Secondary 24VAC, 5VA Power Transformer Module, D-1005/M, AC24V.
  • CZH Primary 230VAC, Secondary 24VAC, 5VA Power Transformer Module, D-1005/M, AC24V.
  • CZH Primary 230VAC, Secondary 24VAC, 5VA Power Transformer Module, D-1005/M, AC24V.
  • CZH Primary 230VAC, Secondary 24VAC, 5VA Power Transformer Module, D-1005/M, AC24V.
  • CZH Primary 230VAC, Secondary 24VAC, 5VA Power Transformer Module, D-1005/M, AC24V.
  • CZH Primary 230VAC, Secondary 24VAC, 5VA Power Transformer Module, D-1005/M, AC24V.
1/1
  • CZH Primary 230VAC, Secondary 24VAC, 5VA Power Transformer Module, D-1005/M, AC24V.
  • CZH Primary 230VAC, Secondary 24VAC, 5VA Power Transformer Module, D-1005/M, AC24V.
  • CZH Primary 230VAC, Secondary 24VAC, 5VA Power Transformer Module, D-1005/M, AC24V.
  • CZH Primary 230VAC, Secondary 24VAC, 5VA Power Transformer Module, D-1005/M, AC24V.
  • CZH Primary 230VAC, Secondary 24VAC, 5VA Power Transformer Module, D-1005/M, AC24V.
  • CZH Primary 230VAC, Secondary 24VAC, 5VA Power Transformer Module, D-1005/M, AC24V.
  • Description
5VA Power transformer module, panel mount version.
Primary input: 210~250VAC 50/60Hz.
Secondary output voltage/current: 24VAC / 208mA.
Part number: D-1005/M

Feature:
With primary input fuse, fuse holder easy to replace the fuse.
Epoxy resin encapsulated safety isolating transformer.
Screw terminal block easy to connect wires.
Output power indicator LED.

Power transformer characteristic:
Epoxy resin cast in vacuum.
Fire resistance property in accordance with UL94-V0.
Dielectric strength: 3500V/1min.
Work frequency: 50 ~ 60Hz.
No-load current <=20mA, no-load loss <=0.5 watt.
Insulation grade: grade B.
Temperature rise: <= 22C.
