CZH P 230VAC, S 2x 15VAC, 5VA DIN Rail Mount Power Transformer Module, D-1005T/Q.

SKU: D-1005T/Q
$20.70 $23.00
CZH P 230VAC, S 2x 15VAC, 5VA DIN Rail Mount Power Transformer Module, D-1005T/Q.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
10% Off
10-99
20% Off
100-10000
    Please select the information you wantX
Quantity:
10 * $20.7 = $207
save $0.00
Add to Favorites
  • CZH P 230VAC, S 2x 15VAC, 5VA DIN Rail Mount Power Transformer Module, D-1005T/Q.
  • CZH P 230VAC, S 2x 15VAC, 5VA DIN Rail Mount Power Transformer Module, D-1005T/Q.
  • CZH P 230VAC, S 2x 15VAC, 5VA DIN Rail Mount Power Transformer Module, D-1005T/Q.
  • CZH P 230VAC, S 2x 15VAC, 5VA DIN Rail Mount Power Transformer Module, D-1005T/Q.
  • CZH P 230VAC, S 2x 15VAC, 5VA DIN Rail Mount Power Transformer Module, D-1005T/Q.
  • CZH P 230VAC, S 2x 15VAC, 5VA DIN Rail Mount Power Transformer Module, D-1005T/Q.
  • CZH P 230VAC, S 2x 15VAC, 5VA DIN Rail Mount Power Transformer Module, D-1005T/Q.
  • CZH P 230VAC, S 2x 15VAC, 5VA DIN Rail Mount Power Transformer Module, D-1005T/Q.
  • CZH P 230VAC, S 2x 15VAC, 5VA DIN Rail Mount Power Transformer Module, D-1005T/Q.
  • CZH P 230VAC, S 2x 15VAC, 5VA DIN Rail Mount Power Transformer Module, D-1005T/Q.
  • CZH P 230VAC, S 2x 15VAC, 5VA DIN Rail Mount Power Transformer Module, D-1005T/Q.
  • CZH P 230VAC, S 2x 15VAC, 5VA DIN Rail Mount Power Transformer Module, D-1005T/Q.
  • CZH P 230VAC, S 2x 15VAC, 5VA DIN Rail Mount Power Transformer Module, D-1005T/Q.
  • CZH P 230VAC, S 2x 15VAC, 5VA DIN Rail Mount Power Transformer Module, D-1005T/Q.
  • CZH P 230VAC, S 2x 15VAC, 5VA DIN Rail Mount Power Transformer Module, D-1005T/Q.
  • CZH P 230VAC, S 2x 15VAC, 5VA DIN Rail Mount Power Transformer Module, D-1005T/Q.
1/1
  • CZH P 230VAC, S 2x 15VAC, 5VA DIN Rail Mount Power Transformer Module, D-1005T/Q.
  • CZH P 230VAC, S 2x 15VAC, 5VA DIN Rail Mount Power Transformer Module, D-1005T/Q.
  • CZH P 230VAC, S 2x 15VAC, 5VA DIN Rail Mount Power Transformer Module, D-1005T/Q.
  • CZH P 230VAC, S 2x 15VAC, 5VA DIN Rail Mount Power Transformer Module, D-1005T/Q.
  • CZH P 230VAC, S 2x 15VAC, 5VA DIN Rail Mount Power Transformer Module, D-1005T/Q.
  • CZH P 230VAC, S 2x 15VAC, 5VA DIN Rail Mount Power Transformer Module, D-1005T/Q.
  • CZH P 230VAC, S 2x 15VAC, 5VA DIN Rail Mount Power Transformer Module, D-1005T/Q.
  • CZH P 230VAC, S 2x 15VAC, 5VA DIN Rail Mount Power Transformer Module, D-1005T/Q.
  • Description

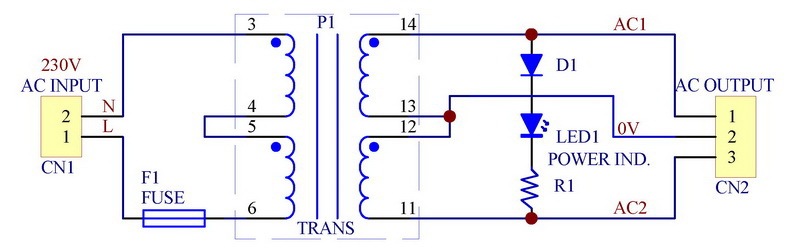

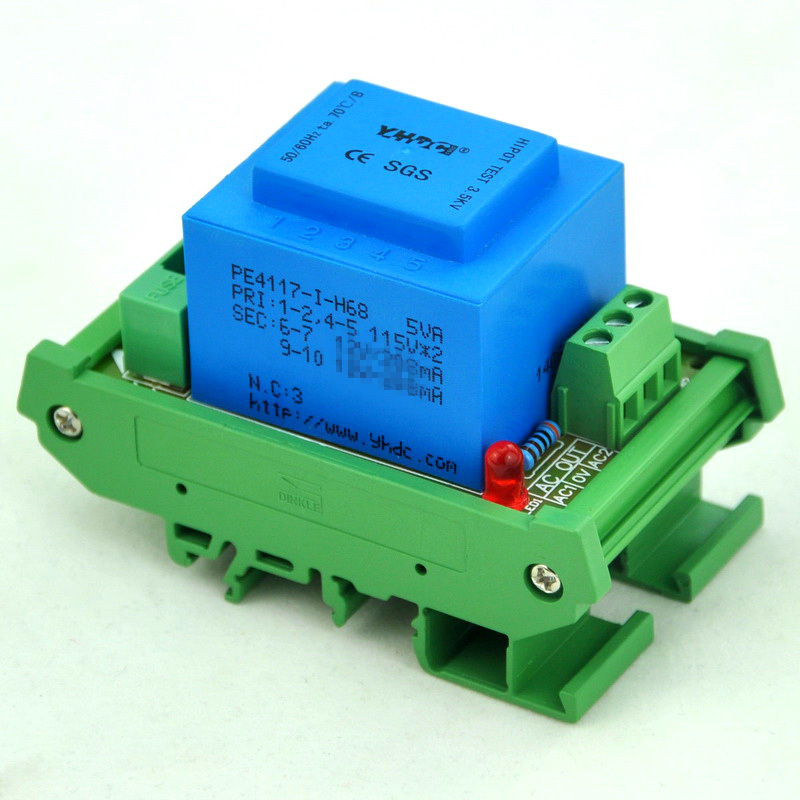

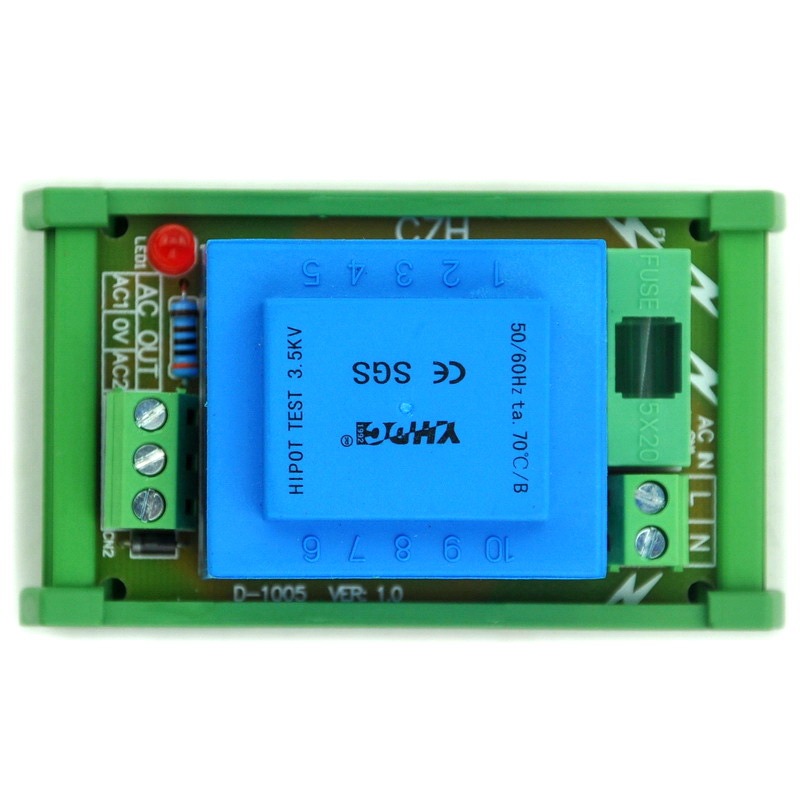

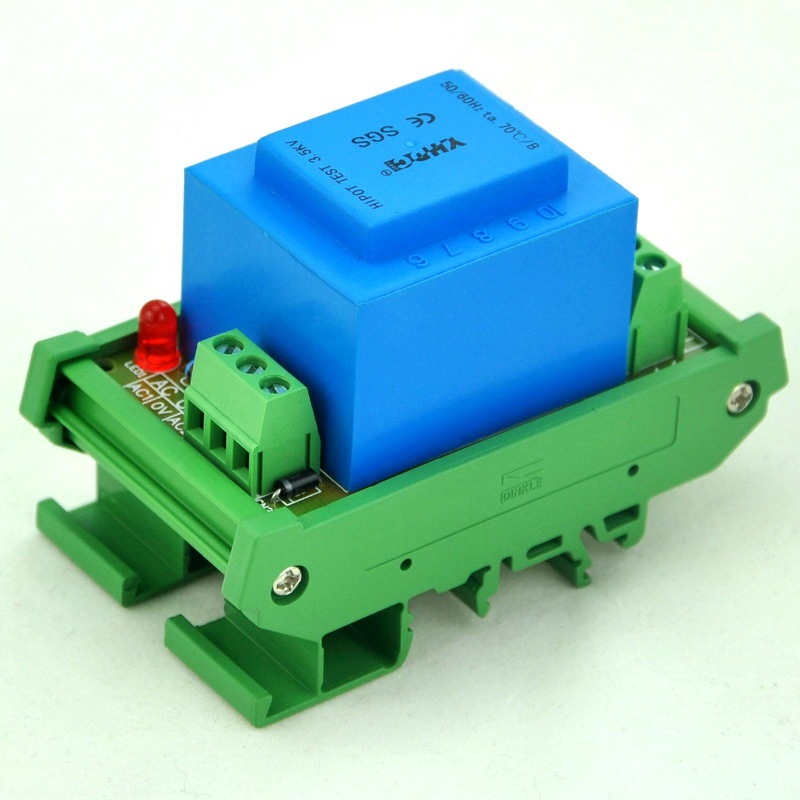

5VA Power transformer module, DIN rail mount version.
Primary input: 210~250VAC 50/60Hz.
Secondary output voltage/current: 2x 15VAC / 2x 166mA.
Part number: D-1005T/Q

Feature:

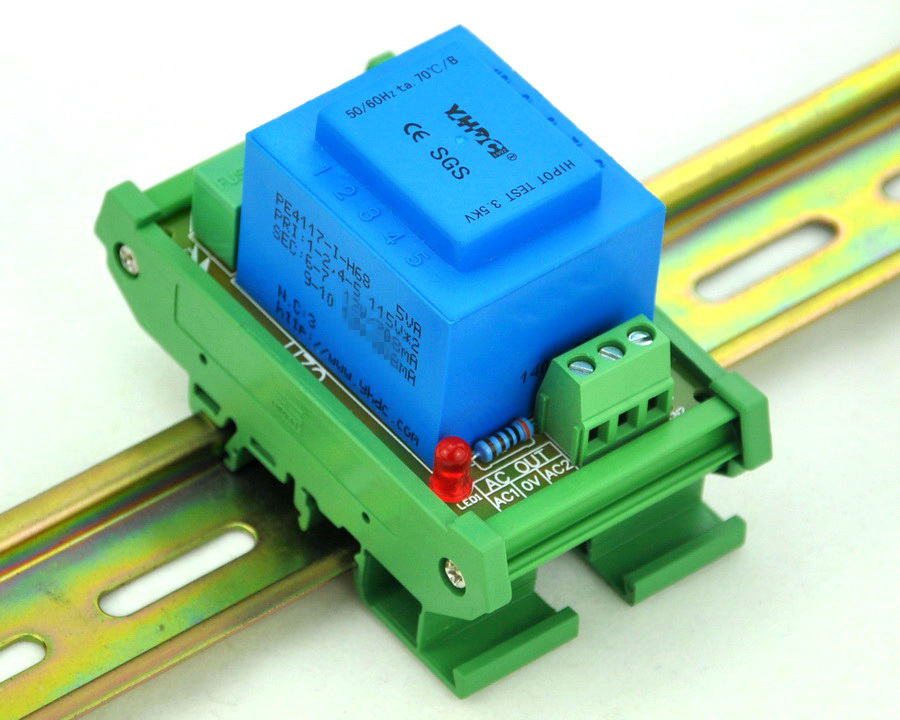

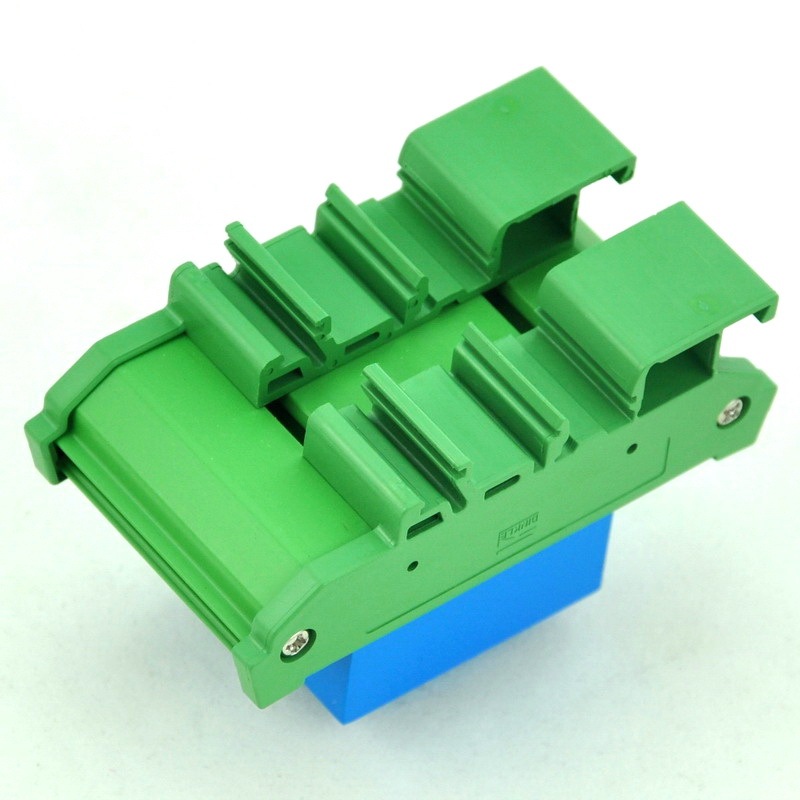

DIN rail mount or panel mount to selectable, DIN rail carrier can support width 35mm / 32mm / 15mm rail.

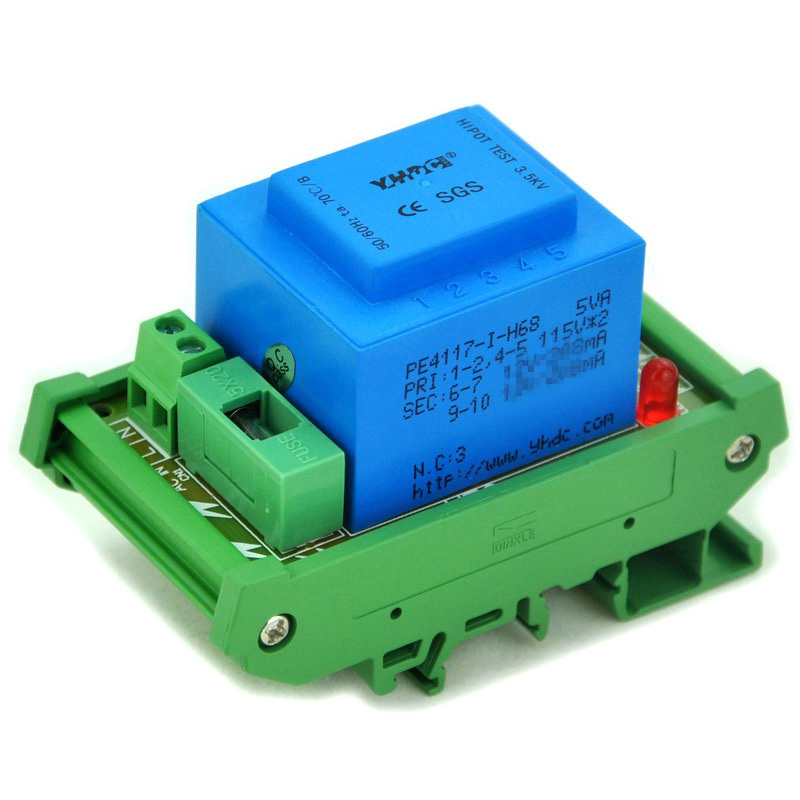

With primary input fuse, fuse holder easy to replace the fuse.
Epoxy resin encapsulated safety isolating transformer.
Screw terminal block easy to connect wires.
Output power indicator LED.

Power transformer characteristic:
Epoxy resin cast in vacuum.
Fire resistance property in accordance with UL94-V0.
Dielectric strength: 3500V/1min.
Work frequency: 50 ~ 60Hz.
No-load current <=20mA, no-load loss <=0.5 watt.
Insulation grade: grade B.
Temperature rise: <= 22C.
